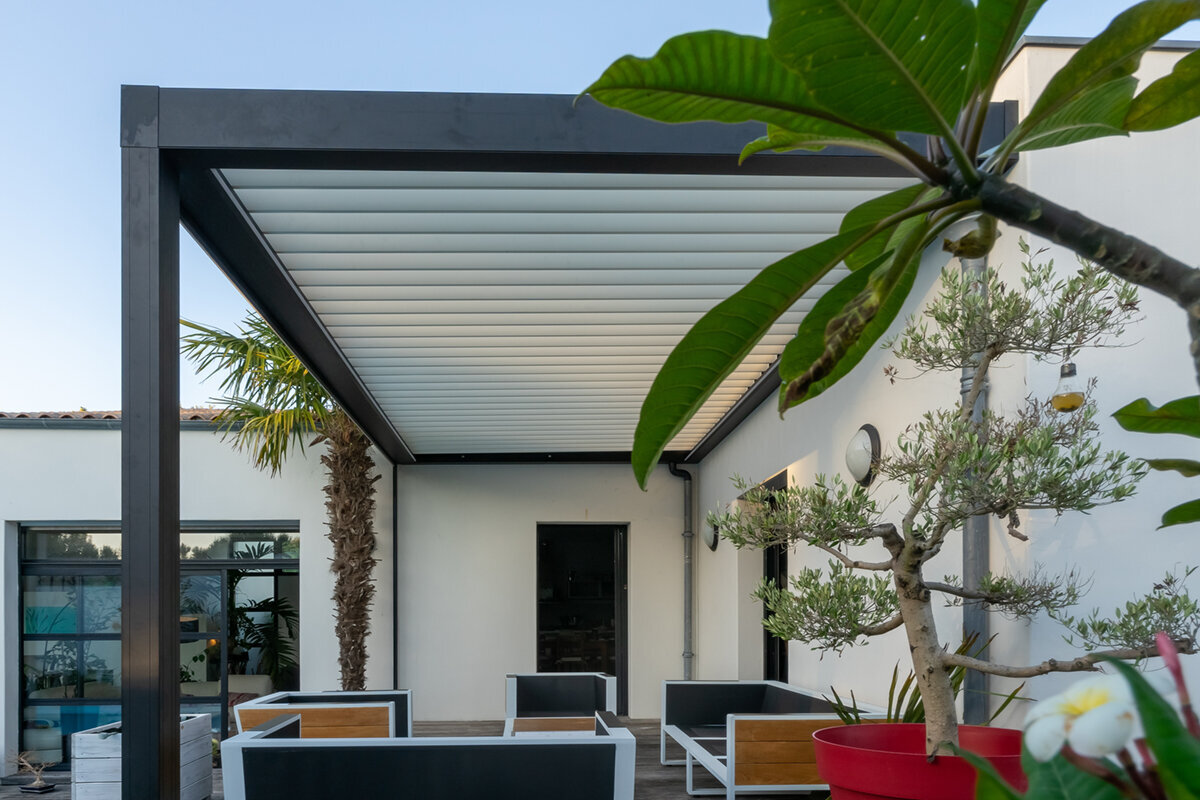

Choosing a sturdy pergola: what matters in the build

You cannot identify a sturdy aluminium pergola from one component alone. What matters is how the frame, posts, fixings, roof and ground are planned as one system. This guide helps you interpret technical information sensibly and ask the right questions before buying.

When selecting a pergola, it is natural to look first at size, colour and roof type. For lasting use, however, the less visible points are at least as important: the dimensions of load-bearing profiles, the number and placement of posts, the design of connection points and the anchoring into the ground. Their interaction determines whether a structure suits its intended site and use.

There is no universal shortcut to a “sturdy pergola”. A generous footprint makes different demands from a compact seating area, and a freestanding structure differs from one close to a building. Snow, wind, drainage, side equipment and the nature of the patio also influence planning. Read product information in the context of the configuration and installation.

Take a structured approach: define the use and site, compare more than photographs, and have the construction-relevant details explained. This article outlines what matters for an aluminium pergola, which questions belong in a quote, and when professional help with foundations or fixing is particularly useful.

Core principle · 01

Assess the whole structure

Stability starts with the load path. Forces from the roof pass through crossbeams and the frame into the posts, then into the anchoring. If assumptions fail at any point, such as at the foundation or after a later extension, an otherwise robust component may not perform as intended. Ask not only about materials, but about the complete construction principle.

Aluminium is widely used for pergolas, but the material name alone says little about the design. Profile geometry, cross-sections, spans and the structural coordination of components matter more. Review technical documents for the exact size you want. A smaller example configuration cannot automatically be transferred to a larger roof area.

• Compare only systems with the same width, depth, roof design and planned additional equipment.
• Ask for technical information to be clearly assigned to your specific configuration.

If you are considering an adjustable roof concept, view bioclimatic aluminium pergolas as a dedicated system solution.

Frame · 02

Put profiles in context

Profiles form the load-bearing frame of an aluminium pergola. Their job is to receive loads, transfer them through the structure and maintain the system's geometry. The pergola's width and depth change the demands on crossbeams. Cantilevers, roof overhangs and connections to other building elements can also increase requirements. Do not compare visible profile thicknesses from product images alone.

It also matters how profiles work together. A frame may be sensibly reinforced, divided or supplemented with extra supports. These solutions are not a disadvantage; they may suit the desired size and local situation. Ask which elements are load-bearing and whether planned side walls, screens or lighting affect the configuration. The documented system logic remains decisive.

• Check whether technical drawings clearly show post positions, frame components and roof construction.
• Never judge visible material thickness separately from span, connection and intended use.

For a fixed roofing concept, explore classic aluminium pergolas with different frame layouts.

Load transfer · 03

Plan posts and foundations together

Posts form the link between the structure and the ground. They must reliably transfer forces from frame and roof into the anchoring. Their position affects not only appearance and freedom of movement, but also the load path. Look closely at the support grid, especially at corners, across large spans or with side additions. Do not move posts simply as desired without checking approval for the altered plan.

An existing patio is not automatically a load-bearing base. Surface finishes, build-up depth, pavers and layers underneath can differ greatly. Fixings must suit the actual ground and proposed structure. Clarify before ordering whether foundations are required and which conditions apply. Where uncertain, a qualified professional can assess the existing ground and suitable solution.

• Identify services, falls, drainage channels and possible obstacles in the fixing area early.
• Document the ground build-up and dimensions so fixing questions can be resolved before installation.

For systems with adjustable roof elements, align the post layout of bioclimatic pergola models carefully with your seating area.

Connection points · 04

Connections deserve close attention

Profiles, posts and roof components meet at connections. Here it is decided whether the structure can transfer its forces clearly and remain accurately assembled over time. Look for a complete system of specified connection parts and fixings. Improvised frame alterations or uncoordinated components can complicate installation and should be clarified with the appropriate professionals beforehand.

The installation sequence also matters. Frames are aligned, posts set plumb and connection points fixed according to installation instructions. A level starting surface makes precise work easier, but does not replace careful checking. Allow enough access around the work area. Components can then be handled safely and fixings remain accessible for maintenance or inspection.

• Ask which connection parts are included with your selected configuration and where they are used.
• Have alignment, diagonals and post plumb checked before final fixing.

If you prefer a clean roofline, compare standard aluminium pergolas by their intended frame connections.

Roof structure · 05

The roof system affects structural performance

The roof is more than a design feature; it is a key part of the construction. It adds dead weight, distributes applied loads and affects how water is directed. Depending on the design, louvres, fixed roof surfaces or textile elements may require different frame and drainage solutions. Ensure roof and supporting structure are described as a matched design, not as freely interchangeable individual parts.

Bloomcabin pergolas are designed for snow loads of up to 210 kg/m², depending on the individual product configuration, installation requirements and operating instructions. This information does not replace site-specific planning. Check which weather conditions need consideration at your location, follow directions for use and care, and manage snow loads where required. Ask specifically about the suitable configuration if unsure.

• Compare roof systems for load transfer, water management, operation and regular maintenance requirements.
• Clarify whether planned accessories affect the roof design or the drainage of rainwater.

For controllable light and ventilation, consider bioclimatic pergolas with louvred roofs together with their supporting frame.

Site · 06

Assess weather and surroundings realistically

A sheltered courtyard, exposed roof terrace and open garden edge make different demands. Buildings, walls and planting can alter local wind flows, while also restricting installation access. View the site at different times of day and note open sides, falls and water routes. These observations help you discuss the pergola position and possible additions objectively.

Also consider distances from the house façade, boundaries, trees and technical equipment. Not only the final position matters, but also room for installation, maintenance and cleaning. Where the pergola is close to a building, connections and drainage need particularly careful planning. Check building-consent and resource-consent requirements, district-plan controls and the proposed use with your local council.

• Measure the area several times and allow for doors, opening windows, downpipes and planned walkways.
• For a boundary or building-adjacent site, discuss local requirements early with the relevant council.

For open garden areas, compare traditional aluminium pergolas as a clearly defined roof solution.

Equipment · 07

Plan extensions from the start

Side elements, screens, lighting and other additions change how a pergola is used. They can also affect installation, cable routing, operating space and the components under load. Do not wait until after installation to decide which features will matter. Forward planning keeps fixing points, electrical supply and access clear without compromising the structure through unverified retrofits.

A priority list is especially useful: what must the pergola do on day one, and what should be possible later? This indicates which options should be considered during configuration. Ask for confirmation that desired additions are intended for the selected model. Electrical components require professional planning and installation as part of a safe overall concept.

• Note desired side closures, light sources and operating options at the first planning discussion.
• Include permanent maintenance access for the roof, drainage and technical components.

When roof comfort and later equipment need to work together, bioclimatic aluminium pergola systems offer a planning-intensive alternative.

Buying decision · 08

Check documentation, installation and use

A well-founded buying decision relies on documents that clearly describe your specific system. These include dimensions, post layout, roof design, fixing requirements and installation instructions. Have your own site details ready and do not compare quotes solely by outward appearance. Ask about unresolved points before committing. This provides a stronger basis for measuring, preparing the ground and later use.

After installation, a pergola remains a building component requiring attention. Inspect it in line with manufacturer guidance, keep drainage routes clear and respond promptly to visible changes. Product-specific documents apply to installation, operation and care. If you want to alter an existing structure, fit extra parts or use the site differently, first assess the effects with a suitable professional.

• Keep configuration documents, installation instructions and fixing information together for later queries.
• For insurance questions, clarify your individual cover directly with your insurer rather than relying on general assumptions.

As a starting point for a clear comparison, consider classic aluminium pergolas in the footprint you need.

Comparison

Which construction questions belong in a comparison?

Use this overview as a basis for discussion, not as a substitute for technical documentation. Each answer should relate to the desired size, roof design, site and planned fixing. This makes it easier to see whether two quotes are genuinely comparable.

Five steps to the right pergola

Careful advance planning prevents crucial questions from arising only on site. Work from use and location through the system to installation preparation.

Checklist before ordering

These points help gather technical and practical questions in good time. Add features specific to your property and planned use.

Frequently asked questions about sturdy aluminium pergolas

Compare pergola systems

A system comparison for a confident choice

A sturdy aluminium pergola comes from a coherent overall structure, not one eye-catching feature. By considering profiles, posts, connections, roof and ground together, you can assess quotes more thoroughly and raise the necessary questions in good time.

Take time to record the site and compare configurations. Clear dimensions, a realistic description of use and the right technical documents provide a strong basis for your selection with Bloomcabin and the installation planning that follows.

Explore suitable designs and check the details for your planned outdoor area.
