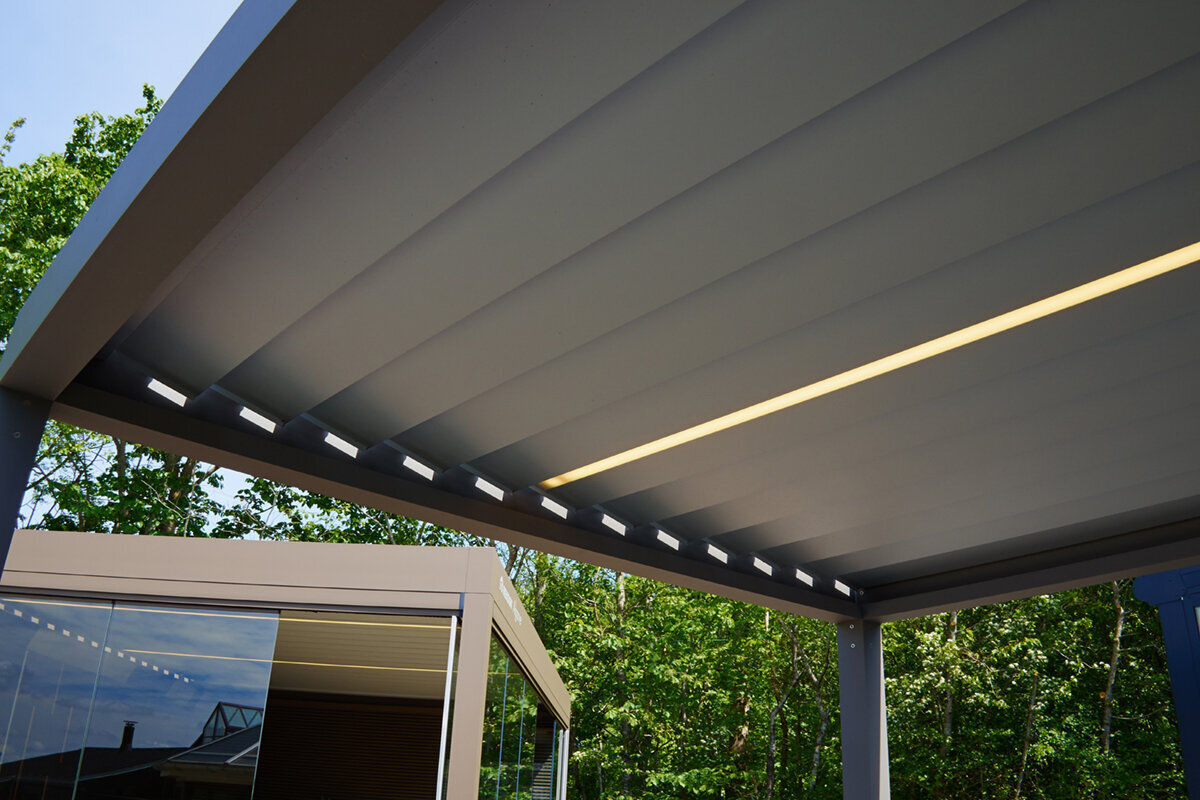

Pergolas for South- and West-Facing Patios: Managing Sun and Shade
Plan your patio thoughtfully
A pergola helps balance sun and shade on south- and west-facing patios.
In New Zealand, a south-facing patio may remain cooler while a west-facing one can become hot later in the day. The right aluminium pergola coordinates orientation, shade and furniture with everyday life, keeping the area comfortable as conditions change.
South- and west-facing sides can both suit outdoor living, but New Zealand’s sun path gives them different planning needs. A south-facing patio often receives less direct sun and may feel cool or shaded. A west-facing patio receives stronger, lower afternoon sun across seating, dining tables and the façade.
A pergola is more than a roof over a patio. It defines how an area is used and changes the way light, warmth and views are experienced. The goal is not to cover every square metre, but to match shading to the sun’s path, desired openness and the home’s architecture.
Early planning also considers walkways, door clearances, drainage, fixings and room for side shade. The result is a considered link between interior, patio and garden rather than something added as an afterthought. This guide covers the questions that matter when choosing an aluminium pergola for sunny patios.
01 · Read the orientation
Understanding a south-facing patio through the day
In New Zealand, the sun tracks through the northern part of the sky, so a south-facing patio often receives less direct sunlight than a north-facing one. Its exposure still changes with season, rooflines, terrain and nearby buildings. Pale paving reflects light, while dark surfaces retain warmth. Observe both the shadow pattern and where the patio feels cool or warms during your usual outdoor times.
On this side, a pergola should define the main seating area without making the interior or patio needlessly dark. Roof direction, distance from the façade and covered depth shape both shade and daylight. An adjustable roof gives more freedom to admit light or add protection as conditions change, especially where the patio connects closely to the living room.
- On sunny days, mark shadow edges on the paving each hour; this reveals the roof depth you genuinely need.
- Include reflective glazing, pale walls and water, as they can noticeably intensify light beneath the pergola.
For changing light preferences, a bioclimatic aluminium pergola with an adjustable roof provides a precise basis for patio planning.
02 · Shape evening light
Why a west-facing patio needs different protection
A west-facing patio is often used when the sun is most disruptive: over a late meal, after-work conversation or children’s garden play. Light arrives at a flatter angle and reaches faces, tabletops and rooms from the side. A roof shades from above, but does not always block low sun adequately in every seating position.
Look along the west axis from the intended seat towards garden and house. Where does glare occur, which views should remain, and which side is already sheltered by planting or neighbouring buildings? Zoning one side can be more effective than closing several sides completely. The patio stays airy while exposed places become more comfortable.
- Do not assume the dining table belongs in the centre; a slight offset can greatly reduce direct evening sun and distracting reflections.
- Use pots or loose planting as supplementary filters, but do not rely on seasonal foliage alone for essential shade.
For a clearly defined, permanently open cover, consider a classic aluminium pergola for a west-facing patio with suitable protection at the exposed side.
03 · Respond flexibly
Adjustable shade for changing needs
An adjustable roof is not technology for its own sake; it responds to different patio moments. Morning light may be welcome, midday calls for shade, and in the evening you may want an open view of the sky. This variation is particularly clear on south- and west-facing patios. Choose a system whose operation suits your routine and that you will genuinely use regularly.
Also consider the transition between shade and a sense of space. Closed roof surfaces create a more defined outdoor room, while open elements retain lightness and daylight. The sun-facing direction of moving sections and seat placement below are key. Good planning considers not only maximum shade, but also when you deliberately want sunshine or brightness on the patio.
- Before choosing, set out three everyday scenarios: breakfast, lunch and evening time. Each may need a different light and shade setting.
- Keep circulation space clear so moving chairs or loungers does not leave people unexpectedly outside the shaded area.
Where sun, air and openness should remain variable, a bioclimatic pergola with flexibly controlled shade is a natural option.
04 · Create space, not leftover area
Choosing size and position with confidence
The right pergola size follows use, not simply the width of patio doors. Measure space for tables, chairs, pulled-back seating and paths to the garden. A lounge needs different circulation room from a dining table. Also consider future locations for an umbrella, barbecue or planters so the patio does not feel crowded later.
The relationship to the façade shapes the result. A pergola can frame a doorway, break up a long building or form a separate garden room. Check views from inside and from garden paths. A slightly offset arrangement is often stronger than a flush one because it keeps walkways open and places shade where it is actually needed.
- Lay out furniture using cardboard or masking tape at full size. Before buying, you can see whether chairs and paths retain enough room.
- Allow for open door leaves, windows and external shading so components and everyday movement do not clash.
A traditional aluminium pergola in the right patio size creates a calm architectural line.
05 · Side sun
Glare protection without closing in the patio
On a west-facing patio, a roof is often not enough because the sun travels low beneath the front roof edge. Side protection should therefore address the point where glare truly occurs. Observe critical sightlines from the dining table, lounge and house. Protecting one edge can work better than an enclosed structure and still preserve the garden connection.
On a south-facing patio, oblique morning or evening light may still enter from an open end, depending on season and surrounding buildings. Plan protection in layers only where needed: roof control for overhead sun, side elements for low glare and planting for a softer atmosphere. The outdoor room should not feel heavy or dark. Privacy screening and sun control need not serve the same purpose.
- Choose the side for additional shade by following the sun’s path, not only the boundary line or visual symmetry.
- Test screening ideas from seated height; what feels open standing up may be obstructive during a meal.
For layered shade, a bioclimatic aluminium pergola with an open-sided concept can integrate well into outdoor planning.
06 · Link house and garden
Consider façade, material and drainage
An aluminium pergola feels most coherent when it is not treated in isolation. Window lines, eaves, façade colour and paving suggest position and proportion. A clear, graphic line may suit a modern home; in an established garden, the structure may frame rather than dominate views. Bring samples of paving and façade finishes to planning so contrasts are intentional.
Address technical details early. Direct water away from seating, and use a suitable professional solution where the pergola meets the façade. Sound fixing points and suitable ground are equally important. Building or planning requirements may apply depending on the site and design, so discuss the specific proposal early with your council and appropriately qualified professionals.
- Record downpipes, access covers, outdoor lights and power outlets before fixing the pergola position; later alterations can be unnecessarily demanding.
- Check where surface water currently travels across the patio, especially on slight slopes or beside garden beds and lower-level entries.
A classic aluminium pergola as a façade accent can visibly connect architecture and garden space.
07 · Plan for daily life
Furniture, warmth and use beneath the roof
The pergola provides the frame, but furniture makes it a place to stay. Position a table or lounge around the real shade pattern and deliberately leave paths free. On sunny patios, choose materials that feel pleasant and are easy to maintain. A small side table, storage or landing spot by the door often improves use more than tightly packed furniture.
Thermal comfort depends on more than direct sunshine. Heated paving, glazing and sheltered corners can make a patio feel intense, while an open garden area remains more pleasant. Observe the whole setting. Plants add atmosphere but do not replace planned shade. Clear zones let dining, relaxing and play happen together without every activity requiring the same conditions.
- Choose seating so nobody permanently faces the evening sun; a small turn of the table can significantly improve comfort.
- Allow sunshine in one place if you enjoy it. Good patio planning does not remove every ray; it makes light controllable.
A bioclimatic pergola over the dining area supports a comfortable, adaptable patio zone.
08 · Decide with confidence
Review quotation and installation methodically
Before deciding, compare more than appearance. Record dimensions, preferred shade, connection type and possible side elements in writing so variants can be assessed fairly. Ask what ground works may be needed and what conditions apply to installation and use. A current quotation based on your property gives more clarity than broad assumptions about scope or cost.
Allow time for future operation and maintenance. How will you reach gutters, roof surfaces or hidden areas? Which parts must remain clear when furniture moves? For building requirements or existing home insurance, individual advice is decisive. Ask the relevant authority and insurer to review the proposed site and design before proceeding.
- Compare quotations using the same sketch and specification preferences; only then are differences in construction and installation understandable.
- Before work begins, ask for a joint check of access, ground and services so the intended location remains practically accessible.
If a clear, open structure is your aim, consider a standard aluminium pergola for sunny patios and assess it against your specific installation needs.
Comparison
South- or west-facing patio: planning priorities compared
Both orientations benefit from a well-considered cover, but their challenging sun positions differ. This table helps identify your planning priority. It does not replace an on-site assessment, as neighbouring buildings, trees and terrain change the actual shadow pattern.
| Planning aspect | South-facing patio | West-facing patio |
|---|---|---|
| Greatest exposure | Variable or limited direct sun, with cooler shaded periods. | Warm, low sun in the late afternoon. |
| Key protection | Adjustable cover that preserves daylight and optional shade. | Consider side glare control as well as the roof. |
| Furniture | Place seating within the core roof-shadow area. | Avoid facing directly into evening sun. |
| Open sides | Check seasonal, oblique sun and reflected light. | Check the west side closely at eye level. |
| Suitable priority | Control light and shade flexibly throughout the day. | Balance evening use, views and glare reduction. |
Five steps to the right pergola plan
A good decision begins with observation and a clear picture of use. Work through these steps before finalising dimensions or equipment.
01
Record the sun path
Observe the patio on several sunny days in the morning, at midday and in the evening. Note direct sun, reflections, building shadows and the places where you actually spend time.
02
Define use
Decide whether dining, lounging, play or a mixed outdoor area is the priority. This determines furniture, necessary paths and the area that needs reliable shade.
03
Sketch the position
Draw in the façade, doors, windows, downpipes and existing services. Add the proposed pergola, furniture and paths. A scale drawing reveals conflicts early.
04
Choose shading
Weigh up strong sun protection, side glare control, openness and views. Then check whether a fixed or flexibly adjustable roof better suits these priorities.
05
Coordinate implementation
Discuss ground conditions, fixings, drainage and access with suitable professionals. If needed, ask your council in advance about requirements relevant to the project.
Checklist for your south- or west-facing patio
Use this list to prepare thoroughly for a planning discussion or quotation request. Record observations at the actual site rather than relying only on a plan and compass direction.
01. Observe sun at key use times and record troublesome glare directions from the seat.
02. Measure the patio accurately, including steps, garden edges, door openings and needed pathways.
03. Mark planned zones for dining, relaxing, barbecuing and clear garden routes on the surface.
04. Add important façade details such as lights, downpipes, windows and outdoor power outlets to the sketch.
05. Decide which sides should remain open and where focused privacy or sun protection is required.
06. Have ground conditions and possible fixing points professionally assessed before dimensions become final.
07. Check water flow across the patio and house; do not overlook drains and adjacent areas.
08. Where consent or insurance is uncertain, clarify the specific design with the relevant authority or insurer.
Frequently asked questions about pergolas on south- and west-facing patios
Is a pergola useful for a south-facing patio?
Yes, when it is planned around the site’s actual light and shelter needs. In New Zealand, a south-facing patio often receives less direct sun, so avoid creating unnecessary darkness. Observe seasonal shadow movement, warmth and reflective surfaces first. This gives a sounder basis for choosing size, position and how much roof flexibility you need.
Does a west-facing patio always need side sun protection?
Not necessarily, but assess the low afternoon sun carefully. Trees, walls or neighbouring buildings may already provide protection. If seating is open to the west, a roof alone often does not prevent glare. Add side elements only where they improve comfort without unnecessarily closing important views.
What is the difference between a fixed and adjustable pergola?
A fixed design creates a permanently defined covered outdoor room. An adjustable solution lets you adapt light and shade more closely to time of day, weather and use. The right option depends on daily life: people with changing light preferences value flexibility differently from those wanting a clear, consistent patio zone.
How do I determine the right size?
Start with furniture and movement space, not only façade width. Allow room for pulled-out chairs, routes to the door and the transition to the garden. Test the proposed footprint on the ground. You can then see whether shade genuinely covers your use while the patio remains open.
Do I need consent for a pergola?
Not always. In New Zealand, the pergola exemption concerns an unroofed framed structure; adding a roof changes the assessment. Building-consent and resource-consent requirements are separate, and district-plan controls may still apply. Before ordering, ask your council about the actual location, dimensions, roof, foundations, services, boundaries and proposed use.
Should I notify my insurer before installation?
If you are unsure, ask early. Insurance policies and treatment of an attached or freestanding structure can differ. Describe the proposed location and design to your insurer and request written clarification of relevant cover. Do not rely on general statements from forums or neighbourhood conversations.
Plan your patio clearly
Enjoy sun consciously, plan shade precisely
A pergola for a south- or west-facing patio works best when it responds to the site’s changing light rather than blocking it indiscriminately. South-facing patios in New Zealand often need daylight and warmth preserved, while west-facing patios need attention to low afternoon and evening sun. Your routine, furniture and viewing direction provide the important clues.
Take time to observe, sketch and assess the site realistically. A carefully planned aluminium pergola creates an outdoor room that connects home and garden while adapting to the times on your patio that matter to you.
Explore Bloomcabin pergola solutions and compare designs according to your preferred shade, patio size and installation situation.
