Warm-edge spacer bars in insulating glass explained
Window knowledge for choosing well
When comparing window quotes, glazing and frame details often look similar, while one small component at the glass edge receives little attention: the spacer bar. Here, the edge seal joins the panes of an insulating glass unit. Warm edge does not mean an extra pane or a general quality badge. It describes a thermally improved spacer bar around the insulating glass. Its effect cannot sensibly be assessed separately from the whole window. For a sound choice, discuss the glazing specification, frame, installation detailing and room use together. This guide explains warm-edge technology, identifies quote details that can be compared, and suggests useful questions before ordering.
The glass edge as part of the whole window

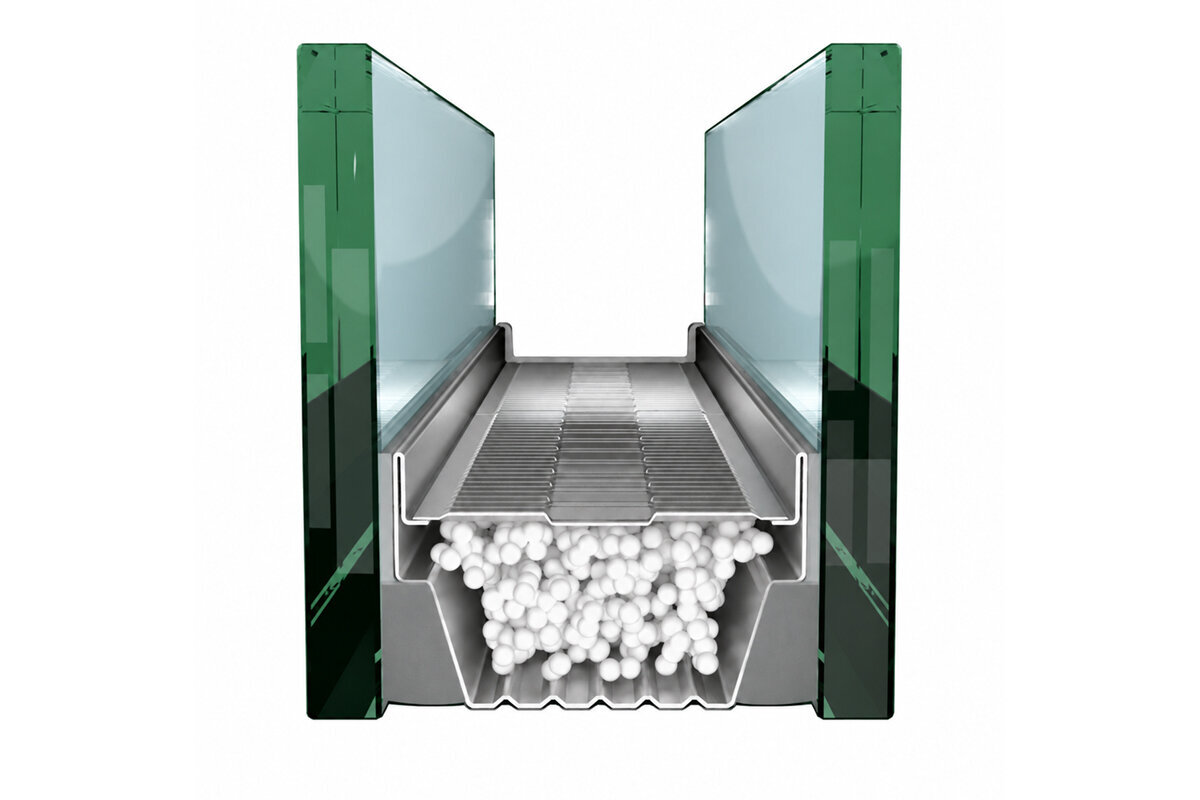

Insulating glass consists of several panes separated by a cavity. Around its perimeter, the spacer bar maintains that separation across the unit. It forms part of the edge seal: the assembly around the glazing that includes spacer bars, sealants and, depending on the build-up, further components. Centre glass, glass edge, frame and wall connection are distinct areas and may behave differently thermally. A warm edge focuses attention on the transition from glass pane to frame. It replaces neither suitable glazing nor careful selection of the window profile. Asking only for a warm edge therefore says nothing yet about how the complete element is specified for your project.
With a fixed-glazed window, the pane is often the main focus, but assessment does not end at the visible glass area. Fixed-glazed window first describes the window type, not the edge-seal specification. A quote should therefore clearly state the intended glazing and whether it includes a thermally improved spacer bar. An opening window also has sash frames, hardware and sealing layers. A useful comparison always considers elements of the same size, similar divisions and the same opening type. Otherwise, a difference at the glass edge may be confused with different frame proportions or construction. For ordering, the documented configuration matters, not a general product description.
What warm edge means
Warm edge is a common term for spacer bars with lower thermal conductivity than traditional metal solutions. It concerns the spacer’s material and construction, not a pane that feels warm to touch. Technical discussions may also refer to improved thermal separation at the glass edge. Its actual effect depends on the spacer system, glazing build-up, frame and installation situation, among other factors. Broad claims about room temperatures or savings are therefore not reliable. A good quote identifies warm edge as part of the glazing and, on request, names the system used or its technical performance data.
The wording can easily create false expectations. A warm edge does not automatically make a basic window especially high-performing. Conversely, a carefully engineered window may appear incomplete in a quote when the edge seal is not listed separately. Ask more than, “Does it include a warm edge?” Ask which spacer is specified for this glazing, whether it applies to every position, and whether the quote, order confirmation and glass specification match. These questions are particularly useful where several window sizes, fixed panes and door glazings appear in one order. They turn a marketing term into a verifiable specification choice.
Consider the complete element
Why the edge seal can affect comfort
Heat does not move evenly through every part of a building element. At an insulating-glass edge, glass, spacer bar and frame meet. A thermally improved spacer is intended to influence heat flow more favourably in that transition than a more conductive edge seal. This can matter for the internal surface temperature at the glass edge. The extent of the effect in a particular room cannot, however, be judged from a photo, spacer-bar colour or one product label. Outdoor temperature, indoor conditions, window size, orientation, curtains and air movement in the room also affect how a surface feels.
A living room with large glazed areas is a useful example: the decision should not be reduced to the edge seal alone. Large glass areas change the balance between glass, frame and edge zone compared with a small window. For Patio Life lift-and-slide doors it is therefore sensible to discuss the glazing, visible frame proportions and connections to the building fabric as one package. Anyone regularly using close-fitting curtains or placing furniture near glazing should also consider the room layout. These choices alter air circulation in front of the pane. Warm edge is one specification component, not a substitute for answers about heating, ventilation or furnishing.
Read performance values without mixing them
Quotes use different performance values for windows and glazing. A value for the glazing does not automatically describe the whole window, because the frame and edge seal are also part of the overall assessment. Likewise, a value for a standard format cannot simply be transferred to another size or division. First establish what each figure refers to: centre glass, glazing, or the complete window element. Only values with the same reference basis and comparable dimensions allow a meaningful comparison. If this allocation is missing, ask rather than creating an apparently precise ranking from different data sheets. A practical check is: does the figure carry the abbreviation Ug or Uw? Is a reference size stated? Does it apply to a standard version or your position number? Also ask how the edge seal has been included in the assessment of the complete element. This reveals whether two similar-looking values actually mean the same thing. A consistent comparison table is more useful than a collection of unassigned data-sheet figures.
For projects focused on a particularly low Uw value, this distinction is especially important. Passive House Super Low Uw outward-opening window names a window configuration and performance ambition in its product title; it does not reveal spacer-bar details without supporting documentation. Request technical documentation for the required size and exact version. Also ask whether the stated value includes the selected glazing and requested glazing-bar layout. Decorative glazing bars and bars that divide the glass are structurally different and should be discussed separately. What matters is that every quote uses the same planning basis, not that as many isolated figures as possible appear side by side.
Coordinate glass, frame and building connection
The edge seal sits within the glazing, yet its selection belongs in a chain of coordinated decisions. The frame holds the glazing, the glazing must suit the sash or fixed-pane construction, and the whole element connects to the wall opening. Selecting windows later without considering reveals, weatherproofing and fixing can leave interfaces unresolved. This affects not only thermal matters, but also drainage, internal finishes and window-sill positions. A designer or qualified trade professional can assess connection details for the particular project. The supplier needs reliable measurements, wall construction details and the installation situation.
For a combination of windows and doors, a shared position schedule is worthwhile. Single inward-opening patio door already differs from a fixed sidelight or window through its opening direction and use; nevertheless, the chosen glazing should be recorded clearly and consistently for each position. Before requesting a quote, note the room number, structural opening, opening direction, division, required elevation and special connections. Add whether a visible spacer-bar colour matters. This avoids later assumptions, such as every position receiving the same glass variant. The overall comparison becomes more dependable when the warm-edge decision is linked to this position schedule.
Compare glazing bars and special shapes properly
Divisions shape a window’s appearance, but they also change the basis for comparison. A glazing bar may be decorative, applied to or within the glass, while glass-dividing bars constructively split the glazing into smaller panes. These versions are not interchangeable. When comparing quotes, record whether glazing bars are wanted and which type is proposed. Warm edge generally concerns the perimeter of an insulating-glass unit; where several separate panes are used, the edge areas multiply. This does not automatically favour or rule out a divided design, but it does mean the glazing and glazing-bar construction should be assessed together.
For traditional elevations, this distinction is particularly valuable. Historic-style outward-opening combination casement window describes a stylistic and functional version. Whether the intended elevation will have no glazing bars, decorative bars or glass-dividing bars should be agreed separately. Give the supplier an elevation drawing showing the pane layout and clear dimensions where possible. Then ask specifically about the intended glazing build-up for every pane and the edge-seal construction. This prevents a quote for one undivided area being compared with a quote for many smaller panes. Appearance and technical coordination can work together when the drawing forms part of the order.
Consider the complete element
Set the use of opening windows first
The spacer bar is barely visible from outside, whereas the opening style directly shapes daily use. Decide how the element will be used before finalising the glass specification: where will you ventilate, how will it be cleaned, where will the sash move, and which furniture or routes lie in front of it? Once the element concept is set, glazing can be reliably specified for each position. Different opening types may be sensible in rooms with several window types. They do not necessarily require different glazing or edge-seal preferences. Consistency can simplify ordering, but it should never force an unsuitable opening function.
A single inward-opening window may suit one position if the required swing area inside remains clear. For a quote, sash handing, handle position and dimensions are more useful starting points than a later discussion of isolated glass details. Once these details are confirmed, request the glazing description, including warm edge, for that exact configuration. Do not accept a general statement for a product range where your order includes non-standard sizes, different divisions or alternative glazing. The right sequence is: define use and geometry, describe the specific element position, then confirm glazing and edge seal for that position.
Check doors and large glazed areas separately
External doors and large-format glazing combine frequent use, hardware, thresholds and glass areas. The edge seal remains part of the glass, but selection must take further requirements into account. A door is opened and closed and may be subjected to more use than a fixed window. Questions about operation, access, required clear opening and threshold solution should therefore come before the detailed spacer-bar decision. Pane layout should also be set from the elevation and function. For a clear order, each door position needs its own description rather than a blanket transfer of window specifications.
For a single glazed door sidelight it should be clear whether it is planned as part of an entrance arrangement and which glazing it will receive. The product title identifies a one-piece glazed sidelight; it says nothing about the glass build-up or edge seal. Coordinate the door leaf, sidelight and adjoining elements in one drawing. A consistent visible spacer-bar colour can be a design choice, while the technical construction should be specified in writing. Where safety, acoustic or other project-specific requirements apply, assess them during planning with the relevant professionals. A warm edge does not replace these separate specifications.
Write the enquiry so quotes remain comparable
A good enquiry identifies more than quantities and approximate dimensions. It separates essential requirements from preferences. Essential requirements may include opening type, handing, structural-opening or order size, division, glazing preference and the required statement about the thermally improved spacer bar. Preferences may include visible colour, glazing-bar pattern or a preferred elevation. Ask to be notified if a combination needs a different technical solution. This gives you a traceable alternative rather than an unannounced change. For several elements, use a table with position numbers and a column for the confirmed glass variant. In another column, have departures from the requested construction identified. You can then immediately see whether a supplier has priced warm edge for only some positions or proposed alternative glazing. Check that optional and included items are clearly separated. Compare total amounts only after this, because a lower price may simply reflect a different scope of supply. Resolve open points in writing before deciding.
For roof areas, clarify the building sequence and installation situation especially early. Pivot roof window describes the window type, not an automatic decision about glass, connections or spacer bars. Send the roof design and desired operation, as well as measurements, to the relevant professionals. The quote should clearly state whether warm edge is included for all intended glazing or only certain positions. Also compare whether both quotes include the same number of glass panes, the same opening function and the same accessory assumptions. A total that appears cheaper is not a useful basis for a decision when the scope is described differently. Only a position-by-position comparison makes differences visible.
Check carefully before ordering and on delivery
Before approval, read the order confirmation against your own position schedule. Check dimensions, quantity, opening direction, division, glazing description and the agreed warm-edge note. It is particularly important to establish whether later changes to one position affect other details. Keep drawings, the quote, questions and replies together. They provide the common basis for manufacturer, supplier, installer and project management. If wording is unclear, resolve it before production. Bloomcabin gives a 5-year guarantee for windows and doors; delivery takes 4–6 weeks subject to order confirmation. These details do not replace checking the specific order.
On delivery, a spacer bar cannot be reliably identified from general expectation, since colours and visible details do not confirm technical properties. First check positions, quantities, dimensions and visible damage against the documentation. Match labels on packaging and elements to the position schedule without inferring undocumented properties from them. Where glass labels or accompanying documents are available, retain them or photograph them until the check is complete. Keep goods-receipt inspection separate from technical acceptance of installation: a fully delivered element can still leave questions about fitting. Have installation and the connection to the building fabric completed to the agreed plan, and document deviations promptly. For a double inward-opening window, as for every element, the product name describes the sash configuration, not every individually selected glass option. A final document file containing the order confirmation, element list, glazing details and installation information makes later identification easier. It is more useful than relying on memory of what was originally discussed verbally.
Frequently asked questions
Is warm edge the same as triple glazing?
No. Triple glazing describes the number of panes in an insulating-glass unit. Warm edge describes the thermally improved spacer bar at the glass edge. Both choices can occur together, but they are separate features. Ask for the complete glass build-up and the exact edge seal specified.
Can I identify warm edge by its colour?
No. The visible colour of a spacer bar is not reliable technical confirmation of its properties; it may simply be a design choice. The relevant evidence is the written glazing specification and confirmation for the specific position. Do not infer material, construction or overall performance from a dark or light edge.
Must every window in the home have the same warm edge?
A consistent specification can simplify an order, but it is not a rule that should be applied to every element without review. Windows, fixed panes, roof windows and door glazing can have different requirements. Specify the desired version by position and request clear marking of any variation in the quote and order confirmation.
Does warm edge automatically improve the Uw value?
The edge seal forms part of a window’s overall thermal assessment and can influence it. How a particular spacer affects a stated value depends on the glass, frame, size and construction. Compare only values with the same reference basis and request documentation for the version you require.
Should warm edge be stated expressly in the order?
Yes, if it matters to your decision. Ask for the thermally improved spacer bar or glass variant to be identified clearly for each position. A general statement in a brochure is not enough where several versions are involved. Check that the quote, drawing and order confirmation show the same configuration.
Next step
Warm edge is a useful checkpoint when buying insulating glass because it concerns the edge seal, a transition area within the glazing. Its value does not grow through broad marketing claims, but through clear context: which glazing is specified, which window or door does it belong to, and which overall values really apply to the required size? Always raise the spacer-bar question alongside the frame, divisions, opening type and installation detailing. By describing positions clearly and obtaining written confirmation of the glass variant, you can compare quotes objectively and approve an order with fewer unresolved assumptions.
