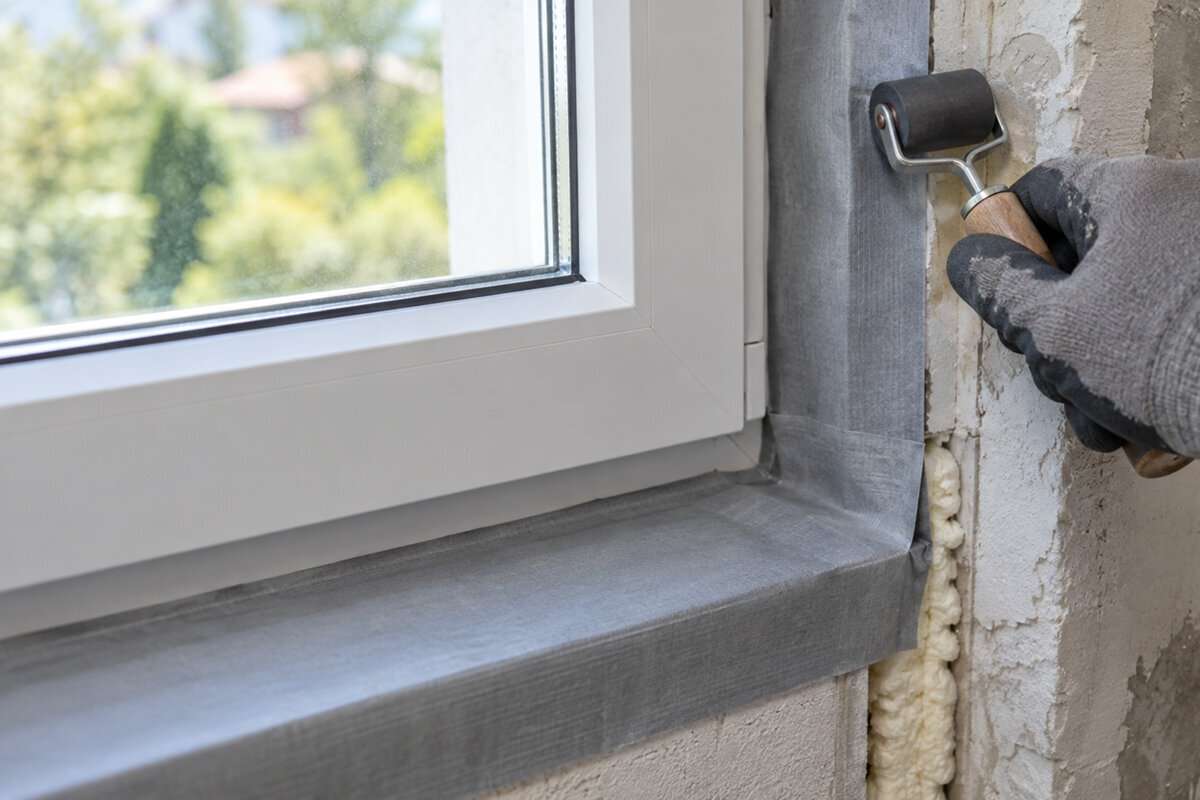

Window installation gaps: tapes, sealing and insulation explained
Planning window installation gaps
When replacing windows, discussion often starts with frames, glazing and sash layout. Yet the installation gap also determines whether the new unit works as part of the wall. It runs around the frame between the window and building fabric, accommodating movement, unevenness, moisture and temperature changes. Even a high-quality window cannot perform fully with a poorly planned connection. Do not leave the gap to be decided on site with an arbitrary foam and sealant. Instead, coordinate window position, wall build-up, fixings, internal sealing, insulation and external weather protection. This guide explains the role of each layer and the questions to settle before ordering, measuring and installation.
Understanding the installation gap as an interface
The installation gap is neither a simple border around a window nor merely a visible finishing line. It joins components that can behave differently: the window frame and the reveal of masonry, concrete, timber or a multi-layer wall. The space is needed for tolerances, fixings and functional layers, so its width and geometry belong in the site measure and installation plan. Ordering only to the clear opening size, without allowing for plaster, insulation, existing stops, shutter guides or sill, shifts crucial decisions to installation day. In existing buildings, old sealants, uneven reveals and concealed damage can alter the intended solution.
Assess the window and its connection as one system. With a single-sash inward-opening window the opening direction, hardware, internal sill and eventual internal connection must work together. For refurbishment, first establish whether the new unit remains in the existing plane or moves within the wall. This affects the length and accessibility of connection surfaces, fixing locations and transitions to plaster or façade insulation. A section through the head, side reveal and sill usually says more than “installation included”. Have these three detail areas considered separately, because they do not perform identical tasks.
Putting the three-layer principle in context
As a planning model, three functional layers are widely useful. The room-side layer should limit uncontrolled movement of warm, humid indoor air into the gap. The central layer fills the space and primarily contributes thermal and acoustic insulation. The outer layer protects the connection from weather, especially wind-driven rain, while allowing drying towards the outside. What matters is not seeing the same material everywhere, but ensuring each function continues without unintended breaks around the entire frame. Corners, fixings and transitions to the sill or head are where practical quality is decided.
This model describes functions, not a shopping list. A pre-compressed tape may seal externally and, depending on the selected system, perform further tasks; membranes or liquid-applied sealing can suit complex connections. Installation foam can provide insulation, but does not automatically provide internal airtightness and external weather protection. Equally, a neat visible bead of sealant is not automatically the complete connection. For every side, ask: which product performs which function, what substrate does it bond to, how are joints and corners formed, and who checks the work before it is covered? This turns the principle of a tighter inside than outside into a verifiable detail rather than a slogan.
Consider the entire window connection
Inside: create an airtight connection, not just a covered gap
The internal connection line affects whether room air can enter the gap. If humid indoor air reaches cooler parts of the connection, it may condense there; draughts and heat loss can also result. The internal layer must therefore connect permanently to both frame and building fabric. Depending on the substrate and detail, connection membranes, suitable sealants, pre-compressed systems or liquid-applied products may be appropriate. A sound, clean bonding surface and sufficient allowance for movement between frame and wall are essential. A thin rigid bead on a dusty or cracked substrate does not solve the design task, even if it initially looks closed.
Transitions need particular attention. An airtight reveal surface is of little value if it ends beneath the internal sill or does not join the existing airtight layer at the head. With plastered internal finishes, establish whether plaster runs to a planned plaster-stop profile, whether a membrane may be plastered over, and how later repairs remain possible. With a double-sash inward-opening window the internal detail must also suit everyday use: sill depth, reveal linings and handles must not obstruct the sash. Ask the installer not only to name the tape, but to describe the uninterrupted route of the internal seal around the full frame.
Centre: insulation needs suitable geometry and protection
The central gap layer should fill the space between frame and building fabric without voids. Its role is not to fix the window or correct major irregularities in the opening. Gap width, permitted movement, substrate, application and the later connection layers all matter when selecting insulation. Mineral insulation, foam or system-specific insulating tapes can be suitable depending on the detail. The fill should be even and not uncontrollably compressed. Large open voids or overfilled gaps make the internal and external layers harder to connect and can reduce insulation performance.
Installation fixings must be planned independently of the gap filling. Packings, fasteners and load transfer hold the unit in place; insulation does not replace that function. This becomes particularly important with wide or heavy units. A Patio Life lift-and-slide door needs a considered threshold and load-transfer zone before side sealing is addressed. Ask where the unit is supported, how the frame remains aligned, and how insulation can continue into these areas. If certain points need a different construction for structural reasons, it should be clear how airtightness, insulation and weather protection continue there. A well-finished centre layer results from the right sequence, not from using as much material as possible.
Outside: repel rain and allow for drying
Outside, the installation gap meets weather, UV exposure, splashback and façade details. The external layer should resist moisture from outside and direct water away in a controlled manner. At the same time, moisture that has entered the connection must not be trapped by an unsuitable layer. The effective solution depends on exposure, façade finish, existing stops, window position and adjacent components. A protected connection deep in the reveal has different demands from one close to the façade plane. Blanket advice such as “just use silicone outside” overlooks the relationship between the gap, plaster, flashings and sill. Identify which faces are fully exposed, where overhangs offer protection and where water concentrates at edges. Adjacent cracks, open plaster edges or poor bonding surfaces must also be addressed before selecting materials. Agree who prepares the substrate and how long the completed sealing may remain exposed. Installation instructions for the selected system should be available when scheduling the work.
The lower connection zone deserves its own drawing. Side connections, falls, end caps, the sill, wall waterproofing layer and, where relevant, a door threshold all meet here. Water that gets behind an external cover needs a planned route out; a visually closed surface is not proof of drainage. With a single-sash outward-opening patio door the transition from internal floor to external surface must also be set early. Later changes in build-up height can conceal connections, disrupt drainage or restrict door movement. For low-level areas, request a section showing every layer, not only an elevation of the finished façade.
Comparing tapes, membranes and sealants
Sealing tapes are often quick to apply and can accommodate unevenness when the correct gap width is selected. They still need suitable dimensions, a prepared joint and enough time or room to expand. Connection membranes are flexible for complex geometry and can link to the building’s airtight layer. Their performance depends heavily on adhesive, substrate preparation and carefully bonded overlaps. Liquid-applied products can help at inaccessible or irregular connections, but require controlled layer formation and suitable substrates. Sealants suit defined joints and connections, but must be matched for adhesion, movement capability and compatibility. Create a small connection matrix for comparison: straight sides, corners, head, sill and known problem areas. Record which material will be used at each point, how it joins the next component and what preparation is required. This reveals whether a solution works only along a straight sample run or can also be installed at interruptions. Check product data and application instructions for the actual system offered, not simply for a similar product category.
Do not compare only the roll of material. Check whether the frame surface and wall substrate need preparation, whether a primer is specified, whether the product may be plastered, painted or concealed, and when the next work stage may proceed. Also ask how a frame joint and corner are formed without folds or open paths. With a fixed-pane window the connection is unaffected by a moving sash, but the frame-to-wall transition still needs the same care. The best choice is the system whose application remains clear under real site conditions. A material list without a detail drawing, substrate information and assigned responsibility is not a reliable installation plan.
Consider the entire window connection
Window shape and opening type change the detail
Rectangular standard windows often allow repeated connection details, but glazing bars, fixed lights, sash arrangement or an unusual opening style can change measurement and workflow. Glazing bars sit within the window construction; the external frame perimeter, not the visible division of glass, governs the installation gap. Windows without bars require just as much connection length as a visually divided design. The essential issue remains how frame, reveal and sealing meet. External appearance can matter for heritage-style elevations without automatically making the gap solution simpler or more complex.
Curves, slopes and other special shapes increase cutting, corners and transitions. A triangular or raked fixed-pane window therefore needs detail checking along every angled edge, especially at the upper junction. At these points, do not improvise the fixings, insulation and external water management one after another. Roof windows add the connection to roof build-up and roofing, requiring a separate concept suited to the roof system. For special shapes, provide designers and installers with a scaled elevation and section. Ask where the selected tape is cut or joined, and how continuity is maintained afterwards.
Prepare new builds and renovations differently
In a new build, window location, wall build-up and connection materials can be coordinated early. This helps define clear interfaces between structure, window installation, plastering, façade work and internal finishes. Even so, someone must be assigned to create, protect and sign off the connection surfaces. A membrane left exposed after window installation can be damaged by following trades; closing the façade too early can hinder later fixings. Scheduling is therefore part of technical planning. Record when frames are installed, when internal and external layers are closed, and how open connections are protected from weather and damage until then. Where many openings are alike, an early reference window can help assess interfaces before serial installation. Review not only visible finishes, but also substrate preparation, corner formation, fixings and handover to following trades. Record deviations directly on the approved detail. Verbal approval of a sample alone will not prevent inconsistent work at later openings.
For existing buildings, start with a condition survey. Removing old windows can reveal crumbling reveals, damp areas, existing seals or unexpected layer thicknesses. Plan for these findings rather than working only from an ideal opening size. With a historic-style outward-opening “Kombi” casement window existing elevations and connection widths may influence the design decision, but the gap must still suit the actual building fabric. Before removal, document dimensions, discernible wall build-up, internal and external finishes, and sill locations. A joint site visit by the window supplier, installer and, where needed, façade or plastering contractor reduces conflicts between trades.
Coordinate fixings, movement and following trades
Window frames change with temperature and use, building fabric can settle or move slightly, and seals must accommodate these movements permanently. A connection must therefore neither clamp the frame rigidly at an unsuitable point nor overload the fixings. The location and number of fixings, and distances from frame corners, need project-specific planning. Ask for an explanation of load transfer, alignment and the purpose of support and spacer packings. Only once the window is securely positioned can the functional layers be completed properly. Foam or sealant should not take on an unintended structural role.
Following trades also affect the gap. Internal plaster, plasterboard, sills, external plaster, thermal insulation, metal flashings and shading can cover connections or penetrate them with fixings. Before work starts, establish who seals each penetration and which surfaces must remain visible until inspected. With outward-opening folding doors the transitions at side frames and floor level become more important because several sashes and a large opening area come together. This does not automatically dictate one sealing method, but calls for close coordination of opening clearance, external paving, threshold and water management. A coordination discussion before ordering costs less than adapting completed finishes later.
Organising specification, inspection and handover
A useful scope of work says more than “install windows professionally”. It assigns the window to an installation plane, describes prepared connection surfaces and states the functional tasks inside, through the centre and outside. It should also include details for head, sides and sill, fixings, treatment of sills or thresholds, and protection until finishing work is complete. Where several window types are involved, list standard details separately from special details. Provide measurements and drawings before ordering so frame size, gap space and accessories can be checked together. The installer should be able to identify what is included in the quotation and where other trades connect. Compare quotes line by line: substrate preparation, removal and disposal of existing materials, fixings, each gap layer, sill connections, protection measures and documentation. Mark missing or generic items before comparing prices. A lower total is of limited value if reveal repairs, connection profiles or sealing beneath the sill have not been assigned. Require alternative items to be clearly described so the work actually ordered remains unambiguous.
Inspect connections while they are still accessible. Photograph the prepared substrate, fixings and individual layers before plaster, linings or sills cover them. Visually check for continuous connections, sufficient overlaps, careful corners, properly treated joints and undamaged materials. An open question is not a defect if it is resolved before covering. Ask for documentation of system components used, care instructions and responsibility for remaining connections. Bloomcabin states a five-year manufacturer guarantee for windows and doors, and delivery is generally four to six weeks after order confirmation. These statements do not replace project-specific checking of installation and connection planning.
Frequently asked questions
Is installation foam enough to seal a window?
No. Installation foam mainly performs a function in the central gap layer and is not automatically the complete internal airtight seal or external weather protection. The additional layers required depend on the connection detail, substrate and installation situation. Have the three functions identified and documented separately.
What does “tighter inside than outside” mean?
It describes a functional principle: room air should not enter the gap uncontrollably, while moisture in the connection should be able to dry outward. It does not choose a material for you. Whether tape, membrane, sealant or another solution is suitable must be planned for the frame, wall build-up, gap width and weather-exposed side.
Should the installation gap be decided before fitting the window?
Yes. No later than ordering and site measurement, agree the installation plane, wall build-up, frame size, fixings and connections to the sill, façade and internal finish. Existing-building findings can require changes on site. A prepared alternative for uneven or damaged reveals avoids uncoordinated decisions under time pressure.
Who is responsible for sealing between window and wall?
That depends on the contract, scope of work and division between trades. The key issue is not only who applies a tape, but who creates the continuous connection to plaster, façade layer, sill and other layers. Record responsibilities, inspection timing and protection of open connections in writing.
How can I recognise an inspectable installation plan?
It includes at least elevations and sections for head, sides and sill, identifies functional layers and their connections, and shows fixings and load transfer. Separate details are useful for doors, special shapes and low-level areas. Before covering, inspect the work against these documents and photograph it.
Next step
A functioning window installation gap is not created by one “sealing product”, but by the interaction of internal sealing, an insulated centre, external weather protection, fixings and adjacent components. Start with the wall build-up and installation plane, not a material name. Have details drawn for every side of the frame, assess special shapes and thresholds separately, and allocate trade interfaces in writing. Planning the gap before ordering and removal helps you compare quotes more fairly and inspect the work while the critical layers remain visible.
