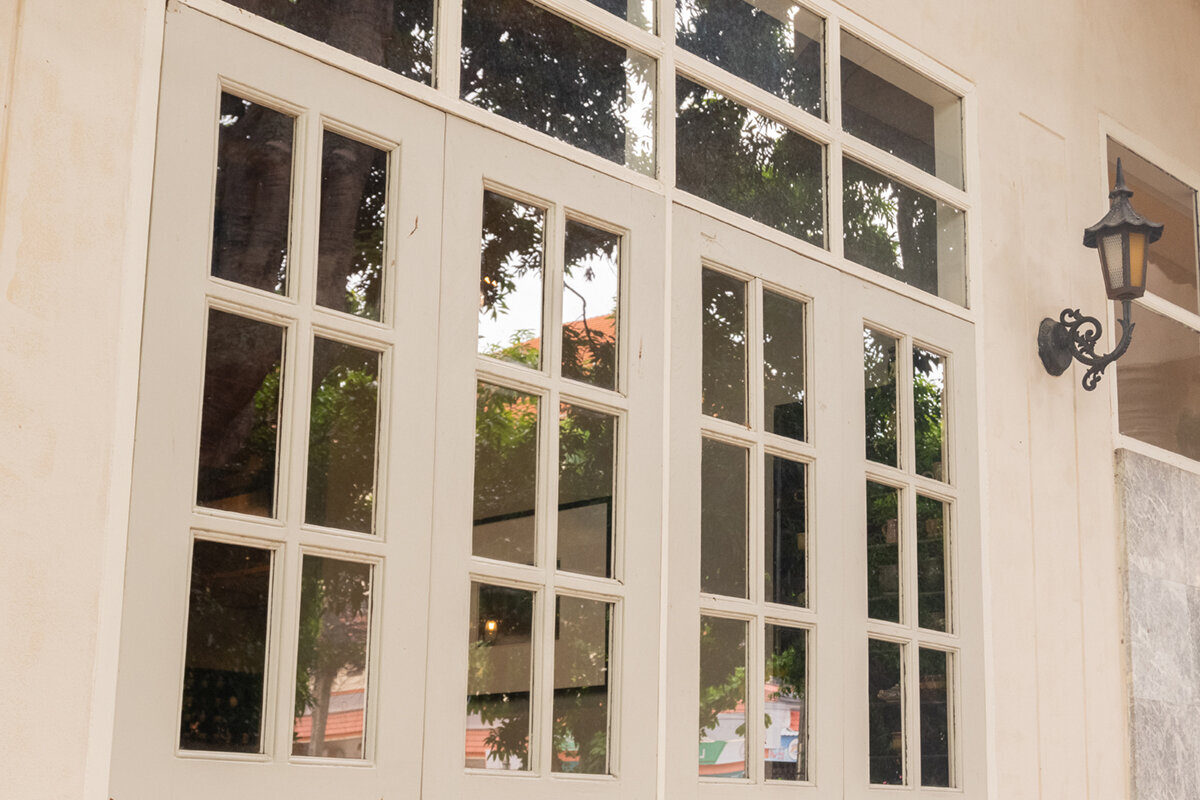

Planning Casement Windows: Swing Space, Hinges and Buying Checks
Plan practical casement windows
A casement window may look convincing on a drawing yet prove awkward in daily life: the sash can strike a light fitting, obstruct a desk route, or fail to open far enough because of curtains. Start with the sash travel, not colour or glazing bars. For every opening, establish the swing area, handing, handle access and cleaning route before ordering dimensions and specification. During a renovation, consider furniture, radiators, shading, outdoor areas and existing reveals together. This guide explains which choices are connected, what a reliable enquiry should include, and when another window operation may be more practical.
01 / Assess the room
Begin with sash travel, not window size
The swing area is the space an open sash occupies indoors or outside. On the floor plan, draw not only the structural or existing opening but also the sash when open. A cardboard template or masking tape on the floor makes its travel visible. Test the usual ventilation position separately from the wide-open position: clearance for brief airing may still be inadequate for cleaning. Include normal life—chairs move back, plants grow and a laundry basket may temporarily obstruct the path. Planning should not depend on a perfectly cleared room. Compare three positions: closed, open for everyday ventilation and at the maximum angle intended for cleaning or access. Mark the outermost sash edge at each point. You will see whether only part of the path is clear or the full movement area is usable. A plan view can be misleading with angled furniture or deep reveals; where necessary, add a side elevation showing the sill, window board and handle height.
In a home office, an inward-opening sash can obstruct the desk. Outside, balcony furniture, a downpipe, plants or a narrow path may interfere. If the exterior stays clear, an outward-opening single-sash casement window may suit the project. Its name confirms only the operation and sash count, not suitability for the site. On the measurement sheet, record the area swept by the sash and anything fixed or regularly placed there. Add the opening direction and desired angle to a sketch. This converts “must not get in the way” into a requirement that suppliers and designers can test.
Derive the handing from how the room is used
Handing is more than an order-box choice. From the normal operating position, consider the closed and open window: the sash should not block the route to a door or hide a frequently used surface. Beside a bed, swinging away from the sleeping area may matter more than a symmetrical handle position. In a kitchen, include tall cabinets, overhead cupboard doors and benchtops. Assess adjacent windows together. Opposing sashes can separate their movement areas, while consistent handing can simplify operation. The right arrangement depends on the actual floor plan rather than a general rule.
For inward opening, the sash path must be visible on the furniture plan. An inward-opening single-sash window may work where the area in front remains clear and the sash moves away from the work or seating zone. Check curtains, internal blinds, radiator controls and items on the sill. The handle must still be reachable when the sash is only partly open. Specify handing individually for every window, even where several units have the same width. The quotation should state opening direction and handing from an unambiguously named viewpoint. Before approving the specification, ask whether the drawing shows the internal or external elevation.
02 / Check the swing path
Balance window width, sash count and operation
One wide sash creates a continuous opening but needs correspondingly more clearance while it swings. Two sashes divide that movement, but introduce a central section and separate operating steps. Consider not just appearance and daylight, but the required opening width, available space and frequency of use. Must the full opening be clear regularly, or is one main sash enough for daily ventilation? Will the second sash usually stay closed? Who will operate the window? These questions prevent sash divisions being chosen solely for façade symmetry. Rooms used differently can have different solutions.
A double-sash outward-opening casement window is one possible configuration when two separate sashes match the intended opening routine. Check each sash width, not only the total dimension. Both need a clear path outside; furniture, awnings and planters must not impede them. Inward-opening versions require the same check indoors. Drawings with open sashes reveal more than a façade elevation. In the enquiry, identify the main sash and whether both must open together. Also confirm the sequence for opening and closing them, so the division remains practical in daily use.
Treat hinges as a functional part of the window
Hinges support and guide the sash. Selection requires the window size, sash construction, opening direction and intended use to be considered together. A large sash used often raises different planning issues from a small unit rarely opened. Rather than asking generally for “strong hinges”, describe the task: how wide and high is the sash, how is it divided, how often is it likely to move, and will it regularly be opened wide? Which curtains, fittings or adjoining building elements affect its movement? The responsible manufacturer or qualified designer must confirm the technical specification for the exact configuration.
Discuss hinge-side visibility, opening angle and maintenance access as well. With an inward-opening double-sash window For example, with an inward-opening double-sash window, confirm how both sashes enter the room and whether hinges or handles clash with curtains. Ask about opening restrictors, operating guidance and what any available installation arrangement would cover; enquire about local availability, price and timing. Keep a clear contact for later adjustment or operating questions. Bloomcabin provides a five-year commercial warranty for windows and doors, alongside non-excludable rights under Australian Consumer Law. Retain the order confirmation, product documents, care guidance and warranty terms so the ordered version remains identifiable.
03 / Choose the opening type
Plan handle, sill and curtains as one operating chain
A handle is practical only when it can be reached comfortably and operated with a free hand. Check the height as well as side obstructions. A broad curtain, plants on a deep sill, a table beside the reveal or closely positioned shelving can make access difficult. Act out normal use: does the person stand directly in front, sit at a workstation, or reach over a kitchen bench? If several people use the window regularly, check the position for all of them. A rarely opened secondary window can be assessed differently from the room’s main ventilation opening.
Curtain rods, tracks, internal blinds and insect screens are often chosen late, although each affects movement space. Check whether the preferred privacy or sun-control system obstructs opening and can be removed for maintenance. Choose the sill depth deliberately so objects need not be continually moved. Where light and views are wanted without another ventilation opening, fixed-glazed windows offer an alternative. They need no swing space but cannot open, so other openings and the room-use plan must provide the necessary ventilation and cleaning access.
Set the cleaning route from the outset
Ask who can clean each pane and from what position, not merely whether it is reachable. An outward-opening casement does not automatically bring the exterior face within easy indoor reach. External access may also be difficult upstairs, above an extension or around a bay window. On the plan, identify glazing reachable from inside, places with outside access and locations needing a professional solution. Consider the sill, fixed furniture, ground, balcony and planting. Suitable professionals should determine a safe method for the particular building; do not assume improvised access will be used.
A different pivoting action can change access. An outward-opening single-sash reversible window with vertical pivot operates differently from a side-hinged casement. The key question is which side of the pane becomes accessible in each position. Request an operating drawing and an explanation of the intended cleaning position rather than relying on the product name alone. Fixed insect screens, external shading and window boxes can further affect access. Record the cleaning route separately for each façade, as storey level, extensions and ground conditions often differ across one building. The solution must also suit the person who will actually undertake the cleaning.
04 / Compare the quotation
Consider outdoor and indoor space together
Outward-opening windows preserve indoor space but need clearance beyond the façade. An open garden elevation differs from a narrow balcony or busy path. Note where chairs, bicycles, bins and planters normally sit, and check nearby doors, shutters and shading that also move. The window must remain usable in ordinary conditions, not just avoid collision at handover. Discuss weather exposure and ventilation habits as part of the project. A qualified professional must assess whether the chosen version suits the installation position, building envelope and relevant connection.
Where lateral external space is tight, another opening movement may be appropriate. An top-hung outward-opening awning window moves differently from a side-hinged sash. It is not a universal substitute: compare the unobstructed opening, handle access, ventilation purpose and cleaning option. Coordinate windows with patio doors, external shading and drainage components in one combined view. A façade photograph marked with movement areas communicates more than a single measurement. Mark areas occupied only at certain times too. This shows whether an alternative opening type solves the real issue or merely relocates the conflict.
Assign separate roles to fixed lights and casements
Not every glazed section must open. Functional planning treats daylight, outlook, ventilation, cleaning and appearance as separate tasks. Beside a seat, a fixed light may preserve the view while a narrower casement on a clear side provides ventilation. Across a wide opening, this reduces the size of moving sections and frees space for furniture. However, the fixed light cannot ventilate. Assess the whole room, including other windows and doors. Decide which opening will be used day to day before dividing the window for symmetry or façade effect.
The division also affects appearance. Glazing bars structure the elevation; through-glazing bars create a different glass arrangement from purely decorative versions. First decide which sections are fixed and operable, then determine their visual division. An outward-opening historic-style “Kombi” casement window describes a Kombi configuration with historic styling and outward opening. Whether it suits the proportions, operation and building must be checked against the specific design. State in the brief which internal and external views matter, and whether existing proportions or glazing-bar divisions should be echoed. Appearance then remains a considered criterion without overriding swing space and everyday usability.
05 / Approve the order
Prepare measurements and quotation clearly
Good measurement records more than the opening width and height. Document dimensions at several points, reveal depth, sill, adjoining walls, radiators, services and visible obstructions. Photograph every location inside and out, with enough surrounding context. Add a sketch of the desired opening direction and the position of larger furniture. For replacement work, clarify which existing elements will remain, be altered or be removed. Building connections, structural capacity and technical execution require qualified expertise. A precise brief nevertheless helps identify practical conflicts early. Clearly mark unknown dimensions rather than carrying assumptions into the order.
Give each quotation item a clear label, such as “Kitchen – north” or “Bedroom – east”. Record opening type, handing, sash count, handle side, glazing bars, fixed sections and any access requirement. Ask what must be confirmed before ordering and which approval drawings will be provided; compare them with the façade and furniture plan. Bloomcabin states four to six weeks for delivery, subject to order confirmation. Schedule removal, follow-on work and room access only after project details are confirmed. Coordinate plastering, flooring, shading and other trades, including their sequence and connection dimensions.
Run through an everyday scenario before approval
Before ordering, test each room mentally or with a template. Open the proposed window first for daily ventilation, then to its intended cleaning position. Does the passage stay usable? Is the handle accessible behind the curtain? Does the sash meet furniture, lights or cupboard doors? Repeat the check outside at balconies, patios and paths. This can expose combined conflicts: a window may work alone while an adjacent patio door uses the same movement area. Record the handing, opening angle, glass division, hinge side and cleaning route before approval.
After installation, have the opening, closing, locking and intended cleaning position demonstrated. Compare handing and sash divisions with the approved documents. Store the order confirmation, product information, care instructions and warranty documents together. Also check that curtains, furniture and external objects can be arranged as planned. A small furnishing change is easier than altering the window configuration afterwards, but should not permanently obstruct necessary operating space. If there is doubt about the building connection, safe access or coordination with other work, involve the responsible qualified professional before problematic use becomes routine.
Frequently asked questions
How much room does an inward-opening casement need?
It depends on sash width, opening angle and hinge side. Show the open sash on the floor plan and include chairs, curtains, radiators and usual items. Check the ventilation position as well as the wider opening needed for cleaning or full access.
Is a single- or double-sash casement window better?
One sash provides a continuous opening but needs more swing room. Two sashes divide the movement, but add a central section and multiple operating steps. The deciding factors are overall size, the daily opening required, clear space and whether both sashes are regularly needed at once.
What should I consider with hinges?
Describe sash dimensions, opening direction, division, expected use and required opening position. Have the technical suitability of the exact configuration confirmed. Also ask about visible detailing, opening restrictors, maintenance access, installation scope and the contact for later operating or adjustment questions.
Can furniture sit in front of a casement window?
Yes, provided furniture and sash travel are deliberately coordinated. Different handing, a narrower operable sash or a combination with a fixed light may help. Include pulled-back chairs, open cupboard doors, curtains and objects normally kept on the sill.
When does another opening type make sense?
If the lateral swing path cannot reliably remain clear indoors and out, compare fixed glazing, awning windows or reversible windows as alternatives. No option automatically resolves every conflict. Assess operation, opening width, ventilation task, cleaning access and interaction with other openings each time.
Next step
A casement window becomes practical not through its nominal size alone, but through its movement in a furnished building. Establish the swing area, handle access and cleaning route first; from these follow the handing, sash count and sensible combination of fixed and operable sections. Document every opening with photographs, measurements and a sketch of its open position. Compare quotations against the same requirements and check approval drawings against furniture and façade plans. This helps identify avoidable conflicts before ordering.
