Replace Windows While Keeping Glass Area
Window planning
An existing opening’s height and width may appear to provide an obvious starting point for replacement windows. Yet the completed room can feel surprisingly different. The glass itself is seldom the sole cause: broader profiles, another central mullion, revised sash proportions or a window set deeper in the wall can alter both the view and the exposed glazing. To preserve daylight and glass area, compare complete internal and external elevations rather than matching nominal window dimensions. This is particularly important for expansive living-area glazing, continuous window rows, traditionally composed façades and openings onto a terrace. The following guide covers the measurements needed for comparable quotes, choices that can consume glazing, and coordination of window design, junctions and practical use.
Overall size does not define the room
External dimensions describe the perimeter of a complete window unit, not the opening through which daylight and views pass. The space between perimeter and glass contains the fixed frame, sash profiles and, depending on the design, mullions or transoms. Consequently, a unit matching the old height and width may expose less glazing when its installed profiles are broader. The change might go unnoticed in a small bathroom window but become obvious across a living-room façade. Ask for each pane’s clear glazed dimensions instead of relying on a simple overall width-by-height figure. For an operable unit, assess the closed sash’s visible outline as well. That line shapes the everyday appearance even when the window remains shut.
Compare both designs on drawings prepared to the same basis. Internal elevations of the existing and proposed windows should identify the complete dimensions, exposed frame, individual panes and divisions. You can then see whether, for instance, two narrow opening leaves introduce more material at the centre than one wide fixed field. A fixed-glazed window can work where no ventilation is needed and a quiet, open outlook is the priority. It is not suitable everywhere: first resolve ventilation, outside cleaning and how the room’s remaining windows will operate. The aim is a purposeful arrangement of fixed and operable fields, not simply the biggest available pane.
Record glass area accurately and consistently
Survey more than the structural opening. Record the complete unit dimensions, total width visible from indoors, exposed frame on the left, right, top and bottom, and the dimensions of each glazed field. For divided units, include central and horizontal members plus glazing bars. Mark any portion hidden behind curtains, internal blinds or deep reveals. Photographs and a labelled sketch help prevent a supplier quoting by overall size while you compare the unobstructed glass. Assign a separate reference to every existing window that varies; older buildings may reveal that three supposedly identical units are not identical at all.
Glass area is useful, but it is not the only measure. Two windows can have equal glazing areas and still feel different if one pane is wide and low while the other is narrow and tall. Compare proportions as well as sightlines when seated and standing. With a double-sash option, the location of the central mullion is important: it may sit directly in a view towards the garden, balcony or buildings opposite. Mark typical furniture positions before choosing the layout. This is particularly useful with a double inward-opening window, because the swing space of both sashes also needs to be included in room planning.
Assess sightlines and profile construction separately
Fine visible frames can show more glass, but ‘slim’ is not a dependable comparison without a reference. What counts is the visible sightline in the installed position, not merely a profile drawing or an isolated sample. A frame may be largely concealed behind the façade externally but more visible indoors, or the reverse may apply. Sash frames are often wider than the adjacent fixed frame too. Ask to see dimensions on an elevation of the actual window, including corners, mullions and transitions between fixed panes and sashes. Only then can you see whether the desired calm glass appearance is achieved around the whole unit or in just one section.
A broad sightline is not necessarily defective, and a narrow one is not inherently superior. Structure, fittings, unit size, opening method and glazing specification all constrain the available design. Ask what will actually be visible for the proposed size and use, then identify which alternative would alter the pane dimensions. Quotes should also show how much of each profile is intended to sit behind adjoining construction and how much remains exposed. A generous-looking overall unit can still contain less visible glass than another proposal. Retain the approved elevation with the final survey so the intended appearance remains unambiguous during manufacture and fitting.
Place divisions where they serve a purpose
Mullions and glazing bars give a window visual order, but each interrupts continuous vision through it. True dividing bars form distinct panes; applied bars mainly reproduce the pattern on the surface. The appropriate treatment depends on the existing building, façade composition and the degree of historical resemblance sought. Do not specify only ‘with glazing bars’. Define the quantity, direction and exact locations. A line crossing normal eye level affects an outlook differently from one placed higher. Across a window group, relate divisions to neighbouring openings, door heads and sill or parapet lines so the exterior reads as a considered composition rather than a collection of unrelated fragments.
In existing buildings, a finer division can form part of the intended character. A traditional double outward-opening casement window can guide a design where both outward operation and a traditional pattern matter. The product description alone does not settle the installed sightlines, bar arrangement or project dimensions. Consider the view from indoors too: numerous small panes may enliven a bright stairwell yet interfere with an expansive outlook. Where the external character is the main reason for adding divisions, place true-divided and applied-bar versions on the same façade drawing. That comparison is more useful than choosing from a close-up product photograph.
Opening style changes the glass picture and daily use
Operable windows require sash profiles, hardware and usable controls, so their glazing proportion differs from a fixed field of equal overall size. Begin by mapping which positions need everyday ventilation, access to an outside surface or a passage. Use that functional plan to distribute fixed panes and single- or double-sash units. Pairing a modest opening sash with a larger fixed area may calm the view, provided the arrangement supports cleaning and ventilation. Avoid designing the largest possible sheet first and trying to insert the necessary opening afterwards.
The direction of travel also affects how the room works. Inward-moving sashes may meet curtains, plants, fittings or furniture. Outward-opening designs need unobstructed exterior clearance and must be coordinated with the façade. A single outward-opening casement window illustrates the relationship between a straightforward opening action and a simple, slender division. Confirm the hinge side, handle location and available angle on the actual design; its title establishes nothing beyond the named configuration. Over a benchtop or deep seat, a top-hung awning form may be worth considering. Check independently whether its movement provides suitable ventilation and whether the control can be reached comfortably.
Installation position affects reveals, daylight and views
Even a carefully proportioned window can feel different when its replacement sits closer to either face of the wall. Shifting the installation plane changes the inner reveal depth and the angle of vision towards each side. With a deep reveal, an oblique outlook may conceal additional sky or garden. The sill position also moves, while roller shutters, external venetian blinds, curtain tracks and indoor shading may need revised junctions. Ask for a section through the wall, frame and sill in addition to the elevation. It should show the edges visible from the room and whether the sill obscures the lowest glazing line. For a practical record of the existing condition, take photographs from usual sitting and standing locations. Mark the reveal edges that currently restrict each view, then overlay the proposed profile edge and glass line taken from the section. This visual check cannot replace technical design, but it can show early that a modest shift in wall position may matter more to an important outlook than the calculated difference in total glass area.

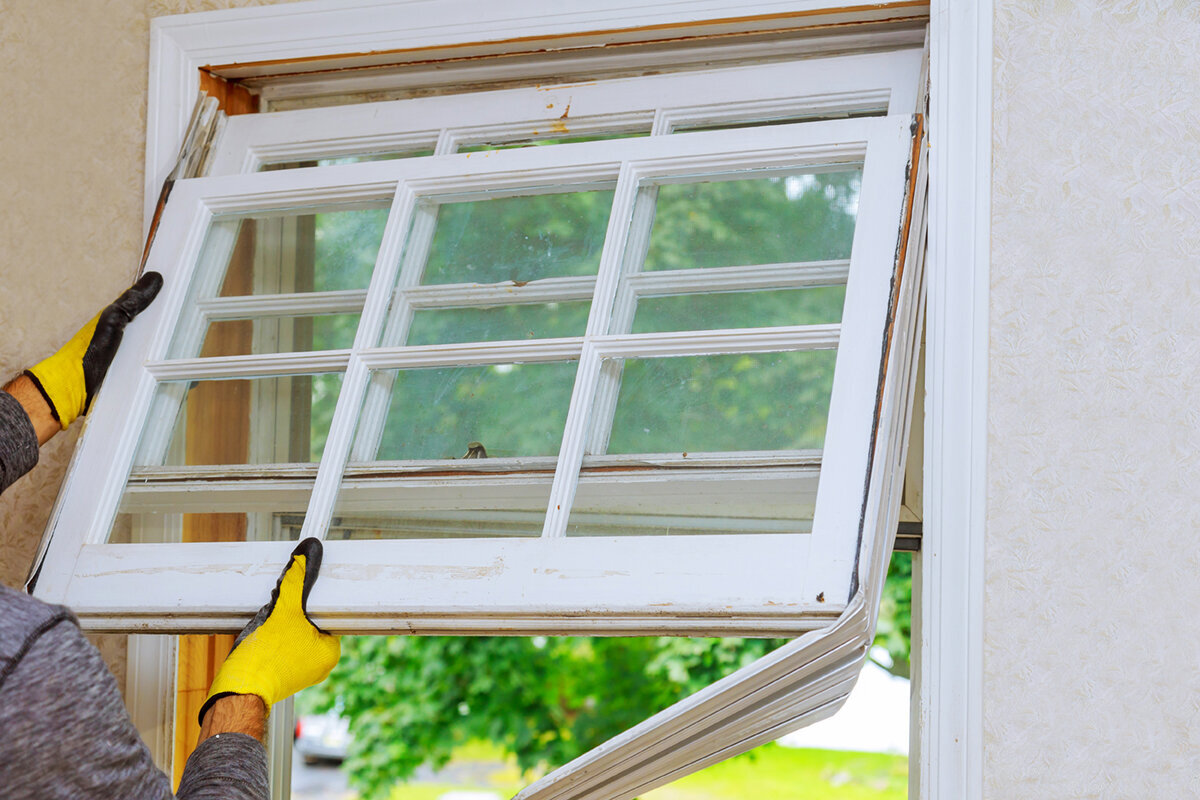

How the existing frame is removed partly determines where its replacement can sit. Before ordering, coordinate the survey and proposed junctions with whoever is responsible for fitting. Establish whether the interior reveal will remain, receive an extension or be rebuilt; how changes to exterior render, cladding and the sill will be finished; and which post-removal measurements will govern manufacture. Where façade insulation is also being renewed, the window plane cannot be designed separately. Junction planning covers weather sealing, render interfaces and execution as well as visual appearance. Appropriately qualified professionals should verify the technical and project-specific requirements.
Plan wide openings as one composition
In a wide living-area opening, the balance among doors, opening sashes and fixed glazing strongly shapes the result. A series of narrow sashes can fragment an otherwise broad outlook, while an extremely sparse layout may hinder ventilation or furniture placement. Map the important views first: note seating, the dining table and areas that should remain free of vertical interruptions. Add necessary access and operable fields afterwards. On the exterior drawing, relate vertical members to nearby windows and other façade features wherever practical. The composition can then appear orderly without forcing every opening to follow an identical pattern.
For a transition to the terrace or garden, a Patio Life lift-and-slide door can suit a scheme that calls for sliding access between the interior and terrace or garden. Compare more than its glass area with that of a window: review the exposed profiles, stationary and sliding portions, and intended daily operation. Sliding access can maintain a broad outlook, whereas a hinged door needs a different clear movement zone. Examine the closed-door view from indoors as well, because its overlap or meeting profile may fall directly across an important sightline. Request an elevation showing the entire opening and neighbouring windows, rather than relying on an isolated door-module image.
Do not force special shapes into standard dimensions
Circular, semicircular, triangular and raking windows often act as architectural focal points. Their replacement therefore cannot be judged only from the greatest height and width. For a curved form, the line where glass meets frame establishes much of its character; for a triangle, the angles, alignment references and wall location shape the result. A fixed-glazed round window offers a starting configuration for a circular unit that does not open. Verify whether the existing shape is a true circle, decide how the reveal is to be formed and define the desired interior elevation. Scaled photographs, a physical template or dependable survey information reduce the risk of confusion when dimensions do not follow a standard rectangle.
Treat the appearance and purpose of an unusual shape as separate decisions. A non-opening field may be logical when its only task is to bring in daylight. Requirements change substantially if it must also provide ventilation or be reachable. In a tall gable arrangement, for example, ventilation might come from an accessible conventional window below, leaving the shaped glazing above to emphasise the architecture. Fixed-glazed triangular and sloping windows may continue an angular composition without introducing another operable sash. Base the decision on the specified angles and glazing edges, rather than the general shape label. Draw adjacent straight windows on the same elevation: a rake meeting a horizontal division may create a pleasing relationship or an accidental step. Carry the neighbouring reference levels across the drawing and consider how much a frame and deep reveal will reduce a narrow tip visually. A scaled façade study makes these effects easier to recognise. Final dimensions for atypical geometry should follow a reliable site survey, not proportions inferred from an approximate photograph.
Use one window schedule to compare quotes
Meaningful quote comparison starts with a common window schedule rather than the final total alone. For every line item, identify the room and reference, unit dimensions, operating method, hinge side, sash count, fixed and moving fields, divisions, and both elevations. Add the exposed width and height, or calculated area, of every pane for design comparison. Also document finish or colour, handles, glazing bars, sill details and any associated work to reveals or shading. A supplier using a different measurement basis may make the whole item incomparable, not merely introduce a minor discrepancy. Resolve differences before engagement and record every agreed revision in the final order confirmation.
A single inward-opening window and a double-sash alternative can only be compared fairly when they use the same opening, required ventilation function and visible division. Even apparently matching types can differ in handle side and sash layout. Create a ‘non-negotiable’ column, such as an open view above a bench seat, a particular parapet junction or a division matching the neighbouring window. Alongside it, list ‘alternative possible’, for example a fixed pane instead of an opening sash in a secondary room. The quote discussion then becomes specific: rather than generally asking for more glass, request an option with a different sash division, mullion position or visible frame sightline.
Coordinate before ordering, delivery and installation
Take final measurements only after the openings are sufficiently understood. Existing frames, irregular reveals, proposed floor build-ups and replacement sills may all alter the order size. Set the sequence for removal, masonry, shading, interior fit-out and painting. For any floor-level unit, establish the finished floor height so sill, access and lower view align. Treat the approved schedule, elevations and sections as the project record. Later changes may affect both programme and execution. Bloomcabin windows are delivered in 4–6 weeks, subject to order confirmation. Do not programme following trades until the date is confirmed.
During handover, use the agreed drawings rather than checking only the unit perimeter. Work through each room and verify sash quantity, hinge side, divisions, visible panes and handle locations against the approved elevation. Open each window to ensure furniture, curtains and shading operate as planned. Documented survey information and the agreed result make concerns easier to examine. Bloomcabin windows and doors include a 5-year commercial warranty; it operates in addition to consumer guarantees that cannot be excluded under Australian Consumer Law. The warranty does not remove the need to assess installation and junctions for the project. When choosing between options, settle the elements that are difficult to alter later—glazing layout, opening method and wall position—before decorative details.
Frequently asked questions
Can matching overall dimensions still mean less visible glass?
Yes. Two units may share the same outside measurements while broader fixed or sash profiles, mullions and glazing bars leave different amounts of glass exposed. Use a drawing to compare every pane’s clear dimensions and all installed frame sightlines, not just the complete unit’s height and width.
Should I always choose fixed glazing for more light?
No. A fixed pane may remove some profile interruptions, but it cannot open for ventilation or access. First identify the locations that must be opened routinely, cleaned from outside or used as a passage. You can then place fixed glazing where it genuinely improves the intended appearance.
What is the difference between glazing bars and mullions?
Within a window field, glazing bars create a pattern and may either separate the glass physically or sit on its surface. Mullions are structural members that usually divide larger glazed areas or sashes. Both interrupt an outlook, although a mullion commonly forms the more prominent vertical element and warrants careful placement.
Why do I need a section as well as an elevation?
The elevation records the front-facing pane arrangement and divisions. A section explains how the unit sits through the wall, including reveal depth, sill and adjoining construction. Reading both drawings together shows the available oblique view and identifies the edges that will remain exposed indoors after installation.
When should final site measurement take place?
Arrange the definitive survey at a coordinated project stage, after the openings, proposed floor levels and relevant fit-out conditions are established. Agree its timing with the people responsible for measurement and fitting. Avoid ordering solely from historic drawings when the reveals or conditions exposed during removal could differ.
Next steps
Preserving glazing requires more than ordering a replacement to the former outside dimensions. The finished view results from the combined frames, sashes, mullions, glazing bars, pane proportions and position through the wall. Define sightlines, ventilation and opening duties first. Next, compare dimensioned interior elevations and sections rather than relying on product photographs or vague descriptions such as ‘slim’. A complete schedule carries the agreed choices through surveying and fitting. This process supports a window solution that balances useful daylight, outlook and everyday operation in the completed room, instead of merely matching a nominal unit size.
