Planning round, arched and gable windows
Window planning

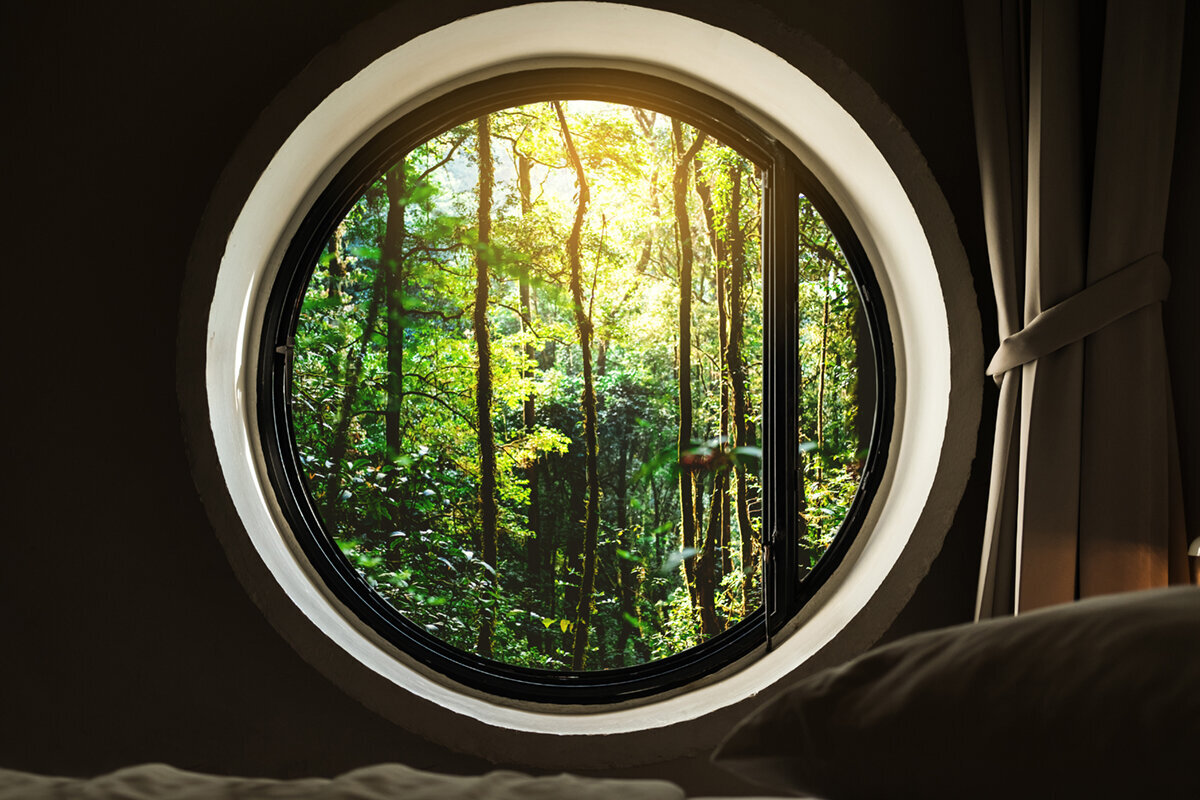

Round glazing beside a staircase, a shallow arch over patio doors or a shaped window in a roof gable will feel convincing only when use, form and masonry opening are resolved together. Appearance is merely one consideration for glazing that departs from a rectangle. Decide whether it should admit daylight, provide fresh air, direct a view or reinforce the façade composition. Each choice influences the survey, subdivisions, hardware, junction design and construction programme. Review the full sequence of windows on the elevation before choosing individual feature shapes; otherwise, a persuasive drawing may become an awkward or visually restless installation. This guide brings shaped glazing into one plan with adjacent rectangular units, insulation, weatherproofing and fitting work.
Start with the window arrangement, not one shape
Give each unusual outline a reason to exist within the elevation. Round glazing might illuminate a staircase; a semicircular head might finish a rectangle; and a triangular unit might echo the roof angle. Prepare an elevation of the whole wall, including floor levels, lintels, eaves and window centrelines. Then test the intended alignments. Is the round unit centred on a meaningful line? Does the curve begin level with nearby lintels? Will the sides of the gable unit follow the roof, or sit intentionally inside it? These decisions go beyond personal preference: they determine whether the opening belongs to the composition or appears to have been inserted afterwards.
The room introduces a different set of alignments. Glazing beneath a pitched ceiling may increase the sense of height, while a round unit beside a landing can direct light to one area. Consider views, furniture placement, access for cleaning and the experience indoors as well as the exterior. Where daylight is the main aim, a fixed-glazed window provides a useful benchmark because its outline can be designed around illumination and proportion rather than sash space. A shaped unit does not have to operate merely because the room also needs ventilation. Pairing it with a discreet opening unit that is easy to reach may produce a neater appearance and a more workable room.
Describe geometry clearly and measure early
Labels such as “round” and “arched” do not define a unit sufficiently for manufacture. Specify the diameter of circular glazing and locate it relative to the completed wall surface. A semicircular design needs its width, total height and the level where the curve starts. For a segmental head, define the rise or precise curvature; for pointed or gabled work, record width, height, angles or a fully dimensioned profile. Identify whether every figure describes the unfinished masonry opening, the plastered aperture or the proposed frame. Mixing those references can conceal an error until membranes and interior finishes are ready. Irregular profiles may need a full-scale template. Assign responsibility for making it, state which construction plane governs it and mark its orientation. Finally, choose one approved manufacturing reference—drawing, digital survey or template—rather than allowing inconsistent versions to remain in use.
Older reveals demand a careful site survey. Take widths, heights and diagonals at several locations instead of relying on one reading, and note any distortion or uneven surface. Include photographs with a scale, a simple elevation and unmistakable labels for the room side and exterior. Even when an aperture appears balanced, verify the true location of its centre. A fixed circular window offers a sensible reference for a round daylight aperture, although manufacture still requires an exact profile. When reviewing quotations, establish which survey information governs production and who must resolve discrepancies in the existing structure before sign-off.
Consider the complete opening
Treat daylight, opening and airflow as separate choices
As outlines become more elaborate, ask whether the shaped portion genuinely needs to operate. A fixed unit may be appropriate high in a roof gable, as a staircase feature or where an uninterrupted elevation is preferred. It also leaves the accessible zone beneath available for another use. An operating sash requires extra frame depth, fittings and unobstructed travel. Within a curved head, those components also alter the appearance because the geometry must accommodate movement. Begin with the required illumination, ventilation rate, outlook and ease of operation. Once these priorities are established, the most suitable outline can be designed around them.
Ventilation is poorly served by a sash that occupants can reach only with a stool or another aid. For a room needing routine airflow, choose a practical operating level, ensure the handle can be used comfortably and reserve room for the sash to travel. Instead of making the curved field movable, a separate, elevated outward-opening top-hung window can be specified when its height and direction of travel work with the room and exterior. This keeps the feature glazing visually complete while placing ventilation where it can be operated safely. Furniture, use and construction conditions will affect the answer, so assign each function before settling the elevation.
Choose arch forms for their effect and junctions
A precise semicircle gives a balanced, orderly impression, provided the vertical jambs and the level at which the curve begins are fully defined. A segmental head has a shallower profile and may suit a broad opening with limited height. Pointed profiles create a stronger upward emphasis than gentle curves. Judge any option against the elevation's proportions, established centrelines and surrounding edges rather than as an isolated motif. If the profile occurs more than once, record one consistent radius, start level and subdivision scheme. Small changes in the curve's starting height can make an intended series appear irregular.
A fixed-glazed semicircular window can form a fanlight above a rectangular unit when the diameter and horizontal base have been composed deliberately with what sits underneath. That arrangement will not suit every door or window. Determine whether the two shapes should be separated by exposed frame, a continuous transom or some other visual break. Resolve the same transition through the interior reveal. The enquiry should therefore contain an elevation with all governing edges, not merely the finished size. It can then be confirmed that the curve, lower unit and intervening detail form the intended composition before production begins.
Shape gable glazing around roof and interior daylight
Treat a gable unit as part of the roof and room rather than simply as triangular glass. Its inclined edges interact with the pitch, verge, internal finishes and often the supporting structure. Decide whether the top should mirror the roof precisely or whether a rectangle or trapezoid makes better use of the interior. An elongated triangle can admit light far into the space but contribute little to the view at sitting or standing height. Combining a lower rectangular unit with a fixed shaped panel allows outlook and roof expression to be handled separately. Study both the room elevation and the outside. Prepare at least two drawings to scale: one following the incline closely and another pulled inward to leave a wider margin of wall. The former fills the gable visually; the latter may offer more legible space for junctions. Show actual frame widths in each scheme instead of colouring the whole masonry aperture as glazing.
To bring daylight into the roof gable, a fixed triangular or sloping window gives a straightforward response where no opening action is required. Before selection, the designer and installer should review the surveyed masonry profile, available junction faces and path of the internal finish together. Along an incline, preserving enough space for a continuous, properly designed seal is preferable to filling every last portion shown on the sketch. Draw the final positions of frame, glass and room-side reveal as well. This makes the eventual visible glass size and the differing indoor and outdoor appearance of the slope easier to understand.
Design glazing-bar patterns from the outset
Glazing bars can organise broad panes, refer to period detailing or establish a visual rhythm. On curved units, their arrangement has particular force. Spokes emphasise the centre; level bars can soften the dominance of the curve; upright bars can relate the feature to nearby rectangular units. Decide whether the pattern is applied for appearance or whether the bars physically separate panes, and describe the chosen construction unambiguously. The project drawing needs to record each bar's location, quantity and symmetry, together with how the pattern meets the frame. A brief note requesting glazing bars leaves too much open to interpretation.
A restrained pattern may give a small feature unit greater clarity, whereas an expansive gable panel may need more structure. Test the proposal in daylight, from a normal viewing distance outside and from the real viewpoint within the room. Divisions that appear orderly on a generic illustration may cross the occupants' outlook awkwardly. If operating units accompany the shaped glazing, a historically styled “Kombi” casement opening outwards offers one reference for composing a traditional window group. Draw and approve the project's actual glazing-bar scheme independently, however, because the model name does not prescribe a bespoke arrangement.
Consider the complete opening
Check internal and external views together
A frame, its reveal and the glass have different visual weight from the room and from the garden. A curve that seems fine and light outdoors may reveal a deep surround internally. Ensure the lining around circular glazing does not leave an unintended lopsided margin. At roof level, coordinate the inclined frame edges with ceiling and wall finishes. For every feature opening, prepare room-side and exterior elevations plus a section. The section should identify construction layers, recesses, frame location and the route taken by junction materials. Mark the finished floor, normal eye height and relevant furniture edges on the elevations. This exposes conflicts such as a transom crossing the principal view or a deep cill hiding part of the glass. For staircase glazing, review the changing outlook from several steps and landings, since both the perceived centre and view move as a person climbs.
Include the direction of travel in this assessment. A sash moving into the room can interfere with curtains, radiators, furniture and circulation, while one moving outwards needs a clear exterior zone. Where space inside is restricted, a single outward-opening casement window offers a helpful operational example without claiming to replace curved glazing. It demonstrates that appearance and movement can be solved as distinct questions. Draw the full travel of the sash on the floor plan and test it against the proposed furnishings before the fitting stage.
Plan junctions to wall, roof and weatherproofing
The visible perimeter of a feature frame is only one part of its installation. Its connection must carry the relevant wall or roof layers around the opening in a coherent way. Curves and inclines need especially deliberate detailing because sheets, membranes and finishes do not follow them as easily as straight jambs. Allocate responsibility for the detail, preparation of the aperture and coordination between trades. A project drawing should locate the frame through the wall depth and identify room-side and weather-side junctions, linings and transitions into render, cladding or roofing. Catalogue photography cannot answer those site-specific questions; a construction section is required.
Concentrate on points where profiles converge: the start of an arch over a rectangle, the peak of a triangular unit and both bottom corners of gable glazing. Resolve them before structural edges, insulation and finished surfaces force an improvised compromise. In a sloping roof, a roof pivot window belongs to a separate category from glazing installed vertically in a gable wall. Because it follows the roof plane, its weathering and junction design must be treated differently. Distinguish the two clearly in specifications, name the construction element and location, and have the appropriate project professionals confirm that the proposed detail suits the actual building.
Coordinate existing character, style and replacement openings
When replacing feature glazing, use the existing appearance as evidence for design, not as the sole production specification. Survey the profile, subdivisions, visible frame widths, depth of the reveal and alignment with nearby windows. Then identify the quality that matters most: exact geometry, balanced composition, period glazing bars or the daylight created indoors. A replacement can respect its context without reproducing every former detail. Conversely, copying the outline may still look wrong if the new frame disregards established centrelines or pane divisions. Review physical samples, photographs taken from different viewpoints and a drawing that overlays proposed work on the existing elevation before deciding.
If the replacement must perform differently, consider all consequences together. Merely fitting a sash does not make a decorative fanlight convenient for everyday ventilation. Equally, an old pair of casements might be replaced by a quieter fixed composition when light is more important than operation. A two-sash inward-opening unit can illustrate the operating logic for a wide rectangular aperture, but it cannot establish the correct period character, bar pattern or shaped profile for the replacement. Base the final choice on a proper survey, the room's intended use and the full elevation rather than treating a historic photograph as a complete specification.
Organise enquiries, approval and installation precisely
A useful enquiry assembles the material that would otherwise arrive in fragments: dimensioned elevations, sections through unusual junctions, views from indoors and outdoors, handing, required fixed lights, a glazing-bar schedule, the specified colour or finish, and photographs of existing work. Assign a unique position reference to every unit. Ask what remains subject to approval before production and require each quotation to use the same controlled drawing set. A low headline figure is not comparable if outline, subdivisions or operating scope differ. Before sign-off, reconcile every profile with both the surveyed aperture and the intended completed wall finish.
Build the programme around shell construction, weatherproofing, plaster or cladding work and interior finishing. Bloomcabin gives a 4–6 week delivery period for windows and doors, subject to confirmation of the order, so do not lock in the work sequence beforehand. Ordering does not imply that anyone will amend incorrect site dimensions. When the unit arrives, verify its position reference, visible outline, handing and any obvious damage before installation. File the approved drawings with the handover records. Bloomcabin's guarantee for windows and doors lasts 5 years; consult the relevant documentation for its conditions and claim process.
Frequently asked questions
Can a circular window be opened?
Whether the unit can operate must be considered independently from its outline. In round or curved work, the sash, fittings and frame can substantially alter appearance and ease of use. A fixed unit may give the cleanest daylight solution. If fresh air is necessary, an accessible opening unit nearby may work better.
What measurements does a manufacturer need for an arched window?
The maker needs a fully defined profile and an unambiguous measurement datum. For semicircular work, provide the width, total height and level where the curve begins; any other arch needs equivalent geometric definition. Label the room face and exterior face, and state whether each dimension applies to masonry, finished aperture or frame. Include both a dimensioned elevation and a section.
Should a gable window have glazing bars?
The answer depends on the pane size, view, adjacent windows and intended order of the elevation. Bars may organise an extensive glazed panel or repeat a pattern already present. They may equally weaken a simple triangular outline or obstruct the outlook. Confirm both their arrangement and construction on an approved project drawing.
When should surveying take place?
Carry out the final survey only when the aperture and the construction layers governing frame position can be judged with confidence. That point will differ between renovation and new-build work. Before approving production dimensions, coordinate timing with the people responsible for the structure, wall composition, junction detailing and fitting.
Could a gable window require planning permission?
That cannot be decided without knowing the Irish location, the building and the scope of work. The answer may vary with the proposal and the authority involved. Before changing an existing structure or its external envelope, ask the relevant planning authority and appropriately qualified project professionals which permissions and checks apply.
Next step
Successful feature glazing comes from coordinated decisions rather than an attractive outline in isolation. Derive the profile from the elevation, room and intended use. Deal with daylight and ventilation separately, and record all dimensions, alignments and glazing-bar arrangements clearly. Bring junction design, sash clearance and the construction programme into the same drawing package. Before ordering, approve a dimensioned exterior elevation, a room-side elevation and a suitable section so that the survey and installation share one reference. The result can then read as an intentional element of the building instead of becoming an unresolved problem on site.
