Configuring sliding doors: two, three or four panels?
Planning guide for sliding doors
At first glance, choosing two, three or four panels seems mainly aesthetic. In practice, that decision shapes the usable doorway, the amount of stationary glazing, the outlook from your sofa and the way furniture, curtains and the terrace fit around the door. Four panels across a broad span do not guarantee more room to pass through than a two-panel design. The operating diagram reveals the sliding section, its parked position against the fixed glazing and the space left for people to pass. Review it alongside the furnished floor plan, your normal route outdoors and the exterior elevation. The result should feel composed on paper while remaining convenient every day.
Read the opening layout before counting panels
Choose a sliding door by studying its operating drawing. Vertical lines on an elevation merely show how the full span is divided; the drawing should separately identify stationary glazing and sections that travel. In one two-panel arrangement, a sliding section may pass ahead of or behind its stationary neighbour. This preserves a broad glazed view, although access remains at one edge. A three-panel design might instead place the sliding section centrally or at an outer edge. Those designs can appear alike when closed while directing people onto the terrace at different points. Request views that show the door shut and at its maximum intended opening, rather than relying on the front elevation alone.
Usable access means the unobstructed gap available after opening; it should not be confused with either the masonry aperture or a panel's drawn width. Frames and the space occupied by stacked or parked sections reduce that gap. Decide first what the doorway must accommodate: the regular trip onto the terrace, someone carrying a tray, bulky belongings, or a generous link to the garden while entertaining. Browsing Bloomcabin's range of sliding doors can introduce the available products, although the required passage still needs defining. For each proposal, obtain written confirmation of every sliding section, its direction of travel and the usable width at the chosen open setting.

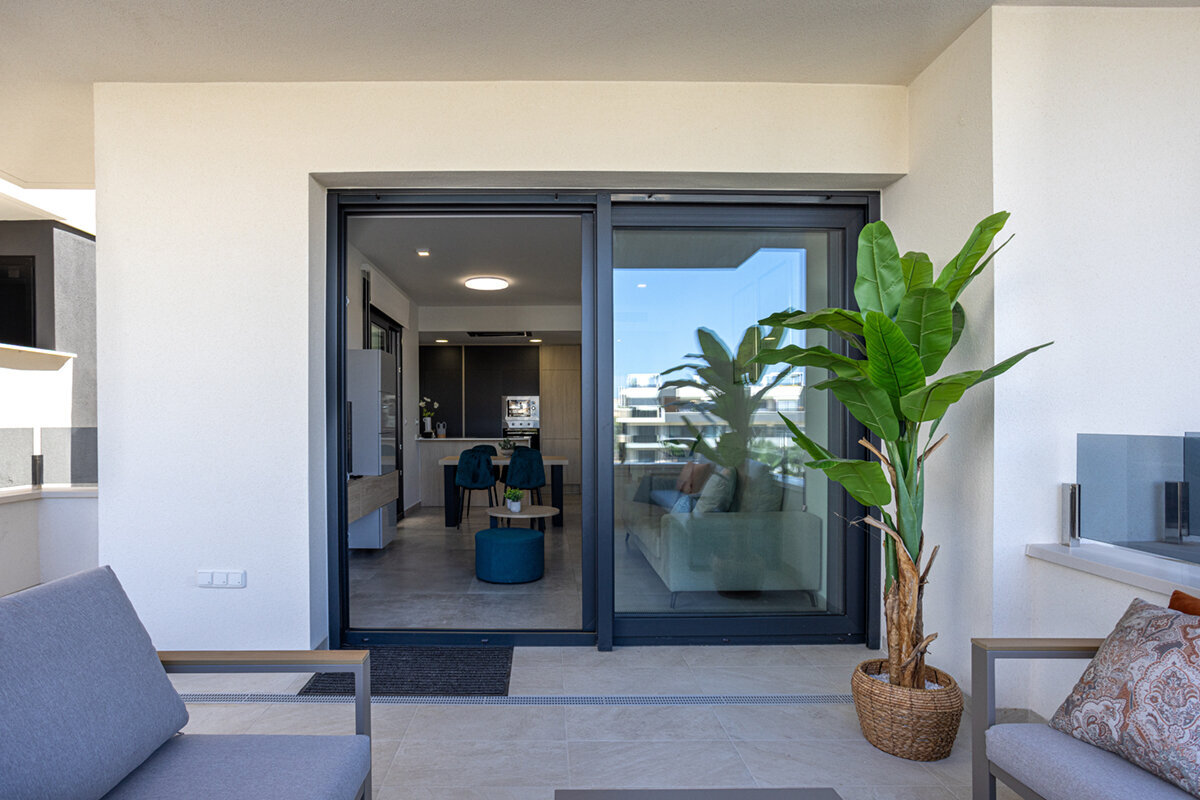

Two panels: a calmer elevation
Dividing the doorway into a pair of broad sections can give a restrained appearance, especially where wall space is limited. With fewer upright frame members, there is less interruption across the garden outlook. Where one section is stationary, much of the glass never opens; that may be ideal when the view carries more importance than central access. The sliding section establishes the side used for routine trips outside. Base that choice on the furniture arrangement, the path over the terrace and the dining-table position, rather than treating symmetry as the only consideration.
Two exceptionally broad sections can become restrictive when the project calls for a generous passage. Adding glass will not solve that conflict; the operating method or division may need to change. Bloomcabin groups that category under Patio Life doors with lift-and-slide operation Even then, confirm that the offered specification suits the project. Decide how the closed door should read: two matching widths, or an intentionally offset arrangement that places the sliding section beside the preferred route. Either can look coherent, but each answers a different need. Ask for two scaled proposals rather than comparing product terms alone. One can use equal sections, while the other locates access according to movement through the room. Judge both from the principal seat and along the everyday path, noting which gives the quieter outlook and which avoids obstacles more effectively.
Three panels: place the access deliberately
Three sections can give a broad elevation a deliberate rhythm without creating the four uprights of a four-panel layout. Their key benefit is positional choice: depending on the system, the sliding section may occupy the centre, either edge or another arrangement, bringing access closer to the kitchen, dining area or preferred terrace zone. Test each proposal on a scaled plan, not a small product image. Plot the sofa, table, radiators, curtains and terrace furniture, then draw the everyday route. Add the path needed when serving visitors or moving a bulky item. If one arrangement cannot serve both equally, prioritise regular circulation while keeping occasional tasks workable.
A three-part appearance does not prove that every section moves, nor does it promise an opening across two-thirds of the span. Systems can distribute stationary and sliding glazing in ways that are not obvious from an initial illustration. For a symmetrical design, compare the uprights in both exterior and interior elevations with the important views. A joint centred on a dining table may interrupt the garden outlook more noticeably than one opposite an unused section of wall. Deliberate alignment can also connect the door visually with neighbouring windows. Supply an elevation containing those nearby openings, rather than giving the supplier only the dimensions of the structural aperture.
Four panels: divide wide openings with purpose
Splitting a broad wall opening into four gives the façade a clearly ordered pattern. Each glazed section reads as narrower than it would in a two- or three-part arrangement, which may echo other regular divisions on the building. From indoors, however, the additional uprights become more prominent. Whether they look elegant or overly active depends on the span, furniture positions and neighbouring windows. A four-part design is not inherently superior simply because the doorway is large. Choose it when its pattern supports the architecture or its operating arrangement places access more usefully than a simpler division.
Movement needs particularly careful review in a four-part design. Depending on the quoted system, the outer sections might stay stationary, the central sections might travel, or another combination may apply. Examine each intended setting to confirm that the exit is released and the handles remain comfortable to use. One catalogue example is the Siegenia laterally sliding door system although the catalogue name confirms neither dimensions nor panel arrangement. Ask for movement direction on the quotation and check whether opposite handing is offered, allowing access to align with the actual terrace route.
Let the room decide where access belongs
Sliding operation avoids the inward arc created by a hinged leaf, but the area around the door still requires thought. Keep chairs away from the regular route, and make sure curtains, pleated blinds and other fittings do not obstruct the handle or movement. Trace three everyday scenarios: leaving the kitchen for the terrace in the morning, stepping out from the living space later in the day, and carrying a bulky object. When they all favour one edge, access there will usually serve the room better than perfect visual balance. If indoor seating and the outdoor path favour opposite edges, reconsider the panel arrangement.
Set the sliding design beside a conventional patio-door option before assuming that every access need requires sliding glazing. One option is an single patio door opening outwards which can suit a single, well-defined entrance when the terrace has room for the open leaf. That answers a different planning need from a broad glazed span. For movement into the room, consider an inward-swinging single patio door and reserve its full arc within the furniture plan. The wider decision is whether the project needs expansive glazing that slides aside or simply a conveniently located entrance.
Check sightlines inside and out together
A panel pattern produces a different impression from the garden than it does from the room. Indoors, assess the outlook at seated eye level and the visual connection from floor to terrace. Outdoors, consider how each upright relates to windows, architectural lines and any planned canopy. Review the perspectives separately. Sit or stand where the main furniture will be and identify any joint that cuts across an important view. Afterwards, walk into the garden and assess whether the divisions reinforce the elevation or appear unrelated to it. Centring the pattern may look orderly on a drawing without being the strongest solution in use.
Georgian bars and bars that physically divide the glass require their own design decision; they cannot repair a poorly planned main layout. Four door sections already establish several pronounced upright lines, and further bars add another layer to the elevation. Limit them where a broad, open outlook is the aim. If finer architectural detail is preferred, plot every bar on a complete façade drawing first. Include stationary glazing beside the door in that exercise. For instance, a fixed-glazed window can extend the glazed composition, provided its frame lines, sill level and divisions are reviewed with the door before the order is approved.
Stationary glazing and sliding sections serve separate purposes
Stationary glazing supplies light, outlook and visual structure while remaining closed, so it cannot serve as the routine exit. A sliding section provides that exit but also establishes the operating edge and the place where it rests when open. Clarify those functions for every proposed panel total. Several sliding sections may support a broad opening, yet their sequence and the resulting usable gap must be readily understood. Predominantly stationary glazing can still feel spacious when one sensibly located exit meets daily needs. The right balance is project-specific; there is no standard ratio that suits every room or elevation.
Ask for a panel-by-panel schedule. It should state whether A and B are stationary or sliding, the direction each travels, the handle location and the fully open arrangement. This is clearer than relying on labels such as “two-part” or “four-leaf”. Identify the usual user and the side from which the door will be handled. Easy handle access may outweigh perfectly matching widths in a family room, while a seldom-used garden doorway may place greater value on uninterrupted glazing. Coordinate the selected arrangement with floor build-up and junction details. The professionals responsible for design and construction should assess those connections and all project-specific building requirements.
Large opening or flexible alternative?
Sliding glazing is only one approach to linking a room and terrace. A folding system gathers several leaves towards an edge and creates a distinctly different opening. Bloomcabin's bi-fold doors that open outwards deserve comparison when the brief calls for most of the span to be opened for certain occasions. Consider the folded stack, its position when parked and the clear terrace area it occupies, not merely the number of leaves. Sliding operation may better serve a simple route used daily, whereas a frontage intended to open broadly in suitable seasons may favour closer study of folding doors.
Paired hinged doors answer a different need. Bloomcabin's double patio door that opens outwards offers a traditional doorway and can provide a broad opening when required, instead of a continuous sliding composition. Its leaves need unobstructed terrace space while open. Consider the pattern of use across the year: whether someone steps through briefly most days, whether furniture usually occupies the terrace, and whether gatherings call for a larger opening. That exercise establishes whether the unresolved issue really concerns the number of sliding sections or whether the opening method itself should be reconsidered first.
Turning a survey into a reliable order
Dimensions by themselves are not a complete sliding-door specification. To compare quotations properly, provide overall height and width, elevations from both sides, the intended division, the status of every section, direction of travel, handle position and chosen operating side. Record the wall aperture, proposed floor construction, adjoining elements and any curtains or shading. During alterations, establish whether the opening, floor and junctions have been verified or remain liable to change. Meaningful comparison becomes possible only after those matters are settled; product names and rendered images are insufficient. Assign responsibility for confirming each measurement and identify the drawing revision behind the quotation. If building work may alter the opening, distinguish an early guide dimension from final manufacturing approval. Keep a brief register of unresolved items so assumptions cannot quietly become order instructions.
When comparing two layouts, request matching drawings for each: an interior view when closed, an exterior view when closed and the intended open arrangement. Add the usable passage and the parked sections to every drawing. This may show that a three-part proposal improves only visual balance without placing the exit where wanted. Document every amendment before approval, including the handing, because a late reversal can affect junctions and the sequence of work. Combine the plan, elevation and ranked priorities into one review pack for the designer, supplier and installer. Mark the approval drawing with its date or revision, then check every relevant entry against the quotation. Confirm that agreed changes to widths, movement or handle position appear in the issued version.
Check the choice against the entire project
Relate the panel arrangement to every other opening on the house. Four sections may complement a regularly ordered façade, while two broader sections can support a quieter architectural treatment. Bring terrace planning, internal finishes, drainage, shading and furniture into the discussion early. Where the door adjoins a dining space, settle the table position before ordering. Show any canopy or privacy screen on the same elevation, preventing posts and door joints from meeting awkwardly by accident. If priorities conflict, rank daily circulation, attainable access width, uninterrupted outlook and exterior symmetry. That ranking helps when no proposal can maximise them all. Suitability for the actual structure and construction should ultimately be determined by the competent professionals responsible for the project.
Complete a final coordinated review before ordering. Verify the product reference, panel total and the function assigned to each section. Define left- or right-hand operation from the interior perspective and make sure the required open arrangement appears on the drawings. Check that it works with the room, terrace and nearby window lines. Where a conventional entrance is more appropriate, an inward-opening double patio door can also be considered, provided its two swing arcs are reserved on the plan. Cross-check the quotation, elevations and item description so they all identify one configuration, and expand any unclear abbreviations before acceptance. Bloomcabin provides a 5-year guarantee for windows and doors. The stated delivery time is 4–6 weeks, subject to order confirmation. Neither detail removes the need to verify the approved configuration carefully.
Questions customers often ask
Does choosing four panels create more opening width than two?
No. Width available for passage depends on which sections travel, which remain stationary and where the moving sections rest. A four-part elevation may simply add more divisions without increasing access. Obtain a drawing of each option at its maximum intended opening, with the usable gap clearly marked.
Is a central moving panel always the best option?
Not always. Although centred access can appear balanced, the route used every day may favour the kitchen, dining area or one edge of the terrace. Let actual circulation determine the side, testing it on a drawing that includes furniture and the proposed outdoor arrangement.
How does a stationary panel function in a sliding door?
It is a glazed section that stays shut, admitting light and preserving the outlook without providing access. Another section travels to create the entrance. Merely counting the visible divisions will not reveal which ones move or the usable gap available after opening.
Should I choose panels with equal widths?
Matching widths often give the elevation visual calm and balance, although they are not compulsory. Offsetting the divisions may place access more conveniently near the dining area or keep an important outlook unobstructed. Review movement through the room, the exterior composition and the operating drawing as one decision.
What should you include with a configuration enquiry?
Send a furnished plan, verified opening dimensions and elevations from inside and outside. Show the intended divisions, identify stationary and sliding sections, and mark their travel. Include the floor construction, nearby windows and proposed shading so the supplier can interpret the requested configuration accurately.
Next step
The alternatives are not a quality ranking: each division answers a different combination of outlook, access and exterior composition. Begin by tracing the route onto the terrace and defining the usable gap required. Next, allocate the stationary and sliding areas; visual balance can be refined afterwards. An operating drawing, a plan showing furniture and a coordinated exterior elevation provide a sound basis for approval. With those decisions resolved, the glazed doorway can perform as a practical connection between the living space and terrace rather than functioning only as a large area of glass.
