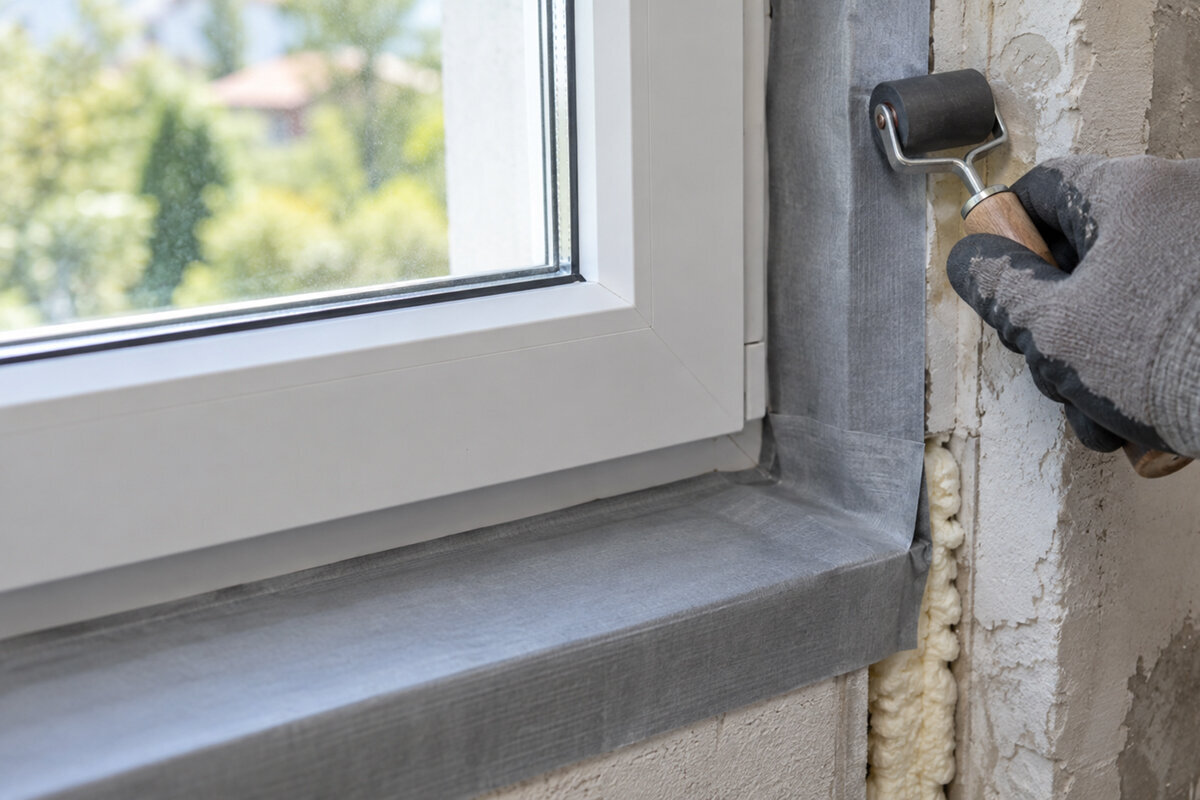

Window installation joints: tapes, sealing and insulation explained
Planning window installation joints
Choosing replacement windows often starts with the frame, glass and arrangement of opening sections. The less visible window-to-wall junction is equally important to the unit’s performance. Running around the frame, it must bridge the surrounding construction while accommodating uneven surfaces, movement, moisture and changing temperatures. A high-quality window may still underperform when this detail is poorly conceived. Avoid leaving the choice of foam and sealant until installers arrive. Instead, coordinate the frame position, wall build-up, mechanical support, room-side seal, insulating fill and protection at the weather face. The sections below clarify those roles and identify matters to resolve before the order, site survey and fitting date.
How the junction links separate components
A window junction is more than an edge treatment or a neat line of finish. It joins a frame to a reveal, and those elements may respond differently whether the surrounding construction is brickwork, blockwork, concrete, timber or a multi-layered wall. Clearance allows for dimensional variation, anchoring and the required performance layers, so its shape and width must be addressed during measurement and detailing. If an order considers only the unobstructed opening and ignores plaster, insulation, existing rebates, shutter tracks or sills, crucial choices are postponed until fitting begins. Refurbishment adds further uncertainty because deteriorated seals, distorted reveals or hidden defects may demand a revised approach.
Treat the frame and surrounding junction as a single design. For a window with one sash opening inwards, the handing, ironmongery, internal sill and room-side finish all need to be compatible. During refurbishment, establish whether the replacement will occupy the former plane or sit farther in or out within the wall. That decision changes the available bonding surfaces, fixing positions and interfaces with plaster or external insulation. Drawn sections at the head, jamb and sill communicate far more than a quotation marked “installation included”. Review each of those locations independently because water, loads and finishing conditions differ around the opening.
Putting the three-layer principle in context
A practical way to design the junction is to assign it three performance zones. Nearest the room, the aim is to curb warm, moisture-laden air passing into cooler parts of the gap. Insulating material occupies the central zone and assists both heat retention and sound reduction. Facing outdoors, the detail must resist weather, particularly driving rain, without preventing outward drying. Using one visible product throughout is not the objective. What matters is uninterrupted performance around the perimeter. Real-world success is often decided where materials turn corners, pass anchors or meet the lintel and sill.
These zones define required outcomes rather than a list of items to buy. Pre-compressed tape might weather-seal the exterior and, if designed as part of a multi-purpose system, fulfil additional roles. Membranes and brush- or spray-applied products may be better around awkward geometry. Foam can insulate the cavity, although foam alone does not establish both a room-side air seal and a durable weather face. Nor does a tidy sealant bead prove that the hidden junction is complete. Work around the perimeter and identify the duty of every material, its receiving surface, treatment at corners and laps, and the person responsible for inspection before finishes hide it. This makes the principle of greater sealing towards the room a buildable detail.
Review the junction as a complete system
Room side: create continuity rather than disguising the gap
The inside perimeter governs how readily indoor air reaches the joint. Moist air entering a colder section may condense, while gaps can contribute to draughts and unwanted heat flow. The chosen room-side treatment therefore needs a lasting bond to the frame and adjacent construction. Suitable options may include membranes, compatible sealants, compressed tape systems or liquid-applied products, according to the surface and geometry. Whatever the product, the receiving face must be stable and free of contamination, with adequate capacity for relative movement. A narrow, inflexible bead placed over dust, cracks or weak material may appear neat initially but does not provide a dependable detail.
Junctions between details deserve close scrutiny. Sealing the reveal is ineffective if that line stops below the internal sill or fails to meet the building’s air-control layer at the head. Where walls are plastered, specify the finishing profile, confirm whether the selected membrane accepts plaster and plan how it could be repaired later. For a double-leaf inward-opening window , coordinate operation with the finish: handles and sashes need clearance from the internal sill and reveal lining. Rather than requesting only a product name, ask the installer to trace the room-side seal continuously around the opening.
Centre: match the insulation to the available space
Insulation in the central zone should occupy the cavity evenly, without leaving pockets. It is neither a substitute for mechanical restraint nor a means of correcting seriously misshapen openings. Choose the filler after considering the actual gap, expected deformation, receiving surfaces, installation method and the layers that will close either face. Depending on the detail, mineral-fibre material, foam or a proprietary expanding insulating tape may be appropriate. Avoid both empty areas and excessive compression. Either condition can obstruct the inner and outer treatments and weaken the intended insulating result.
Design the supports and anchors before selecting how to fill the cavity. Blocks, fasteners and the chosen load path secure the frame; soft insulation cannot perform that structural duty. This distinction becomes particularly important for large or heavy units. Consider a Patio Life lift-and-slide door : its threshold support and load path need resolution before work begins on the lateral seals. Establish the bearing points, the method used to maintain alignment and how insulation reaches the edges of those supports. If a local structural condition interrupts the normal build-up, the drawing should show how air control, thermal continuity and rain resistance pass around it. Good sequencing produces a consistent insulated zone; adding extra filler does not.
Outside: shed rain and allow for drying
At the outer face, the junction encounters UV exposure, splash water and façade interfaces; on exposed Irish sites, wind-driven rain also merits careful attention. This layer must prevent external moisture entering and lead water safely away. It should not imprison dampness that has reached the joint. Exposure, façade finish, existing rebates, frame location and neighbouring components all affect the choice. A recessed, sheltered opening does not face the same conditions as a frame close to the wall face. Advice to apply silicone everywhere ignores how sealants interact with render, flashings, sills and drainage. Map the directly exposed elevations, shelter from projections and points where runoff gathers. Repair cracked finishes, unsupported plaster edges and weak bonding areas before deciding on products. Assign responsibility for preparing each surface and protecting freshly completed work. The installer should also incorporate the manufacturer’s curing and exposure limits into the programme.
Prepare a separate section for the sill or threshold area. Jamb treatments, falls, end pieces, the sill, the wall’s water-control layer and sometimes a door threshold converge there. Any water passing an outer cover needs a deliberate exit route; a neat-looking closed face does not establish drainage. For a patio door with one outward-opening leaf, set the relationship between inside floor and outside paving at an early stage. Later changes in finished levels may hide seals, compromise drainage or obstruct the opening arc. Ask for a layered section through any junction near floor level instead of relying solely on the final external elevation.
Comparing sealing tapes, membranes and sealants
Compressed tapes can speed installation and bridge modest surface variation when their working range suits the gap. Correct sizing, sound preparation and enough clearance and time for expansion remain essential. Flexible membranes can follow awkward shapes and connect the frame detail with the building’s air-control layer, but their success relies on compatible adhesives, prepared surfaces and secure laps. Liquid products can be useful where access or geometry is difficult, provided installers achieve the specified thickness on an acceptable base. Sealants belong in properly proportioned joints and must suit the expected movement, adhesion and adjoining materials. Compare proposals using a simple schedule covering straight jambs, corners, head, sill and difficult locations. For each, note the selected product, how it meets the neighbouring element and the preparation involved. This exercise exposes systems that appear convincing on a straight demonstration but cannot be continued around interruptions. Verify all requirements against the precise products quoted rather than general information for broadly comparable materials.
Look beyond the type of material. Establish the cleaning or treatment required on both wall and frame, whether a primer is part of the system, which finishes may cover it and the waiting time before subsequent work. Require a workable method for laps and corners that avoids wrinkles or unsealed routes. On a fixed-pane window , movement from an opening sash is absent, yet the perimeter where wall meets frame warrants equal care. Prefer a system that installers can execute and verify in actual site conditions. Without a substrate specification, detail drawing and named responsibility, a materials schedule is not an adequate plan.
Look at the full window perimeter
Window form and opening type change the detail
Rectangular windows may reuse standard junction drawings, but glazing bars, fixed sections, sash arrangements and less common opening methods still alter measurement and workflow. Glazing bars form part of the window itself; the joint follows the outside edge of the frame rather than the pattern visible in the glass. An unbarred window does not have a shorter perimeter connection than a divided one. The essential relationship remains the meeting of frame, reveal and sealing system. On a historic elevation, appearance may guide the window design, but it does not by itself make the construction joint easier or harder.
Non-rectangular forms bring additional cuts, turns and material junctions. A triangular and sloping fixed-pane window requires scrutiny along every inclined side and at the apex in particular. Support, insulation and rainwater control should be resolved together at these points, not invented in sequence during fitting. A roof window also interfaces with the roof layers and covering, so it needs a dedicated solution compatible with that assembly. Supply scaled views and sections for unusual shapes to both the designer and fitting contractor. The detail should identify every cut or lap in the selected tape and demonstrate how performance continues beyond it.
Prepare new-build and refurbishment differently
A new build allows the frame position, wall composition and junction products to be resolved before site work advances. That makes responsibilities among the structure, window package, plastering, façade and internal finishing teams easier to define. Even so, allocate who creates, safeguards and signs off the receiving surfaces. Later activity can tear an exposed membrane, while premature façade finishing can block access for anchors. The construction sequence is therefore a technical matter, not merely an administrative one. Record the dates for frame fixing and closure of each face, together with temporary protection for unfinished junctions. Where openings repeat, complete one reference installation early and assess it before proceeding with the remainder. Examine preparation, corner workmanship, supports and transfer to later trades as well as visible finishes. Put accepted changes onto the approved drawing; verbal agreement at one sample opening will not ensure consistent treatment elsewhere.
Refurbishment should begin with a careful record of existing conditions. Taking out the old frame can expose weak reveals, damp patches, legacy sealing or wall layers of unforeseen thickness. Prepare responses to these possibilities rather than designing around one perfect opening. For a historically styled outward-opening “Kombi” casement, the existing elevation and available junction width may shape the appearance, although the proposed build-up must still fit the construction uncovered on site. Before removal, record dimensions, visible wall layers, finishes on both faces and sill positions. A pre-start inspection involving the supplier, fitter and any relevant render or plaster contractor can prevent conflicting assumptions.
Coordinate fixings, movement and following trades
Frames expand and contract with temperature and operation. Walls may also undergo minor settlement or movement, which the sealing arrangement must tolerate for its intended life. Do not create a junction that locks the frame rigidly at an unsuitable point or asks anchors to carry unintended forces. Determine fixing quantity, location and edge distances for the particular opening. Request an explanation of the load path, frame alignment and roles of bearing and spacing blocks. Complete the air, insulation and weather layers only after the unit is stable and correctly positioned. Neither foam nor sealant should be treated as a structural support unless explicitly designed for that purpose.
Work completed afterwards can also compromise the junction. Plaster, dry lining, sills, render, external insulation, metalwork and shading equipment may conceal seals or puncture them with new fasteners. Allocate responsibility for making each penetration weather- or air-tight, and keep relevant surfaces open for inspection. For folding doors that open outwards, side-frame and threshold interfaces become more demanding because several leaves operate across a wide opening. This does not dictate one sealing product. It does require the opening envelope, paving level, threshold and intended drainage to be designed together. Resolving these matters before purchase is usually simpler than altering completed finishes on site.
Organising specification, inspection and handover
A useful specification goes well beyond instructing someone to fit the windows properly. State the frame location, the condition required of receiving surfaces and the separate duties at the room face, within the gap and outdoors. Add drawings for the head, jambs and sill, together with anchoring, sill or threshold treatment and temporary protection through fit-out. If the project contains different window types, distinguish repeatable details from genuine exceptions. Issue dimensions and drawings before purchase so the proposed frame, clearance and accessories can be reviewed as one package. The quotation should define the installer’s scope and every interface left to another trade. Compare offers by checking preparation, removal and disposal, supports, each sealing zone, sill work, protection and records. Identify vague or omitted allowances before judging totals. A cheaper figure may exclude reveal repairs, profiles or work below the sill. Describe alternative items precisely so everyone knows which construction has actually been commissioned.
Inspect the junction while its components are still visible. Photograph the receiving surfaces, supports and successive layers before plaster, linings or sills cover them. Look for continuity, sound laps, well-formed corners, completed joints and materials free from damage. A query raised at this stage is not itself a defect if it is answered before concealment. Retain a record of the products used, relevant care information and the party responsible for unfinished interfaces. Bloomcabin provides a five-year commercial guarantee for windows and doors, while delivery normally takes four to six weeks after order confirmation. Neither statement removes the need to check the installation design for the individual project.
Common questions
Is installation foam sufficient for window sealing?
No. Foam can provide insulating fill in the central zone, but by itself it does not establish the continuous air-control layer indoors or rain-resistant treatment outdoors. Determine the other components from the wall, frame location, surfaces and junction drawing. The specification should state and record how each of the three duties is fulfilled.
What is meant by “tighter inside than outside”?
It is a design concept rather than a product prescription. The room face limits warm, damp air entering colder parts of the gap, while the outer treatment permits outward drying. Choose tapes, membranes, sealants or other systems only after considering the frame, wall construction, cavity width and degree of weather exposure.
Should the window installation joint be set before fitting?
Yes. Resolve the frame position, wall construction, overall dimensions, mechanical restraint and interfaces with sills, external finishes and indoor surfaces no later than the survey and ordering stage. Conditions uncovered during work can still require revision. A planned response for damaged or uneven reveals is preferable to hurried improvisation on site.
Which trade is accountable for the window-to-wall seal?
Responsibility follows the contract, scope and agreed boundaries between contractors. Applying one tape is only part of the task; someone must ensure that the junction continues correctly into plaster, façade layers, sills and adjoining systems. Write down who completes each interface, when it will be inspected and how unfinished work will be protected.
How can I recognise an inspectable installation plan?
Expect drawings or scaled views for the head, jambs and sill, with the sealing zones, anchors and load path clearly identified. Doors, unusual forms and junctions close to floor level generally merit their own sections. Compare the uncovered work with the approved information and retain photographs before finishes are applied.
Next step
A dependable window junction results from coordinated room-side sealing, central insulation, exterior rain protection, secure support and compatible adjoining construction—not from choosing one sealant. Begin with the wall and intended frame position. Obtain details around the entire perimeter, give thresholds and unusual shapes individual treatment, and assign every handover between trades. Early design makes quotations easier to compare and allows meaningful inspection before plaster, linings or sills conceal the important layers.
