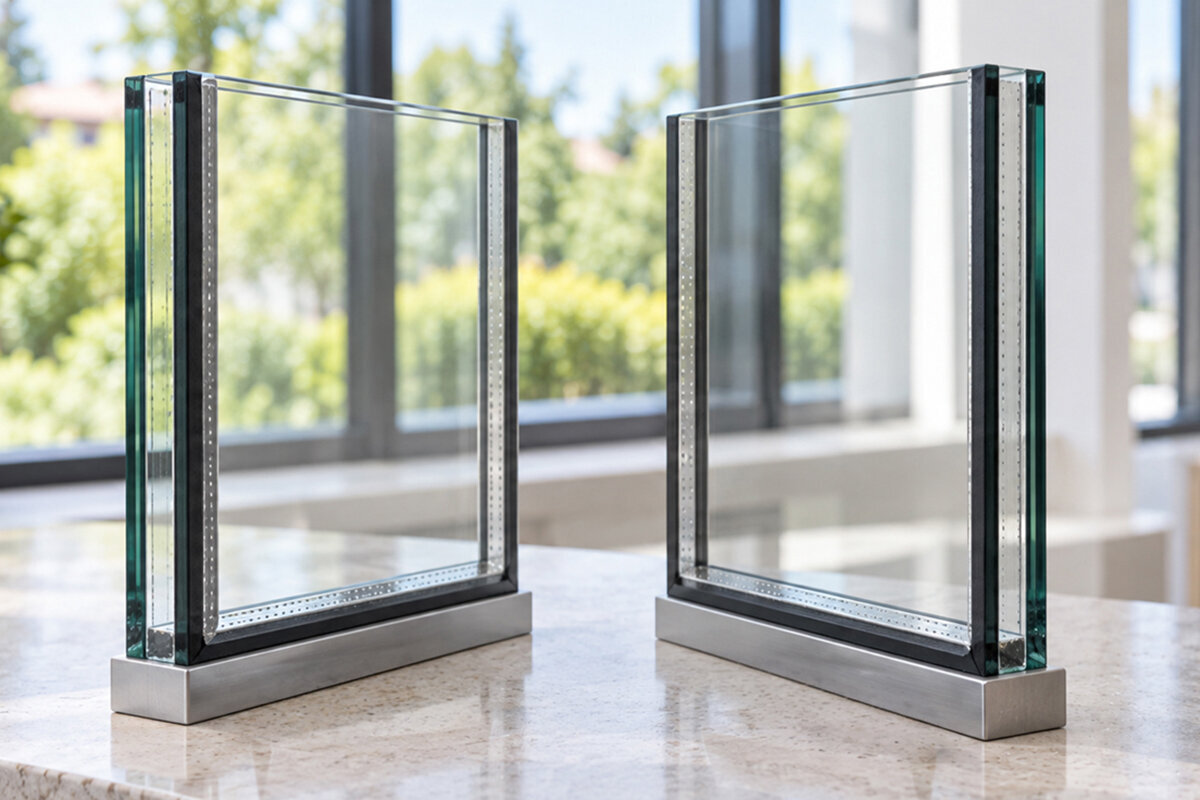

Argon or krypton in insulating glass: differences explained
Choosing insulating glass properly
When planning windows, quotations often mention just one word: argon or krypton. That should not become an isolated buying decision. Both noble gases sit in the cavity between panes of insulating glass and affect heat transfer. The usefulness of either gas also depends on cavity width, number of panes, coatings, edge seal, frame and the actual window size. For a replacement project with different openings, it is therefore worth assessing the complete element consistently. This guide explains when argon can be the practical standard choice, when krypton is of interest in compact builds, and what a comparable quotation should state. It helps you match gas filling, glass build-up, operation and installation to the real project.
01 / Define project goals
Putting the gas filling in context
Multi-pane insulating glass consists of individual panes joined into a sealed unit around the edge. Gas-filled spaces sit between the panes. These cavities slow heat transfer more effectively than ordinary air filling. Argon and krypton are suitable noble gases for this purpose. Their role is not to visibly alter the glass: both are colourless and odourless, and you cannot tell from inside the room which gas has been used. The choice becomes relevant through the calculated and documented performance of the whole glass unit. Looking only at the gas name overlooks pane spacing, coatings and edge details that make its effect useful in the actual build-up.
To compare quotations, you need at least confirmation of whether double or triple insulating glass is proposed, the glazing Ug value and the Uw value of the complete window. Ug broadly describes the glazing, while Uw describes the assembled element including the frame. A lower value indicates lower heat transfer. Details of coatings, each cavity and the edge seal complete the comparison. “Krypton glazing” then becomes a verifiable configuration rather than a slogan. Ask for the values to be confirmed for the specific size and version requested. A reference figure from a data sheet may not apply unchanged to a smaller window, a special shape or a multi-part construction.
Why the pane cavity matters
The insulating effect of a filling gas arises from its interaction with the width of the pane cavity. Where this space is narrow, gas properties can matter differently than in a wider chamber. Making it ever wider does not automatically produce steadily better insulation, because movement within the gas can limit the additional benefit. The spacing is therefore not a value to maximise freely, but part of a coordinated glass construction. Argon is often used in conventional cavities, while krypton is mainly considered where good thermal performance is required within a narrower build-up. The optimum width must always be determined with the pane count, coating and target Ug value.
This can matter with a slim frame sightline, replacement glazing with limited rebate depth, or a design with fine profiles. It does not mean that a narrow build-up always requires krypton. The supplier must assess which complete glass unit fits the selected system and is available in the required size. Where construction depth is limited, ask specifically for the total glass thickness, the width of every cavity and the resulting Ug value. With traditional outward-opening combination casement windows the sightline width, glazing-bar pattern and opening method should also be coordinated. This shows whether krypton solves a construction issue or is simply offered as a more expensive alternative.
02 / Record the elements
Argon as a practical standard option
Argon is an obvious insulating-glass option when the chosen pane build-up provides enough room for appropriately sized cavities. For many window projects, the sensible aim is not the most technically striking individual feature but a coherent overall specification. Argon can work well here because glazing, frame, size and intended use can be planned together. In a house with several standard window formats, a consistent documented solution also makes items easier to identify in quotations and schedules. Variations for individual special formats remain visible instead of disappearing among differently and incompletely described glass options. Clear build-up identification also makes later questions easier to assign to a particular element.
It is important not to equate argon with a blanket promise of room comfort or energy consumption. A small window on a sheltered façade has different planning and use requirements from a large element on an exposed side of the building. Coating, glass-to-frame proportion, edge zone, shading and the wall connection also affect the outcome. For an inward-opening single-sash window do not merely ask “argon, yes or no?”. Request the Uw value for the offered size, the glazing Ug value and an unambiguous glass designation in the order confirmation. Also check that the opening direction and fittings suit the intended use before comparing options by gas alone.
Assess krypton for compact glass build-ups
Krypton can be particularly effective in narrower pane cavities. That makes it a possible choice where the glass build-up needs to remain compact for structural or design reasons. It is not, however, an automatic upgrade for every window. If a construction has enough depth for a well-coordinated argon build-up, krypton may offer no decisive practical benefit for the project. The useful comparison is not “Which gas is better in general?”, but “Which tested glass build-up achieves the stated goal in the intended element?”. Request the same information for both options. Only with identical dimensions, comparable frame specifications and clearly stated performance values can you identify which difference genuinely results from the glass construction.
Krypton may be discussed for large continuous glazed areas where demanding requirements need to be met within a limited build-up thickness. Yet glass size, frame proportion, opening mechanism, weight and installation situation also influence the selection. A Patio Life lift-and-slide door is first and foremost a lift-and-slide door as a product designation; no gas-filling values or specifications can be inferred from that name. For the exact configuration, request dimensions, glass build-up, Ug and Uw values, plus the safety and operating features needed for your project separately. Then compare not only thermal values, but also the implications for profile choice, ease of movement and available versions. Only then will it become clear whether a krypton build-up supports your priorities or argon remains the more coherent overall solution.
03 / Compare glass build-ups
Assess double and triple glazing separately
The number of panes fundamentally changes the construction. Double insulating glass has one cavity, while triple insulating glass has two. With three panes, both cavities, coatings, glass thicknesses, overall weight and suitability for frame and fittings must be considered together. It would be simplistic to prefer triple glazing solely because of krypton or to exclude double glazing solely because of argon. The glass choice must suit the required thermal quality, element size and structural possibilities of the window system. In a replacement project, it should also be clarified whether the proposed glass can be safely accommodated by the existing or new frame. This assessment belongs to technical planning and cannot be derived from the gas name.
Depending on the build-up, more panes and coatings also alter light and energy properties. The Ug value therefore does not answer every question about use. In rooms with strong solar exposure, the total solar energy transmittance can matter when planning summer comfort; daylight transmittance may also be relevant in living and working spaces. Ask for these values to be explained where daylight, solar gains or a particular glass effect matters to your project. With a fixed-glazed window there is no sash to operate, but glazing, frame, shading and wall connection still need coordination. Compare double and triple variants as complete build-ups, not merely as a number of panes.
Compare coatings and edge seals too
The noble-gas filling is only one part of the thermal concept. A coating on a designated glass surface affects radiant heat transfer; its type and position belong to the defined build-up. The edge seal keeps the panes apart and seals the cavity between them. Several materials and heat paths meet at the transition from glass to frame, making a whole-element assessment especially important. Anyone sorting quotations only by gas type, without asking about coating and edge zone, may compare constructions with significantly different overall performance. Even a good Ug value alone does not show how the complete window performs in the ordered size or which edge solution is actually included.
Ask for a clear glass description rather than a sales name alone. It should identify the number and thickness of panes, gas filling, cavity widths, relevant coatings and declared performance values. Ask explicitly whether a stated value applies to the glazing or the complete window. This avoids the common mistake of reading a favourable Ug value as a Uw value. With fixed-glazed triangular and sloping windows the individual shape must be clearly stated in the quotation, because dimensions, edge lengths and frame proportion differ from a rectangular reference element. Also ask for confirmation that the offered glazing is available in precisely that geometry and which performance value is assigned to the exact version.
04 / Coordinate the specification
Plan frame and glass together
A window does not gain its quality from the centre of the glass alone. The frame occupies part of the area and, together with glazing and edge zone, affects the Uw value. In small windows its area share is regularly greater than in wide fixed lights; sash divisions and glazing bars further alter appearance and construction. The same glass build-up should therefore not automatically be assumed to have the same overall performance in two different elements. A robust selection starts with the real element schedule and its dimensions, not with a single glazing data sheet. Mark fixed lights, opening sashes and special shapes so that values, gas filling and coatings remain assigned to the correct opening later.
Plan rooms with similar use together, without forcing every opening to have an identical specification. A bathroom window may need a different opening solution from a large living-room window while the thermal planning goal remains comparable. An outward-opening top-hung casement window describes the opening form, not the final glass build-up. For such elements, also clarify operating height, cleaning access, shading and normal ventilation. Check whether the outward-moving sash could conflict with external building components or the planned surroundings. This avoids carefully optimising the gas filling while an unsuitable opening style or difficult-to-reach operation makes everyday use inconvenient.
Assess large formats and doors separately
With patio and sliding doors, large glazed areas understandably draw attention to the Ug value. Yet frame, threshold, sash weight, sealing and connection details, and ease of movement are also part of planning. Do not therefore select the gas filling separately from the door type. A build-up suitable for a small fixed window may not automatically be available or sensible for a large moving element. The supplier should state the construction and values for the planned dimensions. Also ask whether variations in glass thickness and weight affect the offered fittings or profile configuration. These relationships are more useful for a purchase decision than an isolated comparison of noble gases.
Before making an enquiry, decide which goals take priority: clear views, abundant daylight, a particular opening behaviour, a suitable transition solution or strong thermal protection. These goals can compete and need a clear order. With outward-opening double patio doors consider, for example, the clear opening, indoor furniture, usable outdoor space and the swing areas of the leaves. Draw the required swing space on the floor plan and check which door will be used most often in daily life. You can then ask specifically for a suitable argon or krypton glass build-up. The gas choice supports an established use pattern instead of unintentionally dominating the whole selection.
05 / Check the order
Glazing bars, special shapes and visual effect
Glazing bars noticeably change the appearance of a window, but they can be constructed in different ways. Use the terms precisely: a structural glazing bar divides the glazing construction, whereas applied elements or elements within the pane cavity are built differently. The desired appearance should therefore be settled before the final glass decision. It affects not only the elevation but can also change the number, size and edge lengths of the glass units. The question of argon or krypton thus becomes part of a broader coordination between design and technical performance. Where several glazing-bar versions are considered, request a clear drawing so that the quotation, elevation plan and later order do not assume different divisions.
Round, curved or sloping special shapes deserve their own quotation comparison. Such elements have different area ratios from standard windows and should not be assessed solely using a rectangular sample value. A round fixed-glazed window means round fixed glazing, not a gas type, pane count or thermal value. Ask for the available glazing and its associated performance value for the exact size. Bring design and technical information together in an element schedule so every configuration is clearly assigned to an opening. If the preferred glass option is unavailable for the special shape, compare the proposed alternative against the same project goal rather than solely against its different gas filling.
Coordinate quotations, order and installation
Compare quotations line by line. Your checklist should include quantity, width and height, opening direction, frame version, glass build-up, Ug and Uw value, glazing bars, accessories and the installation interface. Mark which values are based on reference dimensions and which expressly apply to the ordered element. If a quotation says only “krypton”, ask about cavity widths and the complete build-up. The same question is necessary where it says “argon”. Also check whether every supplier has priced the same pane count, coating and element division. Only comparable documents allow a sound decision; a low individual value helps little if dimensions or scope differ between quotations.
Before ordering, coordinate site measurement, wall connections, shading and responsibility for installation with the relevant professionals. They can check whether the proposed solution suits the building and planned execution. Bloomcabin provides a five-year guarantee on windows and doors. Delivery takes four to six weeks, subject to order confirmation. Do not use this information as a substitute for technical clarification: the final confirmation should clearly state dimensions, opening types, glass build-ups and agreed performance values. Compare it again with your element schedule and clarify discrepancies before approval. This makes the gas filling a documented part of a coordinated project rather than an option that is difficult to identify afterwards.
Frequently asked questions
Is krypton always better than argon?
No. Krypton can be particularly useful in narrower pane cavities. With a differently dimensioned glass build-up, argon may be the more suitable choice. Pane count, cavities, coatings, edge seal and frame, as well as the declared values of the specific element, are decisive. Do not compare gas names without complete technical information.
Can I replace the gas filling later?
The gas filling belongs to the sealed insulating-glass build-up and is not a setting that can simply be changed in an installed window. If requirements change substantially, a specialist should assess the whole element. This includes the frame, available glazing rebate, glass weight, fittings and connection, not only the preferred gas type.
How can I identify argon or krypton in an installed window?
In everyday use, neither gas is visible or detectable by smell. Rely instead on the documentation for the supplied window: order confirmation, element schedule, technical glass description and any markings on the glass unit. Keep these documents with details of size, opening type, installation and guarantee for future questions.
Is a low Ug value enough when choosing windows?
No. The Ug value refers to the glazing, while Uw refers to the complete window including its frame. Element size, divisions, edge zone, installation situation and requirements for light, sun and operation also matter. A good comparison therefore includes both values and clearly assigns them to the relevant size and version.
What should I ask first in a quotation?
Start with the purpose of the element: is the priority thermal protection, a compact glass build-up, daylight, design or a large usable opening? Then request the exact glass build-up, including filling gas, cavities, Ug value and Uw value for the intended size. This makes the consultation far more precise.
What to do next
Argon and krypton are not competing quality labels, but options within a coordinated insulating-glass build-up. Argon often suits conventional pane cavities; krypton can be a targeted alternative for compact cavities. For a purchase decision, however, the documented values of the specific window matter, not the gas name alone. First establish use, design, dimensions and opening types. Then compare glass and window information element by element, and have structural and project-specific requirements checked by suitable professionals. This keeps the glazing specification understandable even where your project combines fixed lights, special shapes, windows and doors.
