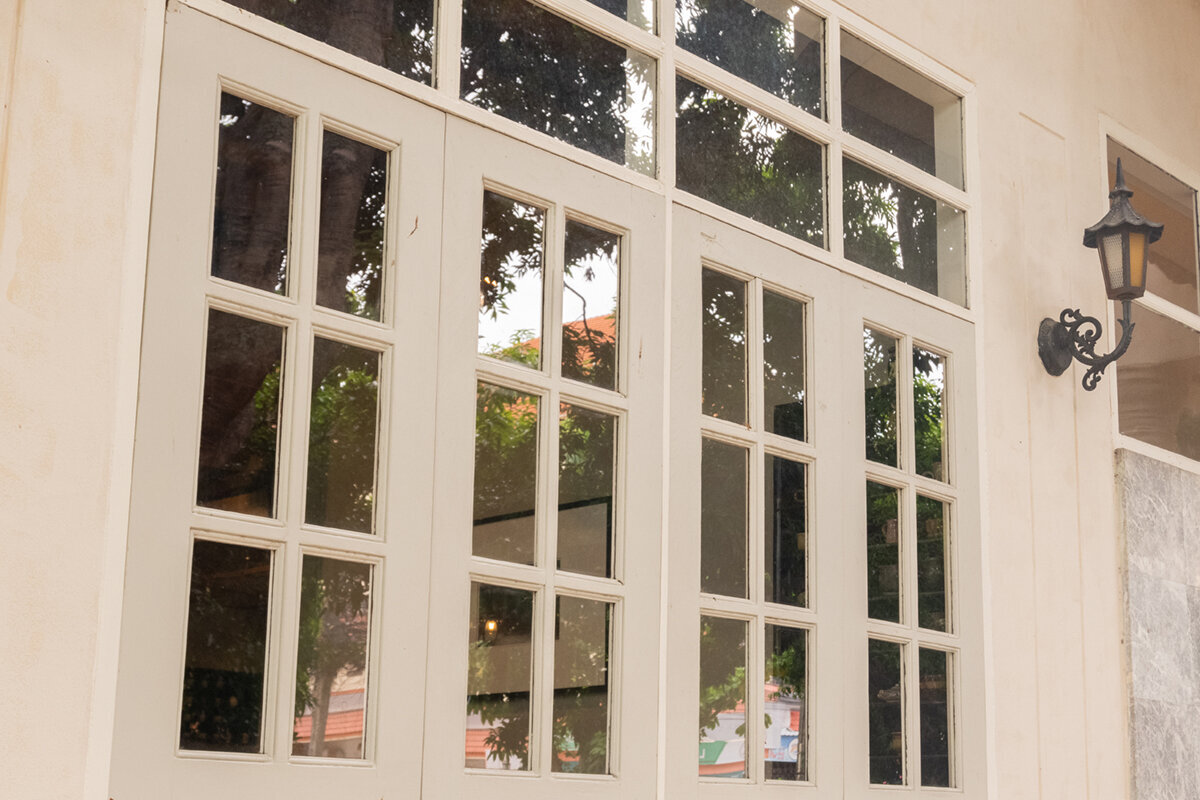

Planning Casement Windows: Swing Space, Hinges and Buying Criteria
Plan practical casement windows
A casement window may look convincing on a drawing yet prove awkward in daily life: the sash can hit a light fitting, block the route past a desk or fail to open far enough because of a curtain. Start not with colour or glazing bars, but with the sash’s real travel. Define the swing area, hinge side, handle access and cleaning route for every opening before ordering dimensions and specification. For refurbishment projects, consider furniture, radiators, shading, outside areas and existing reveals together. This guide explains which decisions are connected, what belongs in a reliable enquiry and when another window type may be more practical.
01 / Survey the room
Start with swing space, not window size
The swing area is the space an open sash occupies inside or outside. So do not draw only the structural or existing opening: add the sash in its open position to the floor plan. A cardboard template or masking tape on the floor makes the movement easy to see. Check the usual ventilation position separately from a wide-open position. What remains clear for brief airing can still be problematic during cleaning. Include normal use: a chair is pushed back, plants grow, or a laundry basket temporarily stands in the way. Sound planning must not assume a completely tidy room. A straightforward check compares three sash positions: closed, open for daily ventilation, and as far open as required for care or access. Mark the outermost sash edge for each position. This reveals whether only a short part of the travel is clear or whether the whole area can really be used. A top view can be misleading, especially with angled furniture and deep reveals. Where needed, add a side view showing the parapet, windowsill and handle height.
In a home office, an inward-opening sash can block the desk; outside, balcony furniture, a downpipe, planting or a narrow path may interfere. If the outside area stays permanently clear, an outward-opening single-sash casement window may be an interesting configuration. However, the product name confirms only the opening type and number of sashes, not suitability for a particular installation position. Record on the survey sheet which area the sash passes through and which objects are fixed there or regularly placed there. Add a sketch of the opening direction and preferred opening angle. This turns the vague requirement “it must not get in the way” into something a supplier and qualified planner can assess specifically.
Derive the hinge side from room circulation
A right- or left-hinged window is not merely an ordering detail. Stand in the normal operating position with the window closed and open: the sash should neither cut off the route to the door nor block access to a frequently used surface. Beside a bed, it is often more important that it swings away from the sleeping area than that the handle looks symmetrical. In kitchens, tall units, wall-cupboard doors and worktops influence the decision. Review neighbouring windows together. Opposing sashes can create separate movement zones, while a consistent hinge sequence may simplify use. The right solution follows the actual floor plan, not a general rule.
With an inward-opening arrangement, the sash path must be shown on the furniture plan. An inward-opening single-sash casement window can work if the area in front remains clear and the sash swings away from the working or seating zone. Check curtains, internal blinds, radiator valves and items on the windowsill. The handle must remain reachable even when the sash is only partly open. Specify the hinge side separately for every window, even where several units have the same width. The quotation must state opening direction and hinge side from a clearly named viewing direction. Ask whether the drawing shows the inside or outside elevation before approving the specification.
02 / Check the swing path
Balance window width, sash count and operation
One wide sash creates a continuous opening but needs correspondingly more room when it swings. Two sashes split the movement, but add a central meeting area and separate operating steps. Therefore, appearance and daylight are not the only considerations: desired opening width, free space and frequency of use also matter. Must the full opening be clear regularly, or is one main sash enough for everyday ventilation? Will the second sash usually stay closed? Who will operate the window? These questions prevent sash divisions being chosen solely for façade symmetry. Rooms used differently may reasonably need different solutions.
A outward-opening double-sash casement window is one possible configuration when two separate sashes suit the planned opening routine. Check individual sash widths, not only the overall size. Both sashes need a clear route outdoors; garden furniture, awnings or planters must not restrict movement. The same question applies indoors with inward-opening versions. Drawings showing open sashes are therefore more informative than a façade elevation alone. State in your enquiry which sash will be used most and whether both need to open at the same time. Also clarify how the sashes are operated and closed in sequence, so the selected division remains practical in daily use.
Treat hinges as a functional window component
Hinges support and guide the sash. Selection depends on considering window size, sash construction, opening direction and use together. A large sash moved frequently raises different planning questions from a small unit opened rarely. Rather than asking generally for “strong hinges”, describe the task: how wide and high is the sash? How is it divided? How often is it likely to move, and should it regularly open wide? Which curtains, fittings or neighbouring elements affect its movement? The responsible manufacturer or qualified planner must confirm the technical design for the specific configuration.
The visibility, opening angle and maintenance access of the hinge side also belong in the discussion. With a inward-opening double-sash casement window for example, establish how both sashes swing into the room and whether hinge sides or handles clash with the curtain system. Ask about planned opening limiters, operating instructions and services included with installation. A clear contact person is equally important if adjustment or operating questions arise after fitting. Bloomcabin provides a five-year manufacturer guarantee for windows and doors. Keep the order confirmation, product documents and care and guarantee information so the exact ordered version can be identified later.
03 / Choose the opening type
Plan the handle, windowsill and curtain together
A handle is practical only if it can be reached without awkward stretching and operated with a free hand. Check sideways obstacles as well as height. A wide curtain, plants on a deep windowsill, a table by the reveal or tightly placed shelving can hinder access. Act out typical operation: does the person stand directly in front, sit at a workstation or reach across a kitchen counter? If several people use the window regularly, check the position for all of them. A rarely opened secondary window can be assessed differently from the room’s principal ventilation opening.
Curtain poles, tracks, internal blinds and insect screens are often selected late, yet they affect the available movement space. Establish whether the preferred privacy or sun protection prevents opening and can be removed for maintenance. The windowsill also needs deliberate depth, so items do not constantly have to be moved from in front of the sash. Where light and views are wanted but no extra ventilation opening is needed, windows with fixed glazing can be an alternative. They need no swing space, but cannot be opened. Required air exchange and cleaning access must therefore be sensibly resolved through the remaining openings and the way the room is used.
Define the cleaning route from the start
Do not ask only whether a pane is reachable, but who can clean it and from which position. With an outward-opening casement window, the external face does not automatically come conveniently indoors. On upper floors, above an extension or within a bay, outside access can also be difficult. Mark on the plan which glazed areas are accessible from indoors, where outside access exists and where a professional solution is required. Consider parapets, fixed furniture, terrain, balconies and planting. Suitable professionals must assess the safe method for the particular building; improvised access should not become the assumed cleaning method.
A different turning movement can alter access. An outward-opening single pivot window with a vertical axis works differently from a side-hinged casement window. What matters is which pane surface becomes reachable in each position. Request a functional drawing and an explanation of the intended cleaning position instead of inferring use from the product name alone. Fixed insect screens, external shading and window boxes can further affect access. Record the cleaning route separately for each façade side, since storey height, extensions and ground levels often differ within one building. A workable solution must also suit the person who will actually carry out the cleaning.
04 / Compare quotations
Consider outside and inside together
Outward-opening windows save swing space indoors but require room in front of the façade. An open garden elevation has different practical conditions from a narrow balcony or a frequently used path. Observe where chairs, bicycles, bins or planters normally stand. Also check nearby moving door leaves, shutters and sun-protection elements. The window should not only avoid collisions on handover; it must remain operable during normal use. Weather exposure and ventilation habits also belong in the project discussion. Whether a design suits the specific installation position and building envelope must, however, be assessed professionally for the relevant junction.
If the side space outdoors is limited, another opening movement may be worth considering. An top-hung outward-opening awning window moves differently from a side-hinged sash. It is not a universal substitute: compare the clear opening, handle access, ventilation purpose and cleaning option. Coordinate windows with patio doors, external sun protection and drainage components in one view. A façade photo with movement areas marked on it communicates more than one measurement alone. Mark areas occupied only temporarily as well. This shows whether another opening type solves the actual problem or merely moves the conflict elsewhere.
Allocate fixed and opening sections by function
Not every glazed section has to open. Functional planning separates daylight, views, ventilation, cleaning and appearance instead of assigning every task to every sash. Beside a seating area, a fixed section can retain the view while a narrower casement sash on a clear side provides ventilation. In wide openings, this combination reduces large moving areas and leaves more freedom for furniture. The trade-off is that a fixed section provides no ventilation. Assess the whole room, including other windows and doors. First decide which opening will actually be used day to day, before choosing the division by symmetry or façade effect.
The division also affects appearance. Glazing bars structure the view; bars dividing the glass create a different glass layout from purely decorative versions. First decide on fixed and opening sections, then on their visual subdivision. An outward-opening heritage-style “Kombi” casement window describes a Kombi version with traditional styling and outward opening. Whether it suits the proportions, operation and building must be checked against the specific design. State in the brief which internal and external views matter and whether existing proportions or glazing-bar divisions should be echoed. This keeps appearance as a conscious criterion without allowing it to obscure swing space and everyday practicality.
05 / Approve the order
Prepare the survey and quotation clearly
A good survey records more than opening width and height. Document measurements in several places, reveal depth, windowsill, adjacent walls, radiators, services and visible obstacles. Photograph every location inside and out, including enough surrounding space. Add a sketch of the desired opening direction and the position of larger furniture. For replacements, establish which existing components will remain, be adapted or removed. Building junctions, structural capacity and technical execution belong with qualified professionals. A precise brief nevertheless helps identify practical conflicts early. Mark unknown dimensions clearly instead of carrying assumptions into the order.
Identify every quotation item clearly, for example “North kitchen” or “East bedroom”. Record opening type, hinge side, number of sashes, handle side, glazing-bar preference, fixed sections and any special accessibility needs. Ask which details require confirmation before ordering and which approval drawings will be supplied. Check these documents against both the façade and furniture plan. Bloomcabin states a delivery time of four to six weeks, subject to order confirmation. Arrange removal, follow-on work and room clearance only using confirmed project details. Where plasterwork, flooring, shading or other trades are involved, their sequence and required junction dimensions need clear coordination.
Test an everyday scenario before approval
Before ordering, walk through each room mentally or with a template. Open the proposed window for daily ventilation, then as far as intended for cleaning. Does the route remain usable? Can the handle be reached with the curtain fitted? Does the sash clash with furniture, lights or cupboard doors? Repeat the test outside for balconies, terraces and paths. This exposes conflicts between individual choices, such as a window working alone while the neighbouring patio door needs the same movement area. Hinge side, opening angle, glass division, hinge position and cleaning route should all be documented clearly before approval.
After installation, ask to be shown opening, closing, locking and the intended cleaning position. Compare hinge sides and sash divisions with the approved documents. Keep the order confirmation, product information, care instructions and guarantee documents together. Also check whether curtains, furniture and outside objects can be arranged as planned. A small change to the layout is easier than altering the window configuration afterwards, but it should not permanently cover essential operating space. If there are doubts about the building junction, safe access or coordination with other work, involve the responsible qualified professional before problematic use becomes routine.
Frequently asked questions
How much space does an inward-opening casement window need?
It depends on sash width, opening angle and hinge side. Draw the open sash into the floor plan and allow for chairs, curtains, radiators and items normally kept nearby. As well as the ventilation position, check the wider-open position needed for cleaning or full access.
Is a single- or double-sash casement window better?
One sash gives a continuous opening but needs a larger swing area. Two sashes divide the movement, but add a central meeting area and more operating steps. The deciding factors are overall size, desired daily opening, free space and whether both sashes are regularly needed at once.
What should I consider for hinges?
Describe sash size, opening direction, division, expected use and preferred opening position. Have the technical suitability of the specific configuration confirmed. Also ask about hinge appearance, opening limiters, maintenance access, installation scope and the contact person for later operating or adjustment questions.
Can I plan a casement window with furniture in front of it?
Yes, provided furniture and sash travel are coordinated deliberately. A different hinge side, a narrower opening sash or a combination with a fixed section can help. Also allow for pushed-back chairs, open cupboard doors, curtains and objects normally kept on the windowsill.
When does another opening type make sense?
If the side swing path cannot reliably remain clear indoors and out, compare fixed glazing, awning windows or pivot windows as alternatives. No version automatically solves every conflict. Check operation, opening width, ventilation role, cleaning access and interaction with the other openings in each case.
Next step
A casement window becomes practical not through its nominal size alone, but through its movement in a furnished building. Define swing space, handle access and the cleaning route first; these determine the hinge side, sash count and sensible mix of fixed and opening sections. Document every opening with photos, measurements and a sketch of the open position. Compare quotations against the same requirements and check approval drawings against the furniture and façade plans. This helps identify avoidable conflicts before ordering.
