Configuring sliding doors: two, three or four panels?
Planning guide for sliding doors
Choosing two, three or four panels may initially seem like a style decision. For a sliding door, however, it affects much more: where the clear opening sits, how many glass panels are fixed, the view from the sofa, and how the terrace, furniture and curtains can be used around the opening. A wide four-panel door does not automatically open wider than a two-panel option. Only the opening plan shows which panel slides, where it parks in front of a fixed panel and what clear passage remains. By reviewing the floor plan, everyday opening needs and external elevation together, you can choose a division that looks balanced on the drawing and works in daily use.
Read the opening plan before counting panels
A sliding door should be selected through its opening plan. An elevation shows vertical lines that divide the overall width into panels. The plan must also clearly identify which panels are fixed glazed units and which can slide. In a two-panel system, for example, one panel may remain fixed while the other slides in front of or behind it. The visible glass area is then large, but the access point is on only one side. A three-panel system may have a moving centre panel or a moving outer panel. These arrangements can look similarly divided yet lead people outside at different points. Therefore, request not only a front elevation but also drawings of the fully closed and fully open positions.
The clear opening is the usable passage when the door is open. It is not the full width of the structural opening, nor necessarily the width of one drawn panel. Frame sections and the parked position of moving panels must be included in the planning. Before comparing options, note the opening you actually need: a short route to the terrace, room for a serving tray, moving larger items, or a more open connection when guests visit. A general selection of sliding doors is a useful starting point, but does not replace this decision. Ask in writing for each option: which panels move, where do they slide, and what clear passage remains in the intended open position?

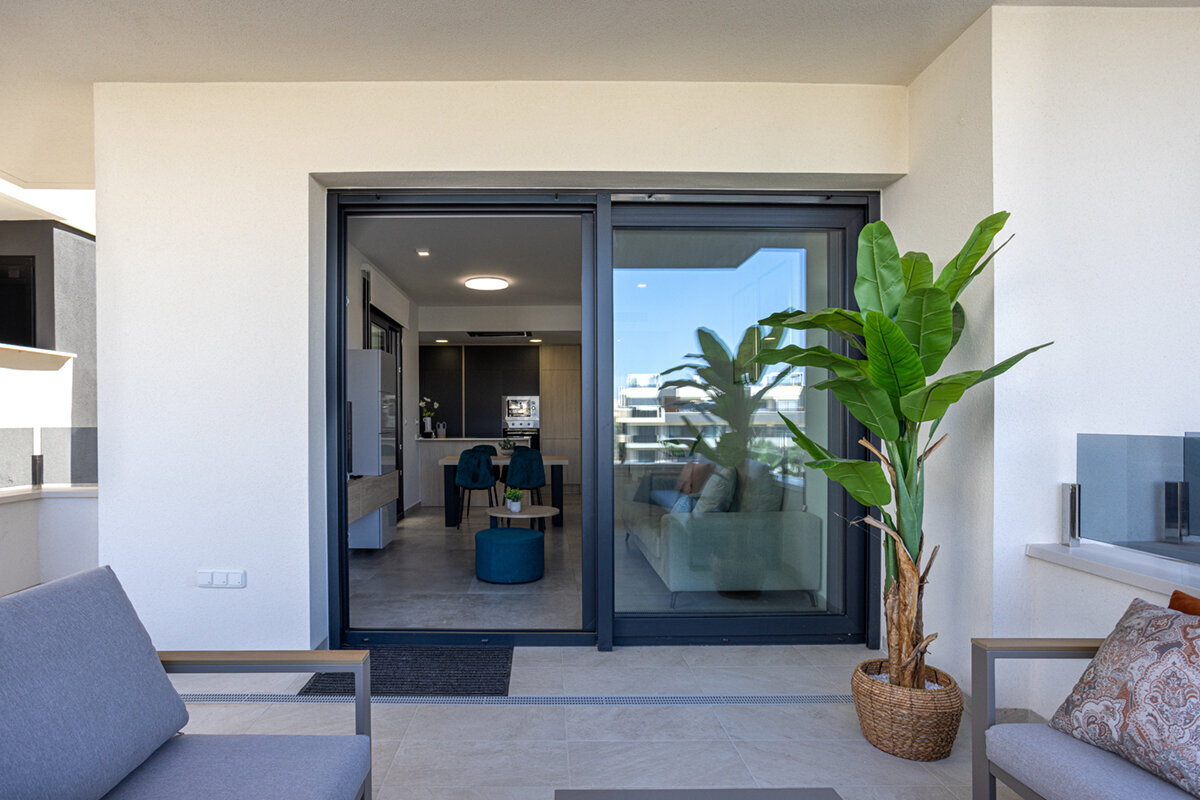

Two panels: a calmer elevation
A two-panel layout divides the opening into two larger areas. This can look especially calm on a limited wall width because fewer vertical frame lines interrupt the view into the garden. If one panel is fixed, a large section of glazing stays permanently closed. That is attractive when the view out matters more than a central passage. The moving section also determines which side carries the everyday route. Plan that side not only for symmetry, but around the room furniture, the route across the terrace and the position of the dining table.
A possible drawback arises when a wide opening is divided into only two very large panels while the intended use calls for an especially wide passage. More glass is not the answer in that case; a different opening arrangement or division may be. Lift-and-slide systems are available as a product category under Patio Life lift-and-slide doors but suitability must be checked against the offered configuration. Also decide what you want the closed elevation to look like: exactly equal panel widths, or a layout that deliberately places the sliding sash and access point to one side of the room. Both can be visually appropriate, but they meet different priorities. Compare two specific sketches rather than abstract labels: one with equal panel widths and one with access positioned around the walking route. Then consider which option looks calmer from the main seating position and which provides the shorter, unobstructed everyday route.
Three panels: position the passage deliberately
With three panels, the division can bring a stronger rhythm to a wide façade. It is often useful where large glazing should be broken into manageable-looking sections without creating four vertical axes. The main planning benefit is positioning: a moving panel may sit on the left, right or in another arrangement. This can place the exit nearer the kitchen, dining area or a particular part of the terrace. Do not decide from a schematic image. Draw the wall, sofa, table, radiators, curtains and terrace furniture to the same scale, then mark the daily route. Add a second line for occasional situations, such as serving guests or carrying a larger piece of furniture. The preferred configuration need not be identical for both uses. Give greater weight to the frequent route while recording what occasional use must still remain possible.
Three panels do not mean that all three move or that two thirds of the frontage opens. Some versions combine moving and fixed sections differently from what an initial sketch suggests. With a symmetrical three-panel division in particular, ask whether the vertical lines on the internal and external elevations suit the intended sightlines. If the dining table stands centrally in front of the door, a panel edge directly in the preferred view can be more distracting than one in an empty wall zone. Conversely, a deliberate division can help align the sliding door with neighbouring window axes. Give the supplier a façade elevation showing all adjacent openings, not only the structural door dimensions.
Four panels: structure wide openings intentionally
Four panels provide pronounced structure for wide wall openings. Each glazed panel appears narrower than in a two- or three-panel arrangement, which can suit a façade with repeated axes. Indoors, however, more vertical lines enter the view. Whether this feels finely detailed or busy depends on the wall width, furniture layout and the rest of the window division. Four panels are therefore not an automatic upgrade for a large opening. They suit projects where the division supports a design aim or where the planned moving arrangement distributes access more effectively than a coarser layout.
For a four-panel system, the movement plan is particularly important. It may have fixed outer panels, moving centre panels or other arrangements, depending on the system and quotation. Check in every position whether an open panel releases the required exit and whether the handles remain easy to reach. A side-sliding option is listed, for example, under Siegenia side-sliding doors but the title alone does not establish a specific panel arrangement or dimensions. Ask for the sliding direction to be drawn directly on the quotation. Also ask whether mirrored left- and right-hand versions are available, so the choice suits the actual route across the terrace.
The room determines the better side
A sliding door does not need a swing area inside the room when opened. Its surroundings still require planning. Chairs should not regularly project into the route in front of the opening, and curtains, blinds or other interior fittings must work with operation and handle access. Imagine three typical routes: from the kitchen to the terrace in the morning, from the living area outside in the evening, and when carrying larger items. If all routes are on the same side, an opening positioned there is usually more convincing than formal symmetry. If the living area and terrace route sit on different sides, another panel arrangement may be more suitable.
Compare the sliding door with a conventional patio door as well, rather than forcing every opening requirement into a sliding system. A single outward-opening patio door is an alternative where one clearly defined access point is enough and the opening area outside can be kept clear. It solves a different layout need from a wide glazed frontage. For an inward-opening alternative, the single inward-opening patio door is relevant; its swing area must be allowed for inside the room. The question is not only “How many panels?” but also “Do I need broad side-opening glazing or a focused door access point?”
Check internal and external sightlines together
The same panel division is perceived differently from inside and outside. Indoors, attention often centres on the view at seating height and the link between floor, terrace and garden. Outside, the vertical divisions shape the relationship with windows, façade axes and any canopy. Take a separate moment for each side: stand in the planned seating area and consider whether a panel edge falls across the preferred view. Then look at the façade from the garden and assess whether the division gives the architecture order or appears accidental. A centred division is not always the best solution.
Glazing bars, including those that divide the glass, are a separate design consideration. They should not substitute for a well-planned panel layout. A four-panel sliding door already creates several strong vertical lines, and extra glass-dividing bars change the appearance further. For an open, expansive effect, deliberately limit the visible lines. For finer façade detailing, check their positions in a complete elevation first. Also coordinate the appearance of fixed glazing beside the door. A fixed glazed window can complement the glass area of a sliding door, but division axes, sill heights and visible frames should be assessed as one overall composition before ordering.
Fixed and moving panels have different roles
A fixed panel creates a permanently closed glazed area. It provides light, views and façade structure, but not daily access. A moving panel provides access, while determining the parking position and operating side. This distinction must be clarified for every panel count. A design with many moving panels can be attractive where a wide access opening is wanted, but the actual operation and usable opening must remain clear. A design with mainly fixed panels can look generous if one well-placed exit is sufficient for daily use. There is no universally correct ratio between fixed and moving sections.
Request a simple function list: panel A fixed or moving, panel B fixed or moving, sliding direction, handle side and position when fully open. This avoids misunderstandings caused by terms such as “two-part” or “four-leaf”. Also clarify who normally operates the door and from which side. In a family home, an easy-to-reach handle can matter more than formally equal panel widths; for an infrequently used garden opening, a calm fixed glazed area may take priority. The configuration should also be coordinated with the intended floor build-up and connection detail. Details of structural connections and project requirements belong in the review by the responsible qualified designers and contractors.
Large opening or flexible alternative?
A sliding door is not the only way to connect the interior and terrace. Folding doors can fold several panels to one side, creating a different type of opening. The outward-opening folding doors are therefore a useful comparison where the project needs a largely uninterrupted opening for particular occasions. Panel count is not the only factor to compare: folding movement, the open parking position and the outside area in front of the door fundamentally change how it is used. A sliding door may suit a clear everyday route better; for a frontage opened wide seasonally, assess the alternative more closely.
A double patio door also has a different strength. The double outward-opening patio door may be considered where a traditional door character and a temporarily wide opening matter more than continuous sliding glazing. It does, however, need clear space outside for the open leaves. Decide using a use calendar: is the door opened only briefly almost every day, is the terrace often furnished, or should the frontage open wide for gatherings? This comparison shows whether two, three or four sliding panels are truly the unresolved question, or whether the suitable opening type should be chosen first.
Turning a survey into a dependable order
A site measurement alone does not describe a finished sliding door. A comparable quotation should include at least overall width and height, internal and external elevations, the desired panel division, fixed and moving panels, sliding direction, handle position and opening side. Add details of the existing wall opening, planned floor build-up, adjoining elements and shading or curtains. In refurbishment work, it is especially important to know whether the actual opening, floor and connections have already been checked or may still change. Only when these points are clear can alternatives be compared professionally instead of comparing titles or rendered images. State who confirms each measurement and which drawing revision forms the basis of the quotation. If the opening is still changing, final manufacturing approval should not be confused with an earlier guide measurement. A short list of open points prevents assumptions from quietly becoming order details.
For two competing configurations, request the same drawing format: closed internal view, closed external view and open position. Mark the clear passage and parking zone on each. This reveals, for example, whether a three-panel option genuinely releases the preferred exit or merely offers more attractive symmetry. Record requested changes in writing before approval. This includes handedness, because reversing the arrangement later can affect other connections and workflows. Combining the floor plan, elevation and a short priority list makes coordination between design, ordering and installation much easier. Put a date or revision reference on the drawing to be approved and compare it line by line with the quotation. This keeps it clear whether a discussed change to panel width, sliding direction or handle side has actually reached the final version.
Secure the decision within the whole project
Do not choose the panel count separately from the home’s other openings. A wide four-panel door can work well with a regular window façade, while a two-panel solution may suit a more spacious, calm architectural style. Consider interior finishing, terrace layout, drainage, shading and furniture early in the project. If the door adjoins a dining area, do not leave the table position until after ordering. If a canopy or privacy screen is planned, review one shared elevation so posts and panel edges do not clash unintentionally. Where wishes differ, set priorities: daily route, possible passage width, clear view or a symmetrical façade. This helps where not every feature can be achieved equally in one configuration. Technical and construction suitability must be assessed by the appropriate qualified professionals for the specific project.
Before ordering, make one final check using a short list: do the product, number of panels, fixed panels and moving panels match? Is the left- or right-hand operating side clearly defined from the inside view? Is the required open position shown? Do the room, terrace and neighbouring window axes suit it? For a project with a classic door solution, a double inward-opening patio door may also be an alternative, with its swing area deliberately included in the floor plan. At approval, check not only individual drawings but also whether the quotation, elevations and position description name the same configuration. Write out unclear abbreviations before confirming. Bloomcabin states a 5-year manufacturer guarantee for windows and doors. Delivery takes 4–6 weeks, subject to order confirmation. These details do not replace careful checking of the final configuration and order.
Frequently asked questions
Does a four-panel sliding door automatically open wider than a two-panel door?
No. The possible clear opening depends on the specific arrangement of moving and fixed panels and on their parking position. A four-panel elevation may be more divided without creating a larger passage. Ask to see the fully open position and usable passage for every option.
Is a moving centre panel always the best solution?
Not necessarily. A central passage can look visually balanced, but the everyday route may be closer to the kitchen, dining area or terrace path. What matters is which side is actually used. Check the position with furniture and the planned outdoor area shown on the drawing.
What does a fixed panel mean in a sliding door?
A fixed panel remains closed and forms a glazed part of the system. It provides light and views, but no passage. A moving panel slides. The number of visible panels does not reliably show how many are fixed or what passage is created when the door is open.
Should I choose panels with equal widths?
Equal widths can create a calm, symmetrical elevation, but they are not an aim in themselves. An asymmetric solution may work better if it places the exit sensibly beside the dining table or keeps an important view clear. Always compare room function, external appearance and opening plan together.
What information do I need for a good enquiry?
Useful information includes a furnished floor plan, opening dimensions, internal and external elevations, the desired panel count, marked fixed and sliding panels, and the sliding direction. Add the floor build-up, neighbouring windows and planned shading. This allows a supplier to assess the configuration much more clearly.
Next step
Two, three or four panels are not a ranking, but different tools for views, access and façade design. Start with the route outside and the clear opening you want. Then decide which areas should remain fixed and which should move. Only after that should the symmetry of the elevation take priority. A drawing of the open position, a furnished floor plan and a shared external elevation make the decision more dependable. The sliding door then becomes more than a large glazed element: it becomes a suitable transition between room and terrace.
