Warm-edge spacers in insulating glass explained
Guidance for choosing windows
When comparing window quotations, you will often see similar information about glazing and frames, while a small component at the glass edge receives little attention: the spacer. At this point, the edge seal joins the individual panes of an insulating glass unit. The term warm edge does not mean an additional pane, nor is it a general quality badge. It describes a thermally improved spacer at the perimeter of insulating glass. Its effect cannot sensibly be assessed separately from the complete window. For a sound choice, homeowners should discuss the glazing specification, frame, installation detailing and intended use of the room together. This guide puts the warm edge into context, shows which quotation details can be compared, and helps you ask the right questions before ordering.
The glass edge as part of the whole window
Insulating glass consists of several panes separated by a cavity. At the edge, the spacer maintains that distance across the unit. It forms part of the edge seal: an assembly around the perimeter of the glazing that includes spacers, sealants and, depending on the build-up, further components. Since the glass centre, glass edge, frame and wall connection are different areas, their thermal behaviour can differ. A warm edge focuses attention on the transition from glass pane to frame. It replaces neither suitable glazing nor careful selection of the window profile. Asking only for a “warm edge” therefore says nothing yet about how the complete element is specified for your project.
With a window that has fixed glazing, the pane is often the main focus, but the assessment does not end at the visible glass surface. Windows with fixed glazing describe the construction type first, not the design of the edge seal. A quotation should therefore clearly show which glazing is planned and whether it includes a thermally improved spacer. An opening window also has sash frames, fittings and sealing layers. A meaningful comparison always uses elements of the same size, similar division and the same opening type. Otherwise, a difference at the glass edge may be confused with differences in frame proportion or construction. For an order, the documented configuration matters, not a general product description.
What warm edge means

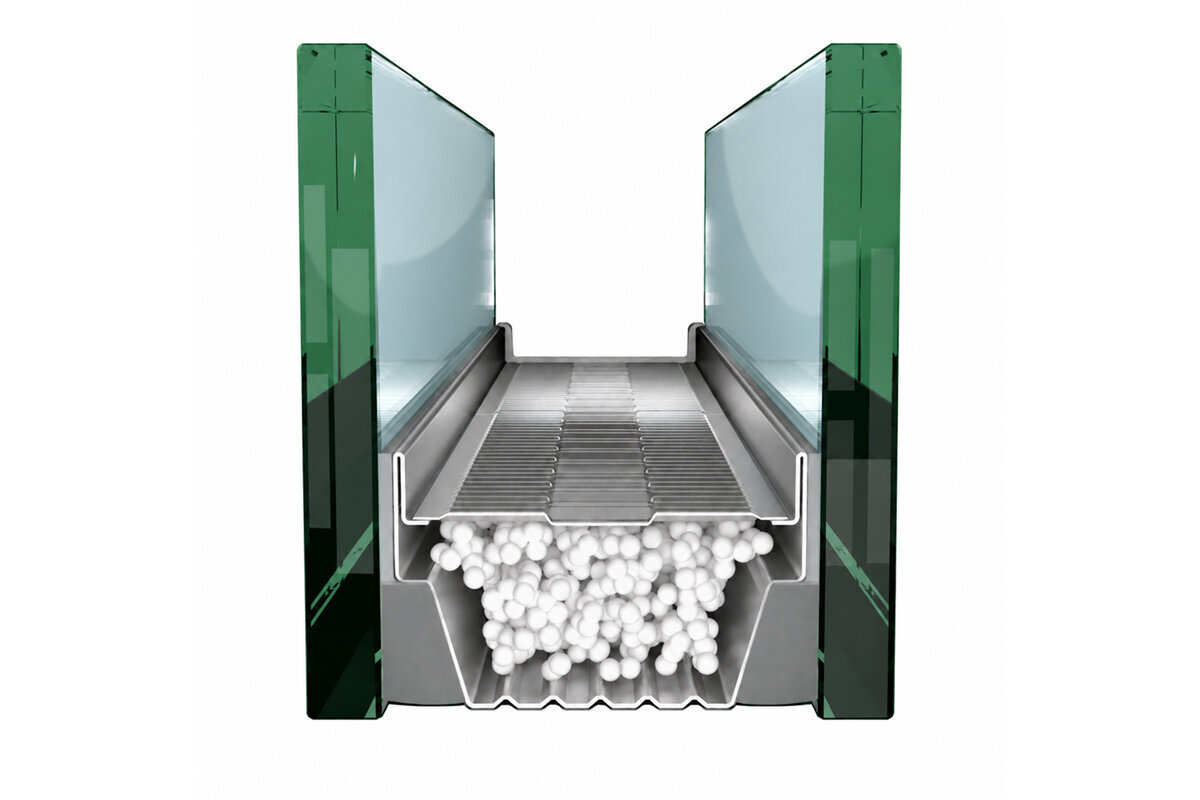

Warm edge is a common name for spacers with lower thermal conductivity than conventional metal solutions. It concerns the material and construction of the spacer, not a pane that feels “warm” to the touch. Technical discussions may also refer to improved thermal separation at the glass edge. The precise effect depends, among other things, on the spacer system, glass build-up, frame and installation situation. Broad claims about room temperatures or savings are therefore not reliable. A good quotation identifies the warm edge as part of the glazing and, on request, names the system used or its technical performance data.
The wording can easily create false expectations. A warm edge does not automatically turn a basic window element into a high-performance window. Conversely, a window with a sophisticated overall construction may appear incomplete in a quotation summary if its edge seal is not listed separately. Do not ask only, “Does it include a warm edge?” Ask instead: Which spacer is specified for this glazing? Does it apply to every position? Is it identical in the quotation, order confirmation and glass specification? These questions are especially useful when an order combines several window sizes, fixed panes and glazed doors. They turn a marketing term into a verifiable equipment decision.
Consider the complete element
Why the edge seal also affects comfort
Heat does not move through every part of a building element in the same way. At the edge of insulating glazing, glass, spacer and frame meet. A thermally improved spacer is intended to influence heat flow through this transition more favourably than a more conductive edge seal. This can matter for the internal surface temperature at the glass edge. The extent of the effect in an individual room cannot, however, be judged from a photograph, spacer colour or a single product name. Outdoor temperature, indoor conditions, window size, orientation, curtains and air movement in the room all influence how a surface is perceived.
A living room with large glazed areas is a useful example: the decision should not be reduced to the edge seal alone. Large glass areas change the relative importance of glass, frame and edge zone compared with a small window. With Patio Life lift-and-slide doors it is therefore sensible to discuss the glazing, visible frame proportions and transitions to the building structure as one package. Anyone regularly using close-fitting curtains or placing furniture near the glazing should also consider the room layout. Such decisions affect air circulation in front of the pane. The warm edge is one part of the specification, but not a substitute answer to questions about heating, ventilation or furnishing.
Read performance values correctly instead of mixing figures
Quotations use different performance values for windows and glazing. A value for glazing does not automatically describe the complete window, because the frame and edge seal are also part of the overall assessment. Likewise, a value for a standard format cannot simply be transferred to another size or division. Buyers should first establish what each number refers to: the centre of the glass, the glazing, or the complete window element. Only values with the same reference basis and comparable dimensions allow a useful comparison. If that allocation is missing, it is better to ask than to create an apparently precise ranking from different data sheets. A short checking sequence helps: Is the number marked Ug or Uw? Is a reference size given? Does it apply to a standard version or to your position number? Also ask how the edge seal has been included in the assessment of the complete element. This shows whether two similar-looking values actually make the same statement. A consistent comparison table is more useful than a collection of unallocated data-sheet figures.
For projects where a particularly low Uw value is central, this distinction is especially important. Super Low Uw outward-opening passive house windows names a window configuration and a performance ambition in its product title; no spacer details can be inferred without the supporting documents. Request technical documentation for the required size and exact version. Also ask whether the stated value includes the selected glazing and the required bar division. Decorative glazing bars and bars that divide the glass are not structurally the same and should be discussed separately. What matters is that every quotation follows the same planning basis, not that as many isolated performance figures as possible appear side by side.
Coordinate glass, frame and building connection
The edge seal sits within the glazing, but the decision belongs within a chain of coordinated choices. The frame supports the glazing, the glazing must suit the sash or fixed-pane construction, and the complete element connects to the wall opening. Selecting windows later without reference to reveals, weatherproofing and fixings can leave interfaces unresolved. This concerns not only thermal matters, but also drainage, interior finishing and window-sill positions. A designer or qualified specialist can assess connection details for the particular project. The supplier needs reliable dimensions, wall build-up and installation information.
Where windows and doors are combined, a shared position schedule is worthwhile. A single-leaf inward-opening patio door already differs from a fixed sidelight or window through its opening direction and use; nevertheless, the desired glazing should be recorded consistently and unambiguously for each position. Before requesting a quotation, note the room number, structural opening, opening direction, division, required appearance and special connections. Add whether the visible spacer colour matters. This avoids later assumptions, such as every position receiving the same glass variant. The overall comparison becomes more reliable when the warm-edge decision is linked to this position schedule.
Compare glazing bars and special shapes without shortcuts
Divisions shape a window’s appearance, but they also change the basis for comparison. A glazing bar can be decorative on or within the glass, while glass-dividing bars structurally split the glazing into smaller panes. These versions are not interchangeable. Anyone comparing quotations should therefore record whether bars are wanted and which type is proposed. A warm edge generally concerns the perimeter of an insulating glass unit; where there are several separate panes, the edge areas multiply. That does not automatically mean that a division is better or worse, but it does mean that the glass and bar construction should be assessed together.
This clarification is particularly valuable for traditional appearances. Traditional outward-opening “Kombi” casement window describes a stylistic and functional version. Whether the planned appearance is achieved without bars, with decorative bars or with glass-dividing bars should be agreed separately. Give the supplier an elevation drawing with pane layout and clear dimensions where possible. Then ask specifically about the planned glass build-up for every pane and the edge-seal design. This prevents a quotation for one uninterrupted area being compared with a quotation for many smaller panes. Appearance and technical coordination can work together when the drawing forms part of the order.
Consider the complete element
Set the use of opening windows first
The spacer is barely visible from outside, while the opening type directly shapes everyday use. The decision about use should therefore come before the detailed glass specification: Where will you ventilate, how will the window be cleaned, where will the sash move, and what furniture or routes are in front of it? Only once the element concept is fixed can glazing be reliably specified for each position. Different opening types can be sensible in rooms with several window types. They do not necessarily require different glazing or edge-seal preferences. Consistency can simplify an order, but it must not force an unsuitable opening function.
A single-sash inward-opening window may suit one position if the required swing area remains clear. For an enquiry, handing, handle position and dimensions are more important starting points than a later discussion of individual glass details. Once these points are confirmed, ask for the glass specification, including warm edge, for precisely that configuration. Do not accept a general statement for a product range if your order includes special sizes, different divisions or alternative glazing. The right order is: define use and geometry, describe the specific element position, then have the glass and edge seal confirmed for that position.
Check doors and large glazed areas separately
External doors and large-format glazing bring together frequent use, fittings, thresholds and glass areas. The edge seal remains one part of the glass, but the choice must include further requirements. A door is opened and closed and may receive more use than a fixed window. Questions about operation, access, desired clear opening and threshold arrangement should therefore come before the detailed spacer decision. Pane layout should also be determined from the elevation and function. For a clear order, every door position needs its own description instead of a blanket transfer of window information.
For a single-panel glazed door sidelight it should be clear whether it is planned as part of an entrance arrangement and which glazing is specified for it. The product name identifies a single-panel glazed sidelight; it says nothing about the glass build-up or edge seal. Coordinate the door leaf, sidelight and neighbouring elements on one shared drawing. A consistent visible spacer colour can be a design issue, while the technical construction should be specified in writing. If security, acoustic performance or other project-specific properties are required, their assessment belongs in planning with the relevant specialists. A warm edge does not replace any of these separate specifications.
Write a quotation request that remains comparable
A good enquiry states more than quantities and approximate dimensions. It separates essential criteria from preferences. Essential criteria can include opening type, handing, structural-opening or order dimension, division, glazing requirement and the requested information about a thermally improved spacer. Preferences may include visible colour, bar pattern or a preferred viewing side. Ask to be informed if a combination has to be constructed differently for technical reasons. This gives you a traceable alternative rather than an unannounced change. With several elements, a table with position numbers and a column for the confirmed glass variant is useful. In another column, ask for departures from the requested build-up to be marked. You can then immediately see whether, for example, a supplier has priced warm edge for only some positions or proposed alternative glazing. Also check whether optional and included services are clearly separated. Only then should total amounts be compared, because a lower price may simply reflect a different scope of supply. Resolve open points in a written round of questions before deciding.
For roof areas, clarify the construction sequence and installation situation particularly early. Centre-pivot roof window identifies the window type, but does not automatically set the glazing, connection or spacer. Alongside dimensions, send the roof design and required operation to the professionals involved. The quotation should clearly state whether warm edge is included in every planned glazing unit or only in certain positions. Also compare whether both quotations include the same number of glass panes, the same opening function and the same assumptions about accessories. A lower-looking total is not a useful basis for a decision if the scope of supply is described differently. Only a position-by-position comparison reveals the differences.
Check carefully before ordering and at delivery
Before approval, buyers should read the order confirmation against their own position schedule. Check dimensions, quantity, opening direction, division, glazing designation and the agreed reference to warm edge. It is particularly important to ask whether later changes to one position affect other details. Keep drawings, quotations, questions and replies together. They provide the shared basis for manufacturer, retailer, installation team and site management. If anything is unclear, clarify it before production. Bloomcabin states a 5-year guarantee for windows and doors; delivery takes 4–6 weeks subject to order confirmation. These details do not replace checking the specific order.
At delivery, a spacer cannot be reliably identified from general expectations, especially because colours and visible details are not technical confirmation. Instead, first check positions, quantities, dimensions and visible damage against the documents. Match markings on packaging and elements with the position schedule without inferring undocumented properties from them. If glass labels or accompanying papers are available, keep them until the check is complete or photograph them for the record. Separate incoming-goods checks from technical acceptance of installation: an element can be fully delivered while questions about fitting remain open. Have installation and the connection to the building structure completed according to the agreed plan, and record deviations promptly. For a double-sash inward-opening window, as for every other element, the product name describes the sash configuration rather than every individually selected glass option. A final document pack containing the order confirmation, element schedule, glass data and installation information makes later allocation easier. It is more useful than relying on memory of a verbally discussed version.
Frequently asked questions
Is warm edge the same as triple glazing?
No. Triple glazing describes the number of panes in an insulating glass unit. Warm edge describes the thermally improved spacer at the glass perimeter. Both choices can occur together, but they are separate features. Ask therefore about the complete glass build-up and the specific edge seal proposed.
Can I identify warm edge by its colour?
No. The visible colour of a spacer is not reliable technical confirmation of its properties. It may be a design choice. The relevant evidence is the written glass specification and confirmation for the specific position. Do not infer material, construction or overall performance from a dark or light edge.
Must every window in a home have the same warm edge?
A uniform specification can simplify an order, but it is not a rule that should be applied to every element without checking. Windows, fixed panes, roof windows and glazed doors may have different requirements. Specify the desired version by position and ask for clear identification of any departures in the quotation and order confirmation.
Does warm edge automatically improve the Uw value?
The edge seal belongs to the overall thermal assessment of a window and can influence it. How a particular spacer affects a stated value depends on the glass, frame, size and construction. Compare only values with the same reference basis and request documentation for the required version.
Should warm edge be stated explicitly in the order?
Yes, if it matters to your decision. Ask for the thermally improved spacer or glass variant to be clearly identified for each position. A general statement in a brochure is insufficient where several versions are involved. Check that the quotation, drawing and order confirmation show the same configuration.
Next step
Warm edge is a useful checkpoint when buying insulating glass because it concerns the edge seal and therefore a transition area of the glazing. Its importance does not grow through broad advertising claims, but through careful context: Which glazing is planned, which window or door does it belong to, and which overall values really apply to the required size? Always ask about the spacer together with the frame, division, opening type and connection planning. Those who describe their positions clearly and have the glass variant confirmed in writing can compare quotations objectively and approve an order with fewer unresolved assumptions.
