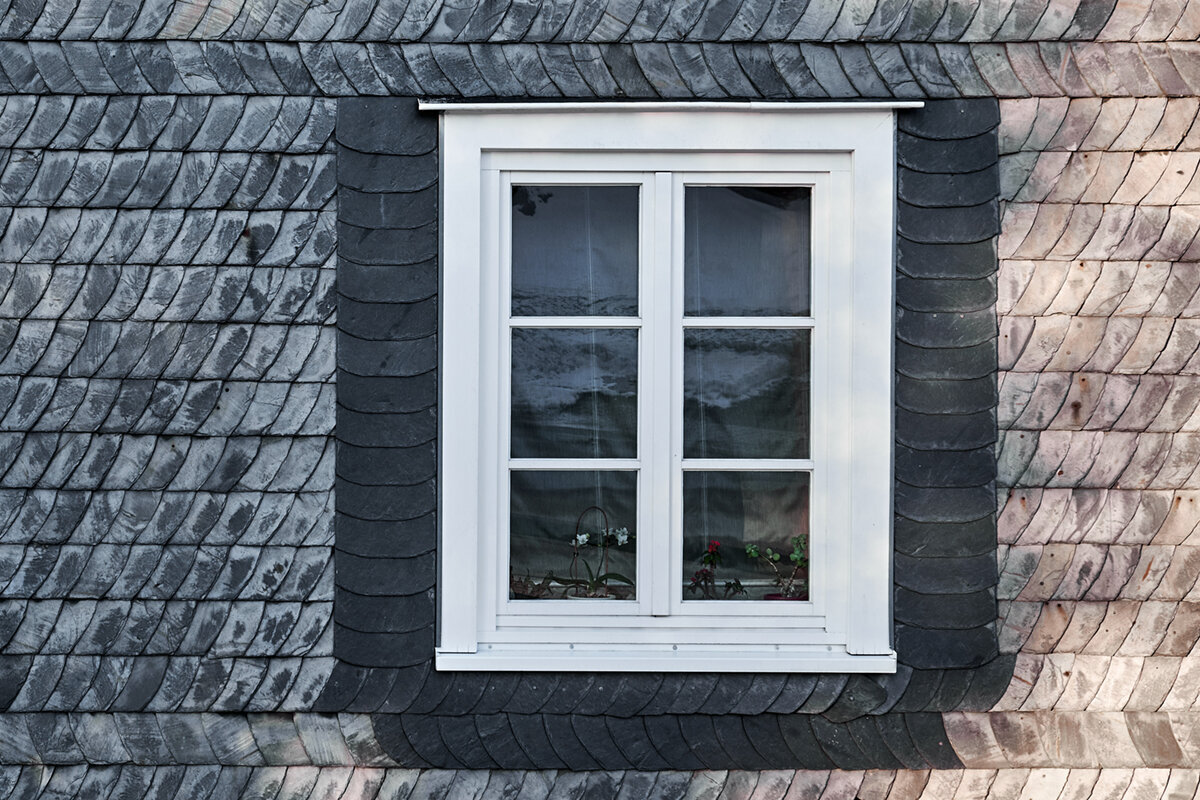

Window Glazing Bars: Types, Patterns and Buying Criteria
Window planning and design
Choosing windows and doors with glazing bars is about more than style. The bar type affects interior and exterior views, glass layout, cleaning and, where panes are physically separated, the element’s construction. Inconsistent results often arise when each unit is chosen alone: the calm grid of a living-room window can look arbitrary beside a wide patio door or narrow door sidelight. Compare the systems first, then consider every façade opening together. This guide distinguishes decorative from glass-dividing bars, explains how grids remain legible, and sets out what to clarify before ordering.
Buyer check 1
Two systems, two different decisions
The key distinction lies behind the appearance. Decorative bars sit on, or within the zone of, continuous insulating glazing and create a divided look without splitting the glass into separate panes. Glass-dividing bars genuinely divide the glazing into several sections, becoming part of the element’s construction. Both options may show a similar grid, yet they differ in planning and later upkeep. When comparing quotations, do not simply specify “bars”; name the construction clearly. A drawing that states viewing side, number of sections and the position of horizontal and vertical lines also prevents one desired image being interpreted differently.
Start with the intended effect. A decorative solution may suit a generous opening that should look lighter and more structured. If each pane is meant to be a visible architectural component, glass-dividing bars are the natural alternative. This is not about better or worse, but priorities: a quiet glass surface, period character, façade rhythm, cleaning routine and the desired depth of division. Request interior and exterior elevations at the same scale for each option. Only then can you see whether bars form a shared order with mullions, transoms, handle height, sash edges and neighbouring doors, or merely appear applied.
Plan the grid before the individual window
A convincing pattern usually grows from a small number of repeated lines. First define the dominant verticals: building edges, window axes, sash joints and, where relevant, the centre of a door. Horizontal lines follow. A grid with equal-height sections looks calm, but need not be repeated identically everywhere. With openings of different heights, it can be more harmonious to continue one important horizontal line at the same level and adapt the remaining sections. What matters is which lines are perceived from a normal viewing distance. Very small sections can make large glazing look busy and interrupt the view more than a drawing suggests.
Do not plan from the smallest window, but from the defining views. A street façade, broad garden elevation and entrance area often have different viewing distances. For each side of the house, note opening width, opening height, sash division and desired bar axes. A traditional outward-opening “Kombi” casement window may, for example, be the starting point for a classically divided window composition; this does not mean every large opening needs the same number of sections. Repeating proportions matters more than mechanical copying. Review elevations in pairs: what works on one façade may deliberately create contrast beside an undivided fixed light.
Buyer check 2
Describe decorative bars precisely
For decorative bars, “applied bars” is rarely enough information for an order. Clarify on which sides they should be visible, whether the interior and exterior look should match, and how any division within the cavity between panes should appear. Each decision changes the sense of depth. At close range, it also matters how a bar ends at frame and glass, and whether its lines meet a sash division. Ask not only for an overall elevation, but for a detail at a corner, intersection and edge section. This lets you judge whether the pattern frames the glazing logically or leaves uneven residual sections.
The practical benefit of a continuous glass surface is especially noticeable during cleaning: real pane edges do not divide the glass into many separate fields. External applied components still have contours where dirt can collect and which need cleaning. The relevant question is therefore not a general verdict on ease of maintenance, but the actual location of the window. A window above a terrace, on a difficult-to-reach gable or behind planters makes every extra edge matter differently. For fixed-glazed windows a pattern check is particularly worthwhile because the large, non-opening view makes the bar layout highly visible. Record which side will be reachable from indoors and how the outside is to be cleaned.
Glass-dividing bars as visible construction
Glass-dividing bars give every pane its own boundary. This creates greater visual depth and may be important for traditional elevations or deliberately finely structured architecture. The division also belongs to the overall construction: the number and size of sections should not be chosen separately from the element dimensions, frame and opening method. Narrow edge sections and numerous divisions are not merely a graphic issue. Have the supplier confirm the proposed layout for the required element size rather than treating an inspiration image as a full specification. Product names or photographs do not replace a project-specific drawing.
Windows with two sashes add another layer. The visible centre may coincide with the sash joint, or the grid may be arranged differently. Each has a different effect, especially when the window is viewed both closed and open. A traditional outward-opening double casement window already has a clear vertical order through its sash division; bars should support that order rather than cross it randomly. Ask to see both sash elevations for such units and clarify whether sections are symmetrical across the centre. For adjacent windows, matching horizontal lines are often more important than an identical total number of glass sections.
Buyer check 3
Balance light, view and room effect
Bars frame the view and therefore change how a room is perceived. In a dining area, a regular grid can give a wide window wall structure; at a seat with an open view, the same division may feel interruptive. Judge a pattern from the real locations: at the dining table, from the sofa, on the stairs and when entering. Line direction also matters. Vertical bars emphasise height, horizontal bars emphasise width. Square sections feel different from tall rectangles, even with the same number. The question is not whether bars “take away” light, but how much division suits the intended character.
The room inside deserves as much attention as the façade. Curtains, pleated blinds, radiators, sills and furniture can conceal or reinforce lines. With an inward-opening patio door, the grid should also suit the movement area: handle, sash frame and bars are experienced daily at close range. A single inward-opening patio door should therefore not be chosen only from its exterior view. Check the interior elevation with the door open and closed, plus its transition to adjoining windows. Add opening arcs, curtain positions and frequently used routes to the plan. This reveals whether a divided door crosses an important sightline when open or disappears behind furniture. Also compare the eye level of a seated and standing person: a horizontal line that looks balanced outside may run directly through the preferred view indoors. If a door intentionally remains without bars, repeated frame colour or a shared top line can maintain the connection.
Large door openings need their own pattern
Sliding and folding doors bring together large glass surfaces, sash frames and moving parts. A finely divided window grid cannot simply be transferred to them. First establish which lines are structurally set by the door leaves and which are to be added as bars. Draw the elevation closed, but review the opening position too. When the system is open, surfaces and views move; a pattern may look different from a brochure image. Keep intentionally larger, calmer sections when the door chiefly opens the view to the garden. Division can instead be useful where the garden front should connect visually with the window façade.
For Patio Life lift-and-slide doors coordinate the desired bars, sash arrangement and adjoining fixed lights in one elevation drawing. Ask exactly which moving or fixed areas carry the pattern and how lines meet neighbouring windows. Avoid continuing every façade line exactly if this creates awkward narrow sections. The same principle applies to folding doors, with additional attention to individual leaves: outward-opening folding doors are an alternative whose folded leaves and frames already create a strong image. A more restrained bar pattern may be the better design choice than maximum repetition.
Buyer check 4
View entrance, sidelight and door leaf together
A front door is viewed from close range and often gives a house its clearest identity. Bars in a glazed section can therefore seem finer or more prominent than on a window of the same size. The relationship between door leaf, fanlight and sidelight is decisive. If only the sidelight has a grid, it should not look like a randomly attached window. Echo a line from the door panel, handle zone or nearby windows, provided this does not overload the overall composition. Work from a complete entrance elevation including the wall area, not individual glazing measurements alone.
A single glazed door sidelight can structure the vertical area at an entrance with bars, without making any statement about the construction or technical properties of the specific product. In planning, record whether its grid follows door height, the upper window band or the opposite façade axis. Privacy, desired daylight and the view from the hall should also be discussed before selecting a pattern. If door and sidelight come from different product families, request matching samples for colour and appearance. This prevents apparently similar bar widths or shades from looking different side by side.
Do not force special shapes into a grid
Arches, circles, triangles and sloping glazing are forms in their own right. Applying a standard rectangular grid can strengthen their geometry, but can also reduce their clarity. With special shapes, begin by asking which line is already present: a central axis, radius, roof slope or rectangular base. This can lead to a reduced division, such as a vertical axis in a rounded form or a few sections beneath an arch. In many cases, no bars are the more convincing alternative, especially when the shape itself should be the visual accent.
For a fixed-glazed semicircular window check the radial effect and line arrangement on a scaled elevation before ordering. Ask where bars end, whether they connect to existing rectangular windows and how the division reads from inside. A solution that looks symmetrical outside can be perceived differently indoors because of stairs or a ceiling line. Have at least two options shown together: a reduced division following the basic shape, and a version without bars. Mark the same reference lines on both elevations. This direct comparison shows better than separate examples whether the grid explains the shape or gives it a second, competing focus. For triangular openings, do not simply shrink the pattern used below. Instead, document the intended axis and relationship to neighbouring elements. An intentionally clear glass field can make a complex roof form look calmer and easier to understand.
Buyer check 5
Material samples and elevations before approval
Screen images and small sample windows are often insufficient for a final decision. View a larger elevation in daylight, from several distances and, where possible, beside the intended façade colour. Dark bars can create a strong graphic drawing; light bars recede more depending on the light. Perspective matters too: viewed diagonally from below, widths and spacing look different from a frontal drawing. Confirm a pattern only when bar width, colour, position and system have been decided together. A colour specification alone does not describe a visible bar design.
A short, structured check before production approval is worthwhile. Do element width and height match? Are interior and exterior elevations identified? Are bars shown on every intended glazed field, including fanlights and sidelights? Do horizontal lines meet where intended? Are deliberately bar-free elements marked as such? Check opening direction and sash division separately too; they significantly change the appearance. Give each drawing a clear revision status and mark superseded versions invalid. Where several windows are similar, assign every position to its room, façade and opening. This helps prevent an approved division being applied to the wrong unit. Do not communicate changes only by telephone; have the updated drawing confirmed. A style idea then becomes a verifiable order, giving designers, suppliers and installation coordinators the same working basis.
Compare quotations properly and coordinate the process
Compare quotations line by line against the agreed visual design, not a collective term. Every item should include element type, dimensions, opening direction, number of sashes, bar type, bar arrangement, colour and associated elevation. Add whether the field is fixed or movable and which drawing side is outside. If anything is absent, ask a precise question rather than inferring from a similar-sounding title. The eight or ten windows in a project need not be identical, but differences should be documented intentionally. This list is especially helpful for later additional elements, allowing grids and elevations to continue consistently.
Coordinate glazing bars early with measurement, wall construction, sills, shading and installation planning. Dimension changes can turn an even grid into unequal sections; a late door change can shift the whole garden elevation. Treat technical and design approval as separate but connected steps. Also identify who transfers dimensional changes to elevation drawings and who releases the new revision. Once the order is confirmed, the approved position list should also be available to whoever coordinates delivery and installation. When checking allocation, verify not only room labels but exterior view, opening direction and adjacent elements. Bloomcabin states a five-year guarantee for windows and doors. Delivery takes four to six weeks, subject to order confirmation. Allow for this only after the specification is settled, and do not set an installation date from a preliminary design sketch alone. Complete approval primarily reduces avoidable coordination rounds.
Frequently asked questions
Are decorative and glass-dividing bars equally recognisable from outside?
From a greater distance, both can look similar. Up close, depth, glass division and details at intersections and edges differ. The exterior view is not the only consideration: request interior and exterior elevations plus a detail of the bar joint. Then compare the actual system rather than only the intended grid.
Must every window in a house have the same bar pattern?
No. Unity usually comes from repeating axes, proportions, bar widths or a shared top line, not necessarily the same number of sections. Large doors, special shapes and small secondary windows may be divided differently. What matters is that differences are consciously planned in the façade elevation rather than occurring by chance.
Can I choose the same bars for a patio door as for a window?
It is possible, but not a rule. Sash frames, handle area and opening type change a door’s appearance. Check the pattern on the complete door drawing and in its open position. For large glass areas, a coarser grid or a bar-free door can be more convincing than an exact transfer of small window sections.
What documents are needed for a binding bar enquiry?
Useful information includes dimensions for every opening, element type, opening direction, sash division, exterior and interior elevations, preferred bar type, field-layout sketches and details of adjoining elements. Add façade photographs and mark the outside. This helps identify misunderstandings about axes, residual sections and door connections early.
When should I make the final decision on window bars?
Set the basic grid once façade elevations and element types are clear. Final approval should follow checked measurements, a complete drawing and coordination with neighbouring doors, sills and shading. Late changes to dimensions or sash division can visibly alter the proportions and connections of the chosen pattern.
Next steps
Window bars are not an afterthought, but a visible ordering decision for windows and doors. By clearly separating decorative from glass-dividing versions, developing the grid from the whole façade and assessing large doors or special shapes independently, you create a sound basis for selection. Clear elevations matter more than product names or inspiration images alone. Check interior and exterior effect, line connections, cleaning access and the role of every opening within the composition. Only approve the order once system, division, dimensions, opening direction and viewing side have been brought together in writing.
