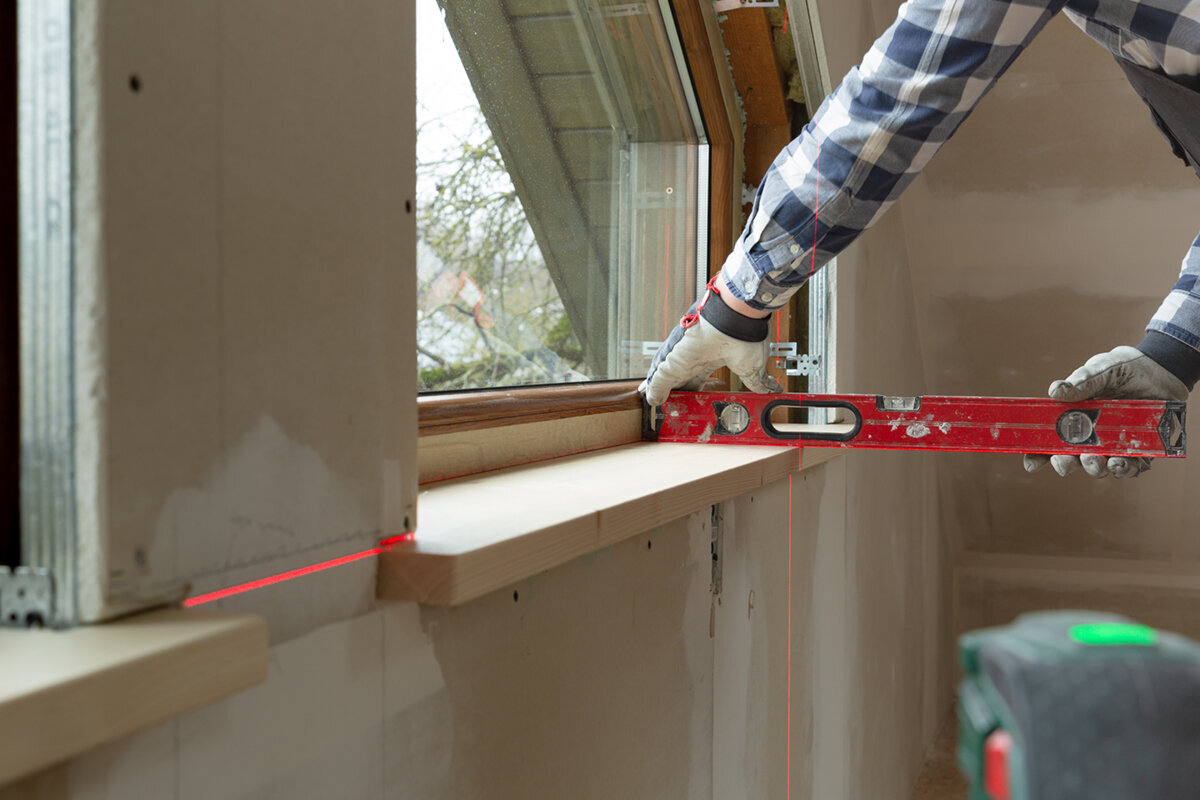

Window reveals, sills and cover trims when replacing windows
Detailed window planning
Replacing a window does not end at the frame. Once the old unit is removed, the true width of the reveal, the condition of the junction, the position of the internal sill and the way water must be led safely away from the façade become clear. Ordering only window dimensions often leaves decisions about plaster, trims and sills until installation day. A full survey is better: include the window, wall build-up, internal finish, façade junction, shading and the desired appearance in one plan. This matters especially where new frames sit at a different width or depth from the previous ones. This guide helps you assess visible finishes and technical junctions separately, clarify responsibilities in advance and prepare the right information for a quotation and order.
Buying checklist 1
Treat replacement as a junction project
A new window is smaller than the structural opening and needs a planned junction to the wall on every side. The reveal is the side and upper internal or external surface of the opening; it is not the frame. Removal can expose loose plaster edges, old sealants, wallpaper edges or hidden irregularities. Even a window with the same visible size can show more or less reveal because its frame is a different width. A survey should therefore record more than clear width and height. Take photographs of every opening, measure at several points, note depth from inside and outside, and record radiators, shutter boxes, tiles and existing sills. This turns a product choice into a wall junction that can be coordinated.
The key question is: which surfaces should remain visible when the work is complete? A homeowner wanting a smooth, continuously plastered reveal needs different follow-on work from someone content with a neat trim edge. In occupied rooms, this affects dust, protection measures and the sequence of removal, installation, repairs and final painting. With an inward-opening single-leaf window you must also check whether the new internal sill still leaves sufficient clearance for the sash and handle. The product identifies the opening direction, but not the junction design. List separately in the quotation: removal, disposal, installation, sealing, sill, reveal repair, cover trims, painting and cleaning. This makes clear what is included and what a following trade must provide.
Read the reveal carefully before measuring
Reveals are seldom identical throughout. Older walls may run out of true, plaster layers can vary in thickness, and one side of an opening can differ from the other. Measure width and height at the top, middle and bottom; depth should be checked on all four sides. Also establish whether the existing frame sits flush with the internal wall, centrally in the wall or closer to the external edge. This position shapes the visible reveal and determines whether an existing internal sill extends far enough beneath the frame. A sketch showing viewing direction prevents misunderstandings, for example where only one side is tiled or a reveal is timber-lined.
At the site visit, look for signs that a single measurement will not reveal: crumbling edges, moisture marks, cracks, soft areas, hollow spots or earlier repairs. These observations are not a reason to diagnose the cause yourself, but they do justify assessment by the appropriate professional before surfaces are closed. With a double inward-opening window the sash swing paths must also be considered: a deep projecting sill or side lining must not obstruct use. Decide whether the reveal should remain square, open towards the room or continue an existing design. A flared internal reveal can alter the impression of light, but needs a deliberately designed plastered or panelled surface rather than an improvised narrow edge.
Buying checklist 2
The installation plane changes visible proportions
The new frame’s position in the wall determines how deep the internal and external reveals appear. If a frame is moved relative to the old unit, an existing sill may become too short, an external finish may no longer fit or a junction to a lining may change. The opening type also affects clearance. With an outward-opening single casement window the internal area remains clear while opening, but outside the reveal, sill and surroundings must accommodate the sash movement. Compare not only the overall dimensions and elevation, but also a section drawing or at least a dimensioned sketch of wall, frame and sills. It reveals early where an edge will occur and which surface needs making good.
A flush frame can look contemporary and calm, but may allow less tolerance at an uneven wall. A recessed frame emphasises the reveal and can work better with existing architecture, while extending the visible junction surfaces. Neither option is universally better. What matters is the combination of wall build-up, façade, interior and required appearance. Ask explicitly what reference plane every measurement uses: structural edge, finished internal plaster, finished external face or existing frame. If insulation, lining or a new finish is added later, allow for its eventual thickness. A window that fits on paper can otherwise become too tight at the sill or reveal finish after internal work.
Internal sills: bearing, depth and everyday use
An internal sill is both a usable surface and a junction detail. It may run into side wall pockets, end at the frame or finish with side caps. During replacement, establish whether it can remain undamaged, is likely to break during removal or should be replaced anyway. As well as length and visible depth, measure how far it runs beneath the existing frame. Decide which front edge suits the room and whether the sill meets tiles, a recess, a worktop or wall lining. A new sill must not be treated simply as a loose decorative board: its transition to the frame and side reveals needs planning as one coherent detail.
Clearance from handles, sashes and existing fittings is important in practice. Curtains, plants or a deep board can make daily opening difficult even where window dimensions are correct. With an inward-opening single-leaf patio door the junction to the floor needs particularly careful consideration: a conventional internal sill is not automatically the right solution. When choosing finishes, note material, colour, edge profile and side finish as visible decisions, but link them to installation: who removes the old sill, prepares the substrate, and reinstates plaster or floor finish? This avoids unclear transitions between window fitting, finishing work and decorating.
Buying checklist 3
External sills and the façade junction
Outside, the sill has a different role from its internal counterpart: it forms the lower finish to the façade and should direct rainwater outwards in a controlled way. Its fall, side junctions, connection to the frame and transition to the existing façade surface must therefore be discussed as one detail. An existing external sill may stay intact during removal, be damaged, or no longer fit because of the new frame position. Check whether adjacent façade elements, shutters, guide rails or sun shading restrict the work area. Photographs taken at an angle help ensure drip edges, projections and junctions are not missed.
Do not choose an external sill only after the window has already been installed. Ask beforehand about its precise bearing, intended side treatment and visible transition to the façade. Different finishes such as plaster, brick, timber cladding or panels need different detailing; there is no universal solution. At a large opening, for example for Patio Life lift-and-slide doors, the lower junction often becomes a threshold and terrace situation rather than a window sill. External paving, drainage, height junction and door movement must then be planned together. Do not assume that a visually similar new unit will automatically connect to all existing building elements. Only a coordinated detail shows which parts can remain, need adaptation or require replacement.
Cover trims as a visible finish, not a substitute for planning
After installation, cover trims can create a neat visual edge between frame and internal wall. They can be useful where a narrow junction area is concealed, a vulnerable plaster edge is protected or a consistent appearance is required across several windows. However, they do not replace a professionally planned junction gap and should not conceal unknown damage or unresolved movement. Decide in advance whether the trim is needed only inside, only outside or on both sides, how wide it should be and whether it suits existing skirting or door trims. On heavily textured walls, a trim can emphasise rather than soften unevenness.
Alternatively, the reveal can be plastered, filled or finished with another surface lining right up to the frame. This creates a pared-back appearance, but requires clean edges and a clearly defined sequence of trades. With fixed-glazed windows there is no opening sash clearance to allow for; nevertheless, frame depth, visible edge and cleaning access remain important criteria for the lining. Compare samples from more than the front. View the frame, trim and reveal colour from within the room, along the wall and in daylight. Also ask which joints will remain visible later and whether the trim can be removed if a junction needs checking or a wall surface needs renovating. The best trim is one with a clearly defined purpose and route.
Buying checklist 4
Plan plaster, wallpaper, tiles and timber lining properly
Removing an old frame can damage the edge of a completed surface. With wallpaper, consider whether only a strip will be renewed or the wall redecorated. With tiles, check whether the tiled edge reaches the frame, whether trims are affected and whether replacement material is available. Timber panelling, exposed masonry and finely textured plaster each need their own finish. Record colour, texture, pattern and direction of boards or grout lines before removal. This is particularly important when only individual windows are replaced and neighbouring windows in the room are to remain unchanged. A well-prepared sample area is more useful than simply saying “as before”.
Plan the sequence realistically: arrange protection and removal first, then install the new unit and make the junction; visible repairs follow only once the final frame position is fixed. Fresh plaster, filler or paint should not be assumed to be included. With an outward-opening “Kombi” casement window in a traditional style the view can be deliberately coordinated with existing glazing bars and characteristic reveal depths. That does not mean a particular historic detail must always be copied. It means comparing the visible lines beforehand: frame elevation, glazing-bar pattern, reveal edge, sill and façade opening. This makes it possible to decide whether a simple junction creates an intentional contrast or makes the overall appearance feel unsettled.
Special shapes need their own detail
Round, angled and segmented openings cannot reliably be planned using the pattern of a rectangular standard window. With a round fixed-glazed window the continuous reveal edge is especially important: where does plaster or lining end, how even does the visible distance to the frame look, and how is the curve formed? A straight cover trim is not a suitable standard answer. Take a template, detailed photographs and opening dimensions where the existing structure is irregular. With fixed glazing, cleaning may also require different access from inside or outside; consider this before deciding on deep linings or fixed furniture.
Roof windows, bay windows and very deep wall openings also have their own junctions. A pivot roof window, for example, concerns not only a side reveal but the internal lining of the roof opening and its lines within the room. Do not copy details from vertical façade windows without having the installation situation assessed. For angled openings, it helps to name visible edges on a sketch: top edge, side junction, lower finish and, where relevant, transition to the ceiling. Then decide which edges must be precisely aligned and where a minor irregularity in the existing building is acceptable. This prevents design being decided by the final filling coat.
Buying checklist 5
Break the specification and quotation into checkable parts
A useful quotation describes more than the number and overall dimensions of windows. For every opening, the opening type, handing, frame colour or finish, installation position, internal sill, external sill, reveal finish and treatment of existing surfaces should be clear. Add photographs with position numbers so that “window on the left” is not interpreted differently. State floor conditions separately for doors. For an outward-opening single-leaf patio door, for example, clarify how the existing floor is joined inside and outside without confusing the visible result with a window-sill solution. Unknown points may be listed as items to be checked; they should not disappear unnoticed from the scope.
Ask for clear answers on responsibilities. Who carries out the survey? Who confirms dimensions and opening direction before approval? Who protects floors and furniture? Who removes loose plaster, closes the reveal, and restores the surface to what standard? Also ask whether samples, drawings or photographs can form a binding part of the order. Separate essential work from optional design measures. A new internal sill may be necessary because the old one no longer fits; wider decorative lining may instead be a choice. This distinction makes comparisons fairer, because quotations with different but unstated scopes are not placed side by side.
Check carefully before approval and after installation
Before ordering, check a window schedule against the actual rooms. Verify opening direction from the room perspective, sash movement, handle position, sill depth and the allocation of every photograph. Mark features such as radiators, fitted furniture, sockets, curtain tracks, tiles or external components directly on the sketch. Ask about the expected delivery time of 4–6 weeks, subject to order confirmation, and coordinate follow-on trades accordingly. Bloomcabin provides a 5-year guarantee for windows and doors. This information does not replace a project-specific check of the order scope, but it helps with timing and organisational preparation.
After installation, first inspect how the visible elements work together before final repairs conceal what has happened. Do frame position, opening direction and number of units match the order? Can sashes move without contacting the sill, reveal or floor? Are the agreed internal and external finishes present, and have damaged surfaces been recorded as outstanding work? Photograph every opening inside and out in good light. The purpose is not to replace technical acceptance yourself, but to create a clear shared basis for work still to be completed. Only when windows, sills, trims and surfaces are viewed as a whole can you judge whether replacement genuinely looks complete in the room.
Frequently asked questions
Does the reveal always need replacing when a window is changed?
No. A reveal can remain if its condition, the new frame position and the desired finish allow it. Even so, removal may damage edges or create new visible strips. Establish in advance whether repair, replastering, lining or a cover trim is intended, and who will carry out that work.
Can the old internal sill remain?
That depends on its condition, how it is built in and the position of the new frame. Measure its bearing, depth and clearance from sash and handle. Keeping a sill does not automatically avoid follow-on work if its junction remains exposed. Have it recorded before ordering whether it will be protected, adapted or replaced.
Are cover trims always the easiest solution?
They can create a quick, clear visible edge, but they do not suit every room stylistically. At smooth, flush reveals, a plastered junction can appear calmer. Trims must also not hide unresolved junction problems. Choose width, position, finish and joint pattern from a sample or drawing.
What matters most with a new external sill?
It must work with the frame, reveal and existing façade as the lower external finish. Check early which components meet it at the sides and whether the new frame position changes the existing sill. At low-level doors, a coordinated threshold and floor-junction detail is often needed instead of a sill.
Which documents help the installation contractor most?
Useful information includes measurements at several points, internal and external photographs, a position sketch, details of wall surfaces, and images of sills and adjacent components. Add your preferred appearance: flush plastered junction, trim or lining. Also name follow-on trades so dates and responsibilities can be agreed before the order is approved.
Next step
When replacing windows, reveals, sills and cover trims are not afterthoughts. They determine how the frame meets the wall, how the room looks after installation and which tasks remain open. Treat each opening as its own junction case: measure the existing situation, photograph surfaces, set the installation position and plan internal and external sides separately. Compare quotations by clear services, rather than the window unit alone. When frames, sills, façade junctions and visible internal finishes are approved together, surprises on installation day are much easier to avoid.
