Surveying Hidden Services Before Pergola Drilling
Pergola site planning

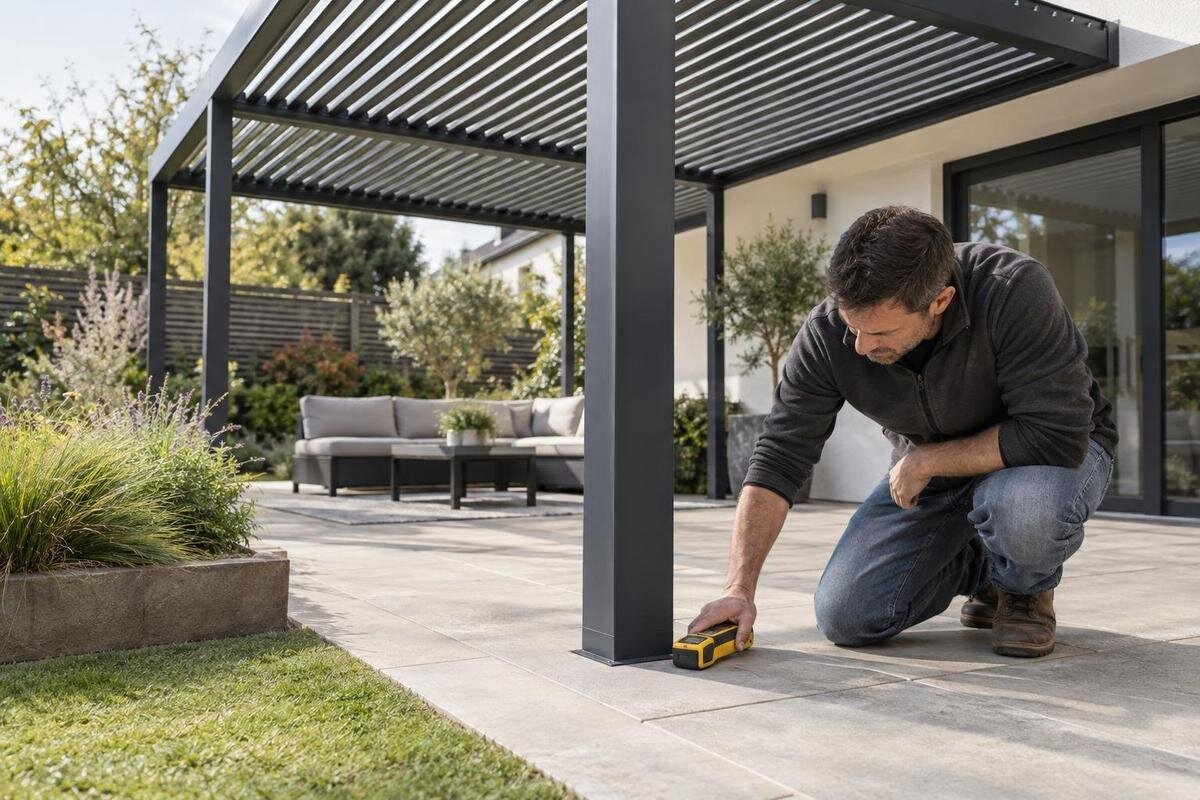

Before a pergola’s post and anchor positions are agreed, find out what may already run beneath the patio, deck or garden. Existing service plans can be useful, but they may not show private connections, later alterations or the exact route under a proposed footing. A thorough survey combines records, a careful site walk, professional service locating and the actual anchoring layout. The goal is to separate confirmed information from clues and unknowns, then resolve any conflict before drilling or excavation. That gives the installer a workable plan without relying on guesswork about where pipes or cables might be.
Why check services before setting pergola posts?
The groundwork for a pergola depends on more than the outline visible overhead. Posts, base fixings and any specified footing or anchor excavation occupy particular points below the surface; a pipe or cable can cross one even when nothing shows above it. If a conflict appears after materials arrive or paving has been opened, a convenient-looking post shift may not match the approved arrangement. Surveying while the layout is still flexible gives you time to compare options and involve the right people. Record the exact Bloomcabin Bioclimatic Pergola being considered so the installer can match the enquiry to the correct model drawings. It also helps identify potential issues before access routes and work areas are fixed.
Keep the purpose of each check clear. Service records and locating help establish where buried assets may run; they do not show whether the ground can support a pergola. Model drawings describe an installation arrangement, but cannot reveal an undocumented private cable or irrigation line. Structural assessment and substrate evidence answer separate questions. A clear locating result is not anchoring approval, and a sound-looking surface is not proof that there is no service beneath it. Treat each document as evidence for the question it addresses, and ask the relevant professional where it leaves a gap. Making that distinction early can show whether more information is needed before work is booked.
Gather service records from several sources
Begin with any available service plans for the property, then add records from earlier building, landscaping, paving and drainage work. Ask current or previous owners, property managers and contractors whether they hold drawings, invoices or notes for new connections, repairs or alterations. Think broadly: water supply, wastewater, stormwater, electricity, gas, communications and private garden services may be documented separately. If records are held by a utility, network operator or local authority, ask what part of the site they cover, whether private connections are included and when the information was last updated. Check whether each document shows an installed route, a design proposal or only a connection point.
Keep the source and date with every document, and retain the originals. A network map may stop at a property boundary; a renovation sketch may show an intended route rather than what was installed; an old plan may not include later garden work. Conversely, a service absent from paperwork may still be present. Sort findings into confirmed, approximate, inferred and unknown instead of redrawing them all as exact lines. Note who supplied each item and ask about conflicts before the locator attends. These records are valuable clues that can narrow the questions, but they do not by themselves confirm the position or depth of every pipe and cable.
Record visible clues without treating them as a map
Walk the entire proposed pergola area and its approaches, not just the places where you expect posts. Note meter boxes, inspection lids, drains, utility cabinets, exterior taps, light fittings, visible conduits and points where pipes or cables enter a house, shed or outbuilding. These are clues, not a route map: a cover may serve a different system from the one you assume, and a visible connection does not show its path underground. Photograph each feature in context and mark it on a simple plan against fixed references such as a wall or fence. Do not open an unfamiliar or sealed cover as part of a casual inspection; ask the locator or service provider if access is needed.
Ask people familiar with the property about work that is easy to miss: garden irrigation, lighting added after construction, a repaired path, a former shed connection or services installed during landscaping. A deck or fresh paving can conceal a trench, while a tap or outdoor light only indicates a connection somewhere nearby. Write down who identified each clue and whether its route is known or suspected. If you are considering the Bloomcabin Wall-Mounted Pergola, compare these observations with the proposed fixing points on its model-specific drawing. Include visible connections near the wall in the site notes, without assuming that their concealed routes follow a straight line.
Map the full anchoring and excavation area
Plot the chosen pergola’s intended location from the current model drawing, not from a rough roof outline alone. Show each proposed post or wall fixing, the base or anchor locations, and the ground area the installer expects to excavate. The hole, footing or working space may be larger than the small point marked for a bolt, so ask the installer what area the proposed method actually occupies. Do not substitute generic post spacing or a footing sketch: the required arrangement depends on the model, the site and its structural assessment. If the drawing does not show the excavation area, clarify it before setting out, and mark which positions are still provisional.
Use a measured site plan tied to permanent reference points, such as building corners or established boundaries, so the installer and locator can reproduce the same layout. Add visible clues, recorded routes and any alternate positions, clearly labelling an alternative as unapproved. Include access needed for the work where it affects which ground may be disturbed. When considering the Bloomcabin Pergola model, use the matching anchoring information to distinguish the product’s outline from the proposed fixing and excavation areas. The site assessment must address those areas, not just the space beneath the roof. Keep provisional positions clearly labelled until both the service findings and installation requirements have been considered.
Use professional locating to fill gaps
Once records and a provisional footprint are ready, arrange for a competent service locator to assess the area before anchor positions are fixed. Share property plans, photographs, known service routes and the full excavation area, not just a pin dropped at each post. Ask which services the work will seek to locate, what method is appropriate to the site and what cannot reliably be detected. Material, depth, access and nearby conditions can affect results, so the scope matters as much as the marks or report. If the layout is still being chosen, show possible alternatives too; the locator can explain whether those areas were included in the assessment.
Ask how findings will be recorded: which routes are confirmed, approximate or uncertain; whether depths are reported or remain unknown; what areas could not be checked; and what the marks mean. A single consumer device, old sketch or blank patch on a plan should not be treated as an all-clear. Have the locator explain the survey’s limits and any further checks needed. If you are comparing layouts for the Bioclimatic Pergola, record which proposed footprint each set of findings covers. This makes it easier to see whether an alternative position was included in the survey or whether its excavation area remains unchecked.
Resolve service clashes before changing anchor positions
Overlay the locator’s findings on the pergola plan and compare each proposed fixing and the full excavation area with the mapped routes. A line that misses a post centre may still cross a footing or the space required to install it. Do not apply a universal clearance distance: a suitable separation depends on the service, how accurately its route is known, the proposed anchoring and professional advice. If a route is approximate, or the report does not resolve its position at a proposed fixing, treat that area as unresolved rather than clear. The locator or service owner can clarify what the mark-out means.
Where a conflict appears, pause the layout decision. A qualified installer or structural professional can assess whether the whole pergola position or a specified anchoring detail can be changed; the relevant service owner must advise on work that could affect its asset. Do not shift an anchor, drill at an angle, bridge a route, cut a service or cover it simply to make a drawing fit. If you are considering the Wall-Mounted Pergola, ask the installer to assess any alternative against the matching project drawing. Record the proposed change clearly so it can be reviewed as a complete arrangement, rather than as an isolated fixing that happens to avoid a marked line.
Check the substrate as well as buried services
Service locating and structural assessment are separate tasks. Paving may cover services or old trenches; a deck may conceal runs below its boards; and a concrete surface can hide both services and a substrate whose construction has not been established. A neat, level finish tells you little about what lies beneath. In the other direction, locating a pipe or cable does not show whether a slab, deck, retaining structure or ground is suitable for the proposed anchoring arrangement. Treat any previous repair, raised level or changed landscaping as information for the site assessor rather than assuming the visible finish represents original ground.
Ask for substrate evidence and a structural assessment against the selected model’s approved anchoring drawings. Information from earlier construction may help, but it needs to relate to the actual fixing points and be interpreted by a qualified person. Where the base is a deck, slab, raised area or altered ground, do not assume its appearance proves suitability. For a proposed Bloomcabin Pergola installation, ask the assessor to identify which construction records apply to the fixing areas and where information is still missing. Keep those findings alongside the service-locating report, with the locations clearly referenced, so the installer can distinguish questions about concealed services from questions about the supporting substrate.
Coordinate the mark-out and excavation
Give the locator’s findings, agreed layout, current model drawing and substrate information to everyone setting out or carrying out excavation. Keep one current plan and make clear which routes are confirmed, approximate or unresolved; an old mark-up should not sit beside a newer drawing without a version note. Agree who checks the marks immediately before work, who can authorise a layout change, and who must be contacted if a new feature appears. Record the selected model, such as Bloomcabin’s Bioclimatic Pergola, alongside the drawing reference and revision. This helps everyone identify which proposal the mark-out relates to, rather than relying on separate messages that may describe an earlier layout.
Set out approved positions only when the locating marks and plan refer to the same version of the layout. If landscaping, other trades or a revised post position has disturbed surface marks, ask for the affected area to be checked again before excavation. The crew needs the locator’s limitations and notes, not just a photograph of coloured marks on paving. Leave unresolved routes as hold points and agree the excavation approach with competent people who understand the site. There is no universal method or depth for every service and substrate, so the work plan should follow site-specific advice rather than an improvised rule.
When the ground does not match the plan
If excavation reveals an unexpected duct, pipe, cable, marker tape or unexplained obstruction, stop the affected work rather than deciding by appearance that it is redundant. Keep people and equipment clear, and do not touch, cut, move or continue excavating around the item. Contact the locator, installer and relevant service owner for advice. If it presents immediate danger, move away and contact the appropriate emergency service or asset operator. A mark-out is a planning aid, not a guarantee that every buried feature has been identified, so what appears in the ground takes priority over an assumption in an old sketch.
Once the area is safe, have a suitably qualified person confirm what has been found and update the site plan before work is re-sequenced. Record who assessed it, what route or status was confirmed and any instructions that affect the proposal. Ask the installer to check that an altered position remains within the structural assessment and approved anchoring arrangement. A previously unrecorded service should not simply be added as a note and ignored. If nobody can identify it or the proposed footing still conflicts, keep that part of the work on hold until the uncertainty has been resolved.
Confirm the site information before drilling
Before drilling, bring together the current model-specific anchoring drawing, locator’s report, available service records, a site plan distinguishing confirmed and uncertain routes, and evidence about the substrate. Check every proposed fixing and excavation area, not just the pergola’s outside dimensions. For the Bloomcabin wall-mounted pergola, ask the installer to confirm that the drawing used for setting out is the same one considered in the site assessment. Check that any agreed changes also appear on the current plan. Assign open questions to the locator, relevant service owner or structural professional rather than leaving them for the person holding the drill.
Keep the final mark-up, report date, people consulted and any approved layout change with the project papers. If a route, anchoring detail or substrate remains uncertain, postpone the affected drilling and seek a site assessment or installation advice from the appropriate professional. The purpose is not paperwork for its own sake: everyone on site should know which ground areas were checked, what the evidence can support and which decision is still open. A clear record also helps when future maintenance or another change to the pergola area is planned.
Frequently asked questions
Does a missing service plan mean the site is clear?
No. A blank record means only that no relevant information was found in the material available; it does not establish that no pipe or cable is present. Arrange professional locating, share the property history and visible clues, and keep unresolved areas out of the drilling plan until they have been assessed.
Can a service locator confirm every route and depth?
No. Detection depends on the service, its condition, the surrounding site and the method used. Ask what was within the survey scope, which routes are approximate, whether depth was determined and which areas remain uncertain. Read the marks with the locator’s explanation rather than treating them as a guarantee.
Which records should I gather?
Collect available utility or network plans, property and renovation drawings, records from contractors, and notes about later landscaping, irrigation or outdoor connections. Include dates and who supplied each document, and keep discrepancies visible. Plans may cover only part of a service run, so give them to the locator as evidence, not as a complete map.
Can I move a post if a service is in the way?
Pause before changing the position. Ask the locator or service owner to clarify the route, then have a qualified installer or structural professional review any proposed change to the post or anchoring arrangement. Do not shift a fixing or improvise around a service on site; a change needs to be assessed against the actual design.
When should service locating be arranged?
Arrange it after you have a provisional footprint and gathered available records, but before anchor positions and excavation are treated as final. Give the locator the whole area that might be disturbed. If the site changes, marks are lost or the layout moves before work, ask whether the affected area needs checking again.
Good pergola service planning brings records, visible clues, locating results and the full anchoring footprint together. Treat an unknown route as uncertainty, not as clear ground. If a proposed post, footing or excavation area conflicts with a service, resolve the issue with the locator, service owner and installation professional before work resumes. The layout is ready only when the actual model, site evidence and approved anchoring arrangement have all been considered—not simply when a drawing looks uncluttered.
