EI30 Outward-Opening Fire-Rated Pivot Window

EI30 classification, oak and made-to-measure design

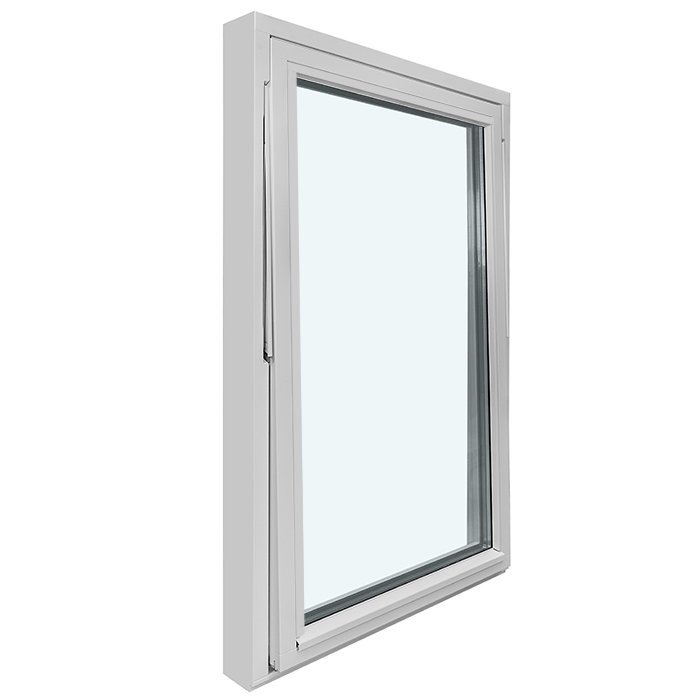

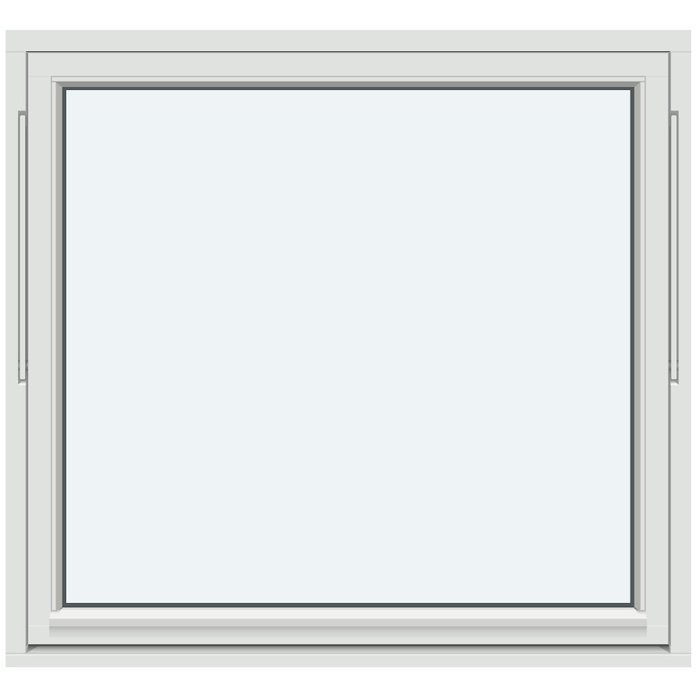

EI30 fire-rated outward-opening pivot window

A made-to-measure oak EI30 fire-rated pivot window, outward opening, with colour and handle options.

Configuration

EI30 outward-opening pivot window

Material

Oak

Glazing

2-pane insulated glazing

Options

Choice of size, colour and handle

01

Outward opening: planning operation and use

Two features are central when selecting this product: it is a pivot window and it opens outwards. Allow for that opening direction from the start of planning, especially when setting its position, dimensions and operating height. Together with the preferred number of sashes, this creates a clear basis for your enquiry. Colour and handle can then be chosen to complement the window concept.

Build an outward-opening sash into the design of the relevant façade area at an early stage. Review the situation around the proposed window and coordinate its position with adjoining building elements, paths and other moving features. Appropriate or required clearances depend on the individual project. A scaled drawing helps assess the intended window size and its real surroundings together, rather than considering the opening action only after dimensions are fixed.

Indoor operation should also influence your window choice. Consider where the handle needs to be comfortably reached from and how the window height works with everyday use. As a handle choice is available, this detail can be planned alongside overall dimensions and colour. The practical specification results from the relationship between installation position, preferred sash count, handle and outward opening.

As an opening solution, this pivot window serves a different purpose from fixed glazing. If choosing between an opening and a fixed element, first establish whether an opening function is wanted in that location. Material, glazing appearance and colour can be compared afterwards. This approach avoids using a visually similar but fundamentally different window type as the benchmark for the decision.

02

Oak, frame construction and defined components

The fire-rated pivot window is made from oak. Oak gives the selection a clear material basis and is particularly suited to schemes where visible timber elements are intentionally coordinated. As a colour choice is available for this product, the effect of the oak window can be considered alongside the façade, interior finishes and other frames. Assess colours with the actual neighbouring elements, rather than from an isolated sample alone.

The stated component dimensions are: outer frame 105 × 57 mm and sash frame 76 × 65 mm. These figures identify the relevant frame components; they are not automatically the order size, visible timber width or glazing size. Treat component dimensions and required overall dimensions separately when coordinating the design. This distinction is especially important at existing openings, so different measurements are not inadvertently treated as identical.

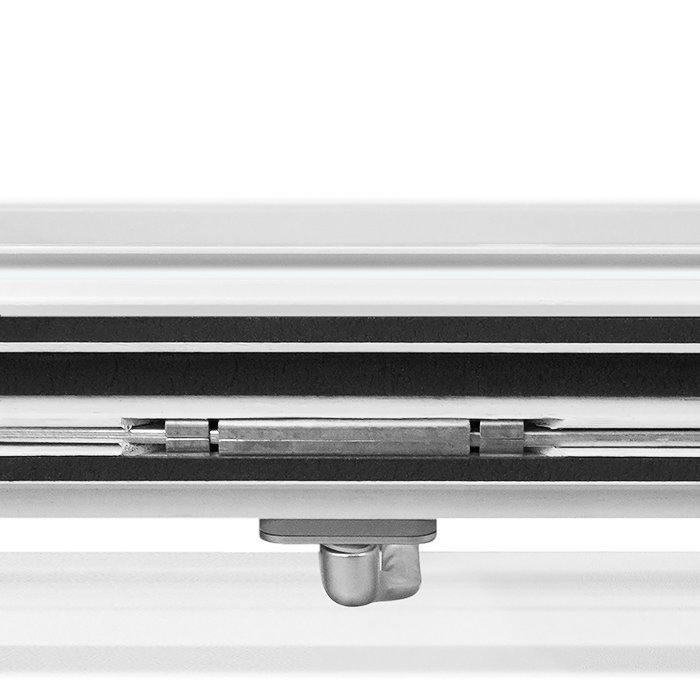

Spilka fittings are included with this opening window. Select the handle from the available options and coordinate it with the frame colour and other visible details. Also consider the planned fitting height and preferred operating position. In this way, fittings, handle, dimensions and the oak frame are considered as connected parts of the window selection.

The fixing holes are specified as 14 mm. This figure is part of the technical product data and should be included with the other information in project documentation. Diameter alone does not provide a complete installation design. Measurement references, connection details and site conditions must be brought together appropriately for the project. The technical value therefore remains in its proper place: a defined product feature within broader project-specific planning.

05

Made-to-measure and project-specific sizing

The EI30 pivot window is available made to measure. This is particularly valuable where the window opening, façade division or coordination with neighbouring construction requires a specific format. Made to measure means the dimensions intended for the product can be selected for the project. It does not replace a clear definition of the measurement reference. Record which dimension is meant and use the same reference point consistently throughout the discussion.

For an existing building, measure current openings and connection areas carefully. For a new build, compare window dimensions with the current design stage. Also remember that this is an outward-opening element. Changing its size can alter the overall effect, handle reach and relationship with adjoining building elements. Dimensions should therefore not be set independently of operation and the façade view.

For a 2-sash version, state the overall dimension and sash count together. This makes the requested basic division clear from the enquiry onwards. Also compare the proposed format with neighbouring windows, façade lines and visible building elements. Made-to-measure sizing can therefore be coordinated not only with the opening, but with the project’s overall appearance.

The EI30 classification should also form part of the clear product designation in your plans. It should not be replaced with a similar-looking window type or a general description such as “oak window”. At the same time, the classification does not replace project-specific confirmation of requirements at the intended location. Careful checking ensures that product type, classification, opening direction, sash count and dimensions are understood as one connected selection.

06

Coordinating colour and handle with the window concept

Alongside made-to-measure sizing, colour and handle choices are available. These allow three visible decisions to be planned together: window format, the colour effect of the oak frame and the operating detail. Good coordination begins with the permanently influential surfaces. First consider the façade, interior finishes and other window frames; then choose a colour that either creates a deliberate link or a clearly planned contrast.

With an oak window, colour can be used in different ways. In a scheme with several timber elements, a connected colour palette can emphasise the material relationship. A contrasting colour, by comparison, presents the window as an independent building element. Choose the exact version from the available colour selection and consider the façade, internal surfaces, adjacent frames and preferred handle.

The handle is smaller than the frame and glass area, but shapes perception whenever the window is used. Coordinate it with the window colour, neighbouring fittings and your design preferences. Together with dimensions, sash count and colour, the handle choice completes the outward-opening oak EI30 pivot window. The result is a coherent combination of functional window type and individually selectable details.

When different Bloomcabin elements appear in one elevation, they do not need to be technically identical to work well together visually. Repeated colours, related dimensions or coordinated handles can create a connection while each element retains its own function. Take care not to transfer technical data from other windows or doors to this product. The EI30 pivot window is selected according to its own oak construction, fixed glazing specification and classification.

07

Comparing fixed glazing, pivot windows and doors

Our related products cover different basic functions. Combination windows join different window areas within one product type, while fixed glazing cannot be opened. Round, semicircular, triangular and angled fixed windows also focus on a particular external shape. These alternatives are useful where shape, fixed glazing or combining different areas matters more than the opening action of the EI30 pivot window described here.

The related outward-opening pivot window is functionally closer to this product than fixed glazing, but has its own material and specification choices. The key starting point for comparison is whether this product’s EI30 classification is part of your requirement. If it is, do not decide by external similarity alone. Then compare opening action, material, glazing, required dimensions and available design choices as separate criteria.

Single-sash outward-opening patio doors, by contrast, perform a door function and are not simply larger versions of this window. They can have a place within a shared façade concept, but should be selected according to their own construction and specification. The historic-style patio door is also a separate product. Colour, timber character or repeated lines can be visually coordinated without equating the technical features of door and window.

Use the following product selection as functional guidance: fixed-glazed elements suit areas that do not open, shaped windows create distinctive outlines, combination windows join different window areas and patio doors form walk-through openings. In this comparison, the EI30 fire-rated pivot window is the outward-opening oak solution with EI30 classification and a selectable 1-sash or 2-sash design.

Combination windows, Windows with fixed glazing, Round windows with fixed glazing, Semicircular windows with fixed glazing, Triangular and angled windows with fixed glazing, Outward-opening pivot windows, Single-sash outward-opening patio door, Single-sash historic-style outward-opening patio door.

08

Making a well-defined enquiry

For a specific enquiry, bring every decision together: name the EI30 fire-rated outward-opening pivot window by its full product title, provide the required dimensions and their clear measurement reference, and choose the 1-sash or 2-sash layout. Then add your colour and handle preferences. If several windows are needed, identify each element separately so different sizes and specifications remain clearly allocated.

Information about the design context is also useful. Tell us whether the oak window should coordinate with other windows, a patio door, existing timber components or particular façade colours. Such information does not replace technical dimensions, but helps us understand your colour and handle preferences. If the EI30 classification arises from a project-specific requirement, confirm that requirement with the responsible project parties before final selection.

This window has a five-year warranty. A fully described enquiry allows us to assign the available choices for dimensions, sash count, colour and handle clearly. Also state the outward opening and EI30 classification, so the required product is identified precisely. The resulting selection can then suit the sizing and design goals of your project.

Which way does the EI30 fire-rated pivot window open?

The EI30 fire-rated pivot window opens outwards. Consider this direction when choosing the window position and required dimensions.

Is the window made from oak?

Yes. The EI30 fire-rated pivot window is made from oak. The timber species is part of the defined product specification.

What glazing does the fire-rated pivot window have?

It uses 2-pane insulated glazing with a heat-reflective coating. The glazing seals are made from silicone.

Which sash options are available?

You can choose a version with 1 sash or a version with 2 sashes. State the required sash count together with the dimensions in your enquiry.

Is the fire-rated pivot window available made to measure?

Yes. The window can be made to measure. For an enquiry, we therefore need the dimensions relevant to your project and the required specification.

Can I choose the colour and handle?

Yes. Alongside made-to-measure sizing, colour and handle selection are supported ordering options.

What frame dimensions are stated?

The outer frame is stated as 105 × 57 mm and the sash frame as 76 × 65 mm. These component dimensions differ from the required overall window dimensions.

How long is the warranty?

Our windows and doors have a five-year warranty. This therefore applies to this EI30 fire-rated pivot window.

Plan your oak EI30 pivot window

If you are planning an outward-opening oak EI30 fire-rated pivot window, send us your required dimensions and details of sash count, colour and handle. We can help you bring the available product features together into a coherent selection for your project.
