Patio Life Lift-and-Slide Doors

Side-opening timber door with coordinated glazing and design options

Patio Life lift-and-slide doors

Patio Life lift-and-slide doors in pine or oak, optionally aluminium-clad outside, with double or triple insulating glass and a choice of colour and handle.

Material

Pine or oak, each also available with external aluminium cladding

Glazing

Double or triple insulating glass

Hardware

Roto Frank

Warranty

5-year commercial warranty

01

Sideways opening for everyday use

The defining operating feature of Patio Life lift-and-slide doors is the sideways movement of the door leaf. When opening, it glides to the side. This differs from a conventional hinged door, whose leaf swings into either the interior or exterior. For planning, that chiefly means adjacent areas do not need to accommodate a swinging leaf. The door position and direction of sideways movement should nevertheless be considered from the outset in the floor plan, furniture layout and circulation routes.

For everyday use, it is helpful to regard the route between inside and outside as one continuous path. Consider which area of the room will normally provide access to the door and where the route continues on the patio side. A dining table, seating area or regularly used walkway can then be arranged so access remains naturally clear. Sideways movement supports this spatial order, but does not replace project-specific coordination of door position and furnishings.

The intended frequency of use can also influence your choice. For a patio entrance used regularly, an easily reached handle and clear route will usually matter more than for an opening intended mainly to frame an outdoor view. As the handle is one of the available options, you can assess its design together with the other visible hardware in the room. The result is a door whose operating point is consciously incorporated into the overall concept rather than placed by chance.

First assess the operating style independently of material and design. The key question is whether the sideways-moving door leaf suits your floor plan and daily routes. You can then coordinate timber species, aluminium cladding, glazing, bar design, colour and handle. In your enquiry, tell us which areas will serve as access points and which visual priorities matter to you.

02

Timber species, aluminium cladding and component construction

For Patio Life lift-and-slide doors, you can choose pine or oak. Timber species affects the visible material character, so it should not be selected separately from flooring, wall surfaces, fitted furniture and neighbouring windows. Pine can work well in light, restrained colour schemes, while oak is often selected for a more distinctive timber presence. Which option suits your design best depends on your surroundings and chosen colour; a particular effect is not determined by the timber name alone.

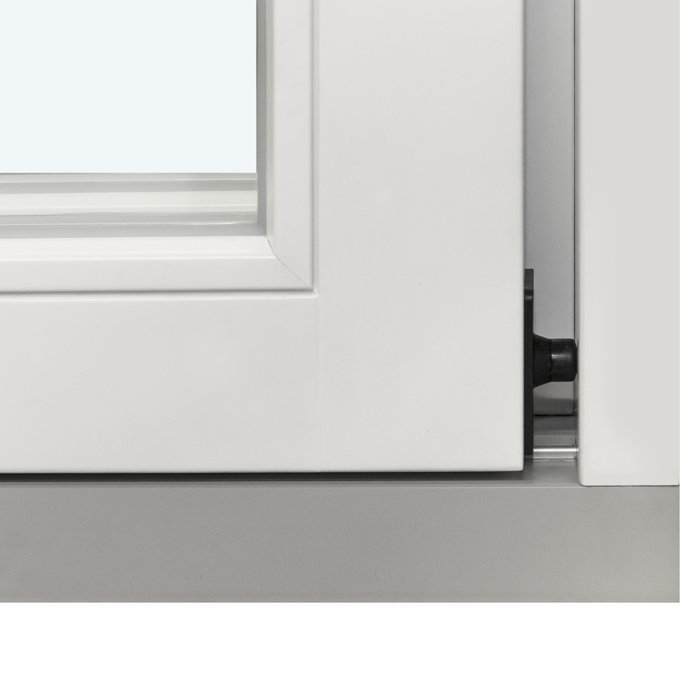

Both pine and oak are also available with external aluminium cladding. This option combines your chosen timber species with an aluminium outer surface. It lets you plan the interior and exterior appearance separately: the timber and chosen colour inside, and aluminium cladding as a visible façade element outside. When deciding, consider the exterior together with façade colour, roof and metal details, and existing windows.

The stated component dimensions vary according to whether aluminium cladding is selected. The frame measures 181 × 45 mm in timber construction and 191 × 45 mm with aluminium cladding. The door leaf is specified as 78 × 68 mm; with aluminium cladding, the leaf dimension is 88 × 78 mm. These measurements describe individual components and should not be understood as the overall door size or as an automatically required structural opening size.

Further construction details include Roto Frank hardware, silicone as the glazing seal and installation drill holes with a diameter of 14 mm. The door is CE marked. Together, these specifications provide a clear technical basis for assessing the product. For project planning, pass the component information unchanged to the relevant professionals so the frame construction, connection details and existing building opening can be considered together.

05

Planning the opening, dimensions and building context

Before choosing a Patio Life lift-and-slide door, accurately record the actual building opening and surrounding conditions. Width and height matter, but so do the installation situation, wall construction and transitions to the internal floor, outdoor surface and façade. Frame and door-leaf component dimensions do not replace these project measurements. They describe product construction and cannot be used directly as order or opening dimensions.

When planning the layout, remember that the door leaf moves sideways. Check how the entrance relates to the kitchen, dining area, seating or other permanently positioned elements. Outside, it is equally sensible to include patio furniture, planters and main pathways in your assessment. The issue is not clearance for a swinging leaf, but an easily accessible entrance and a coherent route on both sides.

Plan the external elevation alongside façade openings, sill and lintel lines, and adjacent windows. If you choose external aluminium cladding, the stated frame and leaf components differ from the all-timber version. State the material option early so everyone involved works from the same specification rather than mixing dimensions from different versions.

For a robust assessment, have project dimensions and construction connection questions checked by the professionals responsible for your project. Relevant drawings, elevations or photographs of the existing context can help explain the situation in a product enquiry. Do not derive measurements from a photograph alone. Use documented measured values and identify clearly what each stated dimension refers to.

06

Colour, handle and architectural coordination

Colour and handle are the two explicitly supported options for Patio Life lift-and-slide doors. Your colour choice shapes both the relationship with existing elements and the contrast within the room. Rather than choosing a shade from a small individual image, compare it with flooring, walls, window frames and fixed fittings. For the exterior, the main references are the façade, metal details and, where selected, the aluminium cladding.

The handle is both an operating point and a visible detail. Its selection can relate to other handles, taps or hardware without requiring every metal surface to match exactly. What matters is a coherent design line. As Roto Frank hardware forms part of the product, discuss the handle choice as part of the specific door configuration rather than assuming it from images of other door models.

Timber species, colour and external aluminium cladding serve different design purposes. Pine or oak establishes the material basis, colour influences the visual relationship, and optional aluminium cladding changes the exterior material appearance. Where interior and exterior architectural settings differ, assess both sides separately before evaluating them as one configuration. This helps avoid a choice that works convincingly only indoors or only on the façade.

The glazing-bar pattern forms the fourth important level of visual coordination. A bar-free pattern focuses on the glass area, horizontal divisions create a clear sequence of lines, and combined decorative-bar patterns create a denser grid. First choose the degree of division you want, then coordinate colour and handle with it. This sequence makes it easier to separate major decisions from smaller details.

07

Alternatives for different opening and design preferences

The Patio Life lift-and-slide door suits projects requiring sideways door movement and a two-frame design. If you are comparing other side-opening products, our range also includes sliding doors with GU hardware. This related product group has its own frame and leaf dimensions as well as black rubber seals, so it must not be treated as technically identical. Compare products by their individual construction, not only by the general term sliding door.

If you specifically want access through outward-opening leaves, other patio-door types may be suitable. These include single and double doors, as well as heritage-style versions. These products have their own specified hardware, dimensions, materials and design patterns. Double doors can be particularly appealing where a classically divided door elevation suits the architectural concept, but their opening principle differs fundamentally from the sideways movement of a Patio Life door.

Outward-opening folding doors are another distinct alternative. Their folding leaves and available patterns follow a different use concept from a sideways-sliding door leaf. An external door may instead suit you if you want a classic outward-opening door element and, depending on the version, wish to incorporate glazing or panels into the design. Compare these options by movement type, material and desired division.

Not every glazed façade opening needs to provide passage. Fixed-glazed rectangular or round windows cannot be opened and can therefore complement a design with light and viewing openings only. They do not replace a patio door, but can help develop a façade combining movable and fixed elements. Compare timber species, possible aluminium cladding, glazing and bar patterns on a product-specific basis.

The choice between sliding, hinged, folding and fixed-glazed elements is best led by the required function. First decide which opening will genuinely serve as access, which movement type suits the floor plan, and which areas should provide only light or views. Compare visual patterns afterwards. This order helps prevent choosing an attractive elevation whose operating principle does not suit everyday routes. Heritage-style single outward-opening patio door, Double outward-opening patio door, Heritage-style double outward-opening patio door, Outward-opening external door, Sliding doors, Outward-opening folding doors, Fixed-glazed windows, Fixed-glazed round windows.

08

Enquire about your Patio Life configuration

For a focused enquiry, we first need a short description of your building project and documented dimensions for the proposed opening. Then state your preferred material version: pine, oak, or either timber with external aluminium cladding. Add whether you prefer double or triple insulating glass and which of the described glazing-bar patterns you are considering.

Also tell us your preferences for colour and handle. If particular façade lines, neighbouring window divisions or visible materials should be considered, you can briefly describe them and include suitable views. The exact pattern name is particularly helpful for glazing bars, so through-glazing and decorative versions can be clearly distinguished.

Patio Life lift-and-slide doors carry our five-year commercial warranty for windows and doors, subject to its terms and separate from any applicable statutory consumer rights. Once your information is complete, we can organise your preferences clearly and answer open product questions directly. This gives you a configuration based on the available materials, glazing, designs, colour and handle options.

How do Patio Life lift-and-slide doors open?

The door leaf moves sideways. This makes everyday operation different from patio doors that swing inward or outward.

Which materials are available?

You can choose between pine and oak. Both timber species are also available with external aluminium cladding.

Which glazing options are available?

Double or triple insulating glass is available. Both versions have a heat-reflective coating, CHR warm-edge spacers and argon gas filling.

Are different glazing-bar designs available?

Yes. Alongside a bar-free two-frame configuration, there are patterns with horizontal through-glazing bars and combinations of horizontal and vertical decorative bars.

Can I choose the colour and handle?

Yes. Colour and handle are both supported options for this product. Coordinate both choices with the timber species, glazing and bar pattern.

Which hardware and glazing seals are used?

The hardware is from Roto Frank. Silicone is used for the glazing seals.

Is the door CE marked?

Yes. Patio Life lift-and-slide doors are CE marked.

How long is the warranty valid?

Our windows and doors carry a five-year commercial warranty, subject to its terms and separate from any applicable statutory consumer rights. This includes Patio Life lift-and-slide doors.

Plan your Patio Life lift-and-slide door with us

Would you like to check whether Patio Life lift-and-slide doors suit your planned opening and design concept? Send us the main project details, your preferred timber species, required glazing and initial ideas for colour, handle and glazing-bar pattern. We can help you coordinate the available features effectively.
