Siegenia side-sliding doors

Side-sliding operation, configured for your project

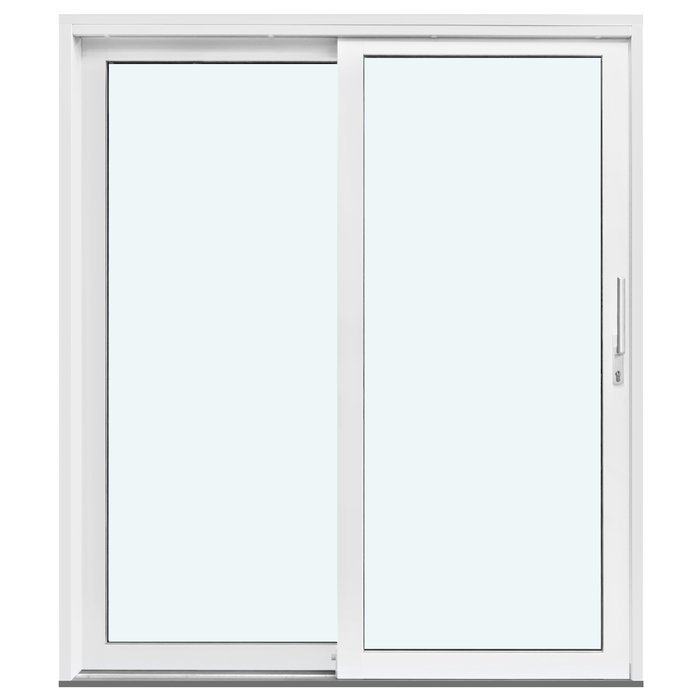

Side-sliding Siegenia sliding doors

A made-to-measure Siegenia sliding door in pine or oak, optionally aluminium-clad, with glazing and design choices, colour and matching handle.

Operation

Side-sliding door leaf

Material

Pine or oak, each also available with aluminium cladding

Glazing

2- or 3-pane insulated glass unit

Hardware

Siegenia with high-security multi-point locking

01

Everyday side-sliding operation

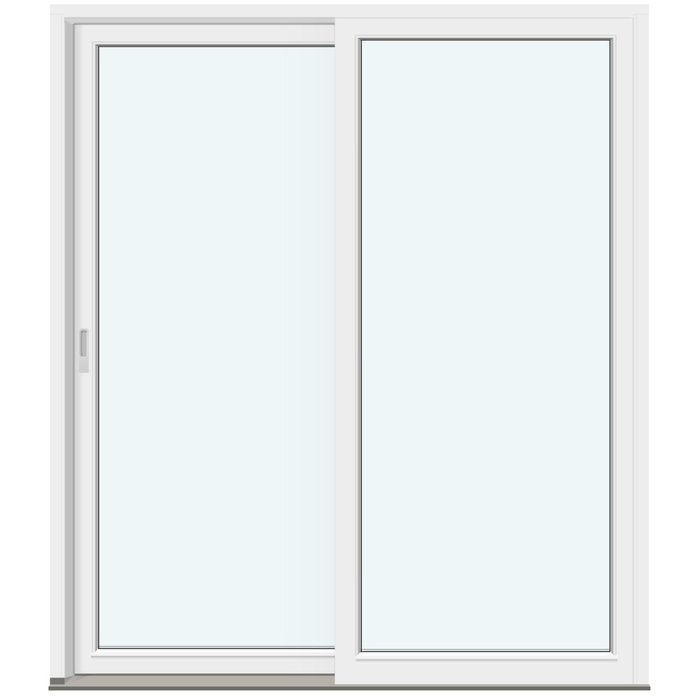

The defining feature of this Siegenia sliding door is its direction of movement: the door leaf slides sideways. Its operation therefore differs from patio doors with leaves that swing inward or outward. For planning, this means you can first choose the preferred door type according to everyday use and the arrangement of the space.

Sideways movement can be a suitable choice when you do not want a door leaf swinging into the room or outwards to form part of the way you use the area. Still consider the whole building situation, not only the movement direction. Wall connections, adjoining components, floor build-up and furniture or fixed fittings should be coordinated with the intended door position. Specific clearances must always be assessed against the selected size and actual installation conditions.

Siegenia hardware with high-security multi-point locking is used for operation. The hardware and locking system form part of this sliding door’s stated specification, making them an important point of distinction when comparing products. Select the handle from the options offered for this product. It is worth considering both the visual effect and the way you prefer to use the door every day.

Where several door types could suit your project, start with the desired movement. A side-sliding door, a hinged leaf and a fixed glazed panel serve different purposes. Only after making that fundamental decision should you consider material, glazing and glazing-bar pattern. This order helps prevent a purely visual preference from outweighing the operating style that matters more in daily life.

02

Timber species, aluminium cladding and component dimensions

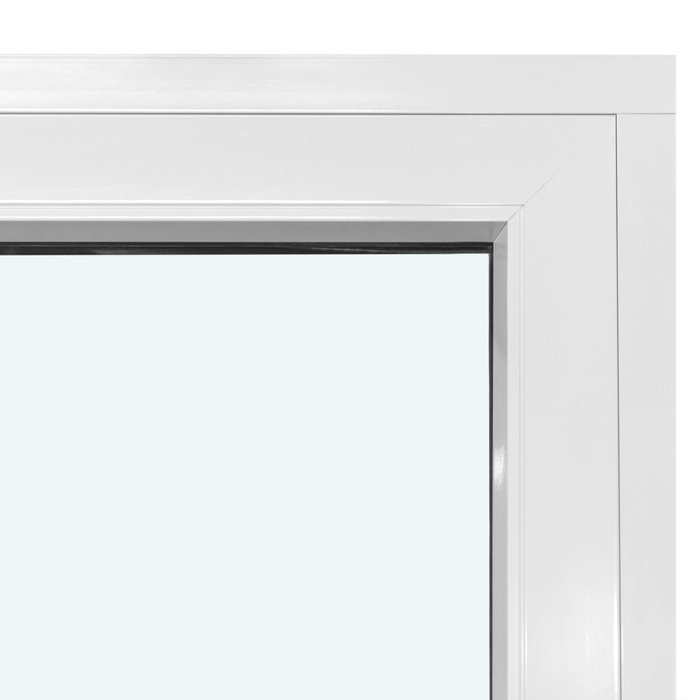

This Siegenia sliding door is offered in four material versions: pine, pine with aluminium cladding, oak, and oak with aluminium cladding. You can therefore choose either a timber-only construction or a combination of timber and aluminium cladding. Pine and oak each have their own visual character. Make the choice in relation to existing windows, doors, façade materials and visible timber surfaces, rather than in isolation.

Aluminium cladding also changes the construction dimensions of the stated components. In the timber version, the outer frame measures 184 × 45 mm; with aluminium cladding, it measures 194 × 45 mm. Without aluminium cladding, the door leaf is stated as 78 × 68 mm; with cladding, it is 78 × 78 mm. These dimensions expressly describe the outer frame and door leaf, not the overall size of the ordered door unit.

The different component dimensions matter when coordinating the technical side of a project. Decide first whether you want a timber-only version or one with aluminium cladding before finalising connections. It would not be appropriate to transfer dimensions from one material version to the other afterwards. For clear coordination, everyone involved should use the same selected version and the corresponding names for its components.

Material selection can consider the overall appearance as well as the individual door. Repeating pine, oak or aluminium cladding across other elements can create a calm visual link. With a deliberate contrast, it should be clear which element takes the lead. As a colour choice is also available, timber species, cladding version and colour can be considered together rather than separately. This avoids individual choices that do not achieve the intended combined effect.

05

Made-to-measure manufacture and building planning

The Siegenia sliding door is available in a made-to-measure size. This requires reliable project dimensions that suit the actual opening and intended build-up. Width and height should be clearly identified and documented in millimetres. Distinguish carefully between the structural opening, order size and dimensions of individual components. The outer-frame and door-leaf dimensions stated above are profile or component dimensions and do not replace establishing the required overall size.

A diameter of 14 mm is specified for the installation holes. This product detail can contribute to technical coordination, but does not alone determine the complete fixing or connection concept. The particular installation depends on the existing structure and project-specific details. Coordinate the made-to-measure element and adjoining construction before ordering so that conflicting dimensional bases are not used.

When planning, also check that the selected material version has already been allowed for. The outer frame and door leaf have different dimensions with aluminium cladding than in the timber-only version. This difference is especially important when connections or adjoining components are fixed early. Record the material and cladding version directly with the dimensions, rather than keeping this information in separate planning documents.

For a specific enquiry, gather every selection point in one place: measured width and height, pine or oak, with or without aluminium cladding, a 2- or 3-pane insulated glass unit, the desired two-frame design, colour and handle. Add details about the element’s position and adjoining windows or doors where relevant to visual coordination. This lets us discuss your product selection in a focused way without mixing technical and visual decisions.

06

Coordinate colour, handle and overall effect

Alongside the size, you can choose the colour and handle for this sliding door. A considered colour choice looks beyond a single sample area to the element’s full surroundings. The façade, interior finish, existing frames and further doors form the visual context. Repeated colours can support a calm overall appearance. A contrast, by comparison, can deliberately make the sliding door stand out as an architectural feature.

The handle is a functional touchpoint as well as a visible detail. Coordinate its selection with the hardware on other windows and doors when they will be seen together. A consistent approach can visually link different opening types, while a contrasting handle can emphasise the sliding door’s particular function. Choose from the handle options offered for this product and assess the decision alongside colour and material.

With unclad pine or oak, the timber construction is central to the material effect. In clad versions, aluminium becomes an additional visible component. Black rubber glazing seals and the lines of the chosen glazing-bar pattern also contribute. These elements should be viewed as one composition. A clear concept covering base material, colour, glass division and handle usually produces the desired result more effectively than choosing every detail in isolation.

If ordering several new elements, decide early which features should remain consistent. These could include timber species, colour or a recurring horizontal division. Other differences can arise from their particular functions, for example between a sliding door, a hinged door and a non-opening window. The overall appearance remains connected without incorrectly treating technically different products as identical.

07

Compare alternatives in the door and window range

A side-sliding door is only one possible solution for a transition between spaces. Our range also includes double patio doors with inward-opening tilt-and-turn operation, plus single- and double-leaf versions that open outwards. Outward-opening versions are also available for historically styled projects. The first key comparison point is therefore the operation: sideways sliding, inward opening or outward opening.

Another sliding-door alternative is a Patio Life model, whose door leaf also moves sideways. Despite the related movement direction, it is a separate product with different frame and leaf dimensions, Roto-Frank hardware, silicone seals and its own options. Compare the specific equipment of both models before deciding on a sliding door.

Not every glazed opening needs to provide a passage. Fixed rectangular windows and fixed round windows cannot be opened, so they perform a different role from the Siegenia sliding door. They may still matter visually within a coordinated façade concept, through material, colour or glazing-bar lines. Your comparison should therefore distinguish between function and appearance: opening style is chosen for the product, while recurring design elements can link different components visually.

The linked products below help you check these differences directly. For each alternative, note the expressly stated movement type, available materials, glazing, hardware and purchase options. With similar-looking two-frame or glazing-bar patterns in particular, it is worthwhile reviewing the individual product specification. This helps you choose not only by appearance, but by the combination of use, construction and desired design.

Double patio door, inward opening, Patio Life lift-and-slide doors, Single patio door, outward opening, Historic-style single patio door, outward opening, Double patio door, outward opening, Historic-style double patio door, outward opening, Fixed glazed window, Fixed glazed round window.

08

Enquire about the right Siegenia sliding door

If side-sliding operation suits your project, you can define the version step by step. Start with the preferred timber species and the decision for or against aluminium cladding. Then choose glazing and the two-frame design. Colour and handle complete the visual selection. This clear order makes it easier to separate technical requirements from purely visual preferences while still developing a coordinated result.

The Siegenia sliding door is CE marked. It also carries our five-year warranty for windows and doors. Keep the clear product description and your selected configuration with the project documentation. This makes it possible to identify the intended material, glazing and design version, particularly where several different doors and windows form part of the same project.

Send us an enquiry once the main project details are known. We can help match your preferences to the available versions and answer product-specific questions before you make a selection. If you are still weighing a side-sliding door against an alternative opening style, briefly tell us how you want to use it. We can then focus the comparison on the products that genuinely matter.

How does this Siegenia sliding door open?

The door leaf slides sideways. This differs from patio doors with hinged leaves that open inward or outward. You can therefore select the suitable door type according to the intended use and arrangement of the space.

Which materials are available?

Choose pine, pine with aluminium cladding, oak, or oak with aluminium cladding. This range lets you coordinate the door visually with other windows, doors and visible timber or aluminium surfaces in your project.

Which glazing can I choose?

2- or 3-pane insulated glass units are available. Both have a heat-reflective coating, warm-edge spacer bar (CHR) and argon gas fill. The glazing seals on this sliding door are black rubber.

What hardware and locking does the door have?

The door has Siegenia hardware and high-security multi-point locking. This hardware specification belongs specifically to this model and should be considered when comparing differently equipped patio or sliding doors.

Is the Siegenia sliding door available made to measure?

Yes. The Siegenia sliding door is available in a made-to-measure size. For an enquiry, we need the dimensions established for your project; building connections and installation conditions should be included in planning from the outset.

Can I select the colour and handle?

Yes. Alongside the made-to-measure size, you can choose a colour and handle. Consider these decisions together so the door, hardware and adjoining components create a visually coherent overall appearance.

Is the door CE marked and how long is the warranty?

Yes. The Siegenia sliding door is CE marked and carries our five-year warranty for windows and doors.

Which glazing-bar designs are available?

Choose two-frame configurations without decorative glazing bars, or versions with horizontal glass-dividing bars and specified combinations of horizontal and vertical decorative bars. The available patterns help you select a quiet or more distinctly divided appearance.

Plan your made-to-measure Siegenia sliding door

Planning a side-sliding door for a building or renovation project? Send us your dimensions and the preferences already decided. We can help narrow down the suitable Siegenia sliding-door version and clarify outstanding questions about material, glazing, design, colour and handle.
