Argon or krypton in insulated glazing: differences explained
Choosing insulated glazing
When planning windows, quotations often mention just one word: argon or krypton. That should not drive the purchase decision in isolation. Both noble gases sit in the cavity of an insulated glass unit and affect heat transfer. The value of either gas also depends on cavity width, number of panes, coatings, edge seal, frame and the actual window size. For a replacement project with different openings, it is therefore worth assessing the complete unit consistently. This guide explains when argon can be the practical standard choice, when krypton may suit compact constructions, and which details a comparable quotation should include. Match the gas fill, glazing build-up, operation and installation to the real project.
01 / Define project goals
Putting the gas fill in context

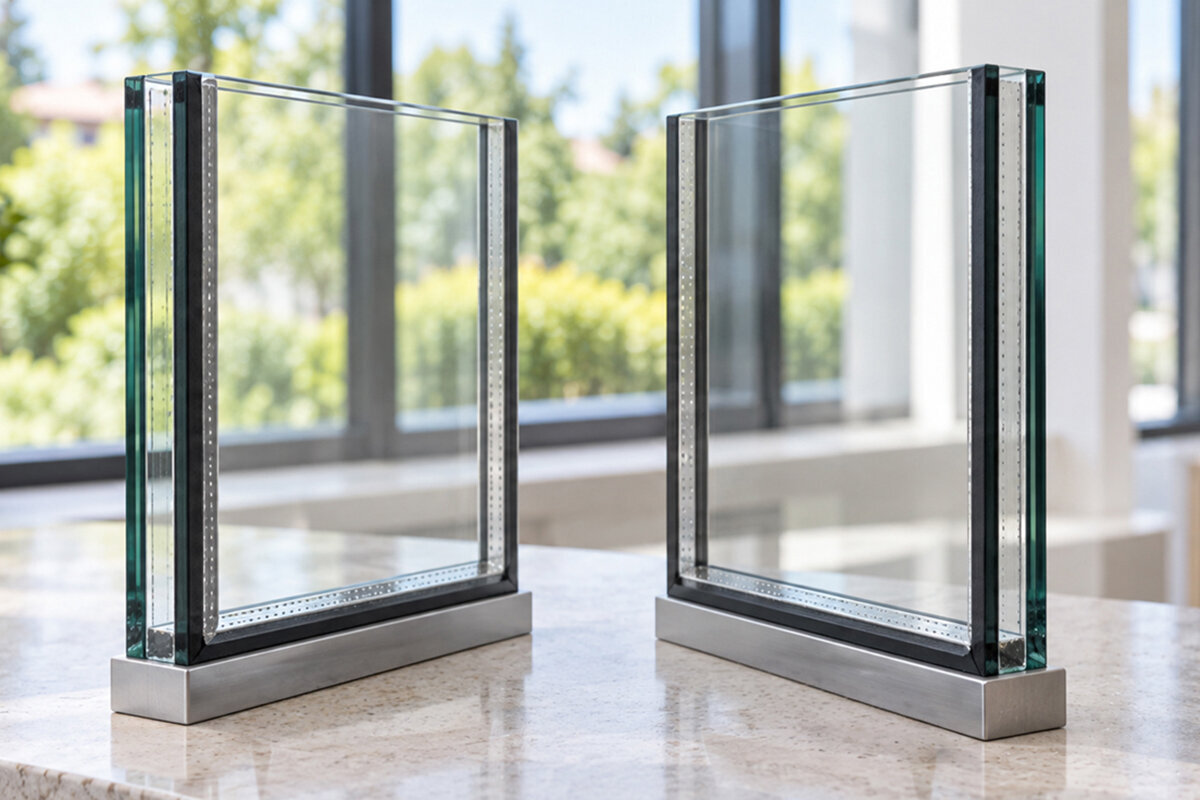

Multi-pane insulated glazing consists of individual panes joined into a sealed unit around the edge. Gas-filled cavities sit between them. These cavities reduce heat transfer more effectively than ordinary air filling. Argon and krypton are suitable noble gases for this purpose. Their role is not to visibly alter the glass: both are colourless and odourless, so you cannot tell from inside the room which gas has been used. The choice becomes relevant through the calculated and documented performance of the whole glass unit. Looking only at the gas name overlooks pane spacing, coatings and edge details that make its effect useful in a particular construction.
To compare quotations, you need at least to know whether double or triple insulated glazing is proposed, the glazing Ug value and the Uw value of the complete window. Ug broadly describes the glazing, while Uw covers the assembled unit including the frame. A lower value indicates lower heat transfer. Details of coatings, each cavity and the edge seal complete the comparison. This turns “krypton glazing” from a slogan into a verifiable configuration. Ask for values confirmed for the requested size and design. A reference value from a data sheet may not remain unchanged for a smaller window, a special shape or a multi-part construction.
Why the pane cavity matters
The insulating effect of a fill gas arises from its interaction with the width of the pane cavity. In a narrow cavity, the gas properties can matter differently than in a wider chamber. Making the cavity ever larger does not automatically improve insulation continuously, because movement within the gas fill can limit the extra benefit. The spacing is therefore not a value to maximise freely, but part of a coordinated glass construction. Argon is often used in conventional cavities, while krypton is mainly considered where good thermal performance is required within a narrower build-up. The optimum width must always be determined together with pane count, coating and the required Ug value.
This can matter with slim frame sightlines, replacement glazing with limited rebate depth, or a design using fine profiles. It does not mean that a slim construction automatically requires krypton. The supplier must assess which complete glass unit fits the selected system and is available in the intended size. Where construction depth is limited, ask specifically about overall glass thickness, the width of every cavity and the resulting Ug value. With traditional outward-opening combination casement windows sightline widths, glazing-bar pattern and opening method must also be coordinated. This shows whether krypton solves a construction issue or is simply offered as a more expensive alternative.
02 / Record the elements
Argon as a practical standard option
Argon is a sensible option in insulated glazing when the chosen pane construction has enough space for suitably dimensioned cavities. For many window projects, the most technically eye-catching individual feature is less useful than a coherent overall specification. Argon can work well here because glazing, frame, size and intended use can be planned together. In a home with several standard window formats, a uniform documented solution also makes items easier to identify in quotations and schedules. Deviations for special formats remain visible instead of disappearing among differently and incompletely described glass variants. Later queries can also be assigned more easily to a specific element through a clear construction designation.
It is important not to equate argon with a blanket promise about room comfort or energy use. A small window on a sheltered façade has different planning and use requirements from a large element on an exposed side of the building. Coating, glass and frame proportions, edge zone, shading and the wall connection also affect the outcome. For an inward-opening single-leaf window do not simply ask whether argon is included. Request the Uw value for the offered size, the glazing Ug value and an unambiguous glazing description in the order confirmation. Also check that opening direction and hardware suit the intended use before comparing variants on the basis of gas alone.
Consider krypton for compact glazing
Krypton can be particularly effective in narrower pane cavities. This makes it a possible option where the glazing build-up needs to remain compact for structural or design reasons. It is not, however, an automatic upgrade for every window. If a construction has enough depth for a well-coordinated argon build-up, krypton may offer no decisive practical benefit for the project. The useful comparison is therefore not “Which gas is generally better?”, but “Which tested glass construction meets the stated goal in the intended element?” Request the same information for both options. Only with identical dimensions, comparable frame construction and clearly identified performance values can you see which difference actually results from the glazing build-up.
Krypton may enter the discussion for large continuous glazed areas when demanding performance requirements must be combined with limited construction depth. Yet glass size, frame proportion, opening mechanism, weight and installation conditions also shape the choice. A Patio Life lift-and-slide door is, from its product name, simply a lift-and-slide door; no performance values or gas-fill details can be inferred from it. Request dimensions, glazing build-up, Ug and Uw values, plus the safety and operating features needed for your project separately for the exact configuration. Then compare not only thermal values, but also the implications for profile selection, movement and available design. Only then will it be clear whether a krypton build-up supports your priorities or argon remains the more coherent overall solution.
03 / Compare glazing build-ups
Assess double and triple glazing separately
The number of panes changes the construction fundamentally. Double insulated glazing has one cavity, while triple insulated glazing has two. With three panes, both cavities, coatings, glass thicknesses, total weight and suitability for the frame and hardware must therefore be considered together. It would be simplistic to prefer triple glazing solely because of krypton, or rule out double glazing solely because of argon. The glazing choice must suit the required thermal quality, element size and the structural possibilities of the window system. For a replacement, it should also be clarified whether the proposed glass can be safely accommodated in the existing or new frame. This check belongs to technical planning and cannot be deduced from the gas name.
More panes and coatings also alter light and energy characteristics, depending on the build-up. The Ug value therefore does not answer every question about use. In rooms with strong sun exposure, the total solar energy transmittance can matter when planning summer comfort; light transmittance may also be relevant in living and working areas. Ask for these values to be explained if daylight, solar gains or a particular glass effect matters to your project. With a fixed-glazed window there is no sash to operate, but glazing, frame, shading and wall connection still need coordination. Compare double and triple options as complete constructions, not merely as a number of panes.
Compare coatings and edge seals too
The noble-gas fill is only one part of the thermal concept. A coating on a designated glass surface affects radiant heat transfer; its type and position are part of the defined build-up. The edge seal keeps the panes apart and seals the cavity. Several materials and heat paths meet where glass joins the frame, so a holistic assessment is especially important. Anyone sorting quotations only by gas type without asking about coating and edge zone may compare constructions with substantially different overall performance. Even a good Ug value alone does not show how the complete window performs in the ordered size or which edge solution is actually included.
Ask for a clear glass description rather than a sales label alone. It should identify the number and thickness of panes, gas fill, cavity widths, relevant coatings and stated performance values. Ask explicitly whether a quoted value applies to the glazing or the complete window. This avoids the common mistake of reading a favourable Ug value as a Uw value. With triangular and angled fixed-glazed windows the individual shape must be clearly stated in the quotation, as dimensions, edge lengths and frame proportion differ from a rectangular reference element. Also have the supplier confirm whether the proposed glazing is available in that exact geometry and which value is assigned to the specific design.
04 / Coordinate the design
Plan frame and glazing together
A window does not gain its quality from the centre of the glass alone. The frame occupies part of the area and, together with glazing and edge zone, influences the Uw value. Its area share is generally greater in small windows than in wide fixed lights; sash divisions and glazing bars further change the appearance and construction. The same glass build-up should therefore not automatically be assumed to deliver the same overall performance in two different elements. A reliable selection begins with the real element schedule and individual dimensions, not one glass data sheet. Mark fixed lights, opening sashes and special shapes so that values, gas fill and coatings remain assigned to the correct opening later.
Plan rooms with similar use together, without forcing every opening to have the same specification. A bathroom window may need a different opening solution from a large living-room window, even where the thermal planning goal is comparable. A top-hung outward-opening casement window describes the opening form, not the final glazing construction. For such elements, also clarify operating height, cleaning access, shading and usual ventilation. Check whether the outward-opening sash could collide with exterior components or the planned surroundings. This avoids carefully optimising the gas fill while an unsuitable opening type or difficult operation makes daily use less convenient.
Assess large formats and doors separately
With patio and sliding doors, large glazed areas understandably draw attention to the Ug value. However, frame, threshold, sash weight, sealing and connection details, and ease of movement are equally part of the planning. Do not select the gas fill separately from the door type. A build-up that suits a small fixed window may not automatically be available or sensible for a large movable element. The supplier should state the construction and values for the planned dimensions. Also ask whether variants in glass thickness and weight affect the proposed hardware or profile configuration. These connections are more meaningful for a buying decision than an isolated comparison of noble gases.
Before requesting a quotation, decide which aims take priority: an unobstructed view, ample daylight, a particular opening action, a suitable transition solution or high thermal protection. These aims can compete and require a clear order. With outward-opening double patio doors consider the clear opening, interior furniture, usable outdoor area and sash movement zones. Draw the necessary swing space on the floor plan and establish which door will be used most often. You can then ask specifically for a suitable argon or krypton glass build-up. The gas choice then supports a defined use instead of accidentally dominating the entire selection.
05 / Check the order
Glazing bars, special shapes and visual effect
Glazing bars significantly change a window’s appearance, but may have different constructions. Use the terms precisely: a through-glazing bar divides the glass structurally, whereas applied bars or decorative elements inside the pane cavity are constructed differently. The desired look should therefore be finalised before the glazing decision. It affects not only the appearance, but can also change the number, size and edge lengths of glass units. The question of argon or krypton consequently forms part of a wider coordination between design and technical performance. Where several glazing-bar variants are considered, request a clear drawing so that the quotation, elevation design and later order do not assume different divisions.
Round, curved or angled special shapes merit a separate quotation comparison. Such elements have different area proportions from standard windows and should not be assessed only by a rectangular sample value. A round fixed-glazed window describes a round fixed light, not the gas type, pane count or thermal value. Ask about available glazing and the associated performance value for the exact size. Bring design and technical details together in an element schedule so every configuration is clearly assigned to an opening. If a preferred glass variant is unavailable for the special shape, compare the proposed alternative against the same project goal rather than solely against the differing gas fill.
Coordinate quotations, ordering and installation
Compare quotations line by line. Your checklist should include quantity, width, height, opening direction, frame design, glazing build-up, Ug and Uw values, glazing bars, accessories and the installation interface. Mark which values are based on reference dimensions and which expressly apply to the ordered element. If a quotation names only “krypton”, ask about the cavities and complete build-up. The same question is required where it says “argon”. Also check that every supplier has priced the same pane count, coating and element division. Only comparable documents enable a sound decision; a low individual value offers little if dimensions or scope differ between quotations.
Before ordering, coordinate site measurement, wall connections, shading and responsibility for installation with the relevant professionals. They can check whether the intended solution suits the building and planned work. Bloomcabin provides a five-year warranty on windows and doors. Delivery takes four to six weeks, subject to the order confirmation. Do not use this information as a substitute for technical clarification: the final confirmation should clearly identify dimensions, opening types, glazing build-ups and agreed performance values. Compare it again with your element schedule and clarify discrepancies before approval. The gas fill then becomes a documented part of a coordinated project rather than an option that is difficult to trace afterwards.
Frequently asked questions
Is krypton always better than argon?
No. Krypton can be especially useful in narrower pane cavities. With a differently sized glazing build-up, argon may be the more suitable choice. Pane count, cavities, coatings, edge seal and frame, along with the stated values for the specific element, are decisive. Do not compare gas names without complete technical information.
Can I replace the gas fill later?
The gas fill belongs to the sealed insulated-glazing construction and is not a setting that can simply be changed in an installed window. If requirements change substantially, a qualified professional should assess the whole element. This includes the frame, available glazing rebate, glass weight, hardware and connection, not only the desired gas type.
How can I identify argon or krypton in an installed window?
In everyday use, neither gas is visible or detectable by smell. Rely instead on the documentation supplied with the window: the order confirmation, element schedule, technical glass description and any markings on the glass unit. Keep these records together with information on size, opening type, installation and warranty for future queries.
Is a low Ug value enough when choosing windows?
No. The Ug value relates to the glazing, while Uw refers to the whole window including the frame. Element size, divisions, edge zone, installation situation and requirements for light, sun and operation also matter. A good comparison therefore includes both values and clearly assigns them to the relevant size and design.
What should I ask first in a quotation?
Start with the purpose of the element: is the priority thermal protection, a compact glass build-up, daylight, design or a large usable opening? Then ask for the precise glazing build-up, including fill gas, cavities, Ug value and Uw value for the intended size. This makes the advice much more precise.
Next steps
Argon and krypton are not competing quality labels, but options within a coordinated insulated-glazing construction. Argon often suits conventional pane cavities; krypton can be a targeted alternative for compact cavities. For the purchase decision, however, the documented values of the specific window matter, not the gas name alone. First establish use, design, dimensions and opening types. Then compare glazing and window details element by element, and have structural and project-specific requirements assessed professionally. This keeps the glazing specification clear even when your project combines fixed lights, special shapes, windows and doors.
