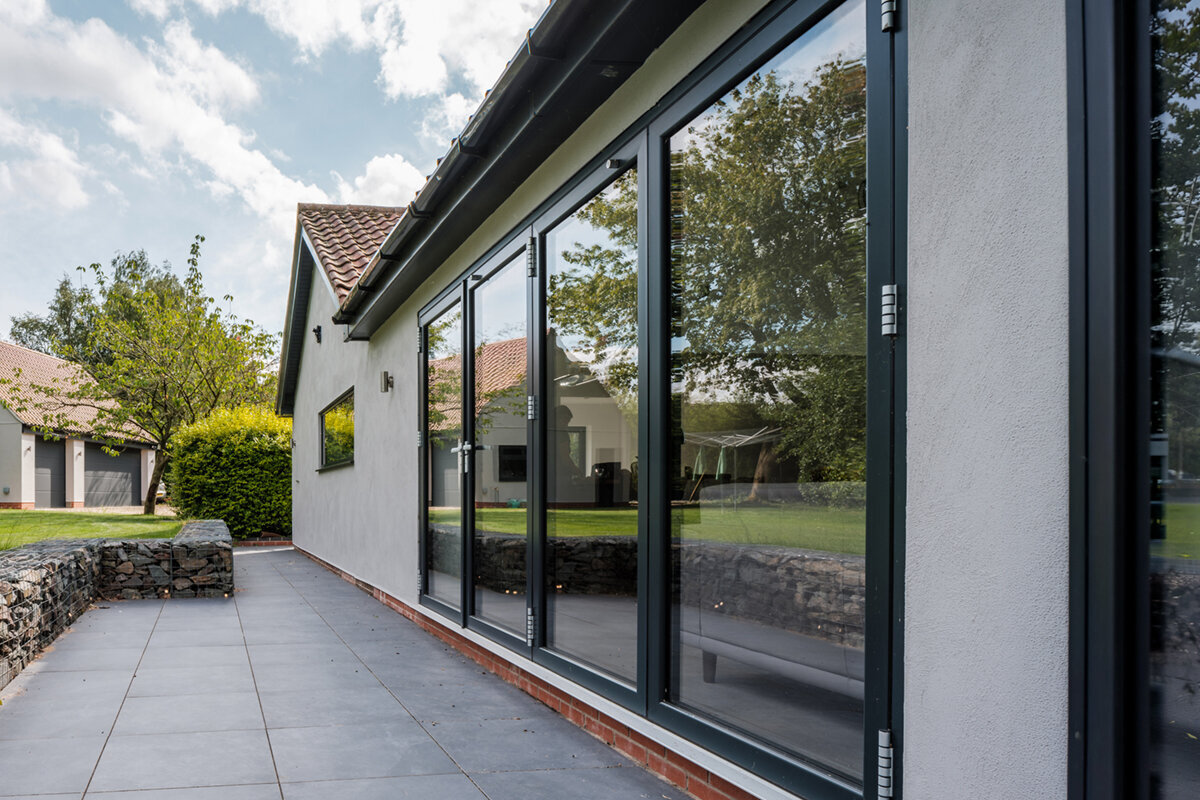

Planning bi-fold sliding doors: panels, stacking and access doors
Planning bi-fold sliding doors
A bi-fold sliding door is rarely chosen on overall width alone. Everyday use matters: which opening will serve the dog in the morning, guests in the evening, or moving garden furniture? Panel count, folding direction and the stack position determine whether a large opening works smoothly or blocks routes and feels awkward. Plan backwards from the open position rather than the closed view: where may folded panels stand, which side must remain clear, and is quick single-door access needed? This guide puts the choices in a sensible order and explains what to include when contacting suppliers, designers and installers.
01 / Define the use
Start by describing how the opening will be used
The right configuration starts with a short record of daily use, not a panel count. Over a few typical days, note who goes outside and how often, whether trays, prams or bicycles move through, whether the route to the dining table favours one side, and whether the patio is used with the door only partly open. A large seasonal garden gathering has different priorities from the daily route to the bins. The sightline from indoors also matters: vertical profiles divide the glass when closed, while a clear passage appears only where panels are fully folded and parked. Both views belong in the decision.
Coordinate these routines with the overall room layout. A kitchen island, radiator, curtain track or planned bench can affect operation more than a few extra centimetres of opening width. Draw the floor plan and external elevation at the same scale, including table, chairs, patio step, planters and intended walking routes. Mark the area occupied by an open folded stack. Anyone needing a straight, permanently clear route should also compare sliding doors with an unobstructed operating area as an alternative. They solve the task differently: with sliding panels rather than a folded stack.
Understand panel count as a balance of width and grid
A bi-fold sliding door divides the overall width across several panels. Fewer panels generally mean wider individual sections and fewer vertical lines in the view. More panels create a finer grid and divide the opening into smaller moving units. The best option depends on more than the façade. Wide panels change the operating feel and structural demands, while narrow panels increase the number of profiles, fittings and transitions. Neither “fewer is better” nor “more is more practical” is a universal rule. Ask for suitable panel widths and weights to be confirmed for the actual dimensions.
The grid should also relate to the existing building. Window axes, structural posts, façade joints or glazing-bar rhythms above the opening may favour a calm, symmetrical arrangement. In a modern extension, deliberate asymmetry can make sense when it places the passage where it is needed. Ask not only for the number of panels, but for a dimensioned elevation showing every division. Request options with different panel counts for the same structural opening. A drawing of the proposed outward-opening bi-fold doors should also show how panels connect and where they park. This reveals whether the intended opening feels generous enough and whether a profile cuts through the view unfavourably.
02 / Divide the opening
Choose a one-sided or split folded stack
With one-sided folding, all moving panels gather at one end of the opening. The opposite side remains free as one broad, continuous opening. It works well where the patio has space for the stack on one side and the main route consistently uses the clear side. The trade-off is that the full stack remains visible there and takes up room when open. Check that side beyond the drawing: no downpipe, balustrade post, awning support, planter or pinch point should obstruct it. The operating area indoors also needs clear space.
In a split arrangement, panel stacks park left and right. This can emphasise the centre as an entrance or visual axis, but requires space for folded panels at both edges. It suits a living space orientated towards the middle or architecture with a central axis. However, it needs two conflict-free parking areas rather than one. Check whether a central exit matches the route into the garden; otherwise a handsome plan may force the everyday route around furniture. State clearly in the quotation: panel count, folding direction, parking side or stacks on both sides, and views from inside and outside.
Select the access door around daily habits
An access door is a separately usable door panel within the bi-fold system. It can avoid moving and folding several panels for every short trip outside. It is especially useful for a regularly used garden path, access to bins, or a living area connected to a patio used every day. Its position is crucial: it should follow the natural route, not simply occupy the most symmetrical position on a drawing. Also consider which side someone carrying items can reach the handle from, and how the panel moves in each position.
A single access door is not automatically the best choice. If the bi-fold door is nearly always fully opened for longer stays and there is already a separate external door, a continuous folding sequence can be clearer. For comparison, an independent everyday exit may be provided by a single outward-opening patio door. It does not replace a broad bi-fold opening, but separates the question of everyday access from that of a generous opening. Before ordering, decide whether the access door is mainly operated from indoors or outdoors, how it locks when closed, and which panels must move first. The supplier should explain this operating sequence clearly.
03 / Position the folded stack
Check opening direction indoors and outdoors
Opening direction involves far more than whether panels swing inward or outward. Indoors they compete with furniture, lights, curtains and circulation space; outdoors with a patio table, screening, railings and the route along the façade. Treat an open panel as a real physical area and test it at different door positions. An outdoor table placed close to the façade in summer may obstruct exactly the quick partial opening you need. Where a patio sits lower or steps are immediately outside the façade, safe footing while operating the door is another important issue for the installer to consider.
In tight interiors, compare a bi-fold arrangement with a Patio Life lift-and-slide door that saves interior space. A lift-and-slide door does not swing into the room, although it does not provide the same fully folded opening. Conversely, a bi-fold system can be ideal where the boundary between living room and patio should largely disappear when panels are open. The choice concerns movement patterns, not appearance alone. In your enquiry, state the intended opening direction clearly from the room side. Add photos of both sides of the opening and a sketch of fixed obstructions to reduce misunderstandings between design, measurement and order.
Design the folded stack and outdoor space together
When open, the folded stack needs a defined parking place. Measure not only the clear wall length but also its depth and circulation room. A stack beside a low wall can restrict the patio route even if it does not project across the opening. This is particularly relevant on narrow balconies, paths alongside the house or densely furnished patios. Plan with normal furniture in place, not an empty surface. Include seasonal items such as a parasol, braai or containers for overwintering plants. Something moved only a few days each year should not permanently make everyday door operation difficult.
The parking side also shapes the view when the system is open. If the clear opening should frame a tree, seating area or outdoor stair, the stack will usually belong on the less important side. If space is limited at both edges, a split arrangement may function better, even with two smaller visible stacks. Where there is no suitable stacking area at all, side-sliding Siegenia doors may be worth considering as an alternative that works differently. For a relatively narrow opening used mainly as a single exit, a double outward-opening patio door may also be easier to manage. Both alternatives create a different opening character from a bi-fold system.
04 / Coordinate the details
Coordinate threshold, floor build-up and connections early
At the threshold, a bi-fold sliding door meets several trades: the structural opening, waterproofing, screed, internal floor, patio finish and, where needed, drainage. The desired transition height cannot therefore be decided separately from these connections. A finish chosen later can alter levels, while an outdoor stair planned afterwards changes how the exit is used. Coordinate heights before ordering between the window supplier, structural work, waterproofing design and patio contractor. Request a section drawing showing relevant layers and reference levels. This turns a wish for a comfortable transition into a verifiable planning task. Also establish who provides the binding reference level and reports deviations before manufacture.
Space for the track and panel movement also belongs in this section. Falls, channels, decking and transitions to adjacent doors should not be decided only after installation. This is especially important where indoor and outdoor finishes have different heights or a renovation joins existing components. Ask the installer exactly which on-site dimensions are needed and which connections must be prepared by others. Relevant project requirements for waterproofing, structure, fire safety, escape routes or accessible use should be assessed by the responsible qualified professionals. Without checked project planning, a general door configuration cannot provide a reliable specification for an individual building connection.
Do not choose appearance, divisions and glazing in isolation
When closed, a bi-fold sliding door is a large façade element. Vertical profiles, handles and possible glazing bars therefore shape the view from the home and garden. First decide whether a clean, bar-free surface or a divided appearance suits the house. Glazing bars can echo existing windows in an older property, but alter the view through the glass. Distinguish decorative bars from bars that divide the glazing: they describe different designs and should be named clearly in the quotation. Request an elevation drawing with the actual panel arrangement, not simply a general product image. Also assess profile axes from usual seated and standing positions; a central division often looks different from the dining table than from directly in front of the façade.
The design must match functional lines. A fixed side panel can add rhythm to a façade while movable panels are concentrated where the opening is needed. For an area requiring extensive views but no daily passage, consider a window with fixed glazing beside a separate door. This combination is not a bi-fold system, but can resolve the balance between glazed area and moving elements differently. Coordinate colours, visible profile widths and handle positions with other windows and external doors. This avoids giving the patio an unintentionally unfamiliar division.
05 / Check the quotation
Test operation, cleaning and everyday use before purchase
A convincing configuration should open, close and secure without excessive effort. At the consultation, ask to see the sequence: which panel unlocks first, how the system is guided, how the stack is held, and how you go outside with a partial opening. Assess this from the perspective of everyone who will use the door regularly. Very large openings are appealing, but they involve more moving parts. That is not a reason to rule them out, but it makes clear instruction and suitable planning more important. Also ask about recommended care for running and hardware areas, and which visible surfaces remain accessible in daily use.
Think about situations beyond summer: ventilating in wind, the short trip with shopping bags, cleaning, and use when the patio is wet. If a single robust everyday entrance matters more than a wide folding opening, a single inward-opening patio door may suit a different room layout. It is not equivalent to a bi-fold system, but helps compare real needs. For the chosen version, ask about handover, operating instructions and care. Bloomcabin offers a five-year guarantee for windows and doors; the specific order should clearly state the agreed configuration.
Order with a complete configuration list
A good order leaves no important direction undefined. Record the structural opening and planned finished size separately, together with panel count, arrangement, opening direction, folding direction, parking side and, where applicable, the precise position of the access door. Add internal and external elevations plus a furnished floor plan. Specify handle side, desired finish, glazing appearance, type of glazing bar and the connection to floor and waterproofing. If a side panel or fanlight is planned, it must be clear which sections are fixed and which move. Request a quotation drawing and compare every detail with your use sketch. Note the drawing revision and change date so an outdated option is not approved accidentally.
Coordinate final dimensions with construction progress. Structural work, wall build-up, floor levels and the external finish should be sufficiently settled before the configuration becomes binding. Ask when changes to the order are still possible, then schedule other trades around that point. Bloomcabin states a delivery time of four to six weeks for windows and doors, subject to order confirmation. Do not treat this as a blanket promise for your building programme; have the date for your order confirmed. Precise configuration chiefly prevents questions later: the aim is not the highest panel count, but an entrance that works closed, partly open and fully open.
Frequently asked questions
How many panels suit a bi-fold sliding door?
There is no universally correct number. Start with overall width, the desired grid, possible panel dimensions and space for the open stack. Compare at least two dimensioned options for the same opening. What matters is whether the view, operation and clear passage suit your daily routes.
Should the folded stack be on the left or right?
Choose the side where the stack will not obstruct the main route, patio, furniture or façade features. The clear side should align with the usual direction of travel into the garden. Check the layout from indoors and outdoors. Where edge space is tight, a split stack can be an alternative.
When is an access door worthwhile?
It is usually worthwhile for frequent short trips outside, for example to the garden, patio or a side path. Its position should follow the natural walking line. If the system is mostly opened completely, or there is a separate everyday exit, a folding sequence without a dedicated access door may be more suitable.
Is a bi-fold sliding door better than a lift-and-slide door?
Neither design is inherently better. A bi-fold sliding door can create a broad opening with folded panels, but needs parking space for the stack. A lift-and-slide door moves panels and keeps the room free of swinging elements. Compare the opening effect, walking routes, desired partial opening and space on both sides.
Which documents should I have ready before measuring?
Useful documents include floor plans and elevations, photos of the opening, structural and planned finished floor levels, patio-finish details, and positions of fixed obstructions. Add a sketch showing panel count, parking side and access door. This helps suppliers coordinate the design and connections more precisely with the relevant trades.
Next step
A bi-fold sliding door is well configured when its largest opening and its smallest daily action are equally convincing. Define routes and parking areas first, then select panel count and divisions, and only afterwards set the precise access-door position. Coordinate the threshold, floor build-up and outdoor area early with everyone involved. For reviewing a quotation, a dimensioned elevation, a floor plan showing the open folded stack and an unambiguous description of operating direction are particularly valuable. This turns an attractive glazed frontage into an entrance that suits the room and everyday habits.
