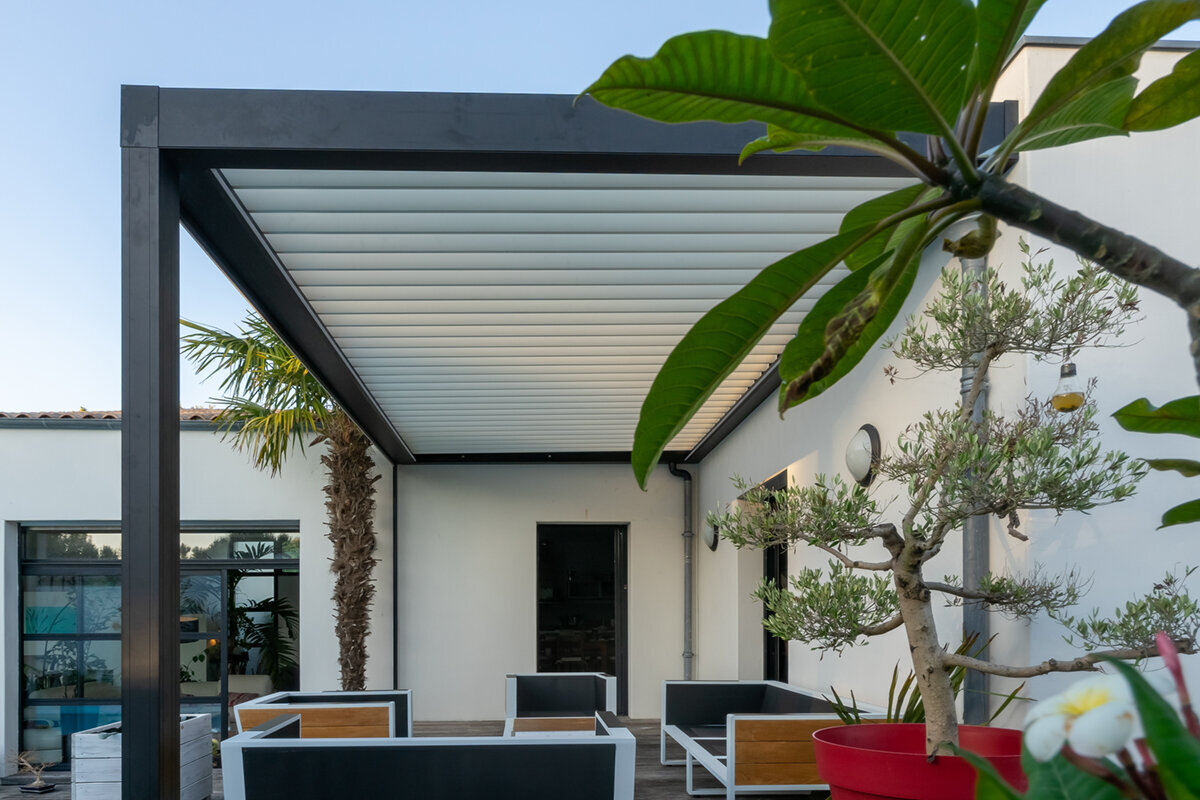

Choosing a sturdy pergola: what matters for installation
A sturdy aluminium pergola is not defined by one component. What matters is how its frame, posts, fixings, roof and base work as one planned system. This guide helps you interpret technical details and ask the right questions before you buy.
When choosing a pergola, it is natural to look first at size, colour and roof type. For long-term use, however, the less visible details matter just as much: the dimensions of load-bearing profiles, the number and position of posts, the design of junctions and the anchoring into the ground. Their interaction determines whether a structure suits its intended site and use.
There is no universal shortcut to a “sturdy pergola”. A generous footprint has different requirements from a compact seating area, while a freestanding structure differs from one near a building. Snow, wind, drainage, side equipment and patio conditions all affect planning. Read product information in the context of the selected configuration and installation.
Take a structured approach: define the intended use and site, compare more than photographs, and ask for the construction-relevant details to be explained. This article outlines what matters for an aluminium pergola, which questions belong in a quotation, and when specialist support for foundations or fixings is especially useful.
Core principle · 01
Assess the complete structure
Stability starts with the load path. Forces from the roof pass through crossbeams and the frame into the posts, then into the anchoring. If assumptions fail at any point, for example at the foundation or after a later addition, an otherwise sound component may not perform as intended. Ask not only about material, but about the complete construction principle.
Aluminium is widely used for pergolas, but the name alone says little about the design. Profile geometry, cross-sections, spans and the way components are engineered together are more relevant. Review technical documentation for your exact size. A smaller example configuration cannot automatically be applied to a larger roof area.
- Compare only systems with the same width, depth, roof design and planned additional equipment.
- Request a clear link between technical specifications and your exact configuration.
If you are considering an adjustable roof concept, explore bioclimatic aluminium pergolas as a separate system solution.
Frame · 02
Understand profiles correctly
Profiles form the load-bearing frame of an aluminium pergola. They take loads, transfer them through the structure and maintain its geometry. The pergola’s width and depth change the demands on crossbeams. Cantilevers, roof overhangs and connections to other building elements can also increase requirements. Do not compare visible profile thicknesses from product images alone.
It is equally important to understand how profiles work together. A frame may be sensibly reinforced, divided or supported with additional posts. Such solutions are not a disadvantage; they may suit the required size and local conditions. Ask which parts are load-bearing and whether planned side walls, screens or lighting affect the configuration. The documented system logic remains decisive.
- Check whether technical drawings clearly show post positions, frame parts and roof build-up.
- Never judge visible material thickness independently of span, connection and intended use.
For a fixed roof-cover concept, consider classic aluminium pergolas with different frame layouts.
Load transfer · 03
Plan posts and foundations together
Posts form the interface between the structure and the base. They must reliably transfer forces from the frame and roof into the anchoring. Their position affects not only appearance and freedom of movement, but also the load path. Look carefully at the support grid, especially at corners, across large bays or where side additions are planned. Do not move posts simply to suit preference without approval for the amended design.
An existing patio is not automatically a suitable load-bearing base. Surface finishes, build-up depth, slabs and underlying layers can differ greatly. Fixings must suit the actual base and intended structure. Before ordering, establish whether foundations are needed and which requirements apply. If uncertain, a qualified professional can assess the existing surface and suitable solution.
- Identify services, slopes, drainage channels and possible obstructions in the fixing area early.
- Record the base build-up and dimensions so fixing questions can be resolved before installation.
For systems with adjustable roof elements, align the post layout of bioclimatic pergola models carefully with your seating area.
Junctions · 04
Give connections special attention
Profiles, posts and roof components meet at connections. These points determine whether forces can be transferred clearly through the structure and whether it remains accurately assembled over time. Look for a complete system of specified connecting parts and fixings. Improvised changes to the frame or mismatched components can complicate installation and should be clarified with the responsible professionals beforehand.
Installation order also matters. Frames are aligned, posts set plumb and connection points fixed according to the installation instructions. A level starting surface makes precise work easier but does not replace careful checks. Allow sufficient access around the installation area so components can be handled safely and fixings remain accessible for later maintenance or inspection.
- Ask which connection parts are included with your chosen configuration and where they are used.
- Have alignment, diagonals and vertical post positions checked before final fixing.
If you prefer a clean-lined roof appearance, compare standard aluminium pergolas by their specified frame connections.
Roof construction · 05
The roof system affects structural performance
The roof is more than a design feature; it is a major part of the structure. It adds self-weight, distributes loads and affects how water is directed. Depending on the design, louvres, fixed roof panels or textile elements can require different frame and drainage solutions. Ensure that roof and supporting structure are described as one coordinated design, not as freely interchangeable separate parts.
Bloomcabin pergolas are designed for snow loads up to 210 kg/m², depending on the relevant product configuration, installation requirements and operating instructions. This does not replace site-specific planning. Consider the weather conditions at your location and follow the instructions for use, care and, where relevant, snow loads. Ask specifically about the suitable configuration if anything is unclear.
- Compare roof systems for load transfer, water management, operation and regular maintenance needs.
- Confirm whether planned accessories affect the roof design or rainwater drainage route.
For controllable light and ventilation, consider bioclimatic pergolas with louvred roofs together with their supporting frame.
Site · 06
Assess weather and surroundings realistically
A sheltered courtyard, exposed roof terrace and open garden edge each create different demands. Buildings, walls and planting can alter local wind flow while also limiting installation access. View the site at different times of day and note open sides, slopes and water routes. These observations help you discuss the pergola position and possible additions on a practical basis.
Also consider distances from the house façade, property boundaries, trees and technical equipment. The final position is only part of the picture: leave room for installation, maintenance and cleaning. If the pergola sits close to a building, plan connections and drainage particularly carefully. Ask the relevant municipality what planning or building-control steps apply to your project.
- Measure the area more than once and allow for doors, opening windows, downpipes and intended walkways.
- Discuss local requirements early with the responsible authority when near a boundary or building.
For open garden spaces, compare traditional aluminium pergolas as clearly defined roof-cover solutions.
Equipment · 07
Plan future additions from the start
Side elements, screens, lighting and other additions change how a pergola is used. They can also affect installation, cable routing, operating space and stressed components. Do not wait until after installation to decide which equipment is important. A forward-looking plan keeps fixing points, power supply routes and access clear without compromising the structure through unassessed retrofits.
A priority list is especially useful: what must the pergola do on day one, and what should remain possible later? This shows which options belong in the initial configuration. Confirm that each desired addition is intended for the chosen model. Have electrical components planned and installed by a registered local electrical contractor, including applicable inspection, testing and CoC documentation.
- List preferred side closures, light sources and control options during the first planning discussion.
- Include permanent maintenance access for the roof, drainage and technical components.
Where roof comfort and later equipment are both important, bioclimatic aluminium pergola systems offer a planning-intensive alternative.
Buying decision · 08
Check documents, installation and use
A well-founded buying decision relies on documentation that clearly describes your exact system. This includes dimensions, post layout, roof design, fixing requirements and installation instructions. Keep your own site information ready and compare quotations on more than outward appearance. Ask about unresolved points before deciding. This provides a better basis for measuring, preparing the base and later use.
After installation, the pergola remains a structure that needs attention. Inspect it in line with the manufacturer’s instructions, keep drainage routes clear and respond promptly to visible changes. Product-specific documents apply to installation, use and care. If you wish to alter an existing structure, fit additional parts or use the site differently, check the implications with a suitable professional first.
- Keep configuration documents, installation instructions and fixing details together for future queries.
- For insurance questions, ask your insurer about your individual cover rather than relying on general assumptions.
As a starting point for a clear comparison, consider classic aluminium pergolas in your required footprint.
Comparison
Which construction questions belong in your comparison?
Use this overview as a basis for discussion, not as a replacement for technical documents. Every answer should relate to the required size, roof design, site and planned fixings. This makes it easier to see whether two quotations are truly comparable.
| Check area | What to assess? | Question for your planning |
|---|---|---|
| Load-bearing profiles | Geometry, span and coordinated frame design. | Which profiles carry loads at my dimensions? |
| Posts | Position, number and load transfer to the base. | Where exactly are the fixing points? |
| Connections | Specified junctions and installation sequence of the system. | Which parts secure the frame and posts? |
| Roof system | Self-weight, water management and integration into the frame. | How is the roof incorporated structurally? |
| Base | Build-up, load-bearing capacity and appropriate anchoring solution. | What preparation is required before installation? |
Profiles
Load-bearing profiles must carry spans and roof loads through the frame into the posts. Their form, wall thickness and connections matter more than an isolated size.
Posts
Posts transfer forces into foundations or the patio. Their number, grid, fixing point and adequate base all belong in the site assessment.
Roof
The roof affects weight, load distribution and drainage. Moving and fixed elements each require a design coordinated with the complete system.
The right pergola in five steps
Careful advance planning prevents key questions from arising only on site. Work from intended use and location through the system to installation preparation.
01
Define the use
Describe the seating area, desired shade, open sides and future additions. This determines size, roof type and required clearances.
02
Survey the site
Measure the area, heights, slope and clearances. Keep photos and details of doors, downpipes, services and adjacent structures ready.
03
Check the base
Establish the build-up and condition of the intended fixing surface. If uncertain, have foundations and anchoring assessed by qualified professionals.
04
Compare configurations
Compare identical dimensions and roof designs. Review the post grid, frame, drainage and intended equipment options together.
05
Prepare installation
Ensure vehicle access, working space and access to fixing points. Read the product-specific installation and operating instructions fully before starting.
Checklist before ordering
These points help you bring together technical and practical questions in good time. Add details specific to your property and intended use.
01. Required width, depth and clearance height have been measured on site and checked against actual routes.
02. The chosen roof type suits the intended use and has been assessed with the frame.
03. Post positions do not block doors, windows, routes, drainage channels or necessary maintenance areas.
04. The base, fixing options and any necessary foundation work have been sufficiently clarified before ordering.
05. Planned side solutions, lighting and electrical connections are included in the configuration.
06. Technical specifications refer explicitly to the desired size, not to a different example.
07. Installation instructions, operating guidance and care requirements are retained for future use.
08. Local questions about distances or approvals have been discussed with the relevant authority where needed.
Frequently asked questions about sturdy aluminium pergolas
How can I recognise a sturdy pergola?
Look at the interaction of frame profiles, posts, connection points, roof and anchoring. A reliable assessment requires technical details suited to your exact size and roof design. A suitable base and installation according to the specified instructions are also essential.
Are thick-looking profiles enough as a sign of quality?
No. A visible cross-section alone says little about actual suitability. Span, profile shape, frame geometry, junctions and the post grid always matter too. Request documents that clearly show these elements for your chosen system instead of comparing individual detail photographs only.
Why is post position so important?
Posts transfer the pergola’s forces into the base. Their layout therefore affects the construction as well as how the area can be used. They should not be moved for appearance alone. Check early whether fixing points, routes and existing building elements work with the specified positions.
Can I fix a pergola to any patio?
There is no general answer. Patios differ considerably in surface finish, sub-base, load-bearing capacity and existing services. A visible paved surface does not prove that it is a suitable fixing base. Establish the construction in advance and involve a qualified professional where questions remain.
What role does the roof system play in stability?
The roof adds self-weight and, depending on its design, transfers loads into the frame. It also affects drainage and the construction of connections. Choose the roof and supporting structure as a coordinated system; later changes or third-party components should not be added without assessment.
Do I need to check legal or insurance matters?
The checks you need may depend on location, size, property circumstances and design. Ask the relevant municipality about planning and building-control requirements for your project. For insurance cover, give your insurer the specific details of the system. General online information cannot replace project-specific guidance.
Compare pergola systems
Choose confidently with a system comparison
A sturdy aluminium pergola comes from a coherent overall structure, not one eye-catching feature. Considering profiles, posts, connections, roof and base together helps you assess quotations more thoroughly and ask the necessary questions in time.
Take time to survey the site and compare configurations. Clear dimensions, a realistic description of intended use and suitable technical documentation create a strong basis for your selection from Bloomcabin and for subsequent installation planning.
Explore suitable designs and check the details for your planned outdoor area.
