Large Windows: Weight, Structure and Installation Access
Planning for large-format windows
A large window is often planned first as a source of light and a connection with the view. For ordering, however, it is equally a transport and installation project: the glazing must reach the opening, the frame must be positioned under control during installation, and the surrounding structure must carry the loads without later stressing the connections. Especially with full-height fixed panes, wide sliding units or special shapes, the structural opening alone does not determine feasibility. Considering glass build-up, panel division, supporting conditions and the route from delivery vehicle to installation point early avoids last-minute redesigns. It also makes quotations comparable: the relevant description is not simply “large window”, but coordinated dimensions, opening type, glazing, building structure and installation access.
01 / Define the configuration
Do not compare external dimensions alone
Two windows with the same width and height can differ considerably in handling. Relevant factors include the number and construction of panes, the size of individual glass areas, frame sections, possible mullions and, for moving parts, hardware and sash weight. Do not request a rough estimate for an entire window frontage; ask for details of the actual configured unit. Useful information includes weight per delivered component, external dimensions of the heaviest component, centre of gravity, intended transport position, and whether glass and frame are delivered separately or handled together. This lets the installation company plan lifting equipment, labour and temporary storage instead of improvising on delivery day.
A fixed pane reduces moving components, but at large dimensions it is not automatically light. A fixed-glazed window is therefore suitable where the view and daylight matter more than an opening function; nevertheless, its size should be checked against the installation route. For a wide window area, prepare a sketch showing the structural opening, visible frame widths and divisions. It then becomes clear whether one large pane is visually essential or whether two manageable panels create the same spatial effect. Division is not merely a logistics decision, because it permanently shapes the appearance. Have both options shown with individual dimensions and check whether visible frame lines align with façade axes, internal walls or fixed furniture. Also compare which option would be accessible if a pane needed replacement later. This qualitative comparison does not replace technical assessment, but raises future costs and practical restrictions early.
Understand weight as an installation issue
Glass is not a uniform planning factor: its weight varies with the chosen glass build-up and pane size. With large formats, even a seemingly small change in area affects the process because it changes lifting, turning and precise placement. Ask for the weight of the largest individual unit in the quotation, not only the total weight of an installation. Installation planning also needs to know whether glass lifters can attach to the pane, where lifting points are provided, and whether protective strips or packaging must be removed during positioning. These details should be coordinated between supplier, installer and site management before scheduling.
Plan the stages before and after placement as well. A unit may be easy to reach from the truck to the façade, while the final metre crosses a step, a narrow passage or scaffolding. Inside the building, screeds, stair landings, newly laid floors or finished wall surfaces can restrict transport. The solution may be an adapted lifting route, installation at an earlier construction stage or a different unit division. The appropriate option depends on the project. What matters is that no assumption such as “the team will carry it” forms the basis of an order. Record responsibilities for delivery, unloading, internal transport and placement in writing. Also establish whether secure temporary storage is required and how long the unit may remain there. The proposed area must be accessible, must not obstruct other trades and should avoid unnecessary moving of large components. The installer also needs the actual delivery dimensions, including packaging.
02 / Check the weight
Clarify building loads in good time
The window unit needs a load-bearing, dimensionally accurate plane on which it can be aligned and permanently supported. For large openings, planning concerns more than side fixing points. Conditions below the frame, the lintel or structure above it, and the wall or structural system are also relevant. The window supplier can provide unit data; assessment of how loads are carried by the specific building should be undertaken by a suitably qualified designer or the responsible building planner. This is especially important for alterations, very wide openings and structures whose construction is not reliably documented.
A windowsill, insulation board or waterproofing layer is not automatically intended as a load-bearing support. If alignment, bearing and fixing are only decided on site, improvised solutions can complicate connections or distort the unit. A useful approval considers the structural opening, supports, fixing zones, connection joints and any required reinforcement together. Give the designer binding manufacturer documentation for the chosen configuration, not merely an architect’s sketch. Conversely, the supplier should know the confirmed installation conditions. This prevents glass weight and building structure from being treated as separate trades. Keep outstanding issues visible in the plan approval rather than hiding them behind general notes. A clear question such as “Who confirms the support below the frame?” can be assigned; the vague instruction “to be checked on site” can create conflicting expectations.
Plan sliding units as systems
Wide terrace transitions connect indoor and outdoor areas convincingly, but place high demands on coordination and access. With Patio Life lift-and-slide doors you must establish before ordering which component is fixed, which side moves and how the system reaches its intended position. A large overall dimension does not reveal which individual parts are delivered or how they are installed. Ask about the heaviest component, the space needed for placement, and required working areas inside and outside. Consider the construction stage too: scaffolding, waterproofing work, the terrace or landscaping can later obstruct the planned route.
The threshold and transition to the finished floor belong in detailed planning early. This is not about a universally applicable installation height, but coordination of the structural shell, floor build-up, drainage concept and door system for the individual project. Show heights not only on a plan, but also in section. Check operating space as well: furniture, radiators or curtains must not subsequently restrict the movement area. If the access side for lifting equipment is available only temporarily, make this date visible in the construction programme. A generous unit works best when design, detail and installation window share the same planning basis. The section should also show which work must be complete before placement and which may follow only afterwards. This prevents a finished surface from blocking access or an open connection from being concealed by subsequent work.
03 / Coordinate the structure
Weigh up divided and uninterrupted glazing
Uninterrupted glazing creates a calm appearance and can focus the outward view. As pane size increases, however, transport, handling and installation access become more demanding. Several panels can reduce the largest delivered component and allow a different site sequence. Against this are additional frame lines, connections and possibly moving parts. There is therefore no universally better solution. Compare two or three specific layouts not only in elevation, but using the same questions: What does the heaviest part weigh? How does it reach the opening? What is the internal view? Which panels actually need to open?
For a sideways-moving sliding door , the sash division is also an operating decision. A different division rhythm can change access even when the overall width remains the same. A simple comparison matrix helps: first column design, second opening function, third heaviest component, fourth installation route, fifth connection detail. Add later use, such as the desired walking route to the terrace or furniture layout. This means you choose not from a rendered view, but from a solution that can be built and used. Plan glazing bars deliberately: decorative bars and bars that divide the glass affect the visible pattern differently and should be clearly identified in the quotation. Assess layouts from typical viewing positions in the room too. A division that looks balanced on the façade may sit directly in front of the main view from the dining table. Conversely, a mullion may align with an existing internal wall and become less noticeable.
Installation access starts at the roadside
Walk the route from the possible delivery position to the opening with a tape measure and camera. Note access widths, bends, heights, slopes, steps, gate openings, passages and places where equipment could be positioned. Outside, distance is not the only issue: a narrow driveway or soft ground can matter more than a longer level route. Inside, confirm load-bearing circulation surfaces, turning points and protection of finished surfaces. Photos from the delivery vehicle’s direction and of the façade help an installer assess the situation reliably. A sketch should also show which routes must remain clear during other work. Record measurements at the narrowest point, not only where measuring is convenient. Gates, roof edges and bends can limit a long component more than one clear width. Also note whether obstacles are permanent or can be temporarily removed.
A crane, mini crane, glass lifter and manual handling are not interchangeable terms, but different methods with distinct space, reach and safety requirements. The installing specialist chooses the method based on actual weight, site conditions and working procedure. Your role as buyer is to disclose restrictions early: overhead lines, roof overhangs, neighbouring buildings, trees, temporary fencing, slopes or existing scaffolding. Ask for the planned delivery and installation sequence to be explained clearly. If a time window before landscaping is completed is needed, site management can include it in the order of trades. Also agree who will check immediately before delivery that the area to be kept clear is genuinely available. An older site photograph is not enough if material containers, additional scaffolding or earthworks have since appeared.
04 / Plan access
Choose opening sashes for more than appearance
With large window areas, the question shifts from “Does a sash look right?” to “Can it be operated safely in everyday use?” Weight and leverage affect hardware, opening direction and clear space in front of the window. An inward-opening single-sash window can suit a location requiring one clear opening; however, use the specific dimensions to check whether furniture, window boards and curtains leave the swing area clear. The larger the sash, the more important a demonstrable operating test or at least a scale drawing of its opening area becomes. Consider more than the fully open position. The handle must remain reachable without leaning over a deep worktop or fixed furniture. In frequently used rooms, this daily operating movement matters more than a rarely used maximum opening.
Two sashes distribute opening width differently, but create a central division and added operating logic. An inward-opening double-sash window is therefore not simply the smaller version of one large sash. Ask which sash is operated first, how both sashes are secured or held open in daily use, and whether the desired ventilation position remains accessible. Coordinate the opening path with the kitchen, bed, workstation and escape routes of your individual use concept, without presenting this as a general requirement. Window planning becomes more reliable when one person brings elevations, furniture and functional needs together in one plan. Mark curtains, internal shading and planned lighting there too. These components are often selected late, but can obstruct handle access or sash swing. Defined clear space in advance makes later decisions easier and reveals when another opening concept should be considered.
Assess special shapes early
Triangles, raked units and high gable windows can give a room a strong architectural identity. They require particularly clear data because templates, measurement references and structure must not be confused with a standard rectangle. For fixed-glazed triangular and raked windows coordinate the finished geometry, position of load-bearing edges and installation sequence from a drawing. Also check whether the unit must be brought in before roof work or interior fit-out blocks certain routes. A special shape is ordered most safely when the measurement basis, connections and installation access are approved together. Define unambiguous reference points for raked geometry, such as bottom edge, side edge and key corners. The description “to suit the gable” is not enough for a reliable comparison. Also check viewing direction so that left and right mean the same thing in planning, manufacturing and installation.
The visual effect of divisions also merits a separate decision with asymmetrical forms. A glazing bar that divides the glass can break up a large glazed area, but changes the glass layout and perspective. Decorative bars create a different appearance from a structural division. State expressly in the enquiry whether bars should be decorative or should divide the glass, and identify viewing sides. Consider cleaning and shading: a high raked fixed pane may be difficult to reach regardless of how easily it was installed. These are use questions that a handsome design does not answer automatically. Think through use at different times of day. A difficult-to-reach area may need different access for external solar shading, internal solutions and cleaning. Ask the responsible specialist trades to confirm that their intended components and working routes are compatible with the window design.
05 / Hand over for installation
Link manufacture, measurement and scheduling
For large-format units, premature measurement is particularly risky because later changes to reveals, floor build-up or lintels can have a significant effect. Define which planning stage is binding and who checks dimensions, diagonals, plumb and level of the opening. Do not order from an early design sketch if the structural shell does not yet provide a reliable reference plane. The order should clearly document viewing side, opening direction, divisions, dimensions, glass and equipment choices, and agreed installation conditions. Differences between drawings and the structural shell then become visible before manufacture rather than at delivery.
A round fixed-glazed unit may appear visually small, for example, yet its shape can create special template and transport requirements. A round fixed-glazed window should therefore be scheduled only after unambiguous measurement and a confirmed installation sequence. During ordering, ask which documents are needed before production release and until when amendments can still be reviewed. Windows and doors from Bloomcabin carry a five-year guarantee. Delivery usually takes four to six weeks, subject in each case to order confirmation. These details do not replace project-specific scheduling: a reliable sequence exists only when measurement, access and installation date fit together. Work backwards from the required installation date and identify dependencies such as shell approval, detail review and confirmed installation access. A desired date alone is not a complete schedule.
Prepare a detailed installation handover
A good installation handover involves more than saying “window on the ground floor”. Prepare a project file with approved elevations and sections, the unit list, confirmed structural dimensions, transport-route photos, contacts and desired installation date. Mark on drawings which opening belongs to each unit. Clarify whether the site must be dry, accessible and free from conflicting work at the appointment, and who makes decisions where dimensions differ. This allows supplier and installer to return missing information in good time. For building owners, this preparation reduces the risk that important details are passed verbally between several trades only.

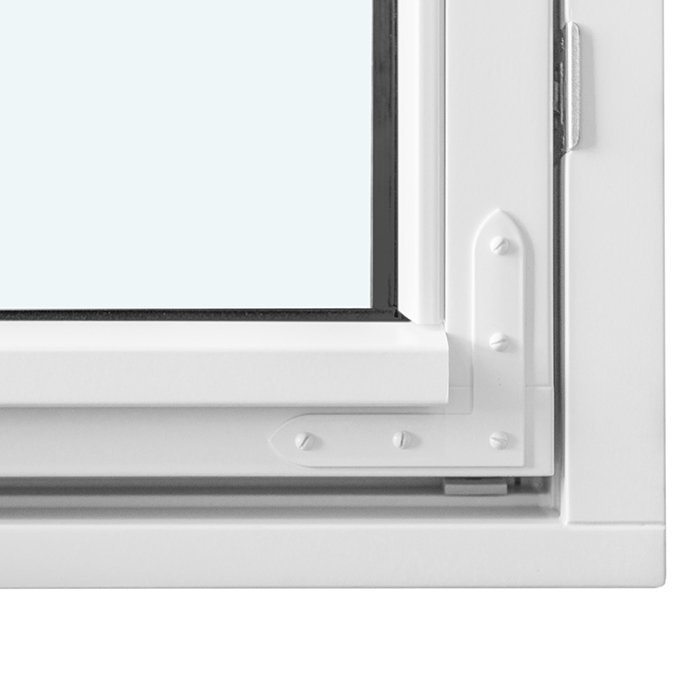

For an outward-opening “Kombi” casement window the handover should cover not only its format, but sash position, external appearance and clear areas outside. Outward-opening sashes can conflict with balustrades, downpipes, shading or paths even where the structural opening is correct. Check an open-position drawing on site or on the plan. After installation, arrange a joint visual inspection of position, operation, visible surfaces and outstanding connection work. Installation is only usefully complete when it is clear which work may follow and which areas must remain protected until completion. Record outstanding points with clear responsibilities and date references. Distinguish between the installed unit, unfinished building connections and work by other trades so that a general snagging list does not shift responsibilities unclearly.
Frequently asked questions
How can I establish a large window’s weight reliably?
Request details for the binding configured version. Total weight matters, but above all the weight, dimensions and handling requirements of the heaviest delivered component. Changes to glass build-up, divisions or opening type can affect these values. A general estimate based on width and height does not replace product and installation planning.
Can a window frontage be divided for easier installation?
Yes, division can create smaller units. However, it permanently changes frame lines, appearance, opening function and connection details. Compare specific options using visualisation, the weight of the largest component, installation route and desired ventilation. The best division is the one that resolves design, usability and installation together for the particular project.
Who decides whether the wall can carry the window load?
The supplier describes the window unit; assessment of structure, bearing and fixing in the existing or planned building belongs with the responsible building planner or a qualified specialist. Provide binding unit data and structural-shell documents for this purpose. For alterations, assumptions about unknown wall construction should be professionally checked in advance.
When should installation access be inspected?
Early enough for findings to influence unit division, measurement approval and construction-sequence planning. Check the delivery point, external route, possible lifting equipment, scaffolding and internal routes. Repeat the coordination before installation because landscaping, scaffolding or other trades can change access that was originally available.
Which documents should I give the installation company?
Useful documents include the confirmed unit list, elevations and sections, structural dimensions, photos and measurements of the transport route, floor build-up details and site-management contacts. Add particular constraints such as narrow access, slopes or fixed obstacles. A clear assignment of each unit to its opening prevents questions arising on installation day.
Next step
Large windows do not succeed through an isolated product choice. Start with a binding configuration and translate it into four checkable points: weight of the heaviest component, load-bearing installation conditions, route to the opening and site sequence. Compare divisions and opening types by these criteria as well as by the façade. Bring the supplier, installation company and responsible building planner to a shared information level before production release. This turns a large-format design into a unit that can be professionally planned, transported and integrated into the construction programme.
