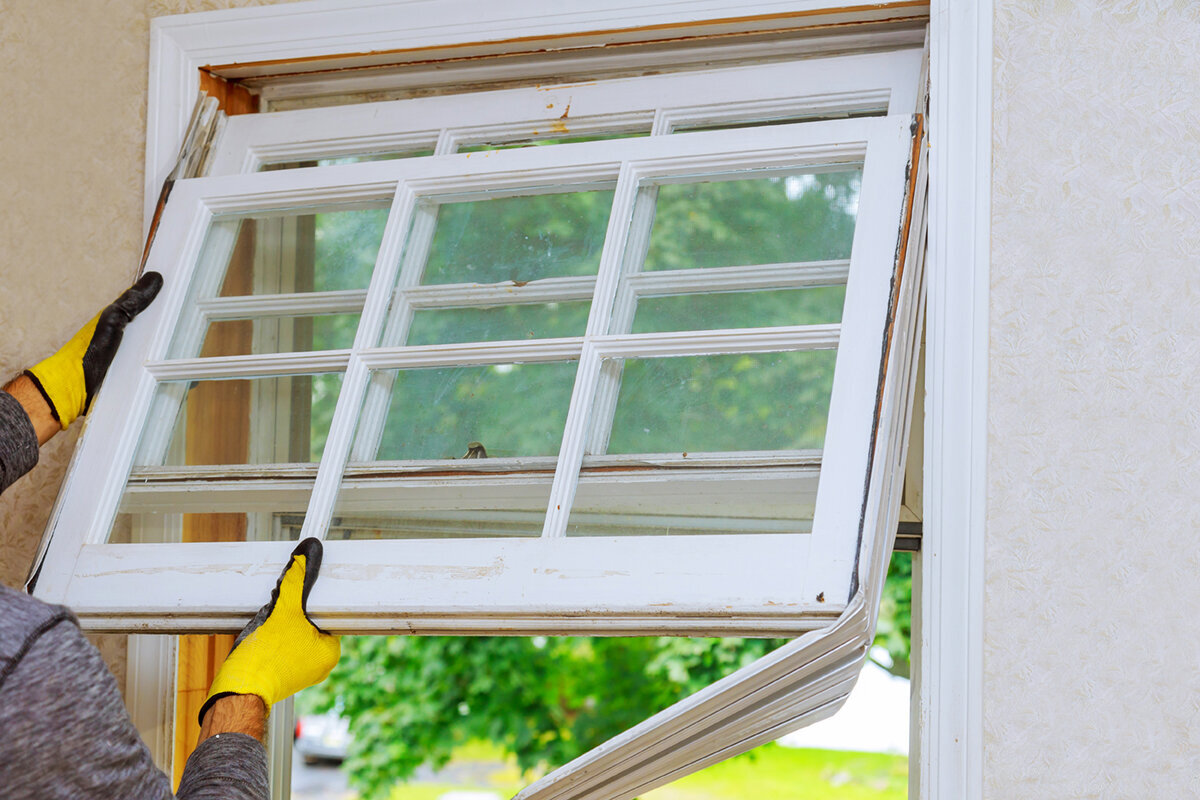

Replace windows while preserving glass area
Window planning
Replacing windows often starts with a seemingly clear measurement: the width and height of the existing opening. Once fitted, however, the room may feel different. The cause is rarely the glazing alone. Wider frames, an extra mullion, different sash sizes or a deeper installation position can alter visible glass area and the view. If you want to retain daylight and glazing, do not compare one window size with another; assess the complete view from indoors and outdoors. This matters especially for large living-room windows, window bands, traditionally divided façades and terrace transitions. This guide explains which dimensions belong in a comparable quotation, which choices can reduce glass area, and how to plan windows, junction details and everyday use together.
External size does not determine how a room feels
External size describes the outside perimeter of a window element, not the area through which light and views actually pass. Frames, sash frames and, depending on the construction, mullions or transoms sit between the outer edge and the glass. If a replacement element has wider visible profile faces at the same width and height, the glass opening becomes smaller. This may matter little in a small bathroom window, but be conspicuous across a living-room window wall. Ask not only for the element width and height, but for the clear glass width and clear glass height of every pane. For opening sashes, the visible frame line when closed also matters. It shapes the view every day, even if the window is never opened.
Use one consistent drawing plane for comparison. Ask for an internal elevation of the existing window and the proposed alternative, showing overall dimensions, visible frame widths, glass fields and divisions. This reveals, for example, whether two narrow sashes place more frame material in the centre than one wider fixed light. A fixed-glazed window may suit a position where ventilation is unnecessary and an uninterrupted view takes priority. It is not a universal answer: required ventilation, external cleaning and operation of other windows in the room must be clarified first. What matters is a deliberate combination of fixed and opening fields, rather than simply choosing the largest possible pane.
Measure glass area accurately and consistently
Do not measure the existing window only once at the structural opening. Several values help with planning: external element size, total visible width from indoors, visible frame width at left, right, top and bottom, plus the width and height of every visible glass field. Divided windows also include centre mullions, transoms and glazing bars. Note dimensions concealed by curtains, internal blinds or deep reveals. A simple sketch with photographs prevents a later quotation being based on external dimensions while you are mentally comparing the unobstructed glass area. Where existing windows differ, give every element its own reference; in older buildings, “three identical windows” can prove inaccurate.
Glass area is useful, but it is not the only value. Two windows can have the same glass area yet feel different if one has a wide, low pane and the other a narrow, tall one. Compare proportions and eye level when seated and standing as well. With a double-sash arrangement, the position of the centre mullion is important: it may sit directly in a sightline towards the garden, balcony or neighbouring buildings. Draw in typical furniture before fixing the layout. This is especially helpful with an inward-opening double-sash window, because the swing area of both sashes must be included in room planning as well as the visual layout.
Assess frame faces and profile construction separately
Slim visible frames can show more glass, but “slim” is not a reliable comparison without a reference. What counts is the visible face width once installed, not merely a profile drawing or a single sample. A frame may sit largely behind the façade externally while remaining more visible indoors, or the reverse. Sash frames are often wider than the adjoining fixed frame too. Ask to see dimensions on an elevation of the actual window, including corners, mullions and transitions between fixed lights and sashes. Only then can you see whether the desired calm glass appearance is achieved on every side or only in part of the element.
Wider faces are not automatically a defect, nor are narrower ones automatically better. Structural requirements, hardware, dimensions, opening type and selected glazing all affect what is possible. The relevant question is therefore: which visible face is specified for this size and use, and which alternative changes the glass dimension? When comparing quotations, also check whether frame profiles will be covered differently or left more exposed. A proposal with an attractive overall size may provide less glass than another design if its frame is much more visible. Keep the approved elevation with the site measurement; it makes the intended design clear for ordering and installation.
Place divisions where they serve a purpose
Glazing bars and mullions structure a window, but each reduces the uninterrupted view. Distinguish between through-glazing bars and applied bars: through-glazing bars genuinely create separate panes, while applied bars mainly alter the appearance. The right design depends on the façade, existing building and desired connection with historic divisions. Do not specify only “with glazing bars”; state their exact number, position and direction. A horizontal division at eye level changes the view differently from one above it. In a row of windows, check division lines against door heads, sill lines and neighbouring windows so the façade does not look randomly fragmented.
In existing buildings, finer divisions can form part of the desired character. A traditional outward-opening double casement window is an interesting configuration direction when traditional window divisions and opening type are considered together. Its name does not replace coordination of the actual elevations, glazing bars and dimensions for your property. Consider the interior effect too: many small panes can be appealing in a bright stairwell but distracting in a room with a wide view. If divisions are wanted chiefly for the external appearance, compare through-glazing and non-through-glazing bar options on the same façade elevation rather than deciding from a detail photograph.
Opening type changes the glass image and daily use
An opening window needs sash frames, hardware and practical operation. It therefore has a different proportion of glass from a fixed light of the same size. First plan which windows genuinely need to open for daily ventilation, access to outside areas or entry. You can then decide where fixed glazing, single-sash and double-sash elements work well together. A small opening sash beside a large fixed field can calm the view, but it must suit the intended cleaning and ventilation routine. Avoid the reverse sequence: selecting maximum glass first, then cutting a necessary opening into it somewhere afterwards.
Opening direction is also a matter of room organisation. Inward-opening sashes can clash with curtains, plants, fittings or furniture. Outward-opening versions need clear movement space outside and must suit the façade situation. A single-sash outward-opening casement window shows how closely opening type can relate to a slim, simple division. In the specific design, check the hinge side, handle position and opening angle; the product title does not establish further characteristics. Above a worktop or deep window seat, a top-hung window can be an alternative. Assess separately whether its opening action suits your ventilation habits and can be reached at a practical operating height.
Installation position affects reveals, light and views
Even a window with a well-planned glass layout can look different after replacement if it sits further in or out within the wall. Its installation position changes the depth of the internal reveal and therefore the side viewing angle. With deep reveals, part of the sky or garden can be obscured, particularly from an oblique angle. The window-board position also changes, while connections to shutters, external blinds, curtain tracks or internal shading need to be coordinated again. Request a section through the wall, frame and window board, not only a front elevation. It shows which edges will later be visible in the room and whether the window board visually conceals the lower glass line. For an informative survey of the existing situation, photograph the window from typical seated and standing positions. Mark on the photograph which reveal edges already restrict the view. Then overlay the planned frame edge and glass line from the section drawing. This simple comparison does not replace technical planning, but it can reveal early whether a small change in installation plane at an important sightline is more noticeable than the calculated change in glass area.
Removing the old frame also affects which position is possible for the new element. Plan installation and junctions before ordering with the person responsible for measuring and fitting. Ask specifically: will the existing internal reveal remain, be extended or be rebuilt? How will alterations to external render, cladding or the window board be handled? Which dimensions become binding after removal? During refurbishment with new façade insulation, do not decide the window position in isolation. Connection planning affects not only appearance, but also sealing, render interfaces and final execution. Qualified professionals should assess technical and project-specific requirements. For Cape Town projects, confirm the applicable approval route and SANS 10400-XA requirements where the scope requires it.
Plan large openings as one overall composition
Across wide living-room openings, the distribution of fixed glass, sashes and doors is especially visible. A broad uninterrupted view outdoors can become restless with several narrow opening sashes; conversely, a very reduced division can complicate the desired furnishing or ventilation. Begin with sightlines: where will people sit, where will the dining table stand, and which areas should remain visible without vertical interruption? Then define necessary passages and opening fields. In the external elevation, vertical lines should correspond where possible with neighbouring windows or façade elements. This creates an ordered overall composition without making every opening identical.
For a transition to a terrace or garden, a Patio Life lift-and-slide door is a possible product category where a sliding access route is part of the concept. Do not compare it with a window only by glass area; consider visible frames, fixed and moving sections, and the intended everyday use. A sliding door can provide a broad view, while a hinged door places different demands on circulation space. Also check which internal view matters when the door is closed: the central overlap or frame junction may sit in a dominant sightline. Request an overall elevation that includes adjacent windows, not only an illustration of the door module.
Do not force special shapes into standard dimensions
Round, semicircular, triangular and sloping windows are often perceived as defining details. For that reason, replacement should not be compared only by maximum width and height. With a curve, the visible contour at the glass edge shapes the character; with a triangle, angles, reference lines and wall position determine the impression. A fixed-glazed round window can be a starting point for a circular, non-opening window form. Check in advance whether the existing dimension is truly circular, how the reveal will be formed and what internal appearance you want. Photographs with a scale, a template or accurate survey data help prevent misunderstandings with unusual shapes.
Special shapes need a clear distinction between design and function. If the shaped field is only intended to admit light, a fixed element may be appropriate. If it must ventilate or be reachable, the questions change fundamentally. In a high gable, for example, an operable standard window below can provide ventilation while the special shape emphasises the architecture. Fixed-glazed triangular and sloping windows are worth considering when the geometry should continue without its own opening sash. What matters are the actual planned angles and glass lines, not simply the shape name. Assess the connection to straight windows too: a sloping line beside a horizontal division can look harmonious or create an unintended offset. Transfer the reference heights of adjoining elements to the same drawing. Also check whether the frame and reveal make a narrow point appear much smaller. A scale façade elevation makes these differences visible. Finalise unusual geometries only after a reliable site measurement, rather than drawing proportional conclusions from an approximate photograph of the existing building.
Compare quotations using the same window schedule
A dependable quotation comparison needs a window schedule, not only a total figure. Each item should clearly identify the room, reference, external size, opening type, hinge side, number of sashes, fixed and moving fields, divisions, and internal and external elevations. For your decision, add visible glass width and height or glass area for each field. Record colour or finish, handles, glazing bars, window-board junctions and any work needed to reveals and shading. If one supplier measures individual dimensions differently, it is not a minor detail: it can undermine comparability for the entire item. Clarify differences before appointing a supplier and have changes included in the final order confirmation.
A single-sash inward-opening window and a double-sash alternative can only be compared fairly when they use the same opening, intended ventilation function and visible division. Even seemingly identical types can differ in handle side and sash layout. Create a “non-negotiable” column, for example an open view above a window seat, a particular sill junction or a division aligned with the neighbouring window. Next to it, add an “alternative possible” column, such as a fixed light rather than an opening sash in a secondary room. This makes the quotation discussion practical: instead of asking generally for more glass, you can request an option with a different sash division, mullion position or visible frame face.
Coordinate before ordering, delivery and installation
Take the final site measurement once the condition of the openings is sufficiently clear. Old frames, uneven reveals, planned floor build-ups and new window boards can affect the order size. Coordinate the sequence of removal, masonry work, shading, interior finishing and painting. For low-level elements in particular, the planned finished floor height must be known so sill, passage and lower sightline work together. Keep the approved window schedule, elevations and sections as a shared reference. Changes after ordering can affect timing and execution. Bloomcabin delivery is 4–6 weeks, subject to order confirmation; do not schedule subsequent trades around this without a confirmed date.
At handover, the original planning documents help more than a quick look at external size. Compare room by room: do the number of sashes, hinge sides, divisions, visible glass fields and handle positions match the approved elevation? With windows open, also check whether furniture, curtains and shading work as intended. Queries about defects are easier to resolve when the intended condition and survey are documented. Bloomcabin windows and doors have a 5-year guarantee. This does not replace a project-specific check of installation and junctions. If you are choosing between two options, prioritise what cannot readily be changed later: glass layout, installation position and opening type. Decorative additions are usually easier to decide separately than a lost sightline.
Frequently asked questions
Can a replacement window have noticeably less glass at the same size?
Yes. The external element size can remain the same while visible frames, sash frames, mullions or glazing bars take up more area. Compare not only the width and height of the entire element, but also the dimensions of every visible glass field and the visible frame widths on a drawing.
Should I always choose fixed glazing for more light?
Not automatically. Fixed glazing can reduce frame interruptions, but it has no ventilation or opening function. First decide which windows need regular opening, external cleaning or use as access. You can then assess where a fixed field usefully supports the desired glass effect.
What is the difference between glazing bars and mullions?
Glazing bars divide a window within a field; they can be through-glazing or applied. Mullions generally separate larger fields or sashes structurally. Both affect the view, but a mullion is often a stronger vertical line in the field of vision and should be positioned deliberately.
Why do I need a section as well as an elevation?
The elevation shows divisions and visible glass fields front-on. The section instead shows the installation position within the wall, reveal depth, window board and junctions. Together, the two drawings explain how wide the side view feels and which edges remain visible in the room after installation.
When should the final measurement take place?
Final measurement belongs in a coordinated project phase, once openings, planned floor heights and relevant finishing work are clear. Coordinate the appointment with measuring and installation. Do not order solely from old plan dimensions where removal conditions or reveals may differ from them.
Next steps
Preserving glass area does not mean simply ordering a new window in the previous external size. The complete visible composition matters: frames, sashes, mullions, glazing bars, glass proportions and wall position work together. First establish sightlines, ventilation and opening requirements. Then compare specific internal elevations and sections with dimensions shown, rather than relying on product images or broad terms such as “slim”. A complete window schedule keeps these decisions traceable through measurement and installation. This helps you choose not just a suitable element, but a solution that convincingly combines daylight, views and everyday use in the completed room.
