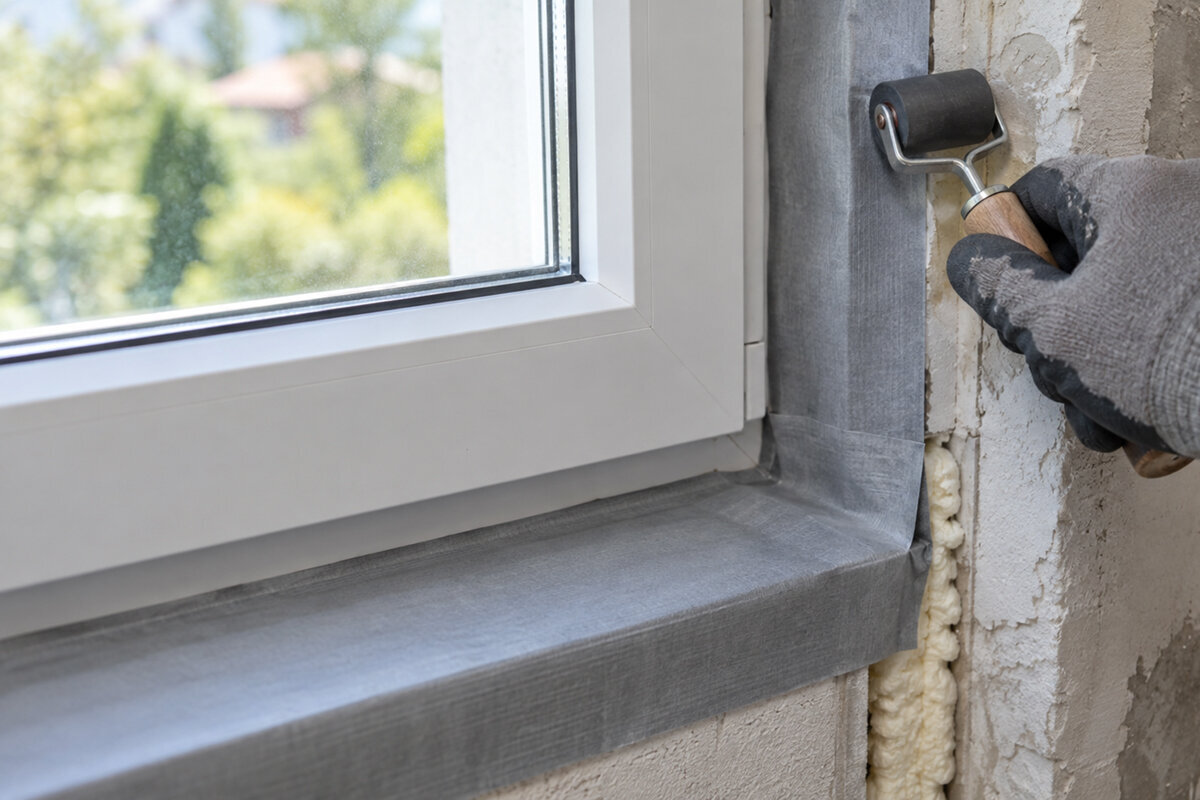

Window installation joints: tapes, sealing and insulation explained
Planning window installation joints
When replacing windows, discussions often begin with frames, glazing and sash layouts. Yet the installation joint also determines whether the new unit performs properly as part of the wall. It runs around the frame between the window and building fabric, and must accommodate movement, uneven surfaces, moisture and temperature changes. Even a good window cannot deliver its full performance with a poorly planned connection. The joint should therefore not be decided on site using arbitrary foam and sealant. Instead, assess the window position, wall build-up, fixings, internal seal, insulation material and external weather protection as one coordinated detail. This guide explains the purpose of each layer and the questions to resolve before ordering, measuring and installation.
Understanding the installation joint as an interface
The installation joint is neither a simple border around a window nor merely a visual finishing line. It connects two components that may behave differently: the window frame and the reveal of masonry, concrete, timber or a layered wall system. The gap is needed for tolerances, fixings and functional layers. Its width and geometry therefore belong in the site measurement and installation plan. Ordering only from the clear masonry opening, without allowing for plaster, insulation, existing rebates, shutter guides or the window board, postpones key decisions until installation day. In existing buildings, old seals, uneven reveals and hidden damage can also change the proposed solution.
Assess the window and its connection as one system. With a single-leaf inward-opening window the opening direction, ironmongery, internal window board and later internal connection detail must work together. For refurbishment, first establish whether the new unit remains in the existing plane or moves to another position in the wall. This affects the length and accessibility of connection surfaces, fixing locations, and transitions to plaster or façade insulation. A section through the head, side reveal and sill usually says more than “installation included”. Have these three areas assessed separately, because they do not perform identical tasks.
Using the three-layer principle correctly
As a planning model, three functional layers are well established. The room-side layer limits uncontrolled movement of warm, moisture-laden indoor air into the joint. The middle layer fills the gap and primarily contributes thermal and acoustic insulation. The outer layer protects the connection from weather, especially wind-driven rain, while allowing drying towards the exterior. It is not important that the same material is visible everywhere, but that every function continues around the full window perimeter without unintended breaks. Corners, fixings and transitions to the window board or lintel are where practical quality is decided.
This model describes functions, not a shopping list. A pre-compressed tape can seal externally and, depending on the system, perform further tasks; membranes or liquid-applied seals may be alternatives at complex connections. Installation foam can provide insulation, but does not automatically replace internal airtightness and external weather protection. Conversely, a neatly applied visible sealant bead is not automatically a complete connection. Ask specifically for each side: which product performs which function, which substrate it adheres to, how joints and corners are formed, and who checks the work before it is covered? This turns “tighter inside than outside” from a slogan into a verifiable detail.
Consider the complete window connection
Inside: create airtightness, not merely covered gaps
The internal connection line affects whether room air can flow into the joint. If humid indoor air reaches cooler connection areas, condensation may form there; draughts and heat loss may also result. The internal layer must therefore connect permanently to the frame and building fabric. Depending on the substrate and detail, connection membranes, suitable sealants, pre-compressed solutions or liquid systems may be appropriate. A sound, clean bonding surface and sufficient allowance for movement between frame and wall are essential. A rigid, thin bead on a dusty or cracked surface does not solve the planning task, even if it initially looks closed.
Transitions deserve particular attention. An airtight surface at the reveal achieves little if it ends below the internal window board or does not connect to the existing airtight layer at the head. For plastered internal surfaces, establish whether plaster runs to a designated plaster-stop profile, whether a membrane may be plastered over, and how later repairs remain possible. With a double-leaf inward-opening window the internal detail must also suit everyday use: window-board depth, reveal linings and handles must not obstruct the sash. Ask the installer not only for the tape name, but for a description of the uninterrupted internal-sealing route around the whole frame.
Middle layer: insulation needs suitable geometry and protection
The middle joint layer should fill the space between frame and building fabric without voids. Its purpose is not to fix the window or compensate for major irregularities in the opening. Joint width, permitted movement, substrate, application method and the later connection layers all matter when selecting insulation. Mineral insulation, foam or system-based insulating tapes may suit a detail. The filling should be even and not compressed without control. Large open voids or overfilled joints complicate the internal and external layers and may reduce insulation performance.
Installation fixings must be planned independently of the joint filling. Support packers, fasteners and load transfer hold the unit in position; insulation does not replace this function. This is especially clear with wide or heavy units. A Patio Life lift-and-slide door for example, needs a carefully designed threshold and load-bearing zone before side sealing is considered. Ask where the unit is supported, how the frame remains aligned, and how insulation can continue into these areas. If individual points require a different construction for structural reasons, it should be clear how airtightness, insulation and weather protection continue there. A well-executed middle layer results from the right sequence, not simply from using more material.
Outside: resist rain and allow for drying
Outside, the installation joint faces weather, UV exposure, splash water and façade details. The outer layer should stop external moisture and direct water away in a controlled manner. At the same time, moisture that enters the connection must not be trapped by an unsuitable layer. The working solution depends on exposure, façade finish, existing rebates, window position and neighbouring components. A protected joint deep in a reveal has different requirements from one close to the façade plane. Statements such as “just use silicone outside” overlook the relationship between the joint, plaster, flashings and window board. Identify which side is directly weathered, where projections provide protection and where water concentrates at edges. Adjacent cracks, open plaster edges or missing bonding surfaces must also be considered before choosing materials. Agree who prepares the substrate and how long the completed seal may remain exposed. The chosen system’s application requirements should be available when scheduling the work.
The lower connection zone needs its own drawing. Side connections, falls, end caps, window board, the wall waterproofing layer and, where relevant, a door threshold meet here. Water that gets behind an outer cover needs a planned route outside; a visually closed surface alone is not proof. With a single-leaf outward-opening patio door the transition between the internal floor and external finish must also be fixed early. Otherwise, later build-up heights can conceal connections, disrupt drainage or restrict door movement. Request a section showing every layer for low-level areas, not only an elevation of the finished façade.
Comparing sealing tapes, membranes and sealants
Sealing tapes are often quick to apply and can accommodate irregularities when the correct joint width is selected. They still need suitable dimensions, a prepared joint and enough time or space to expand. Connection membranes are flexible for complex geometries and can link to the building’s airtight layer. Their performance depends greatly on adhesive, substrate preparation and carefully bonded overlaps. Liquid waterproofing can help at inaccessible or irregular connections, but requires controlled layer formation and suitable substrates. Sealants suit defined joints and connections, but must be matched for adhesion, movement capacity and compatibility. For comparison, prepare a small connection matrix: straight sides, corners, lintel, sill and known problem areas. Record which material is intended at each point, how it joins the next component and what preparation is required. This reveals whether a solution works only on a straight sample run or also at interruptions. Check product data and application instructions for the system actually offered, not merely for a similar product group.
Do not compare only the material roll. Check whether the frame surface and wall substrate need preparation, whether a primer is specified, whether the product may be plastered, painted or covered, and when the next work stage can follow. Also ask how a joint at the frame and a corner are formed without folds or open paths. With a fixed-glazed window the connection is unaffected by a moving sash, but the frame-to-wall transition still needs equal care. The best choice is the system whose application remains clear under real site conditions. A material list without a detail drawing, substrate information and responsibility is not a reliable installation plan.
Consider the complete window connection
Window form and opening type change the detail
Rectangular standard windows often allow repeated connection details, yet glazing bars, fixed lights, sash arrangements or unusual opening types can change measuring and installation. Glazing bars sit within the window construction; for the installation joint, the external frame perimeter matters, not the visible division of the glass. Windows without glazing bars have an installation line just as extensive as visually divided windows. What matters is how frame, reveal and sealing meet. For historic elevations, external appearance may matter, but it does not automatically make the joint solution simpler or more complex.
Curves, slopes and other special forms increase cutting, corners and transitions. A triangular and sloping fixed-glazed window therefore needs a detail check at every inclined edge, particularly at the upper junction. In these areas, do not improvise the fixing, insulation and external water management one after another. Roof windows add the connection to the roof build-up and covering, requiring a separate concept compatible with the roof system. For special forms, provide designers and installers with a scaled elevation and section. Ask where the selected tape will be cut or joined, and how continuity is retained afterwards.
Prepare new-build and refurbishment projects differently
In a new build, window position, wall build-up and connection materials can be coordinated early. This makes a clear interface possible between structural work, window installation, plastering, façade work and internal finishes. Even so, establish who creates, protects and signs off the connection surfaces. A membrane left exposed after window installation can be damaged by following trades; closing the façade too early can make later fixings difficult. Programme planning is therefore part of technical planning. Record when frames are installed, when internal and external layers are closed, and how open connections are protected from weather and damage until then. Where many openings are alike, an early reference window can help assess interfaces before repeat installation. Examine not only visible finishes but also substrate preparation, corner formation, fixings and handover to subsequent trades. Record any deviations directly on the approved detail. A verbal approval of the sample does not prevent varying execution at later openings.
In existing buildings, begin with a site survey. Removing old windows can reveal crumbling reveals, damp areas, existing seals or unexpected layer thicknesses. Plan a response to these findings rather than relying only on an ideal measurement. With a historic-style outward-opening “Kombi” casement window existing elevations and connection widths can influence the design decision, but the joint must still suit the actual building fabric. Before removal, document dimensions, the visible wall build-up, internal and external finishes, and the position of window boards. A joint inspection by the window supplier, installer and, where appropriate, façade or plaster contractor reduces contradictions between trades.
Coordinate fixings, movement and following trades
Window frames change with temperature and use, building fabric can settle or move slightly, and seals must accommodate these movements over time. A connection solution must therefore neither clamp the frame rigidly at an unsuitable point nor overload the fixings. The position and number of fixings, and distances from frame edges, must be planned for the project. Ask for the load transfer, alignment and role of support and spacing packers to be explained. Only once the window is securely positioned can functional layers be added cleanly. Foam or sealant should not take on an unintended structural role.
Following trades also affect the joint. Internal plaster, drywall, window boards, external plaster, insulation, metal flashings and sun protection can conceal connections or penetrate them with fixings. Before work starts, establish who seals each penetration and which areas must remain visible until the work is checked. With outward-opening folding doors the transitions at side frames and the floor zone become more important because several leaves and a wide opening meet. This does not automatically require a particular seal, but calls for especially careful coordination of clearance, external finish, threshold and water management. A coordination meeting before ordering costs less than adapting finished surfaces afterwards.
Organising specification, inspection and handover
A useful specification says more than “install windows correctly”. It assigns the window to an installation position, describes prepared connection surfaces and identifies the functions inside, in the middle and outside. It should include details for the head, sides and sill, fixings, treatment of window boards or thresholds, and protection until completion. Where several window types are involved, list standard details separately from special details. Provide measurements and drawings before ordering so frame size, joint space and accessories can be checked together. The installer should be able to see what the quotation includes and where other trades connect. Compare quotations line by line: substrate preparation, removal and disposal of existing materials, fixings, every joint layer, window-board connections, protection measures and documentation. Mark missing or vague items before comparing prices. A lower total is of limited value if reveal repairs, connection profiles or waterproofing below the window board have not been assigned. Require alternative items to be described clearly, so the actual ordered construction remains unambiguous.
Inspect connections while they remain accessible. Photograph the prepared substrate, fixings and each layer before plaster, lining or the window board covers them. Check visibly for continuous connections, adequate overlaps, careful corners, correctly treated joints and undamaged materials. An unanswered question is not a defect if it is resolved before covering. Have the system components used, maintenance guidance and responsibility for remaining connections documented. Bloomcabin states a five-year guarantee for windows and doors; delivery normally takes four to six weeks after order confirmation. These statements do not replace a project-specific review of installation and connection planning.
Frequently asked questions
Is installation foam sufficient as window sealing?
No. Installation foam mainly has a role in the middle joint layer and is not automatically the complete internal airtight layer or external weather protection. The additional layers needed depend on the connection detail, substrate and installation situation. Have the three functions identified and documented separately.
What does “tighter inside than outside” mean?
The phrase describes a functional principle: room air should not enter the joint uncontrolled, while moisture in the connection should be able to dry outwards. It does not select a material. Whether tape, membrane, sealant or another solution is suitable must be planned for the frame, wall build-up, joint width and weathered side.
Should the window installation joint be decided before fitting?
Yes. At the latest before ordering and site measurement, coordinate installation position, wall build-up, frame size, fixings and connections to the window board, façade and internal finish. Site findings can require adjustments. A prepared alternative for uneven or damaged reveals prevents uncoordinated decisions under time pressure.
Who is responsible for sealing between window and wall?
That depends on the contract, specification and division between trades. What matters is not only who applies a tape, but who creates the continuous connection to plaster, façade layer, window board and further layers. Record responsibilities, inspection timing and protection of open connections in writing.
How can I recognise an inspectable installation plan?
It includes at least elevations and sections for the head, sides and sill, identifies the functional layers and their connections, and shows fixing and load transfer. Separate details are useful for doors, special forms and low-level areas. Before covering, inspect the work against these documents and photograph it.
Next step
A functioning window installation joint does not result from a single “sealant”, but from the interaction of internal sealing, an insulated middle layer, external weather protection, fixings and adjacent components. Start with the wall build-up and installation position, not a material name. Have details drawn for every side of the frame, consider special forms and thresholds separately, and allocate interfaces between trades in writing. Planning the joint before ordering and removal makes quotations easier to compare and allows the work to be checked while the decisive layers remain visible.
