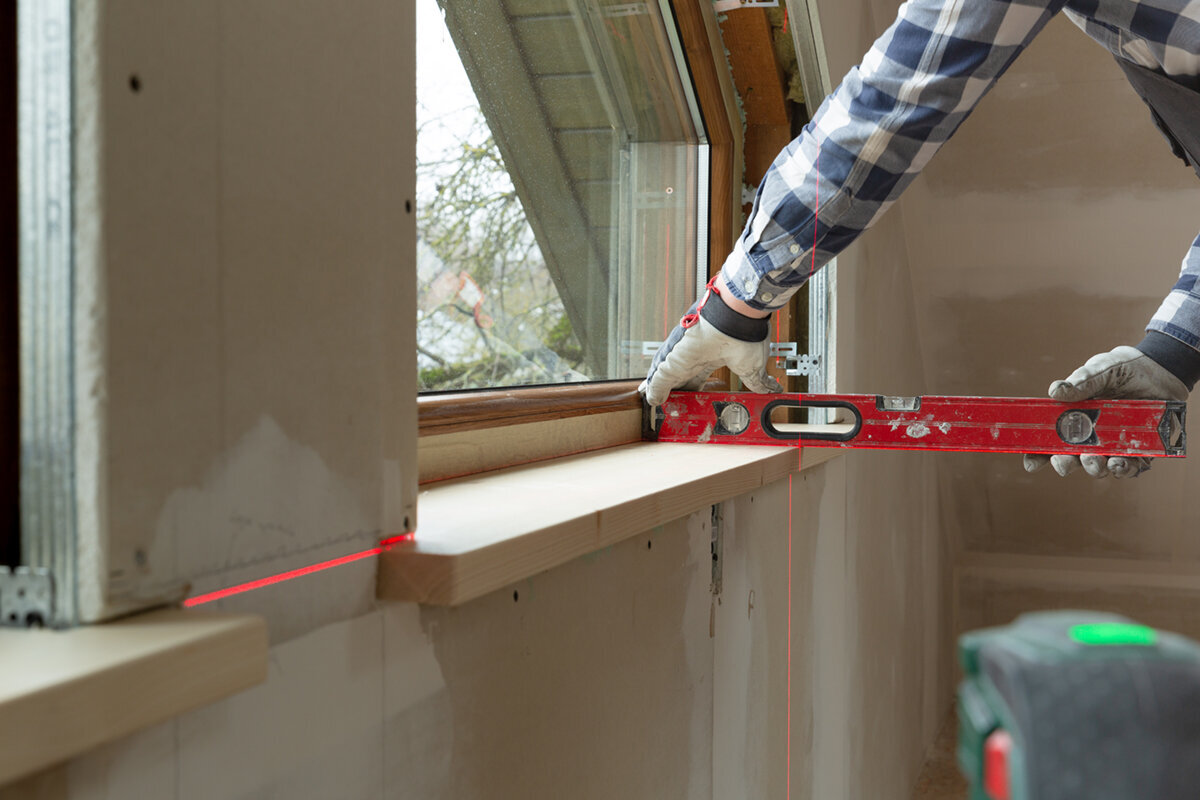

Window reveals, sills and cover trims when replacing windows
Window planning in detail
Replacing a window does not end with the frame. Once the old unit is removed, the true width of the reveal, the condition of the junction, the position of the internal sill and the way rainwater will be directed safely away from the façade become clear. Ordering only the window dimensions often leaves decisions about plaster, trims and sills until installation day. A full survey is better: window, wall build-up, internal finish, façade junction, sun protection and the desired appearance should form one plan. This matters especially where new frames sit at a different width or depth from the old ones. This guide helps you assess visible finishes and technical junctions separately, clarify responsibilities in advance and gather the right details for a quotation and order.
Buying checklist 1
Treat replacement as a junction project
A new window is smaller than the structural opening and needs a planned connection to the wall on every side. The reveal is the side and upper internal or external surface of the opening; it is not the frame. Removing the old unit can expose loose plaster edges, old sealants, wallpaper edges or hidden irregularities. Even a window that looks the same size can show more or less reveal because its frame is a different width. A survey should therefore record more than clear width and height. Take photographs of every opening, measure in several places, note the depth inside and outside, and record radiators, shutter boxes, tiles and existing sills. This turns a product choice into a wall junction that can be coordinated.
The key question is which surfaces should remain visible when the work is complete. A smooth, continuously plastered reveal requires different follow-on work from a neat edge finished with trims. In occupied rooms, this affects dust, protection measures and the sequence of removal, installation, repair and final painting. With a single inward-opening window you must also check whether the new internal sill still leaves enough clearance for the sash and handle. The product identifies the opening direction but not the junction design. List demolition, disposal, installation, sealing, sill, reveal repair, cover trims, painting and cleaning separately in the quotation. This makes clear what is included and what a following trade must provide.
Read the reveal carefully before surveying
Reveals are rarely identical throughout. Older walls can run out of true, plaster layers can vary in thickness, and one side of an opening may differ from the other. Measure width and height at the top, middle and bottom; take depth measurements on all four sides. Also establish whether the existing frame is flush with the internal wall, centred in the wall or closer to the outer edge. This position shapes the visible reveal and determines whether an existing internal sill extends far enough beneath the frame. A sketch showing the viewing direction prevents misunderstandings, for example where only one side is tiled or a reveal is lined with timber.
During the site visit, look for signs that a single measurement cannot reveal: crumbling edges, moisture marks, cracks, soft areas, hollow spots or earlier repairs. These observations are not a reason to diagnose the cause yourself, but they should be checked by the responsible professional before surfaces are closed. With a double inward-opening window the sash sweep must also be considered: a deep projecting sill or side lining must not obstruct use. Decide whether the reveal should remain square, open towards the room or continue an existing design. A widened internal reveal can alter the sense of light, but requires a deliberately designed plastered or panelled surface rather than an improvised edge.
Buying checklist 2
Installation position changes visible proportions
The position of the new frame in the wall determines how deep the internal and external reveals appear. If a frame is moved relative to the old unit, an existing sill may be too short, an external finish may no longer fit, or a connection to cladding may change. The opening type also affects space requirements. With a single outward-opening casement window the internal surface remains clear when opening, but outside the reveal, sill and surrounding area must accommodate sash movement. Compare more than the external dimensions and elevation: use a section drawing or at least a dimensioned sketch of wall, frame and sills. It reveals early where an edge will occur and which surface needs finishing.
A flush frame can look modern and calm, but may leave less tolerance for an uneven wall. A recessed frame emphasises the reveal and may suit existing architecture better, while increasing the visible junction surfaces. Neither option is universally better. What matters is the combination of wall build-up, façade, interior and intended appearance. Ask exactly which reference plane every dimension uses: structural edge, finished internal plaster, finished external surface or existing frame. If insulation, cladding or a new floor finish will be added later, its final thickness must be included. A window that fits on paper can otherwise become too tight at the sill or reveal finish after the interior work.
Internal sills: support, depth and everyday use
An internal sill is both a useful surface and a junction detail. It may run into side wall pockets, finish at the frame or end with side caps. When replacing windows, establish whether it can remain undamaged, is likely to break during removal, or should be replaced anyway. Measure not only its length and visible depth, but also how far it extends beneath the existing frame. Decide which front edge suits the room and whether the sill meets tiles, a recess, a worktop or wall lining. A new sill must not be treated simply as a loose decorative board: its transition to the frame and side reveals must be planned as one detail.
Clearance from handles, sashes and existing fittings is important in practice. Curtains, plants or a deep shelf can make everyday opening difficult even where window dimensions are correct. With a single inward-opening patio-door unit the transition to the floor needs especially careful consideration: a conventional internal window sill is not automatically the right solution. During selection, note the material, colour, edge profile and side finish as visible choices, but connect them to installation: who removes the old sill, prepares the substrate, and reinstates plaster or floor finish? This avoids unclear boundaries between window installation, finishing work and painting.
Buying checklist 3
External sills and the transition to the façade
Outside, the sill has a different task from its internal counterpart: it forms the lower finish to the façade and should direct rainwater outwards in a controlled way. Its slope, side junctions, connection to the frame and transition to the existing façade surface must therefore be considered together. An existing external sill may remain intact during removal, be damaged, or no longer fit because of the new frame position. Also check whether side façade elements, shutters, guide rails or sun protection limit the work area. Angled photographs help ensure that existing drip edges, projections and junctions are not missed.
Do not choose an external sill only after the window has been fitted. Ask in advance about its exact support, planned side detail and visible transition to the façade. Different surfaces such as plaster, brick, timber cladding or panels need different detailed solutions; there is no universal approach. In a large opening, for example for Patio Life lift-and-slide doors, the lower junction often becomes a threshold and patio situation rather than a window sill. The external finish, drainage, height transition and door movement should then be planned together. Do not assume that a visually similar new unit will automatically connect to every existing component. Only a coordinated detail shows which parts can remain, need adjustment or require replacement.
Cover trims: a visible finish, not a substitute for planning
After installation, cover trims can create a clean visual edge between frame and internal wall. They can be useful for concealing a narrow junction zone, protecting a vulnerable plaster edge or achieving a consistent look across several windows. They do not replace a professionally planned junction gap, however, and should not conceal unknown damage or unresolved movement. Decide in advance whether a trim is needed inside, outside or on both sides, how wide it should be, and whether it works with existing skirting or door trims. On heavily textured walls, a trim may emphasise unevenness rather than soften it.
Alternatively, the reveal can be plastered, skimmed or finished with another surface lining right up to the frame. This creates a pared-back appearance but requires clean edges and a clearly defined sequence of trades. With fixed-glazed windows there is no clearance requirement for an opening sash, but frame depth, visible edge and cleaning access still matter when selecting a lining. Do not compare samples only front-on. Look from within the room, along the wall and in daylight at the frame, trim and reveal colour. Also ask which joints will remain visible later and whether the trim can be removed if a junction must be inspected or a wall surface renovated. The best trim is one with a clearly defined role and line.
Buying checklist 4
Plan plaster, wallpaper, tiles and timber lining properly
Removing an old frame can affect the edge of a finished surface. With wallpaper, decide whether only a strip will be replaced or the wall redesigned. With tiles, establish whether the tiled edge reaches the frame, whether trims are affected and whether replacement material is available. Timber panels, exposed brickwork and finely textured plaster each need their own finish. Document colour, texture, pattern and grain or joint direction before removal. This is especially important when only individual windows are being replaced and neighbouring windows in the room will remain unchanged. A well-prepared sample area is more helpful than simply asking for it to look “as before”.
Plan the sequence realistically: arrange protection and removal first, then install the new unit and form the junction; visible repairs follow only once the final frame position is known. Fresh plaster, filler or paint should not be assumed as an unspoken service. With an outward-opening “Kombi” casement window in a historic style the appearance can be coordinated deliberately with existing glazing bars and characteristic reveal depths. This does not mean a particular historic detail must be copied. It means comparing the visible lines in advance: frame face, glazing-bar pattern, reveal edge, sill and façade opening. You can then decide whether a simple junction creates an intended contrast or makes the overall composition appear unsettled.
Special geometries need their own detail
Round, angled and segmented openings cannot reliably be planned using the approach for a standard rectangular window. With a round fixed-glazed window the continuous reveal edge is particularly important: where does plaster or lining end, how even does the visible gap to the frame appear, and how will the curve be formed? A straight cover trim is not a suitable standard solution here. Make a template, take detailed photographs and measure the opening if the existing structure is irregular. Fixed glazing may also require different access for cleaning from inside or outside; consider this before committing to deep linings or built-in furniture.
Roof windows, bay windows and very deep wall openings also have their own junctions. A roof pivot window, for example, affects not only a side reveal but also the internal lining of the roof opening and its lines within the room. Do not copy details from vertical façade windows without having the installation situation checked. For angled openings, it helps to name the visible edges on a sketch: upper edge, side junction, lower finish and, where relevant, the transition to the ceiling. Then decide which edges must be precisely aligned and where a small irregularity in the existing structure is acceptable. This prevents the design being decided by the final skim coat.
Buying checklist 5
Divide the specification and quotation into checkable parts
A useful quotation describes more than the number and external dimensions of windows. For every opening, the opening type, handing, frame colour or finish, installation position, internal sill, external sill, reveal finish and treatment of existing surfaces should be traceable. Add position numbers to photographs so that “window on the left” cannot be interpreted differently. Describe the floor condition separately for doors. For a single outward-opening patio door, for example, establish how it connects to the existing floor inside and outside without confusing the visible result with a window-sill solution. Unknown points may be listed as items to be checked; they should not disappear silently from the scope.
Ask for clear answers on responsibilities. Who carries out the survey? Who confirms dimensions and opening direction before approval? Who protects floors and furniture? Who removes loose plaster, closes the reveal, and reinstates the surface to what quality standard? Also ask whether samples, drawings or photographs can become binding parts of the order. Separate essential work from optional design measures. A new internal sill may be necessary because the old one no longer fits, whereas a wider decorative lining may be a choice. This distinction supports a fair comparison because quotations with different, unnamed scopes are not being compared side by side.
Check carefully before approval and after installation
Before ordering, check a window list against the actual rooms. Confirm the opening direction from the room perspective, sash movement, handle positions, sill depth and the allocation of every photograph. Mark features such as radiators, fitted furniture, sockets, curtain tracks, tiles or external components directly on the sketch. Ask about the estimated delivery period of 4–6 weeks, subject to order confirmation, and coordinate following trades accordingly. Bloomcabin provides a 5-year guarantee for windows and doors. These details do not replace a project-specific review of the scope, but they support practical timing and organisation.
After installation, first check how the visible elements work together before final repairs conceal what has happened. Do the frame position, opening direction and number of units match the order? Can the sashes move without touching the sill, reveal or floor? Are the agreed internal and external finishes present, and have damaged surfaces been recorded as outstanding work? Photograph every opening inside and outside in good light. This is not intended to replace a technical inspection, but to create a clear shared basis for work still to be completed. Only when windows, sills, trims and surfaces are viewed as a whole can you judge whether the replacement truly looks finished in the room.
Frequently asked questions
Must the reveal always be renewed when replacing windows?
No. A reveal can remain where its condition, the new frame position and the intended finish allow it. However, removal can damage edges or create new visible strips. Establish in advance whether repair, replastering, lining or a cover trim is planned, and who will carry out the work.
Can the old internal sill stay?
That depends on its condition, how it is built in and the position of the new frame. Measure its support, depth and clearance from the sash and handle. Retaining a sill does not automatically avoid follow-on work if its junction will later remain open. Record before ordering whether it will be protected, adjusted or replaced.
Are cover trims always the easiest solution?
They can create a quick, clear visible edge, but do not suit every room stylistically. With smooth, flush reveals, a plastered junction can look calmer. Trims must not be used to conceal unresolved junction problems. Choose width, position, surface and joint pattern using a sample or drawing.
What matters most for a new external sill?
It must work with the frame, reveal and existing façade as the lower external finish. Check early which components meet it at the sides and whether the new frame position changes the existing sill. At doors close to floor level, a coordinated threshold and floor-junction detail is often needed instead of a window sill.
Which documents help the installation contractor most?
Measurements at several points, photographs inside and outside, a position sketch, details of wall surfaces, and images of sills and adjoining components are helpful. Add the finish you want: flush plaster junction, trim or lining. Also identify follow-on trades so timing and responsibilities can be coordinated before the order is approved.
Next step
When replacing windows, reveals, sills and cover trims are not afterthoughts. They determine how the frame meets the wall, how the room looks after installation and what work remains. Record every opening as its own junction case: measure the existing structure, photograph surfaces, define the installation position and plan the internal and external sides separately. Compare quotations by clear scope rather than the window unit alone. When frames, sills, façade junctions and visible internal finishes are approved together, surprises on installation day are far easier to avoid.
