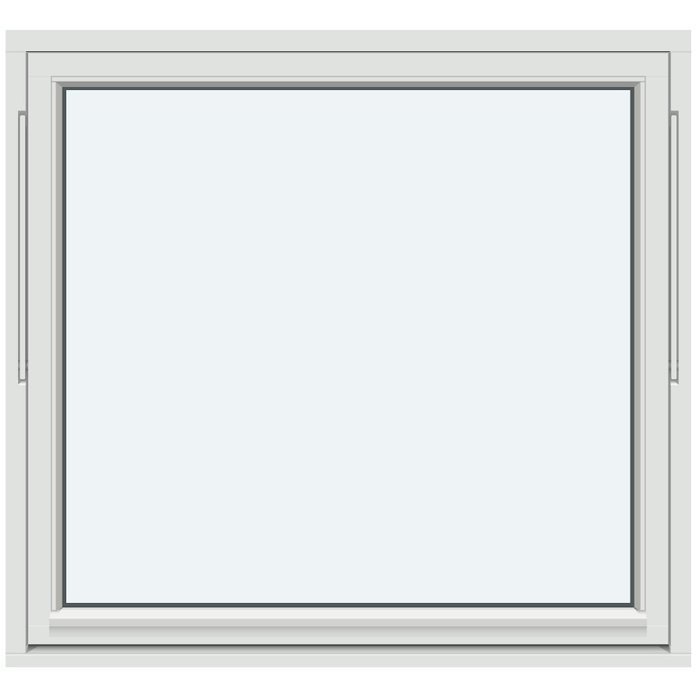

EI30 Outward-Opening Fire-Rated Pivot Window

EI30 classification, oak and made-to-measure design

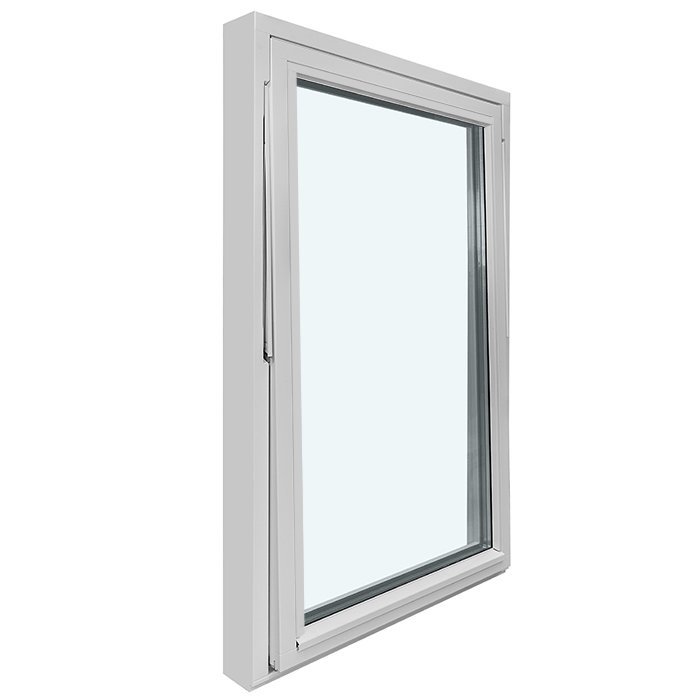

EI30 fire-rated outward-opening pivot window

An outward-opening EI30 fire-rated oak pivot window, made to measure with colour and handle options.

Design

Outward-opening EI30 pivot window

Material

Oak

Glazing

Double glazing

Options

Choose dimensions, colour and handle

01

Outward opening: planning operation and use

Two characteristics matter when choosing this window: it is a pivot window and it opens outwards. Allow for that opening direction from the start, particularly when deciding its position, dimensions and operating height. Together with the chosen sash number, these points provide a clear basis for your enquiry. Colour and handle can then be selected to suit the overall window concept.

Build the outward swing into the design of the relevant façade area early. Review the site around the proposed window, coordinating its position with adjacent building parts, paths and other moving elements. Appropriate or required clearances depend on the individual project. A scaled drawing helps assess the intended window size alongside the real surroundings, rather than leaving the opening arrangement until after dimensions are set.

Consider indoor operation when selecting the window too. Decide where the handle should be comfortably accessible and how the window height works with normal use. As a handle can be selected, this detail can be planned alongside the overall dimensions and colour. The practical choice comes from bringing together installation position, preferred sash number, handle and outward opening.

As an opening window, this pivot design serves a different role from fixed glazing. When choosing between an operable and fixed element, first establish whether an opening function is wanted at that location. Only then compare material, glass appearance and colour. This sequence avoids using a visually similar but fundamentally different window type as the basis for the decision.

02

Oak, frame sections and defined components

The fire-rated pivot window is made from oak. This gives the selection a clear material basis, especially for schemes that deliberately coordinate visible timber elements. As a colour option is available for this product, you can assess the oak window’s effect alongside the façade, interior finishes and other frames. Judge colours against the actual neighbouring elements, rather than in isolation from a single sample.

The stated component dimensions are: outer frame 105 × 57 mm and sash frame 76 × 65 mm. These figures identify the respective frame sections; they are not automatically the order size, visible timber width or glazing size. Keep component dimensions and required overall dimensions separate when coordinating the window. This distinction is particularly important at existing openings, so differing measurements are not mistakenly treated as equivalent.

Spilka hardware is included with this opening window. Select the handle from the available options and coordinate it with the frame colour and other visible details. Consider the planned installation height and preferred operating position too. This approach treats the hardware, handle, dimensions and oak frame as connected parts of the window selection.

Installation holes are specified as 14 mm. This figure is part of the product’s technical data and should be included with the other information in project documentation. Diameter alone does not create a complete installation plan, however. Measurement reference, junction details and site conditions must be brought together for the particular project. The technical figure remains in its proper place: a defined product property within wider project-specific planning.

05

Made-to-measure and project-specific sizing

The EI30 pivot window can be made to measure, which is useful when an opening, façade layout or adjoining building element calls for a particular format. Project dimensions can be selected within the product’s available scope, but the measurement reference must still be defined clearly. Record what each dimension describes and use the same reference throughout project coordination.

For an existing building, measure openings and junction areas carefully. For a new build, compare window dimensions with the current design stage. Remember also that this element opens outwards. Changing its size can alter the window’s overall effect, handle accessibility and relationship with adjacent building parts. Dimensions should therefore not be determined separately from operation and the façade view.

For a 2-sash version, state the overall dimensions and sash number together. This makes the requested basic division clear from the enquiry onwards. Also compare the planned format with neighbouring windows, façade lines and visible building elements. Made-to-measure sizing can therefore be coordinated not only with the opening but with the project’s overall appearance.

Include the EI30 classification in the product description for your plans; do not replace it with a similar-looking window type or a broad label such as “oak window”. The classification also does not remove the need to confirm project-specific requirements for the intended location. Check the product type, classification, opening direction, sash number and dimensions together.

06

Coordinate colour and handle with the window concept

Alongside made-to-measure sizing, colour and handle choices are available. These allow three visible decisions to be planned together: the window format, the colour effect of the oak frame and the operating detail. Good coordination starts with surfaces that shape the scheme permanently. Consider the façade, interior finishes and other window frames first; then select a colour that either deliberately connects them or creates a clearly planned contrast.

Colour offers different design options for an oak window. A coordinated palette can strengthen the material connection between several timber elements, while contrast can present the window as a distinct building feature. Choose the exact finish from the available colours after considering the façade, interior surfaces, neighbouring frames and the intended handle together.

Although smaller than the frame and glazed area, the handle is noticed whenever the window is operated. Coordinate it with the window colour, nearby hardware and your design preferences. Along with the dimensions, sash number and colour, your handle choice completes the outward-opening EI30 oak pivot window as a functional product with individually selectable details.

When different Bloomcabin elements appear in one view, they need not be technically identical to work together visually. Repeated colours, related dimensions or coordinated handles can create a connection while each element retains its own function. Do not transfer technical data from other windows or doors to this product. Select the EI30 pivot window on the basis of its own oak construction, fixed glazing and stated classification.

07

Comparing fixed glazing, pivot windows and doors

Related products serve different basic functions. Combination windows bring several window areas into one product type, while fixed-glazed windows do not open. Round, semi-round, triangular and sloping fixed windows instead emphasise their outer shape. Choose these alternatives when form, fixed glazing or combined areas matter more than the opening function of this EI30 pivot window.

The related outward-opening pivot window is functionally closer to this product than fixed glazing, but it has its own material and specification choices. The first comparison point should therefore be whether this product’s EI30 classification is part of your brief. If it is, do not decide on appearance alone. Then compare opening arrangement, material, glazing, required dimensions and available design decisions as separate criteria.

Single-sash outward-opening patio doors perform a door function and are not simply larger versions of this window. They may have a role in a shared façade scheme, but must be selected according to their own construction and specification. The historical-style patio door is also a separate product. Colour, timber character or repeated lines can be visually coordinated without equating the technical features of door and window.

Use the product selection below as a guide by function: fixed-glazed elements suit non-opening areas, shaped windows create distinctive outlines, combination windows join different window areas, and patio doors provide walk-through openings. In this comparison, the EI30 fire-rated pivot window is the outward-opening oak option with EI30 classification and a selectable 1- or 2-sash design.

Combination windows, Fixed-glazed windows, Round fixed-glazed windows, Semi-round fixed-glazed windows, Triangular and sloping fixed-glazed windows, Outward-opening pivot window, Single-sash outward-opening patio door, Historical-style single-sash outward-opening patio door.

08

Make an enquiry with clear details

For a specific enquiry, gather every decision in one place: identify the outward-opening EI30 fire-rated pivot window by its full product title, provide the required dimensions and an unambiguous measurement reference, then choose the 1-sash or 2-sash layout. Add your colour and handle preferences afterwards. If more than one window is needed, label each element separately so different sizes or versions remain clearly allocated.

Visual context is useful too. Tell us whether the oak window needs to coordinate with other windows, a patio door, existing timber elements or particular façade colours. This does not replace technical dimensions, but helps explain your colour and handle preferences. If EI30 classification comes from a project requirement, confirm it with the responsible project participants before final selection.

This window is covered by our five-year guarantee. With a fully described enquiry, we can clearly allocate the available choices for dimensions, sash number, colour and handle. Also specify the outward opening and EI30 classification so the required product is identified without doubt. This supports a selection that suits your project’s sizing and design objectives.

How does the EI30 fire-rated pivot window open?

The EI30 fire-rated pivot window opens outwards. Allow for this opening direction when selecting the window position and required dimensions.

Is this an oak window?

Yes. The EI30 fire-rated pivot window is made of oak, its specified timber.

What glazing does this fire-rated window use?

It uses double glazing with a heat-reflective coating. The glazing seals are silicone.

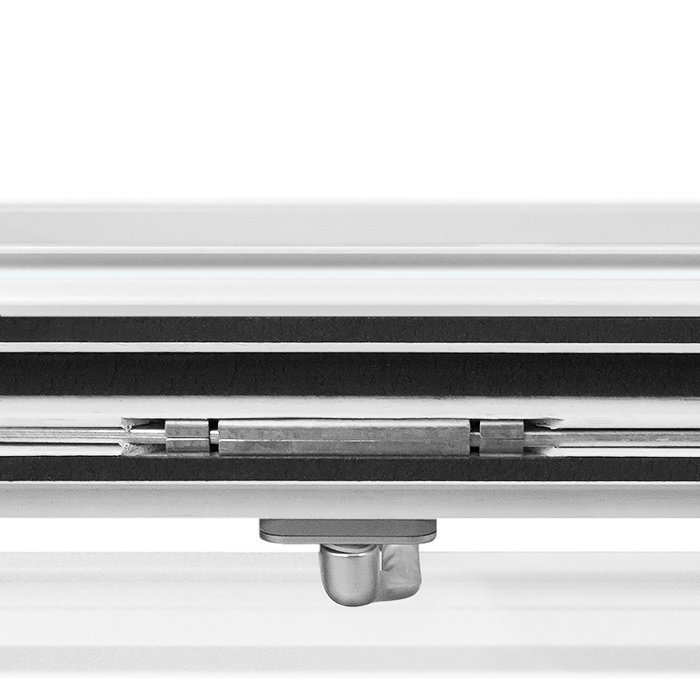

Which sash options are available?

Choose a version with 1 sash or 2 sashes. Include the required sash number with the dimensions in your enquiry.

Can the EI30 pivot window be made to measure?

Yes. The window can be made to measure. For an enquiry, we need the dimensions relevant to your project and the required design.

Can I choose colour and handle?

Yes. Along with made-to-measure sizing, colour and handle choices are supported ordering options.

Which frame dimensions are stated?

The outer frame is specified as 105 × 57 mm and the sash frame as 76 × 65 mm. These component dimensions differ from the window’s required overall dimensions.

How long is the guarantee?

Our five-year commercial guarantee covers windows and doors, including this EI30 fire-rated pivot window. It operates alongside the consumer guarantees that may apply under the Australian Consumer Law.

Plan your oak EI30 pivot window

Planning an outward-opening EI30 fire-rated oak pivot window? Send us the required dimensions, sash number, colour and handle details. We can help you bring those available product features together as a coherent selection suited to the requirements of your project.
