Outward-Opening Pivot Window

Open outwards, tailor the design

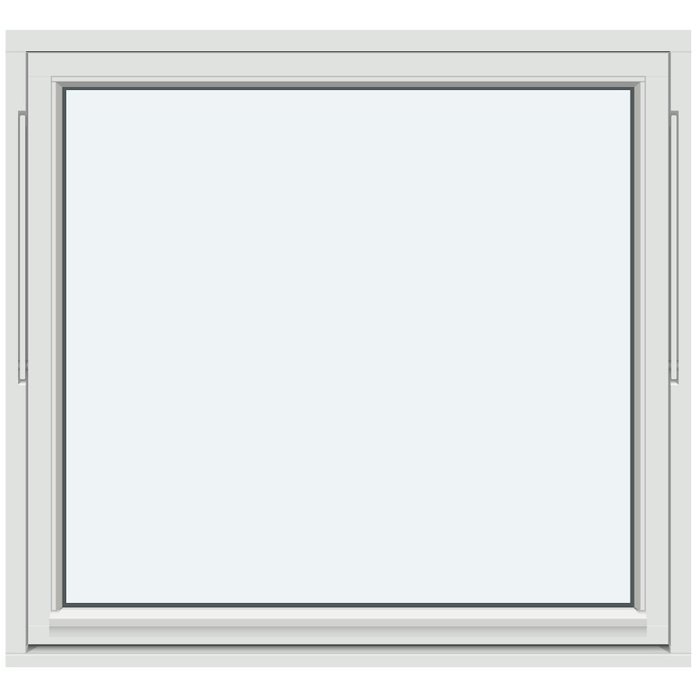

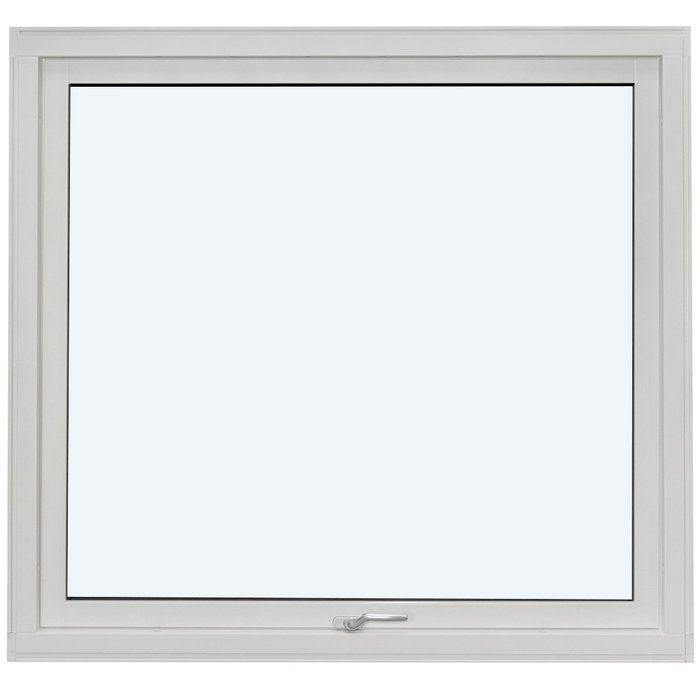

Outward-opening pivot window

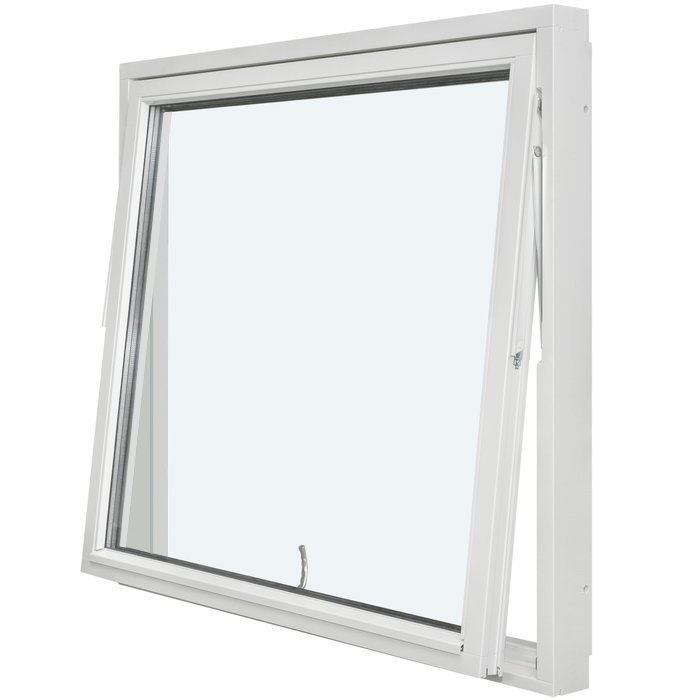

A made-to-measure lift-operated pivot window in pine or oak, also available with aluminium cladding, insulating glass and various glazing-bar patterns.

Opening type

Outward-opening sash with lifting mechanism

Material

Pine or oak, each also available with aluminium cladding

Glazing

Insulating glass with heat-reflective coating, warm edge and argon fill

Marking

CE marked

01

Operation and everyday use

The pivot window uses an outward-opening sash with a lifting mechanism. When opened, the sash moves outside, unlike windows that swing into the room. Use it deliberately and evenly in daily operation; do not move the sash by the glazing, glazing bars or components not intended for operation. The selected handle is the designated point for opening and closing.

The lifting mechanism is integral to this opening type. Handle style is selected separately and can be coordinated visually with the timber, colour and glazing-bar pattern. Also ensure that the handle will be readily accessible at the intended window position. Include sill height, nearby furniture and the normal operating position early in your selection.

Keep the outward-opening sash's travel area free of plants, stored items and other obstructions. Consider not only the immediate opening but also adjoining building elements and outdoor areas. Where several people use the window, a brief reminder that it moves outwards helps ensure controlled opening and closing by the handle.

When closing, bring the sash back to the frame under control using the handle. Avoid pulling or pushing on glazing bars and glass surfaces. Visible dirt on the frame, handle and glass can be removed by a method suitable for that surface. Care for the selected timber finish, colour or aluminium cladding according to the actual ordered specification.

For difficult-to-reach installation positions, assess future operation during planning. The handle must remain safely accessible and the sash capable of controlled movement. Mention a high sill, deep reveal, fixed fittings or other special features in your enquiry so intended use can be considered from the outset.

02

Construction, component dimensions and technical details

The outer frame measures 105 × 57 mm, or 115 × 57 mm with aluminium cladding. The sash frame measures 76 × 65 mm; with aluminium cladding it is 86 × 65 mm. These are component dimensions for the stated frame profiles, not general depth, width or height of the full window opening. The finished window size is set to measure for your project.

Installation holes have a diameter of 14 mm, and SPILKA components are specified as the hardware. Always consider the holes and frame profiles with the existing wall build-up, junctions and intended fixings. For an enquiry, clearly distinguish the structural-opening size, required window size and the component dimensions stated here.

Glazing is available as a double- or triple-glazed insulating unit. Its construction includes a heat-reflective coating, a CHR warm-edge spacer and argon gas. Black rubber seals serve as glazing seals. State the desired glass construction separately in your enquiry so it can be clearly linked to the remaining configuration.

This pivot window carries a 5-year commercial warranty and is CE marked. The warranty operates in addition to any rights available under Australian Consumer Law. In your enquiry, clearly set out the required overall dimensions, material version, any aluminium cladding, glazing and design. Add the installation position and relevant construction requirements so the configuration can be prepared clearly for that location.

Available materials are pine, pine with aluminium cladding, oak and oak with aluminium cladding. In clad versions, the selected timber remains the basis of the material combination and is supplemented by aluminium cladding. Note the differing profile dimensions: clad outer and sash frames have the dimensions expressly assigned above.

05

Assessing the intended opening correctly

Because the sash opens outwards, the space in front of the window is part of the planning. Check reveals, balustrades, planting, sills and regularly stored items there. The clearance needed depends on the planned window size and installation position. Document possible obstructions together with measurements of the intended opening.

Record the dimensions of the proposed structural opening clearly and distinguish them from individual profile dimensions. A wall opening is not equivalent to an outer-frame or sash-frame profile. Also establish whether the opening is square and even, and whether existing junctions, linings or sills must be allowed for. Necessary measurement points depend on the building situation.

The indoor side remains important for everyday use even though the sash moves outwards. Check that the handle is easily reached from the usual operating position and that furniture, benchtops, a deep reveal or fixed fittings do not impede access. This information is especially useful for high sills or unusual installation situations and should be included in the project description.

For renovation work, it can help to document the existing opening, wall construction and junction details separately. For a new build, clearly identify planned rough-opening dimensions and the intended window position. Photos can add context to an enquiry but do not replace measurements. Ensure all information refers to the same opening, especially where several windows are planned.

For made-to-measure production, the window is configured from the agreed project dimensions. Before enquiring, check what every measurement refers to and assign all details clearly to the relevant opening. Structural-opening measurements, installation position, outside travel area and handle accessibility together form a sound basis for further product selection.

06

Material, colour and visual composition

Material selection shapes the frame and therefore a substantial part of the window's visible character. Pine and oak are available, and both timbers can be supplied with aluminium cladding. First decide which timber suits your project, then whether you prefer the all-timber version or the corresponding aluminium-clad combination.

You can also choose a colour and coordinate it with façade surfaces, neighbouring windows or the desired interior effect. Always state the colour with the exact material version in your enquiry. Finish, light and adjoining materials affect perception, so colour is best assessed alongside timber, aluminium cladding, glazing-bar pattern and handle.

The glazing-bar pattern is another defining element of the composition. Without bars, the glass area appears more continuous. Horizontal bars echo level lines, vertical bars emphasise an upright division, and combined designs form a clearer grid. All available versions relate to the single sash of this outward-opening pivot window.

The handle is also part of the visible composition and can be selected with the colour, timber and glazing-bar design. As well as appearance, consider its accessibility at the intended installation position. Structurally fitted SPILKA hardware and the selectable handle style are separate elements of your product configuration.

For a restrained overall look, it may help to establish a few clear references, such as nearby window lines and a recurring frame colour. In a more divided design, a glazing-bar pattern can deliberately pick up façade axes. These examples help organise decisions rather than prescribe design rules. Your preferred combination of material, cladding, colour, handle, glass and bars remains decisive.

07

Comparing pivot windows with related product types

Our related range includes outward-opening casement windows and single-leaf patio doors alongside this pivot window. First establish whether your project needs a window or a walk-through entrance, and which opening type suits it. Then compare the number of sashes, materials, glazing and available design options for each product.

Related casement windows are available in single- and double-sash versions. Standard versions come in pine or oak, each also with aluminium cladding. There are also heritage-style products in pine or oak. When choosing between these window types, match the required sash count and material version to the existing façade divisions.

Related “Kombi” casement windows pair a fixed glazed panel with an opening sash and offer several defined glazing-bar patterns. They too are available in a standard version with optional aluminium cladding and in a heritage-style version in pine or oak. This group is useful for comparison where your plan includes a fixed glazed area as well as an operable sash.

Where the project needs terrace access, look at the related single-leaf patio doors that open outwards. Versions may include glazing, glazing bars and panels. The standard option offers pine or oak, each with optional aluminium cladding, while the heritage-style option is available in pine or oak. Consider these doors separately when the requirement is for a passage rather than only a window opening.

The following related range lets you open the named product types and review their details separately: Outward-opening single-sash casement window, Heritage-style outward-opening single-sash casement window, Outward-opening double-sash casement window, Heritage-style outward-opening double-sash casement window, Outward-opening “Kombi” casement window, Heritage-style outward-opening “Kombi” casement window, Outward-opening single-leaf patio door, Heritage-style outward-opening single-leaf patio door.

08

Prepare your enquiry step by step

Start by identifying the project clearly. Note the room, building section or window position to which the enquiry relates. Where several openings are planned, give them clear names so dimensions and design preferences are not mixed up. Then record the overall dimensions obtained and explain what each measurement refers to.

Next, choose the material version: pine, pine with aluminium cladding, oak or oak with aluminium cladding. Add your required colour. If you have not made a final decision, describe the preferred effect but clearly distinguish between a preference and a settled selection.

Then decide on the glass construction from the available glazing options. List it separately so it does not need to be inferred from the material or glazing-bar pattern. Next choose the exact name of the required bar pattern. For a version without glazing bars, state that name expressly rather than leaving the field blank.

Add your handle selection and coordinate it with frame colour, material and glazing-bar pattern. Keep the handle preference as a separate selection; SPILKA hardware belongs to the window construction. Also describe daily-use considerations, such as a high sill, deep reveal or fixed fittings that may affect access to the handle.

Finally, check that your enquiry includes the product name, position name, dimensions, material, any aluminium cladding, colour, glazing, glazing-bar pattern and handle preference. Add relevant installation information without assuming technical properties yourself. An orderly brief makes follow-up questions more focused and helps Bloomcabin understand your required configuration clearly. It turns separate decisions into a traceable enquiry for your made-to-measure pivot window.

Can the window be ordered to measure?

Yes. The window is planned to measure. Your enquiry needs clear information about the intended opening. How dimensions should be taken must suit the particular building situation and planned installation.

Which material versions are available?

Choose from pine, pine with aluminium cladding, oak and oak with aluminium cladding. Select the suitable version according to your desired appearance and project requirements.

Can I choose the colour?

Yes, colour selection is one of the available purchase choices. Coordinate colour with material, glazing-bar pattern, glazing and handle so the visible elements can be considered as one design.

Is there a choice of handle?

Yes. Handle selection is one of the available purchase choices. It is best coordinated with material, colour and glazing-bar pattern. Also consider how easily the handle should be reached in daily use at the intended installation position.

How is the glazing constructed?

Double- and triple-glazed insulating units are available. Their construction includes a heat-reflective coating, a CHR warm-edge spacer and argon gas. Black rubber seals are used as glazing seals.

Is the pivot window CE marked?

Yes, the pivot window is CE marked. When planning your project, also consider the particular installation situation and construction requirements applicable at the site.

How long is the pivot-window warranty?

The outward-opening pivot window has a 5-year commercial warranty, which does not exclude any rights available under Australian Consumer Law. Keep documents for your order and selected version so they can be clearly identified.

What should I prepare for an enquiry?

Tell us the product name, position name and dimensions of the proposed opening. Add material, any aluminium cladding, colour, glazing, glazing-bar pattern and handle preference. Details of the installation situation and the clear movement area outside help assign the enquiry clearly to your project.

Enquire about your made-to-measure pivot window

Prepare dimensions for the intended opening and your preferences for material, any aluminium cladding, colour, handle, glazing and glazing-bar pattern. Add the position name and relevant installation details, especially the movement area outside. Send us this information for a specific enquiry about your made-to-measure outward-opening pivot window.
