Outward-Opening Top-Hung Window

One awning sash for a deliberately planned outward opening

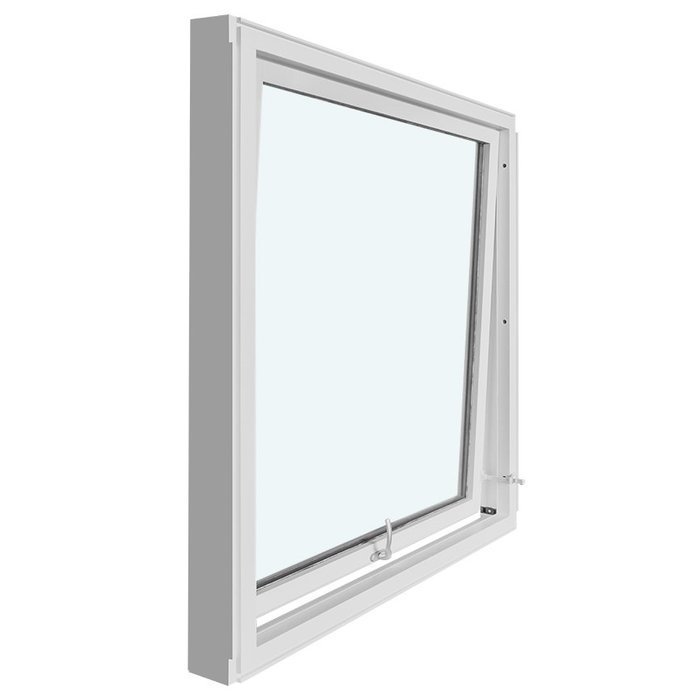

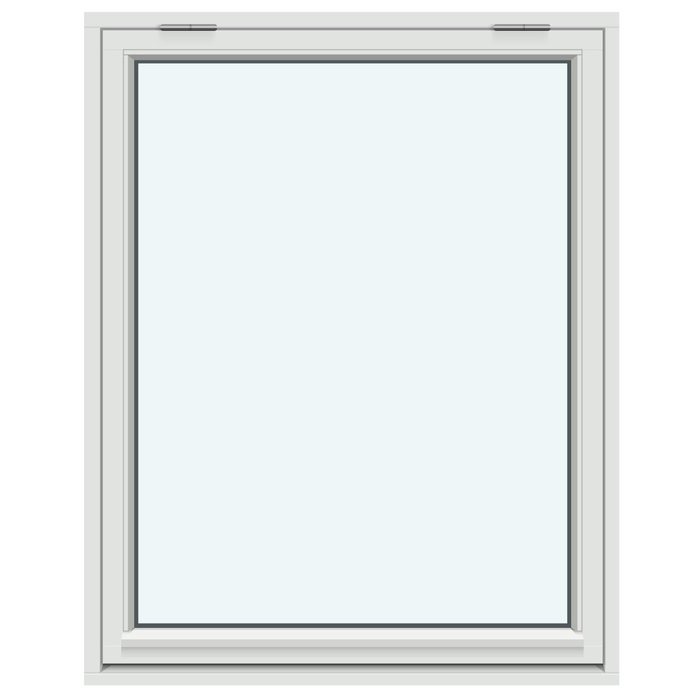

Outward-opening top-hung awning window

Configure a made-to-measure top-hung awning window in pine or oak, optionally aluminium-clad, with your chosen glazing-bar layout, colour and handle.

Opening type

Outward-opening awning sash with lifting function

Material

Pine or oak, each also available with aluminium cladding

Glazing

Double- or triple-glazed insulated glass unit with argon fill

Marking

CE marked

01

Operation and everyday use

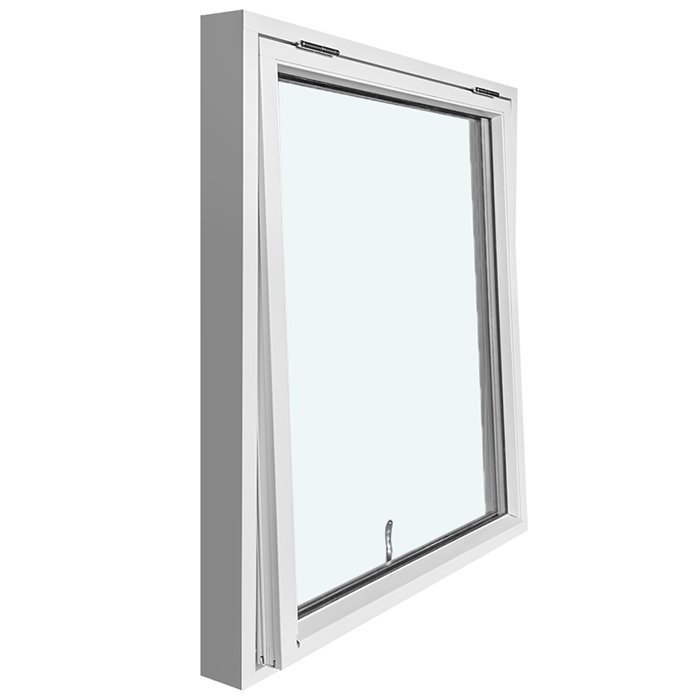

The sash is hinged at the top and opens outwards, so it operates very differently from a side-hung window. Its upper edge remains at the hinge, while the lower edge moves outside as it opens. The stated lifting function forms part of this outward-opening sash construction. In day-to-day use, you operate a defined awning action rather than guide a sash that swings sideways into the room.

Open and close the sash using the intended handle, moving it in a controlled manner. As a handle choice is available, this operating detail can be considered as part of the design specification. The window uses SPILKA hardware; select the preferred handle finish to complement the material, colour and glazing-bar layout.

For everyday use, keep the sash, handle and sealing areas clear of objects that could obstruct movement. Because the window opens outwards, the sash moves outside the room. This may suit an interior arrangement where a side-hung sash is not wanted within the space. Whether this operation is right for your project depends on the opening location, access and use of the adjoining area.

Your glazing-bar choice does not change the stated basic function: this remains a top-hung, outward-opening sash with a lifting function. Select the layout for its appearance and division, not as a supposed change to the opening action. Where the operating position has particular requirements, tell us where the window will be installed and how it will be reached in everyday use. This allows the proposed specification and intended use to be discussed clearly.

02

Construction, materials and technical dimensions

The outer frame and sash frame are made in pine or oak. Both timbers are also available with aluminium cladding. This gives four stated material versions: pine, aluminium-clad pine, oak and aluminium-clad oak. Aluminium cladding belongs to the selected material version; it is not simply a colour description.

Without aluminium cladding, the outer-frame component measures 105 × 57 mm; with cladding, it measures 115 × 57 mm. The sash-frame component measures 76 × 65 mm without cladding and 86 × 65 mm with cladding. These figures apply specifically to the named frame components. They are not overall depth, width or height dimensions for the complete window and do not replace project-specific order dimensions.

Mounting holes are specified at 14 mm. The hardware is by SPILKA; this is a named product component, not a choice between brands. Double- or triple-glazed insulated glass is available. It includes a heat-reflective coating, a CHR warm-edge spacer and argon gas. Black rubber seals provide the glazing seals.

The window is CE marked and offered with a five-year commercial warranty. Because it is made to measure, the required overall size is central to your enquiry. Keep these order dimensions distinct from the technical component dimensions of the outer and sash frames. Include your choices for material, glazing, glazing-bar layout, colour and handle so the requested version is unambiguous.

When preparing the specification, state the material version and required glazing together, as aluminium cladding changes the frame components. Also record the preferred glazing-bar layout, colour and handle. This keeps construction details separate from the choices that personalise your version.

05

Assessing the intended opening correctly

Before enquiring about a made-to-measure window, assess the intended building opening carefully. Take the relevant opening dimensions at several points and record how the opening is constructed. Clearly distinguish the existing or planned opening dimensions from the technical component dimensions of the outer and sash frames. The latter describe individual components and are not automatically the window size to order.

As the sash opens outwards, include the required movement zone outside in your project planning. Check whether building elements, cladding, balustrades, plants, outdoor equipment or other obstructions could project into the opening path. Allow sufficient clear space for the actual sash movement according to the ordered size and installation situation.

Also consider the indoor operating side. The handle should be sensibly reachable from the intended standing or access area. This is especially important for high-level or otherwise difficult-to-reach openings. Although outward movement prevents the sash from turning sideways into the room, it does not by itself establish how conveniently the handle can be reached in your situation.

Note whether the opening belongs to a new build, replacement project or another building situation. Describe existing junctions factually and include useful dimensions with your enquiry where needed. This explains the basis for your size information without mixing frame components, building opening and order size. The stated mounting holes are a product detail, not a substitute for assessing the intended connection.

Only after dimensions, accessibility and external movement space have been considered together is there a sound basis for a clear enquiry. Where openings differ in size, list every position separately. Assign material, glazing, glazing-bar layout, colour and handle to each position so no design choice is accidentally transferred to another opening.

06

Material, colour and visual composition

The window’s appearance comes from the interaction of timber, any aluminium cladding, colour, glazing-bar layout, glazing and handle. Pine and oak are the listed timber choices, and both can also be aluminium-clad. First decide whether the required version is a timber window or a timber window with the stated cladding.

A colour selection is available and can be coordinated with the rest of your specification during the enquiry. Describe the preferred colour as precisely as possible, together with the selected timber and any aluminium cladding. This lets material and colour be chosen consciously without confusing the two decisions.

The glazing-bar layout determines the visible division of the single sash. No bars create a quieter view, while several horizontal elements or their combination with a vertical bar make the arrangement more pronounced. Consider existing lines in the façade or at adjacent openings. Such coordination is a project design decision, not a technical requirement of the window.

The handle can also form part of the visible composition because a handle selection is offered. Match it with the colour, timber and glazing-bar layout for a cohesive result. SPILKA hardware and black rubber seals, by contrast, belong to the window’s technical construction and should be distinguished from the design choice of handle and window colour.

For several windows, a simple design rule can help: use the same timber and colour at every position, while varying glazing-bar layouts by opening. Alternatively, maintain one glazing-bar motif and adjust the made-to-measure sizes. These examples illustrate possible ways to create order without claiming extra variants or fixed design rules.

07

Related window types and patio doors

If a top-hung awning sash does not suit every opening in your project, consider the related product types as well. The range includes outward-opening side-hung windows with one or two sashes, including historical-style versions. Unlike the top-hung awning window, these products use a side-hung sash and should therefore be selected separately for each opening.

The side-hung “Kombi” windows combine a fixed-glazed panel with an outward-opening sash. Different glazing-bar layouts are available, dividing the fixed panel and sash in different ways. A centre-pivot roof window is also available for roof openings, while single-sash patio doors suit projects needing an outward-opening door sash.

Material availability differs by related product. Several side-hung windows, Kombi windows and the standard patio door are available in pine or oak, each also with aluminium cladding. Historical-style versions are offered in pine or oak. The centre-pivot roof window is listed in pine with aluminium cladding. Always check the selection for the particular product type.

If different window types and patio doors are to be combined in one project, list each opening as a separate position. Assign its required product type, dimensions and relevant choices. This lets you coordinate, for example, an awning window, side-hung window and patio door visually without confusing their different opening actions or technical components.

The following related products may assist your planning: Historical-style single-sash outward-opening side-hung window, Double-sash outward-opening side-hung window, Historical-style double-sash outward-opening side-hung window, Outward-opening “Kombi” side-hung window, Historical-style outward-opening “Kombi” side-hung window, Centre-pivot roof window, Single-sash outward-opening patio door, Historical-style single-sash outward-opening patio door.

08

A clear enquiry in a few steps

Start with a position list for the project. Give every intended opening a clear reference and enter its carefully measured dimensions. One window needs only one position; for several windows, a structured list helps prevent sizes and design preferences from being mixed up.

Next, decide the material version: pine, aluminium-clad pine, oak or aluminium-clad oak. Then select the required insulated-glass build. Record these decisions separately, because neither timber nor aluminium cladding automatically determines a particular glazing option.

Then enter the exact name of the required glazing-bar layout. Add your preferred colour and handle design. If colour or handle has not yet been decided, describe the direction you prefer and mark that point clearly as open. This shows which details are settled and where further discussion is needed.

Add brief information about the installation situation where it helps explain your enquiry. This includes handle access and any particular features around the external movement area. Give specific measurements and describe existing components or obstructions. Where related product types are included in the project, list them as separate positions.

Finally, check six core details: position size, material version, glazing, glazing-bar layout, colour and handle. Also confirm that a top-hung, outward-opening awning window is genuinely the required product type. A compact, clearly allocated enquiry makes discussion easier and helps capture every design choice.

Can the awning window be ordered made to measure?

Yes. This window is available made to measure. Send us the carefully measured opening dimensions so the required product size can be clearly defined and checked as part of your enquiry.

Can I choose a colour for the window?

Yes. Colour is one of the available choices. Tell us your preferred colour together with the selected material version, so the appropriate configuration can be coordinated with you.

Is there a handle choice?

Yes. A handle can be selected when specifying the window. Tell us your design preferences so we can agree the handle version that suits your configuration.

Which material versions are available?

Choose pine or oak. Both timber types are also available with aluminium cladding, giving four material versions: pine, aluminium-clad pine, oak and aluminium-clad oak.

Is the awning window available with double or triple glazing?

Yes. Choose a double- or triple-glazed insulated glass unit. Both versions include a heat-reflective coating, a CHR warm-edge spacer and argon fill.

What does CHR mean for the glazing?

For this window, CHR identifies the warm-edge spacer within the insulated glass unit. Together with the heat-reflective coating and argon fill, it forms part of the stated glazing build.

Is the awning window CE marked?

Yes, the awning window is CE marked. CE marking is among this window’s technical product details.

What warranty applies to this window?

This window comes with a five-year commercial warranty. It is additional to any rights and remedies that cannot be excluded under the Australian Consumer Law. Keep your order documents so the selected product configuration can be clearly identified if you later make a warranty enquiry.

Discuss your window specification with us

Would you like to specify an awning window for your project? Send us the opening dimensions and your preferences for material, glazing, glazing-bar layout, colour and handle. We will discuss the information with you and clarify which version may suit your planned design.
