Patio Life Lift-and-Slide Doors

Side-opening timber door with coordinated glazing and design options

Patio Life lift-and-slide doors

Patio Life lift-and-slide doors in pine or oak, with optional external aluminium cladding, 2- or 3-pane insulating glass, and selectable colour and handle options.

Material

Pine or oak, also available with external aluminium cladding

Glazing

2- or 3-pane insulating glass

Hardware

Roto Frank

Warranty

5 years

01

Sideways opening for everyday use

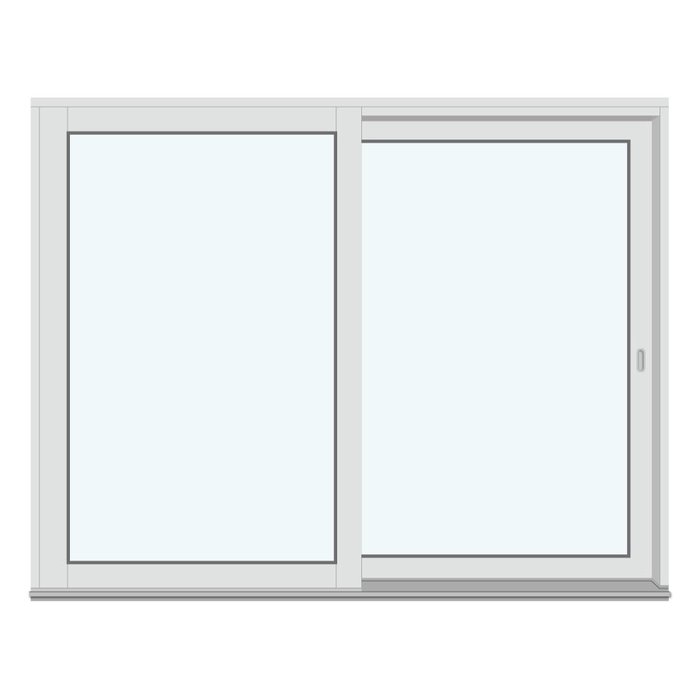

The defining feature of Patio Life lift-and-slide doors is the sideways travel of the door leaf. On opening, it moves laterally rather than swinging into the room or outdoors like a hinged patio door. In practical terms, nearby areas need not be arranged around a swinging leaf. Still, include the door position and direction of travel from the outset when planning the floor layout, furniture and circulation routes.

For everyday use, consider the route between inside and outside as one connected path. Think about which part of the room people will normally approach from and where they will continue on the patio. Dining settings, lounge furniture and regularly used walkways can then be positioned so access remains straightforward. Sideways opening supports this spatial order, but does not replace project-specific coordination of the door location and furnishings.

How often the opening will be used may also influence the choice. For a regularly used patio entrance, an accessible handle and clear circulation generally matter more than for an opening intended mainly to frame the outlook. As the handle is selectable, its appearance can be considered with the other visible hardware in the room. This gives the operating point a deliberate place in the overall design rather than leaving it to chance.

Assess the operating method before selecting material or styling. The key question is whether lateral leaf movement suits your floor plan and daily routes. Then coordinate the timber species, aluminium cladding, glazing, bar pattern, colour and handle. In your enquiry, tell us which areas will serve as access points and what design priorities matter most.

02

Timber species, aluminium cladding and construction

Patio Life lift-and-slide doors are available in pine or oak. Timber choice affects the visible character, so consider it with flooring, wall finishes, built-in furniture and neighbouring windows rather than in isolation. Pine can sit comfortably within light, understated colour schemes, while oak is often selected for a more pronounced timber presence. Which option suits best depends on your setting and chosen colour; the species name alone does not determine a particular effect.

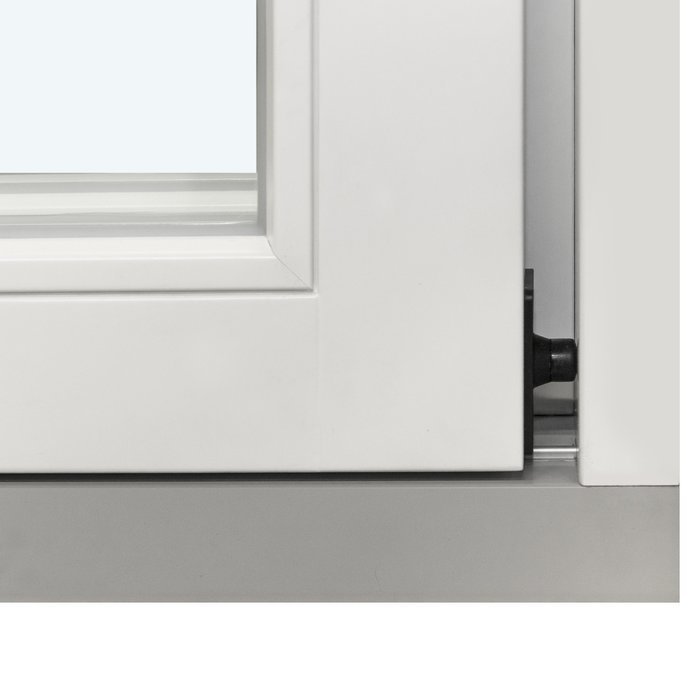

Both pine and oak can also be specified with external aluminium cladding. This combines the selected timber with an outer aluminium surface. It allows the internal and external views to be planned separately: timber and the chosen colour indoors, aluminium cladding as a visible part of the façade outdoors. Consider the exterior alongside façade colour, roof and metal elements, and existing windows.

Listed component dimensions differ according to whether aluminium cladding is selected. The frame measures 181 × 45 mm in timber and 191 × 45 mm with aluminium cladding. The door leaf is listed as 78 × 68 mm; with aluminium cladding, the leaf dimension is 88 × 78 mm. These measurements describe individual components, not the overall door size or an automatically required wall-opening size.

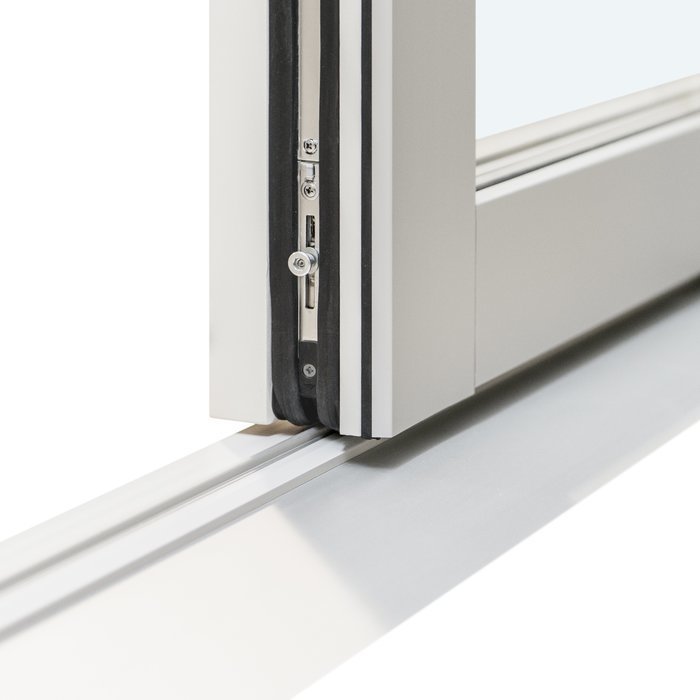

Construction details include Roto Frank hardware, silicone glazing seals and installation holes with a diameter of 14 mm. The door carries CE marking. Together, these details provide a technical product description. For project planning, pass the component information unchanged to the professionals so the frame construction, connection details and existing building opening can be reviewed together.

05

Planning the opening, dimensions and building context

Before choosing a Patio Life lift-and-slide door, accurately record the actual building opening and surrounding context. Width and height matter, as do the installation situation, wall construction and transitions to the internal floor, external surface and façade. Frame and door-leaf component dimensions do not replace project measurements. They describe product construction and cannot be used directly as order or opening dimensions.

When planning the layout, allow for the door leaf moving sideways. Check the access in relation to kitchen benches, dining areas, seating and other permanently placed elements. On the outside, include patio furniture, planters and principal paths in the review. The issue is not clearance for a swinging leaf, but a readily accessible entry and coherent circulation on both sides.

Plan the external elevation with façade openings, sill and lintel lines, and adjacent windows. Selecting external aluminium cladding also changes the listed frame and leaf components compared with the timber-only version. Confirm the material variant early so everyone works from the same version rather than mixing dimensions from different constructions.

For reliable coordination, have project measurements and connection questions checked by the professionals responsible for your project. Drawings, elevations or photographs of the existing context can help explain the situation in a product enquiry. Do not, however, derive dimensions from a photograph alone. Use documented measurements and clearly identify what each stated measurement refers to.

06

Colour, handle and architectural coordination

Colour and handle are the two expressly supported choices for Patio Life lift-and-slide doors. Colour affects both the relationship with existing components and contrast within the room. Rather than selecting a shade from a small individual sample, compare it with floors, walls, window frames and fixed joinery. For the external view, façade finishes, metal elements and any selected aluminium cladding are the key references.

The handle is both the operating point and a visible detail. It may relate to other handles, taps or fittings without requiring every metal finish to be identical. What matters is a coherent design line. As Roto Frank hardware forms part of the product, discuss handle selection within the door configuration rather than assuming it from images of other models.

Timber species, colour and external aluminium cladding each serve different design roles. Pine or oak establishes the material basis, colour influences the visible relationship, and optional aluminium cladding changes the exterior material expression. Where inside and outside present different architectural settings, assess each side separately, then evaluate them as one configuration. This helps avoid a decision that works only indoors or only on the façade.

The bar pattern is the fourth important level of visual coordination. A bar-free pattern focuses attention on the glass area, horizontal divisions establish a clear sequence of lines, and combined decorative-bar patterns create a denser grid. Choose the preferred degree of subdivision first, then coordinate colour and handle. This order helps separate major design decisions from smaller details.

07

Alternatives for different opening and design needs

The Patio Life lift-and-slide door suits projects seeking sideways leaf movement and a two-frame design. If you are comparing other laterally opening products, our range also includes sliding doors with GU hardware. This related product group has its own frame and leaf dimensions and black rubber seals, so it must not be treated as technically identical. Compare products by their respective construction, not simply by the general term sliding door.

If access specifically needs outward-opening leaves, other patio-door types may be appropriate. These include single- and double-leaf models as well as historical-style variants. Their hardware, dimensions, materials and design patterns are defined separately. Double-leaf versions can be of interest where a classically divided door elevation belongs to the architectural concept, but their opening principle differs fundamentally from the sideways movement of the Patio Life door.

Outward-opening folding doors are another independent alternative. Their folding leaves and associated patterns follow a different use concept from a laterally sliding door leaf. An external door may instead suit a project seeking a conventional outward-opening door element, with glazing or panels included in the design depending on the version. Compare these options by movement type, material and desired subdivision.

Not every glazed façade opening must provide access. Fixed-glazed rectangular or round windows do not open, so they can add light and views without serving as a passage. They cannot replace a patio door, but can combine with movable elements in façade design. Compare each product's timber species, aluminium cladding option, glazing and bar patterns.

Choose between sliding, hinged, folding and fixed-glazed elements by starting with function. Establish which opening genuinely needs to provide access, which movement works with the floor plan, and which areas are solely for daylight or views. Compare visual patterns only afterwards. This sequence reduces the risk of choosing an attractive elevation whose operating principle does not suit everyday circulation. Historical-style single-leaf outward-opening patio door, Double-leaf outward-opening patio door, Historical-style double-leaf outward-opening patio door, Outward-opening external door, Sliding doors, Outward-opening folding doors, Fixed-glazed windows, Fixed-glazed round windows.

08

Enquire about your Patio Life configuration

For a focused enquiry, first provide a brief description of the building project and documented dimensions for the proposed opening. Then state your preferred material version: pine, oak, or either species with external aluminium cladding. Add whether you prefer 2- or 3-pane insulating glass and which of the described bar patterns you are considering.

Also tell us your preferences for colour and handle. If particular façade lines, neighbouring window divisions or visible materials need consideration, briefly describe them and attach suitable views. For bar patterns especially, the precise pattern name helps distinguish glass-dividing and decorative versions clearly.

Patio Life lift-and-slide doors have the five-year commercial warranty for windows and doors. Any applicable rights under Australian Consumer Law remain in addition. With complete information, we can organise your requirements and answer product questions using the available materials, glazing, designs, colours and handles.

How do Patio Life lift-and-slide doors open?

The door leaf moves sideways. This makes everyday operation different from patio doors that swing inward or outward.

Which materials are available?

Choose between pine and oak. Both timber species are also available with aluminium cladding on the exterior.

Which glazing options are available?

Choose 2- or 3-pane insulating glass. Both versions have a heat-reflective coating, CHR warm-edge spacers and argon gas filling.

Are different bar patterns available?

Yes. Alongside a two-frame configuration without bars, there are patterns with horizontal glass-dividing bars and combinations of horizontal and vertical decorative bars.

Can I choose the colour and handle?

Yes. Colour and handle are supported options for this product. Coordinate both choices with the timber species, glazing and selected bar pattern.

Which hardware and glazing seals are used?

The hardware is supplied by Roto Frank. Silicone is used for the glazing seals.

Is the door CE marked?

Yes. Patio Life lift-and-slide doors carry CE marking.

How long is the warranty?

Our windows and doors have a five-year warranty. This includes Patio Life lift-and-slide doors.

Plan your Patio Life lift-and-slide door with us

Would you like to assess whether Patio Life lift-and-slide doors suit your planned opening and design concept? Send us the key project details, your preferred timber species, glazing choice and initial ideas for colour, handle and bar pattern. We can help you coordinate the available features in a practical way.
