Single-Panel Glazed Door Sidelight

More glazing in a clean, fixed-frame design

Single-panel glazed door sidelight

A made-to-measure fixed door sidelight in pine or oak, optionally aluminium-clad, with several glazing and design patterns.

Configuration

Fixed, non-opening door sidelight

Material

Pine or oak, also with aluminium cladding

Glazing

2- or 3-pane insulated glass unit

Warranty

5 years

01

A fixed function for everyday use

The single-panel door sidelight is a fixed glazed element within one frame. It does not open and is specifically not a door leaf. This functional distinction matters when selecting a product: the neighbouring door provides access, while the sidelight is a permanently closed part of the planned combination. It therefore requires no day-to-day operation. When comparing options, first decide whether the additional area should be glazing only and fixed, or whether a movable door element is actually needed there.

As the sidelight does not open, there is no opening direction to select for it. Handle selection is also not one of this product’s supported purchase decisions. Instead, planning centres on the right custom dimensions, colour, frame material, glazing and preferred design pattern. This keeps the specification clear and avoids accidentally applying door features to the sidelight. For example, left- or right-hinged configurations apply to movable door leaves, not to this fixed-frame solution.

In visual planning, the sidelight can serve as a calm glazed area or as a more strongly divided feature. Its effect depends mainly on the selected pattern, colour and material configuration. Uninterrupted glazing looks different from glazing divided by bars, or from a combination of glass and panel. Consider the exact arrangement alongside the adjacent door and the whole opening, without assigning an operating function to the fixed sidelight.

02

Timber and aluminium-clad frames

Pine and oak are available for the frame, and both timbers can also be specified with aluminium cladding. You can therefore choose an all-timber version or a timber solution with additional cladding. The most suitable appearance is best assessed together with the door, nearby windows and colours already chosen. Treat pine and oak as separate material decisions, guided by the preferred timber species and the overall design direction of the project.

Without aluminium cladding, the outer frame measures 105 × 57 mm. The aluminium-clad outer frame measures 115 × 57 mm. These dimensions apply specifically to the outer frame of the single-panel door sidelight. They must not be treated as door-leaf measurements or as frame dimensions from other window and door products. When coordinating neighbouring components, identify each with its correct term so dimensions from different constructions are not mixed during planning.

The single-panel glazed door sidelight is CE marked and includes 14 mm diameter installation holes. Its glazing seals are black rubber, creating a visible dark detail where glass meets frame. Consider the colour, timber species, aluminium cladding and black seals together. This helps you decide whether a pronounced contrast or a more restrained relationship with the other entrance elements is preferred.

05

Prepare custom sizing carefully

The single-panel door sidelight is available in made-to-measure dimensions. Required measurements should relate to the actual installation situation and planned combination. It is essential to identify clearly which measurement describes the full proposed opening and which applies only to the sidelight. When paired with a door, do not confuse the sidelight width, the dimensions of the door element and the overall measurement. If needed, have the relevant values professionally determined for the actual building situation.

Also describe how the fixed sidelight is to be arranged within the proposed door setting. A simple dimensioned sketch can show the complete opening, the door element and the separate sidelight area clearly. Mark which measurements belong to the sidelight and which refer to the adjacent door or whole opening. Add the chosen timber species, whether aluminium cladding is required, and the preferred colour. Where bars or a panel are selected, name the exact design pattern as well. This creates a compact project description that brings together the fixed element’s function, dimensions and appearance.

Account for the selected frame configuration when planning dimensions. The outer frame is 105 × 57 mm without aluminium cladding and 115 × 57 mm with cladding. Identify the intended version in your enquiry. Select the design pattern early, or narrow it to a few options. Fully glazed bar-free construction, horizontal glass-dividing bars, and a glazing-and-panel combination each create a different surface division. Providing the sidelight dimensions, outer-frame configuration and pattern together describes your intended appearance much more clearly and keeps those project details linked together.

06

Coordinate colour and design with doors and windows

Colour selection is a supported purchase decision for this door sidelight. Choose a colour that relates to the adjoining door and other elements, or that deliberately creates a design accent. For a cohesive overall result, assess the shade together with timber species, aluminium cladding, black glazing seals and bar pattern. The same colour name alone does not guarantee an identical appearance across different materials or product constructions, so the complete combination should be considered.

Where the adjacent door is glazed too, its lines provide a useful starting point for the design. Horizontal glass-dividing bars in the sidelight can repeat existing horizontal lines, while a bar-free version creates a calmer adjoining surface. A glazing-and-panel pattern may suit a door that also combines open and closed areas. Review both elements together and describe the intended effect in your enquiry. Clearly identify the pattern required for the fixed door sidelight so it is not confused with the design or function of the movable door element.

Several glazed areas in one project do not necessarily require the same product everywhere. A door sidelight is intended as a fixed addition to a door setting, whereas a fixed-glazed window is its own window category. Both may be non-opening, but should be selected according to their intended role, form and individual product specification. Planning material, colour and design together can coordinate related elements without transferring technical features from one category to another.

07

Door sidelight, fixed window or opening door?

Begin with the function required. If the extra area beside a door must remain permanently fixed, this single-panel glazed door sidelight is the appropriate product type within the selection described. If another access point or opening element is needed there, consider a suitable door instead. Inward- or outward-opening patio doors and side-sliding doors use their own operating methods and constructions; those features do not apply to the fixed sidelight.

A fixed-glazed window also stays closed, but it has a different product role. A rectangular fixed window is a standalone window solution; a round fixed-glazed window provides a circular form. The single-panel door sidelight, by contrast, is specifically intended to accompany a door. Selection should consider more than the shared fixed-glazing feature: assess the connection with the entrance, the shape and each product’s available design patterns during product comparison.

For interior spaces requiring a movable door, panelled internal doors are available as a separate category. Where a movable glazed door is wanted, single- or double-leaf patio doors or side-sliding door systems may be relevant. These alternatives have their own materials, hardware, frame dimensions, glazing details and purchase decisions. The linked products make comparison easier, but each should be assessed on its own function and specification.

Panelled internal doors, Siegenia side-sliding doors, Single-leaf inward-opening patio door, Double-leaf inward-opening patio door, Patio Life lift-and-slide doors, Single-leaf outward-opening patio door, Fixed-glazed windows, Round fixed-glazed windows.

08

Make the right selection with clear details

For an enquiry, provide only the details that identify the required configuration: relevant dimensions, pine or oak, with or without aluminium cladding, preferred colour, a 2- or 3-pane insulated glass unit, and the chosen design pattern. If glazing and a panel are combined, say so explicitly. For bars, specify whether they are glass-dividing or decorative and describe the requested horizontal and, if applicable, vertical layout.

Explain how the fixed sidelight will sit with the proposed door. This lets us match your selection to the available options without confusing it with a movable leaf; a brief, clear project description is more useful than assumed technical details. Our five-year window and door warranty covers this single-panel glazed sidelight and is additional to consumer guarantees that cannot be excluded under Australian Consumer Law.

Can the door sidelight be opened?

No. The single-panel door sidelight is fixed, non-opening glazing in one frame. It is not a movable door leaf and does not perform a door function.

Which materials are available?

Pine and oak are available. Both timber species can also be supplied with aluminium cladding, allowing you to select material and configuration to suit your project.

Which glazing can I choose?

Choose a 2- or 3-pane insulated glass unit with heat-reflective coating, CHR warm-edge spacer and argon fill.

Is the door sidelight made to measure?

Yes. Made-to-measure sizing and colour selection are supported. State the relevant dimensions and preferred colour as clearly as possible in your enquiry.

Are designs with bars or a panel available?

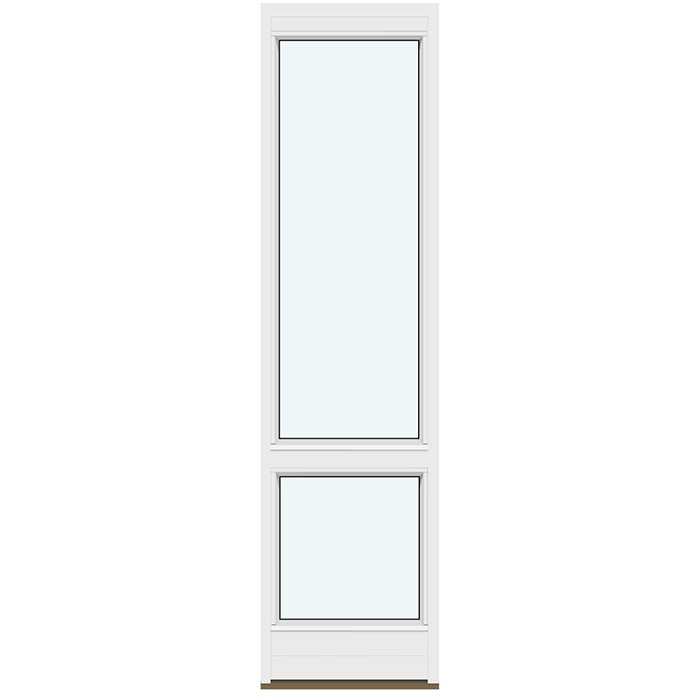

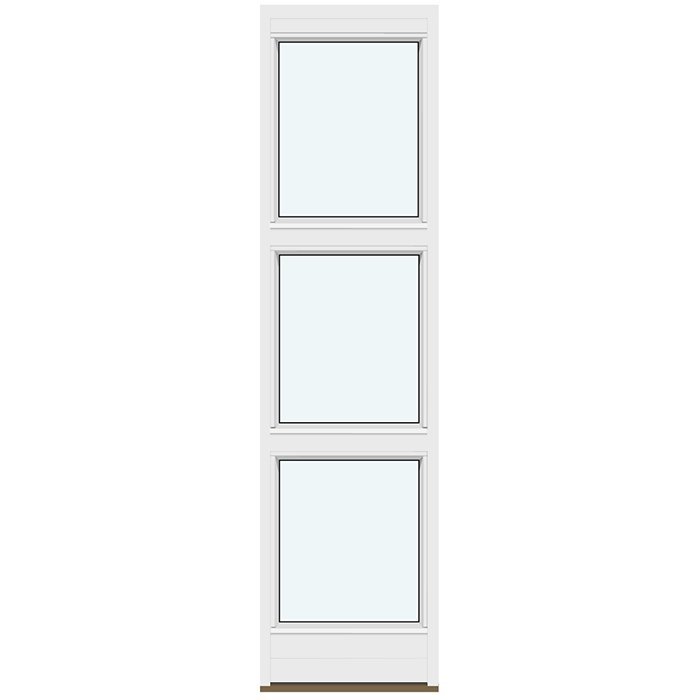

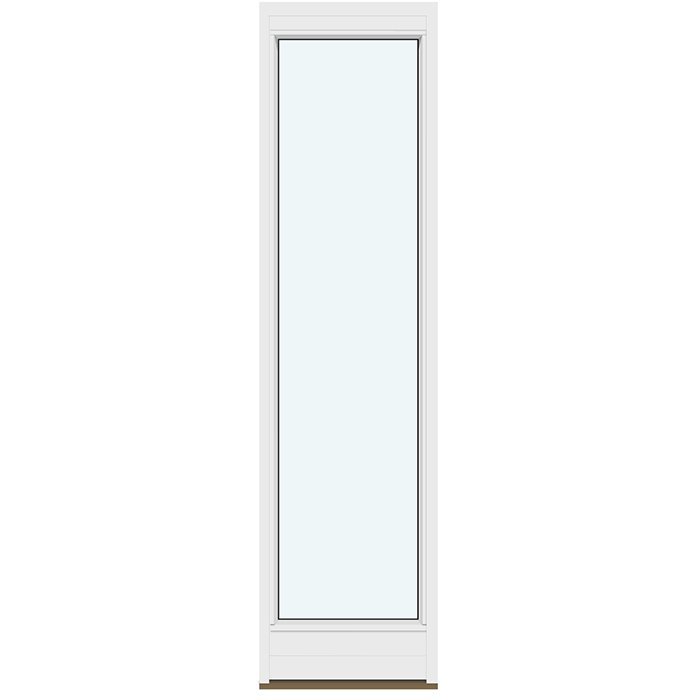

Yes. In addition to a bar-free design, there are patterns with horizontal glass-dividing bars and versions with decorative horizontal or vertical bars. Some patterns combine glazing and a panel.

Which glazing seals are used?

This door sidelight uses black rubber glazing seals. The dark outline can be considered when coordinating the entrance colour and design.

What are the outer-frame dimensions?

The outer frame measures 105 × 57 mm. In the aluminium-clad configuration, the outer frame measures 115 × 57 mm.

How long is the warranty?

The single-panel glazed door sidelight has our five-year warranty for windows and doors.

Plan your single-panel door sidelight

Planning an entrance with a fixed glazed sidelight? Send us the required dimensions, preferred timber species, whether you want aluminium cladding, your colour preference and the favoured design pattern. We can help bring together the available choices for your single-panel glazed door sidelight clearly.
