Single-Sash Inward-Opening Window

Flexible operation in a clean single-sash design

Single-sash inward-opening window

A made-to-measure inward-opening window with tilt function, four material options, insulating glazing, and choices of glazing bars, colour and handle.

Opening style

One inward-opening sash with tilt function

Material

Pine or oak, each also available with aluminium cladding

Glazing

Double or triple insulating glass

Warranty

5 years

01

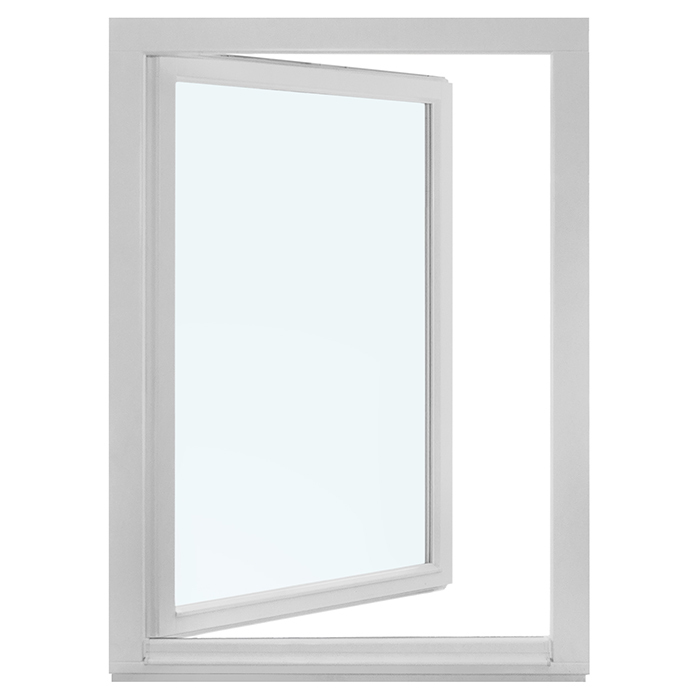

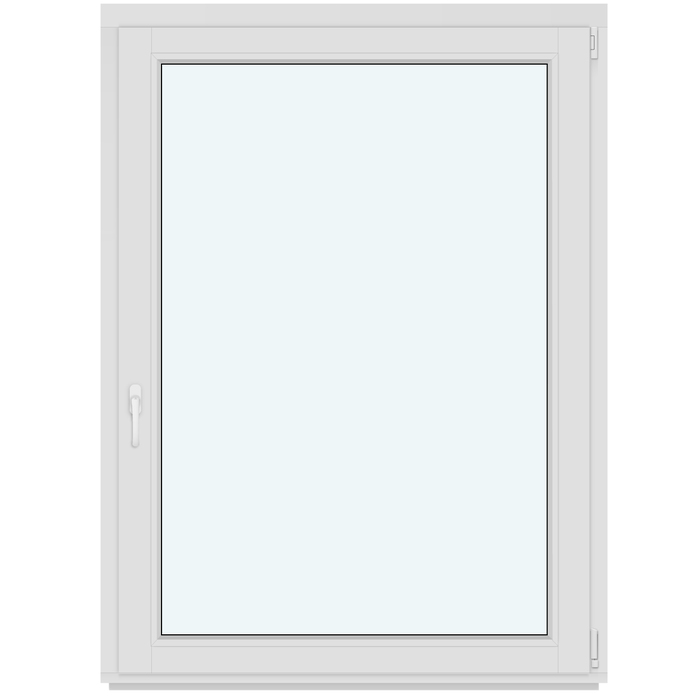

Inward opening with practical tilt ventilation

The window has one movable sash which opens into the room and can also be tilted. This lets you choose the operating position for everyday use without managing multiple sashes. Unlike fixed glazing, this model opens; unlike outward-opening windows, its sash moves into the room. Plan the surrounding sill, furniture and other items accordingly. A drawing that includes the intended furniture can make this spatial relationship clear before visible details are selected.

Because the sash opens inward, allow a suitable clear area on the room side. When planning, check whether the sill, furniture, decorations or other items could obstruct it. A clear zone directly beside the window is also helpful for the tilt position. This is not a universal room-layout rule, but a consideration for the proposed installation location. Thoughtful planning makes both functions easier to use as intended.

With one sash, operation centres on a single window element. Consider who will use it regularly and from where the handle will be reached. A worktop or deep table in front of the window may affect access even where the swing area is clear. Walk through the usual movement in the furnished room. This practical check links the window choice to everyday habits and supports a well-organised space.

02

Timber, aluminium cladding and components

Four material versions are available: pine, pine with aluminium cladding, oak, and oak with aluminium cladding. You may therefore select timber alone or combine the chosen timber with aluminium cladding. Base the decision on the material character you want and its relationship to other project windows or doors. Pine and oak remain clearly defined, separate options.

The window uses Roto Frank hardware and silicone glass seals. Installation holes have a diameter of 14 mm, and the product is CE marked. Consider the hardware part of the construction, with the selected handle as an additional operating detail. This supports an orderly comparison with other windows. You can ask specifically about available handle choices while the model’s other technical characteristics remain clearly identified. A complete product decision considers both aspects.

The outer frame measures 78 × 82 mm; with aluminium cladding, it measures 90.6 × 82 mm. The sash frame has the same dimensions: 78 × 82 mm, or 90.6 × 82 mm with aluminium cladding. These component dimensions differ from the overall ordered window size. Record the selected version alongside the relevant values so it remains clear which measurements apply to timber and which to the clad option.

05

Plan made-to-measure sizing and opening space

This window is made to measure. Record width and height with a clear reference, and distinguish opening dimensions from the window dimensions required. In an existing opening, retain any differences between measurement points. A labelled sketch explains these relationships better than a single sequence of figures. State the viewing direction as well. Where several windows are involved, short location names help match drawings to the correct position. This creates a clear basis for further discussion of the required version.

At the planned location, remember that the sash moves inward and can also tilt. Check the proposed surroundings in their real-use context. The depth of a sill or items permanently positioned near the window may be relevant. Do this before finalising colour, handle and decorative details, because a suitable opening style is fundamental to a practical everyday choice.

If the room is being renovated, the plan should show the completed space. New wall linings, an altered sill or extra built-in elements can affect the opening’s surroundings. Mark which components will remain and which will be added. The glass should also remain accessible for later cleaning. This adds surface access to planning for the sash area. A well-chosen location considers the window in use and as a lasting part of the room.

06

Coordinate colour, handle and material character

Colour and handle are selectable and each contributes differently to the overall impression. Frame colour defines the larger border, while the handle adds a small visible accent. Consider which should recede and which should stand out. A contrasting frame does not necessarily need a striking handle. Conversely, a deliberately contrasting detail can suit a restrained colour scheme. This balance gives the window a coherent appearance and connects larger surfaces with details seen regularly.

Timber finishes in the room can provide a reference for the material effect. If flooring, doors and furniture already show different timber tones, choose one clear focus for the window. It need not relate separately to every item. Connecting it to a permanent building element can be more convincing than following changeable furniture. View the preferred version from inside and check the exterior at the same time. The window is experienced against two different backgrounds and should be chosen consciously for both.

Glazing bars change how much frame colour is visible within the glass area. With stronger division, the selected colour appears in more places. Always compare a colour idea on the preferred pattern, not only on an uninterrupted example. Where railings, joints or planting already create many exterior lines, a simpler design may feel calmer. Against a largely unbroken surface, a clearer grid may instead create an intentional rhythm. The relationship between window and surroundings is decisive.

Two separate views help when selecting colour: the individual opening within the room and the row of windows across the building. Indoors, wall colour and furniture may guide the tone; outside, render, cladding and neighbouring frames can matter. Compare a preferred colour with the relevant surfaces in daylight where possible. A dark reveal makes a frame appear different from a light wall in direct sun. For a single replacement window, also decide whether it should blend in quietly or deliberately mark a change to the room. Both can be achieved through a considered selection.

07

Compare related windows and doors appropriately

If no opening function is required, a fixed-glazed window may be an alternative. It is also available in pine or oak, each with the option of aluminium cladding, and with double or triple insulating glass. A round fixed-glazed window is available in pine or oak. A combination window is another distinct product type, likewise offered in pine, oak and their aluminium-clad versions, with two or three panes. Begin by deciding whether you need this inward-opening, tilting single-sash window, non-opening glazing or a combination window.

Two separate window models are available where an EI30 classification is required. The inward-opening version has a tilt-and-turn sash, is made from oak, and uses Roto Frank hardware with double insulating glass. The outward-opening EI30 model is also oak, but uses Spilka hardware and double insulating glass. There is also an outward-opening passive-house window called Super Low Uw. It is pine with a special insulating material and triple insulating glass. Classification, material, glazing and opening direction therefore belong to their respective models; this single-sash window is a separate choice.

Where the element is intended as access to a terrace, single-sash outward-opening patio doors are the more suitable product category. Choose either a regular version in pine or oak, both also available with aluminium cladding, or a historic-style version in pine or oak. Both door models offer double or triple insulating glass and may include a panel, depending on the version. They differ from this window both as doors and through their outward opening. Start with the intended purpose, then select material, glazing and design within the appropriate category.

EI30 fire-rated window swinging indoors, EI30 fire-rated pivot window swinging outdoors, Super Low Uw passive-house window swinging outdoors, Combination window, Fixed-glazed window, Round fixed-glazed window, Patio door with a single leaf swinging outdoors, Historic patio door with a single leaf swinging outdoors.

08

Prepare a clear, complete window enquiry

For a specific enquiry, provide a clear summary of the version required. For every window position, state the project dimensions, pine or oak, and whether you want timber only or the corresponding aluminium-clad version. Add your preferred double or triple insulating glass, named glazing-bar pattern, colour and handle. Give each position an unambiguous label where several windows are involved. A table or position-by-position list can separate different sizes and configurations neatly. This lets us see which features belong together and where each window is intended to be installed.

If you have not made a final decision, send us your two preferred options and the key difference between them. You may want the new window to sit quietly within an existing room, or to deliberately change its appearance. A short description of that aim helps us discuss suitable available versions with you. You do not need to document every design route in detail. We answer product-related questions and help you compare options. This window has our five-year commercial warranty for windows and doors, which is separate from any non-excludable rights under the Australian Consumer Law. Keep the final selection with your order documents.

Does the window have a tilt function?

Yes. Its single sash opens inward and also has a tilt function, allowing you to choose between opening and tilting as needed.

Which materials are available?

Choose pine, pine with aluminium cladding, oak, or oak with aluminium cladding.

Which glazing can I select?

Double or triple insulating glass is available. Both versions include a heat-reflective coating, CHR warm-edge spacer and argon gas filling.

What frame dimensions are stated?

Both outer frame and sash frame are stated as 78 × 82 mm. With aluminium cladding, each is 90.6 × 82 mm.

Is decorative glazing-bar detailing available?

Yes. Alongside a version without decorative bars, named patterns with horizontal, vertical and combined bars are available.

Can the window be ordered to size?

Yes. The window is made to measure, with colour and handle selection also available when ordering.

Which hardware and glass seals are used?

The hardware is from Roto Frank, and silicone is used for the glass seals.

What warranty applies to the window?

Our five-year commercial warranty for windows and doors applies separately from any non-excludable rights under the Australian Consumer Law.

Plan your made-to-measure single-sash window

Talk to us about your made-to-measure single-sash window. We can help bring together dimensions, material, glazing, glazing-bar pattern, colour and handle.
