How Does a Thermal Break Change an Aluminum Window Frame?
Assessing aluminum windows properly
Glass alone does not determine an aluminum window’s thermal performance. The profile becomes especially important with slim sightlines, large units, or dark frames: without a countermeasure, aluminum can create a direct heat path between indoors and outdoors. A thermal break interrupts that path within the frame. It is a construction principle, not just a feature label, and should be assessed alongside glazing, glass-edge details, opening style, installation, and the wall connection. When comparing quotations, look beyond the phrase “thermally broken.” Confirm which values apply to the complete window, which dimensions were used, and how the unit connects to the existing or planned wall.
From profile section to real-world effect
Aluminum suits crisp, slender window designs, but it needs particular thermal attention because it transfers heat relatively easily. In a fully metal profile, heat may move from a heated interior to the outdoors in winter; when the exterior is strongly warmed, the direction can reverse. A thermal break addresses this route by dividing the profile into interior and exterior zones that are not joined by an uninterrupted aluminum bridge. A less conductive section sits between them, making the heat path less direct. It is neither an extra pane of glass nor a coating applied later, but part of the profile construction.
The effectiveness of this design cannot be judged from the visible cross-section or the apparent width of the break alone. Profile chambers, heat paths, internal cavities, frame-to-sash joints, and glazing integration all contribute. A profile that looks wider is not automatically better, nor is a slim one necessarily worse. Ask for a traceable value for the configuration being ordered rather than a general description. A section drawing that identifies inside and outside faces, glass position, seal lines, and fixing area is also useful. It gives the designer and installer a basis for checking whether the product and proposed installation position work together.
What the break can do—and what it cannot
A thermal break improves the frame, but it does not replace a whole-window assessment. By itself, it does not show how a particular installed window will perform. A window includes the outer frame, sash, glass, edge spacer, seals, hardware, and transitions to the building. Geometry matters too: a small unit often has a greater frame share than a wide fixed pane. 2 quotations that both state “thermal break” can therefore produce different values for the complete unit. Ask for the value for the actual dimensions and specification, not a brochure figure for individual components. Even a well-designed profile can lose part of its benefit if joints and sealing do not suit the wall assembly.
Do not treat a thermal break as the sole answer to drafts, summer heat, or moisture. Noticeable air movement may come from a leaky perimeter joint or a seal that is not closing properly; direct sunlight is mainly a question of glass, shading, and orientation. Condensation also depends on surface temperatures and indoor humidity. An offer for an outward-opening Passive House window Super Low Uw identifies a particular product option, but it still does not replace checking size, glazing, opening type, and wall connection. Put every performance claim in its proper context: profile, glass, complete window, or installed junction. Only information at the same level can be compared meaningfully.
Compare the complete unit
Distinguish frame, glass, and whole-unit values
Window quotations often include several heat-transfer coefficients. A glass value describes the glazing and a frame value the frame area; for a buying decision, the value for the entire window or door unit is usually more informative. It combines the proportions of glass and profile and includes the glass edge in its calculation. An excellent glass value cannot simply be transferred to the complete unit. Equally, a thermally favourable frame cannot fully compensate for unsuitable glazing. Ask the supplier to state the reference clearly: does the figure apply to glass, frame, or the complete component? Confirm the planned width and height as well, since the frame-to-glass ratio changes with the format.
Use the same unit schedule for every quotation. Consider 2 similar-looking windows: one has an opening sash, while the other is a fixed pane with less profile area. Even with identical glass and profile series, their whole-unit values may not match. Mullions, transoms, and glass-dividing bars also change the geometry. Request figures for representative units in your project, especially the smallest, largest, and most divided. Check whether each value is calculated, stated for a reference size, or based on the actual dimensions. Record that basis in your comparison table so component values are not confused with complete-unit values later.
How window size and use change the priorities
In a large fixed pane, glass shapes the appearance and occupies much of the area; in a smaller opening window, the frame can have greater influence. Thermal separation matters in both cases, but for different reasons. Where ventilation is not needed at that location, fixed-glazed windows can be a sensible starting point for a calm, large-format façade opening. Before choosing one, decide how the room will be ventilated, how the exterior will be cleaned, and how direct sunlight will be addressed. A fixed pane does not replace an operable unit elsewhere. Opening sashes add handle height, swing direction, furniture clearance, and hardware to the decision. The right choice follows the role of each unit in the façade, not one rating alone.
Before choosing products, write a short use scenario for each room. In a kitchen, a reachable ventilation opening may matter more than an uninterrupted expanse of glass. In a stairwell, safe cleaning can be the priority, while a fixed clerestory may simply provide daylight. Large units also require early planning for transport, access, and installation without automatically dictating a particular division. First determine which areas must open, then compare thermally equivalent configurations. This helps avoid paying for an improvement that proves impractical in daily use or is obstructed by furniture, counters, or railings.
Opening style: the frame is part of a moving system
An opening window brings a fixed frame and moving sash together. Seals, hardware, and profile geometry must work together at the rebate. The thermal break is located within the profile, while airtightness and ease of operation depend on the whole system. Include the opening type and handing when reviewing samples, rather than asking only about frame construction. A 1-sash inward-opening window suits a different room arrangement from an outward-opening model. Inward-opening sashes need clear swing space; outward-opening versions affect use of the exterior area. Do not make this choice late simply for a narrow sightline. It also affects handle position, cleaning, safety measures, and detailed planning of the building connection.
Review operation using an elevation with the real handle height and full sash dimensions whenever possible. A large sash can look elegant on a drawing yet be awkward in daily use or conflict with a deep reveal. Several smaller sashes offer different ventilation options but increase the proportion of profiles and joints. An outward-opening top-hung window is another opening option and should be selected only where operation, exterior space, and cleaning suit the intended location. Record the opening direction, hinge side, handle side, and adjacent components for every unit. This prevents thermally similar quotations from containing functionally different windows.
Consider glazing bars and profile divisions carefully
Glazing bars alter rhythm, appearance, and glass layout. For thermal assessment, establish whether they divide the glass or are purely decorative. Glass-dividing bars separate the glazing structurally and increase the length of frame and edge zones. Decorative bars affect construction and cleaning differently. The aim is not to rule out a design, but to have the same version calculated and sampled when comparing options. A unit with a fixed pane and divided sash also combines several area proportions. A window with a fixed light and divided opening sash illustrates why frame widths and bars are more than decorative lines: they shape the visible construction. Ask which bar solution is offered and whether the quoted values represent that version.
Review exterior elevation, interior elevation, and a scale profile section together when selecting finishes. A fine line on a façade drawing can appear much wider once the outer frame, sash frame, and bar meet in the built unit. Conversely, an applied bar can look very different close up from a glass-dividing solution. Record bar width, position, colour, and connection to perimeter profiles without inferring thermal properties from appearance alone. With several window types, coordinate the grid across fixed panes and opening sashes. The elevations can remain consistent while technical values are stated separately for each genuinely different construction.
Compare the complete unit
Review large openings and exterior transitions separately
Connection details become more significant at wide openings. A sliding unit or folding door has multiple profiles, moving transitions, and a threshold, so its heat path is not comparable with that of a small hinged window. Patio Life lift-and-slide doors are one product type where the desired opening width, sash layout, and patio use should be decided first. Only then can a suitable version be requested. Ask to see the lower connection in the context of the interior floor and exterior finish. Thermal separation within the profile does not, by itself, show how flooring, threshold, waterproofing, and drainage come together. Coordinate this interface among the design team, window supplier, and involved trades before ordering.
For a large opening, do not compare only the value of the closed unit. Clear passage width, operating sequence, handle use, cleaning access, and the position of fixed and moving sections are also important to the purchase decision. A low threshold appearance is not a complete junction design: the planned interior and exterior finished levels must be visible in the detail drawing. Ask who is planning adjacent waterproofing and finish work and what preparation is needed before installation. Record any planned solar shading or guide tracks so sufficient space is allowed. This prevents unresolved interfaces at the project’s largest unit from overshadowing the profile’s thermal quality.
Installation determines the transition to the wall
A window may be carefully configured as a product yet lose effectiveness if its position in the opening and its sealing remain unclear. Thermal separation does not end at the edge of the profile; the assessment continues at the frame-to-wall connection. Relevant questions include wall construction, the window’s position in the reveal, fixings, space for the connection detail, and interior and exterior joint layers. The answers are not automatically the same for an existing masonry wall, rainscreen façade, or wood-frame wall. Request a connection proposal for the actual construction rather than a general assurance. In renovations, first establish which layers are present and sound. Qualified professionals can then coordinate project-specific details.
Photos, reveal dimensions, and a clear sketch of the existing or planned wall build-up are useful preparation. Mark shutter boxes, window sills, cladding, interior plaster, and neighbouring insulation zones where known. The window supplier can identify missing information, but responsibility for the final detail must still be agreed clearly. Before placing the order, clarify who checks openings, assesses fixing substrates, selects connection materials, and inspects work after installation. If site dimensions differ, identify who authorizes changes. This coordination is as important as choosing the profile, because even the best unit cannot resolve an uncertain installation condition.
Coordinate heritage styling and special shapes
A historic appearance raises different design questions from a streamlined construction, but both can be assessed technically when requirements are brought together early. An outward-opening “Kombi” casement window in a heritage style first describes a style and opening direction. It does not establish a general performance value or suitability for a particular building. Review visible frame widths, bar pattern, divisions, opening direction, and available sizes alongside the requirements for glazing and the wall junction. The same applies to shapes beyond a rectangle. Fixed triangular and angled windows need their own detailed review because of their geometry; area and connection lines cannot be sensibly derived from a standard rectangular window. In existing buildings, design and technical assessment should proceed in parallel rather than one after the other.
When replacing windows, do not record only the clear masonry opening. Existing frames may be partly concealed, reveals may be out of square, and interior and exterior opening dimensions may differ. Clear reference points, angles, and diagonals are particularly important for special shapes. Agree who will take the final site measurements and which drawing authorizes manufacture. If an existing division is to be retained visually, document front-facing façade photographs and close views of relevant profiles. This material helps separate design requirements from technical assumptions. In Canada, publication of a federal model code does not by itself establish the rules in force for every project; confirm the applicable provincial or territorial requirements, municipal permits, and any heritage review for the specific address with the relevant authorities and qualified professionals.
Make the quotation request comparable and order-ready
A good enquiry includes more than quantity and rough opening size. For every unit, record intended dimensions, opening type and handing, fixed panes, divisions, colour or finish, glazing preference, bar type, and wall and installation situation. Add planned sun or insect protection and requirements for operation and cleaning. Ask specifically for the value of the complete unit in the requested configuration and for the dimensions on which it is based. For a 1-sash inward-opening patio door include the clear swing area, floor level, and handle side in the same enquiry. This avoids transferring a statement for a sample format unnoticed to another door size. Quotations become comparable only when they document the same assumptions.
Review in 3 columns: ordered, offered, and still to be clarified. Check every line for dimensions, quantity, opening symbol, interior and exterior colour, glass build-up, bars, handles, and accessories. Enter thermal information with its reference basis and flag differences rather than overlooking them behind similar product names. Before approval, elevations and position numbers should match the floor plan and façade drawings. Also agree the boundaries of responsibility for measuring, delivery, installation, and connection work. Bloomcabin provides a 5-year warranty for windows and doors. Delivery takes 4 to 6 weeks, subject to order confirmation, so scheduling should be based on the confirmed order.
Frequently asked questions
Is every aluminum window thermally broken?
No. The product description or quotation must confirm whether a thermal break is included. Even then, the configuration of the complete unit remains important. Ask for the whole-unit value for your intended size, glazing, and divisions, as well as the reference basis for the stated figure.

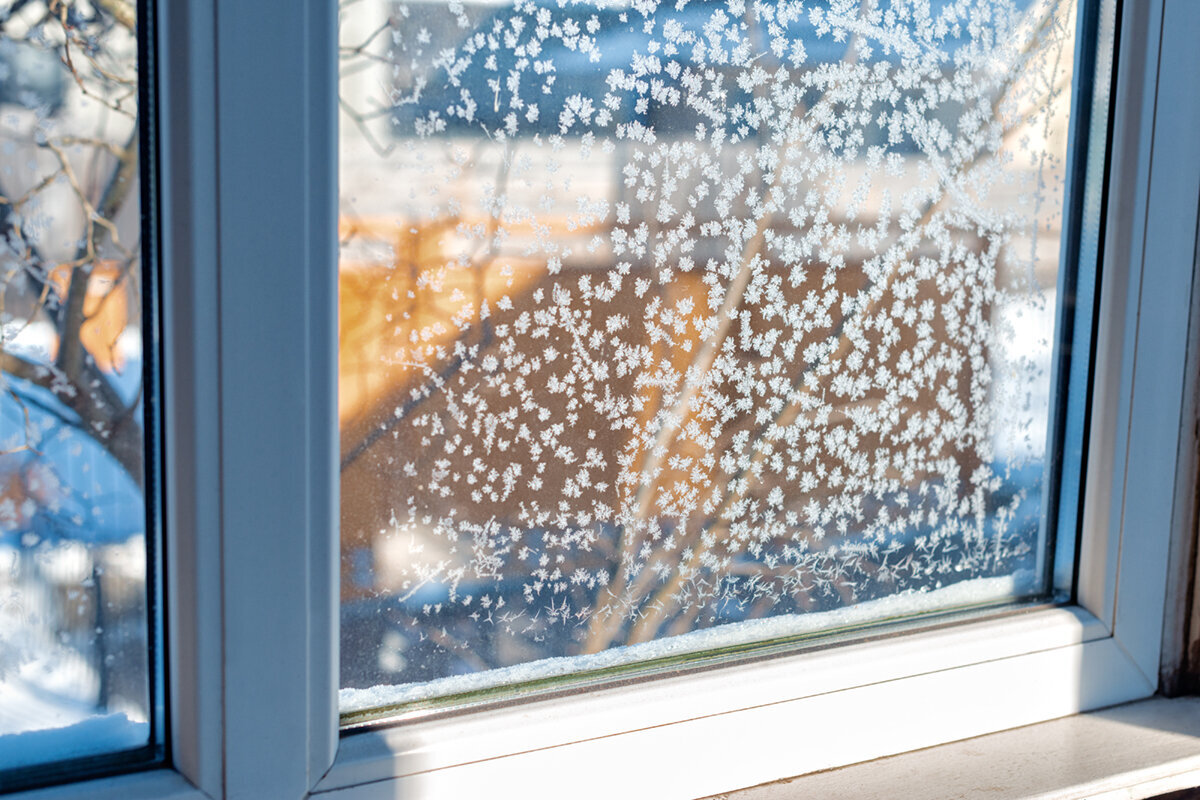

Does a thermal break automatically prevent condensation?
No. It can improve the inside surface temperature in the frame area. Condensation also depends on room temperature, humidity, ventilation, glazing, the glass edge, and installation. Recurring moisture should be investigated as an interaction of use, component, and connection rather than attributed only to the aluminum profile.
Are slim aluminum frames always thermally worse?
Not necessarily. A slim sightline changes the balance between frame and glass, but it cannot be assessed without specific data. Compare units with the same dimensions, layout, and glazing. The value for the complete window then gives a better indication of how design and thermal behaviour work together in the actual configuration offered.
Which documents should I request before ordering?
Request a complete unit schedule, elevation drawings with dimensions and opening directions, details of glass, bars, and finish, and the whole-unit value for each relevant configuration. Project-specific connection drawings are also important. For doors and large openings, coordinate the threshold, floor build-up, drainage, and adjoining work early.
Can the wall connection be planned after ordering the windows?
That is not advisable, because frame dimensions, installation position, fixings, and joint construction must work together. For a renovation, document the existing wall assembly before approval. Have the connection planned for the project and record who is responsible for site measurement, detail approval, installation, and follow-on trade work.
Next steps
A thermal break interrupts the direct heat path through an aluminum profile, making it an important part of frame construction. For a dependable buying decision, however, “thermally broken” is not enough. Compare complete units in the sizes you actually need, distinguish glass, frame, and overall values, and review opening style, divisions, and operation. A connection suited to the wall and floor build-up is equally important. A detailed unit schedule, clear drawings, and assigned responsibilities make quotations easier to compare and reduce unanswered questions before dimensions and configurations are released for manufacture.
