Designing Circular, Arch-Top and Gable Windows
Window Planning

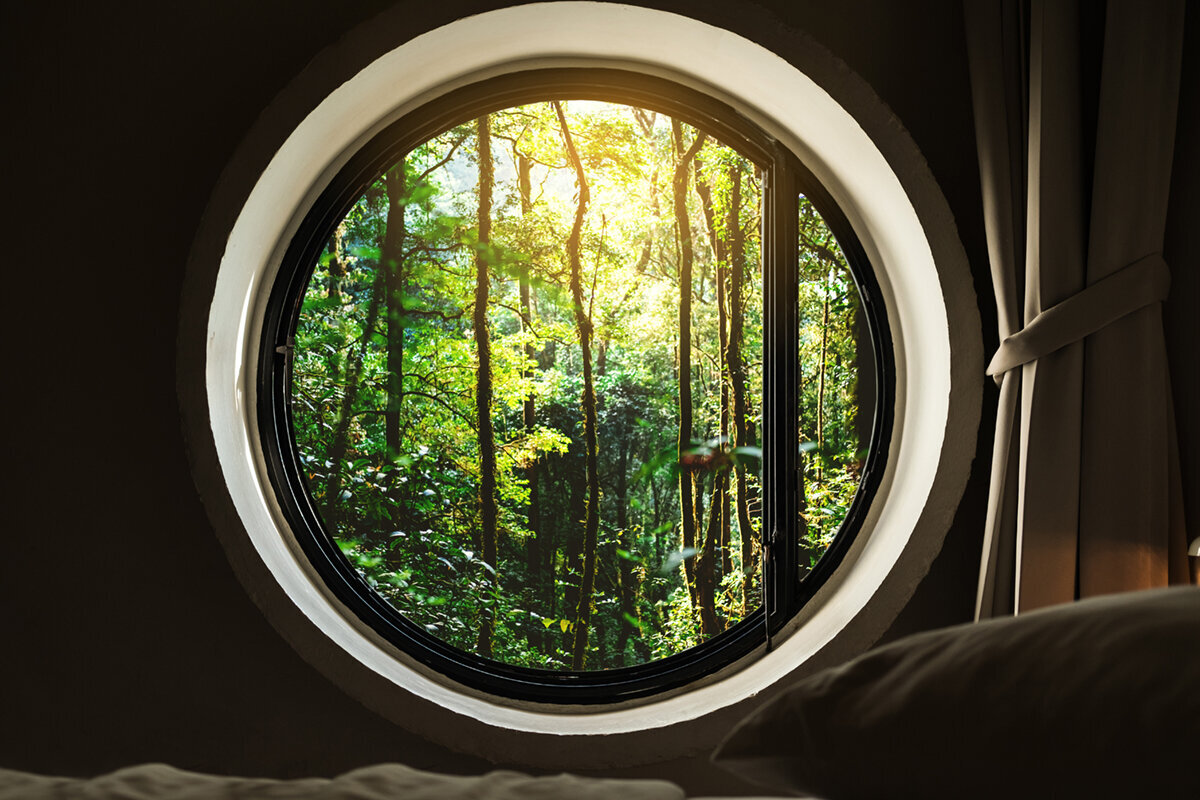

A circular window on a stair landing, a segmental arch above a patio door or a gable window below the roofline only feels natural when its shape, prepared opening and intended use work together. With non-rectangular glazing, appearance is only one decision. Will the unit admit daylight, ventilate, frame a view or continue the façade’s existing order? Seemingly small choices affect measurement, divisions, hardware, interfaces and the construction sequence. Review the complete run of windows on an elevation before choosing individual special shapes, so the finished result is calm, usable and convincing beyond the sketch. This guide helps coordinate round, arched and gable windows with adjacent rectangular windows, insulation and weather-sealing layers, and installation planning.
Start with the window composition, not the individual shape
A special shape should have a purpose within the overall elevation. A round window may brighten a stair flight, a semicircle can emphasize the top of a rectangular opening, and a triangle can echo the roof pitch. Draw the entire façade, including storey levels, door heads, roof edge and every window axis. Imaginary alignment lines matter: does the centre of the circle sit on an axis? Does the arch spring from the same height as neighbouring heads? Do gable-window slopes meet the roof geometry or sit deliberately apart from it? These are more than matters of taste. They determine whether the opening reads as architecture or as an added motif.
Interior reference points are different. Beneath a sloped ceiling, a gable window can make a room feel taller, while a round window at a landing can create a focused pool of daylight. Assess views, furnishings and future cleaning, rather than judging the outside alone. Where a room chiefly needs daylight, a fixed window is a useful starting point: its form can focus on light and proportion without accommodating a sash. If ventilation is also needed, the special shape itself need not move. A fixed feature pane paired with an unobtrusive, accessible opening window often produces the calmer and more practical room.
Define the geometry clearly and measure early
“Round” or “arched” is not enough information for an order. A circular window needs at least its diameter and its reference to the finished wall face. For a semicircle, width, overall height and springing line are essential. Segmental arches also require the rise or curve definition; pointed and gable forms need width, height, angle or an exact outline. Always state whether dimensions refer to the structural opening, the opening after finishing, or the intended unit size. Mixing these references can leave discrepancies undiscovered until weather sealing and interior finishes are underway. A full-size template may also be needed for free-form or irregular contours. Identify who prepares it, which building layer it is taken from and how its orientation is marked. Agree whether fabrication follows a drawing, digital measurements or an approved template; conflicting sources must not circulate at once.
Existing openings with older reveals deserve especially careful measurement. Check width, height and diagonals at several points, as well as unevenness. Scaled photographs, an elevation sketch and a clearly marked interior and exterior side help everyone involved. Where an opening appears symmetrical, verify that its centre truly is centred. A fixed round window is a clear starting point for a circular daylight opening, but it does not replace an accurate shape drawing. When comparing quotes, ask which dimensions govern fabrication and who checks building-opening variations before approval.
Consider the complete opening
Separate fixed glazing, opening sashes and ventilation
The more complex the outline, the more carefully ask whether that exact field must open. Fixed glazing can suit a high gable, a stair wall or an elevation that needs an uninterrupted shape. It may also make sense where the reachable area below serves another purpose. An operable sash, by contrast, requires room for its frame, hardware and swing path. In an arch, it also changes the visual effect because the structure must follow the opening function. Decide first on daylight, air change, view and usability; the shape should then support those needs.
Opening a window that cannot be reached without a stool or other aid rarely solves ventilation well. In rooms requiring regular airing, allow for a usable operating height, sensible handle access and clear space in front of the sash. Instead of an operable arch, a separate higher-level outward-opening top-hung window may be considered if its position and opening direction suit the room and façade. The distinctive fixed pane can then remain visually intact while ventilation is placed where it can be used. The best arrangement depends on use, furnishings and installation conditions, so divide functions before finalizing the elevation.
Choose arch profiles for their effect and their interfaces
A true semicircle is quiet and symmetrical, but requires an opening with clearly defined vertical sides and springing line. A segmental arch is flatter and may suit broad, lower openings. A pointed arch directs the eye upward and changes a façade more strongly than a shallow curve. The key question is not which shape appeals in isolation, but whether it suits the proportions, window axes and existing lines. Where a form repeats across several openings, document its radius, springing point and divisions consistently. Differing spring heights alone can make a series look unintentionally uneven.
A fixed semicircular window can work as a fanlight above a rectangular opening when its straight edge and diameter deliberately relate to the element below. It is not automatically the right companion for every door or window. Consider whether the rectangle and semicircle should be separated by a visible frame section, a continuous transom or another division. The interior reveal must also resolve the change clearly. Send more than final dimensions in an enquiry: include an elevation showing the relevant reference edges. That allows the intended relationship between the lower unit and arch to be checked before fabrication is authorized.
Develop gable windows from roof shape and room daylight
A gable window is more than a triangle set into a wall. Its slopes relate to roof pitch, verge detail, interior lining and often structural components. Decide whether the top outline should follow the roofline exactly or whether a rectangular or trapezoidal solution uses the room better. A very tall triangle can carry daylight deep into a room while contributing less useful viewing area lower down. Conversely, a low rectangular window combined with a fixed shaped panel can treat view height and roof form separately. Review the alternatives from inside as well as on the façade. Compare at least two scaled options: one close to the roof slopes and one set farther in with more wall around it. The first makes greater visual use of the gable; the second often creates clearer interface zones. In both drawings, show the real frame face rather than depicting the structural opening as glass alone.
For daylight in a roof gable, a fixed triangular and angled window offers a direct shaped solution where opening is unnecessary. Before selection, designers and installers should review the actual structural outline, interface surfaces and route of the interior lining together. At sloping edges, adequate room for a continuous, carefully planned connection matters more than a drawing that fills every remaining area. Show where the frame edge, glass area and interior reveal will sit. This avoids surprises when the visible glass is smaller than the imagined opening or the interior slope differs from the exterior.
Plan glazing bars as a pattern, not after-the-fact decoration
Glazing bars can organize the glass, reflect historic precedents or visually divide larger fields. Their pattern is especially influential in round and arched windows: radial lines draw toward the centre, horizontal lines may calm an arch, and vertical lines can relate to adjacent rectangular windows. First decide whether the bars are decorative or genuinely divide the glazing. Use unambiguous terms for decorative bars and glass-dividing bars. A drawing should show their position, number, symmetry and relationship to the frame, rather than simply stating “with glazing bars.”
Fewer divisions may look clearer in a small special shape, while a large gable field can benefit from a coordinated pattern. View the design in daylight from typical distance and from the room’s actual sightline. A layout that feels balanced on a sample drawing can interrupt the view from indoors. Where operable units sit beside the shaped window, an outward-opening traditional-style Kombi casement window can be a visual reference for a traditional divided window arrangement. The exact glazing-bar layout for the complete project must still be drawn and approved separately; a product title does not specify a custom division.
Consider the complete opening
Review the interior and exterior together
Frames, reveals and glazing are experienced differently indoors and out. An arch may look like a slim outline outside, while inside its reveal occupies wall area and depth. A round window’s planned interior finish should not accidentally create an uneven border. In a gable, check whether the slope, window edge and ceiling finish meet as clear lines. Prepare an exterior elevation, interior elevation and at least one section for every special opening. A section exposes matters missing from a front view: wall build-up, set-backs, window location and the routing of connection zones. Add eye level, finished floor level and key furniture lines to the views. This can reveal, for example, whether a transom crosses a preferred sightline or a deep sill obscures the lower glazing. On stairs, assess views from several steps and landings, because the perceived centre and outlook change while moving.
Opening direction belongs in this review. An inward-opening sash occupies room space and can conflict with curtains, radiators or furniture; an outward-opening version needs clear space outside. In rooms with limited interior area, an outward-opening single-sash casement window can be a reference for functional planning. It does not replace an arched shape, but it demonstrates that appearance and operation may be considered separately. Mark the sash path on the floor plan and check it against the intended furnishings rather than waiting until installation.
Plan interfaces with wall, roof and weather sealing
A special window does not end at the visible frame edge. It needs an interface with the relevant wall or roof assembly that connects the project layers clearly. Curves and slopes make detailed planning more important because materials cannot simply continue as they would along a straight line. Establish who designs the interfaces, who prepares the opening and who coordinates the work. Draw the window position in the wall, exterior and interior connection zones, possible linings and transitions to stucco, cladding or roof surfaces. General product imagery is no substitute for a project-specific section.
Pay particular attention where geometries meet: the springing point over a rectangular opening, the tip of a triangle and the lower corners of a gable window. Avoid improvised solutions at these locations, where the structural contour, insulation and visible finish can otherwise clash late in the work. In a roof plane, a centre-pivot roof window is a different product category from a window in a vertical gable: it sits within the roof surface and therefore needs a different integration approach. Do not confuse these situations in the specification. State the location and building element clearly, and have the responsible project professionals assess the selected interface concept for the specific project.
Coordinate existing character, style and replacement openings responsibly
When replacing an existing shaped window, the current appearance is valuable design information but not a complete fabrication instruction. Record the outline, divisions, visible frame faces, reveal depth and relationship to neighbouring windows. Then decide what should remain: the precise form, symmetry, a traditional glazing-bar pattern or chiefly the room’s daylight effect. A new solution can fit its setting without copying every detail. Equally, a visually similar shape may look wrong if it ignores the building’s axes or divisions. Samples, photographs from several distances and an overlay drawing of the existing and proposed elevations support a considered decision.
If an opening will serve different purposes in future, assess the change as a complete package. A purely decorative fanlight does not automatically become a useful ventilation window simply because it gains a sash. A two-sash existing window can become a quieter, more fixed glazed area where daylight matters more than operation. For the operating logic of a broader rectangular window, an inward-opening double-sash window is a useful comparison. Choosing it says nothing, however, about historic character, glazing bars or the right shape for a replacement opening. Let the final choice follow site measurement, room use and the full elevation, not an old photograph alone.
Organize enquiries, approval and installation precisely
A strong enquiry gathers information that otherwise arrives piecemeal later: dimensioned elevations, sections through unusual interfaces, interior and exterior views, opening direction, required fixed panes, glazing-bar drawings, project-specified colour or finish, and photographs of the existing condition. Give each unit a clear reference number. Ask which details still need confirmation before fabrication, and compare quotations against the same drawing basis. An apparently lower-priced option means little if the shape, divisions or functional scope differ. Before approval, check every contour again against the actual opening and planned finished wall.
Coordinate the schedule with structural work, weather sealing, stucco or cladding, and interior finishes. Bloomcabin states a delivery period of 4–6 weeks for windows and doors, subject to order confirmation; set the firm sequence only after that confirmation. Do not expect site measurements to be corrected silently after ordering. On delivery, check the reference number, visible shape, opening side and any evident damage before installation. Keep approved drawings and acceptance documents organized. Windows and doors carry a 5-year warranty; consult the relevant documentation for applicable conditions and procedures.
Frequently Asked Questions
Can a round window open?
Opening function is a separate design decision. With round or arched outlines, frames, hardware and sashes strongly affect both appearance and usability. For daylight alone, fixed glazing is often clearer. If ventilation is needed, a separate accessible opening window may be the more practical alternative.
What measurements does a manufacturer need for an arched window?
The manufacturer needs a clear outline and a stated measurement reference. For a semicircle, width, overall height and springing line are important; other arch types also require their exact geometry. Mark the interior and exterior sides, and whether dimensions describe the structural opening, finished opening or unit. A dimensioned elevation and section prevent uncertainty.
Are glazing bars suitable for gable windows?
That depends on size, view, neighbouring windows and the intended façade order. Glazing bars can organize a large area or continue an existing pattern, but they can also interrupt the clear triangular form and outward view. Set the division and type of bar on an approved elevation.
When should site measurement take place?
The governing measurement should be taken when the opening and the layers that determine window position can be assessed reliably. The right time differs between new construction and renovation. Agree it with those responsible for structural work, wall build-up, interfaces and installation before fabrication dimensions are released.
Do I need approval for a gable window?
There is no single Canada-wide answer without the location, building and scope of work. First identify the province or territory and municipality, because national model codes do not by themselves establish the rules in force everywhere. Ask the local permit office about zoning and building-permit requirements. As a municipal example—not a national rule—Toronto lists new, enlarged or relocated window openings as work requiring a permit. Have qualified project professionals review the structure, building type and envelope changes before work begins.
Next Step
Round, arched and gable windows succeed through a clear chain of decisions, not shape alone. Develop the outline from the façade, room and intended use; separate daylight from ventilation; and document measurements, reference lines and glazing-bar patterns unambiguously. Then put interface details, operating clearance and installation sequencing on the same planning basis as the elevation. Align a dimensioned exterior view, interior view and suitable section before ordering to establish a dependable foundation for measurement and execution. The special window can then become an integrated part of the building rather than a late site complication.
