Wall-Mounted T-Shaped Greenhouse

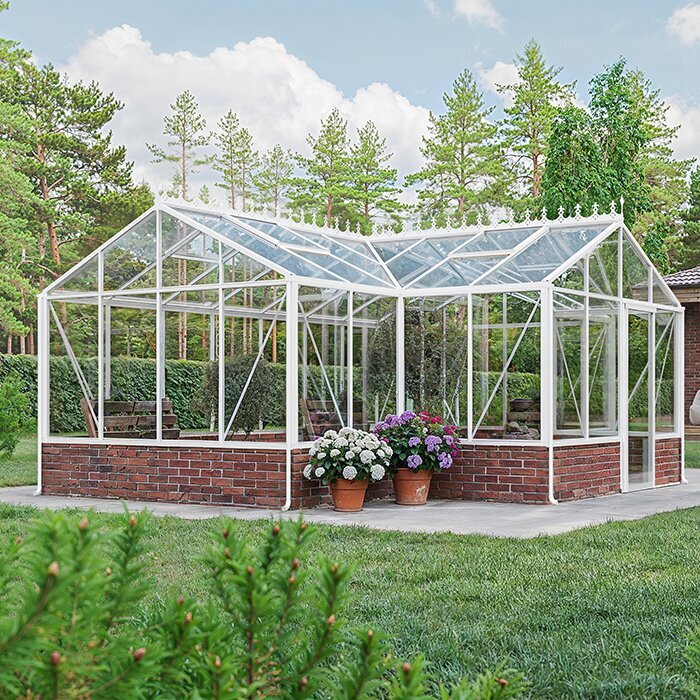

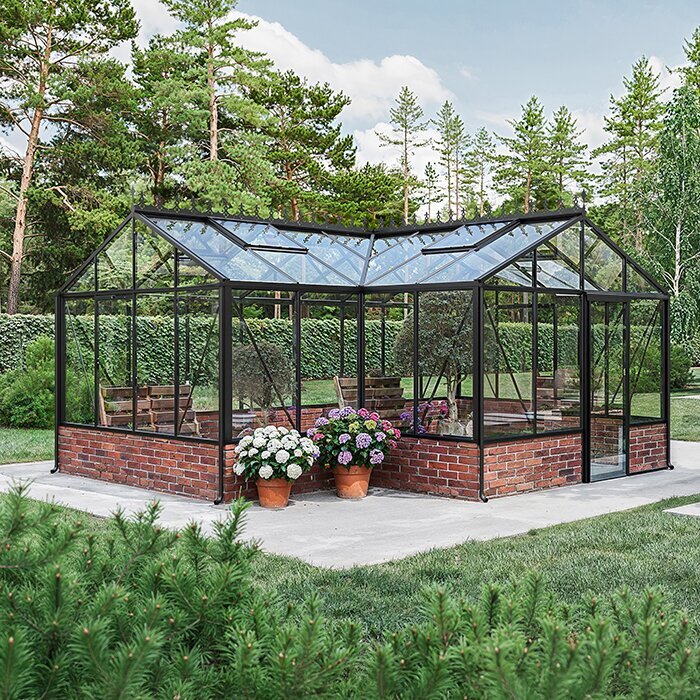

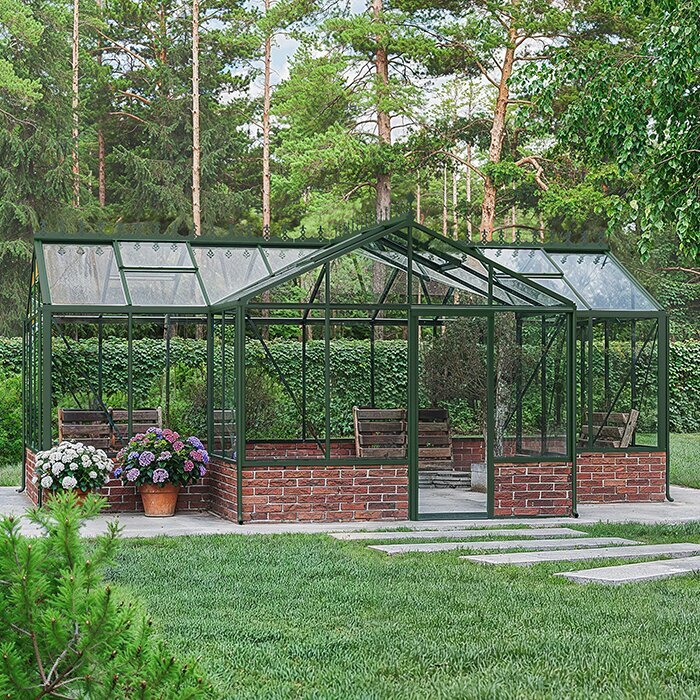

T-shaped orangery on a masonry base – a greenhouse and garden room in one

Our T-shaped orangery on a masonry base is a fully freestanding aluminium-and-glass structure mounted on a custom-built masonry base. It combines protected growing space with a flexible garden room. Position the long section and cross wing to work with paths, a patio and garden views.

Choose a configuration for more than its available footprint. Map out the intended balance of plants, work surfaces, furniture and clear routes to scale before ordering.

The T layout naturally separates activities: the long section and cross wing can serve different purposes without internal partitions. Explore the Bloomcabin T-shaped orangery.

What distinguishes the T model

The divided footprint, site-built masonry base, glass surfaces and freedom to choose a freestanding location are central to planning and use.

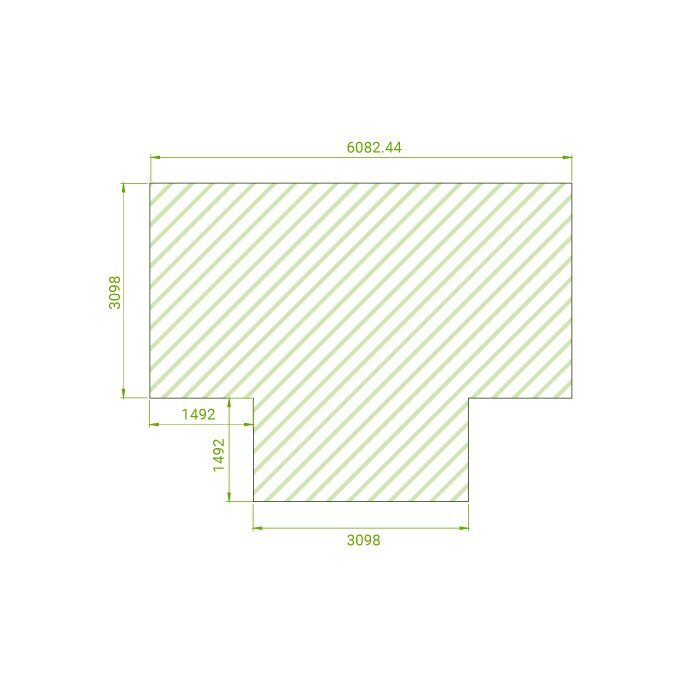

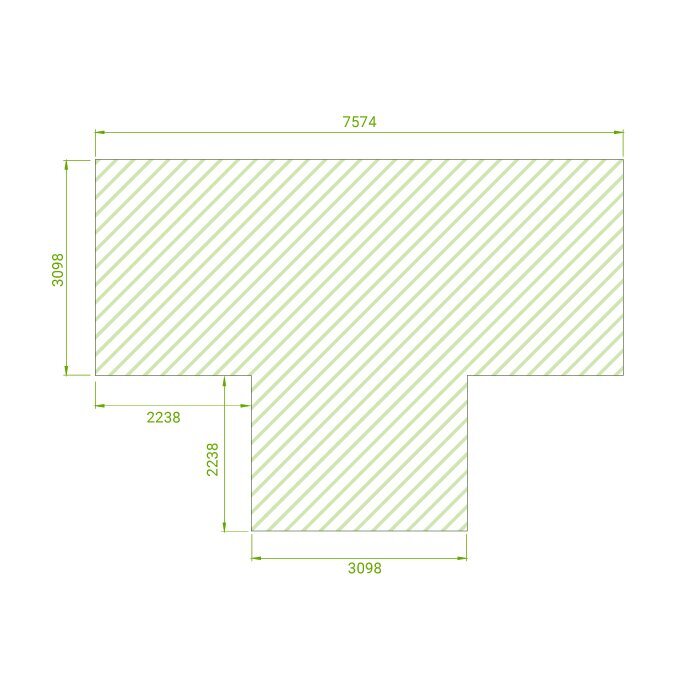

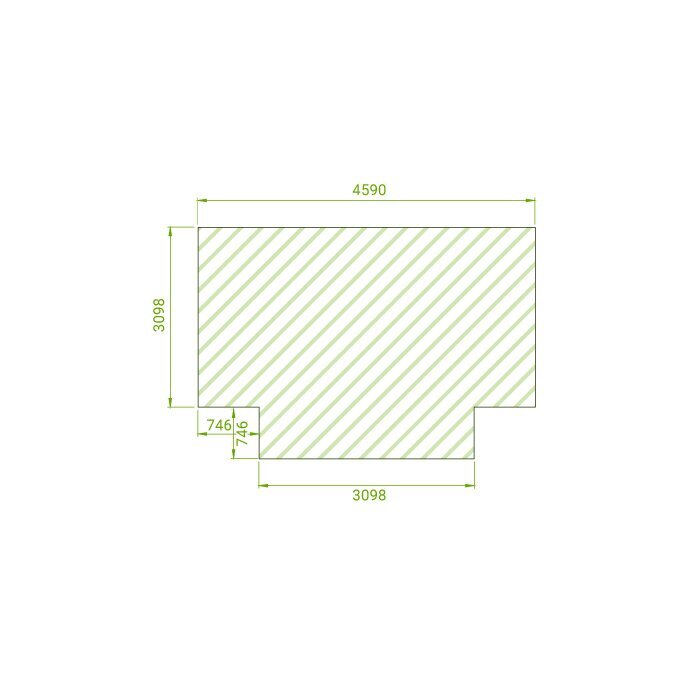

T-shaped orangery dimensions and equipment

Area: approximately 16.5–30.0 m².

Main width: approximately 3.10 m.

Ridge height: approximately 2.67 m.

Door height: approximately 1.85 m.

Frame: powder-coated aluminium frame.

Glazing: 4 mm tempered safety glass.

Doors: single or double sliding doors, depending on configuration.

Ventilation and drainage: Roof vents and integrated rainwater drainage. The product design values are a wind speed of 30 m/s and a snow load of 210 kg/m². Have a qualified local designer assess site-specific wind, snow, foundations and the locally adopted code; these product values do not establish suitability or approval for a particular site.

Commercial warranty: 12 years, subject to the applicable terms.

Address frost, soil, structural support, drainage and local requirements from the outset

Design the foundation beneath the masonry base for the site’s soil, local frost conditions and the project’s actual loads. The aluminium structure does not replace a correctly designed and built foundation. Ask the municipality about zoning and permits, and confirm the code adopted by the province or territory; publication of a National Model Code does not make it automatically applicable everywhere in Canada.

A T footprint has more outside and inside corners than a rectangle. Water must not collect in these locations or repeatedly run against the base.

Plan drainage with the foundation, masonry base and surrounding finish rather than after installation. Keep zoning, the building permit, structural design, and electrical or heating services as separate project checks.

Check the entire T outline from one shared reference line

Before laying the first course, mark the complete T outline on the site. Recheck lengths, angles and door positions against the confirmed drawing.

A small error in the cross wing can affect the long section. One common reference line is more reliable than measuring each wall section separately.

Build the masonry base only once the footprint, door openings and finished floor level are unambiguous.

Large glazed areas need effective summer ventilation

On sunny days, the interior can become much warmer than outdoors. Roof vents and sliding doors must remain accessible and easy to operate.

A sitting area has different comfort needs from tomatoes or heat-loving citrus. Seasonal shading in the cross wing may make sense even when the growing area remains unshaded.

Place furniture, tall containers and climbing plants so air can move between the long section and cross wing.

Growing and living areas can have different finishes

Stone, tile or another easy-care surface suits the cross wing as a garden room. The growing section can be finished more directly for day-to-day gardening.

Both areas still need a shared level relationship to the sliding doors. Account for thresholds, joints and drainage while planning the masonry base.

Arrange material changes, joints and thresholds so they do not interrupt circulation and both areas remain easy to clean.

Direct rainwater from every roof surface deliberately

Integrated drainage collects water from several roof surfaces. Decide where each outlet will discharge before landscaping the surrounding area.

Rain barrels or larger storage can meet part of the watering requirement, particularly with many container plants or vegetable beds in the orangery.

Overflows must not terminate immediately beside the masonry base, helping prevent repeated washout or saturation.

A dining table needs more space than its tabletop

If the cross wing will be used for dining, draw in pulled-back chairs and the circulation routes actually needed. This shows whether the layout works in daily use.

Keep a clear route between the entrance, seating area and growing zone, even when several people are at the table.

Also check that sliding doors remain easy to operate when the seating area is fully occupied.

Tall plants shape the room but must not obstruct ventilation

Large citrus plants, figs or climbing crops can frame sightlines, but should not stand directly in front of roof vents or sliding doors.

Lower plant groupings work better at the transition between long section and cross wing because they restrict views and movement less.

When positioning plants, account for mature canopy width as well as height and the growth direction of climbers.

Every season brings different requirements

Growing calendars vary considerably across Canada. In spring, the T-shaped orangery can provide room for propagation, tender container plants and early vegetables; during summer, ventilation and shading become the priorities.

In autumn, it remains a sheltered garden room and protects plants from direct rain. Winter use depends on plant selection and the heating approach.

An unheated orangery is not automatically frost-free and is not a substitute for living space. Match expectations and use to the season.

A planned heating or fireplace solution affects floors and furnishings

If you intend to add heating or a fireplace solution, determine its position before planning floor finishes, furniture and planting areas.

Have qualified local professionals confirm clearances, flue routing, technical connections and any municipal approvals for the selected system. Resolve these details before construction is complete rather than improvising later.

Early planning can place the heat source while keeping doors, routes, furniture and plant areas practical.

Keep every side of the T-shaped orangery accessible

Glass, gutters, vents and frame connections are easier to clean and inspect when beds and shrubs do not extend right to the exterior edge.

A dense hedge can make later cleaning and repairs difficult. Leave sufficient access space around the orangery.

This is especially important at the internal corners of the T layout, where several glazed and framed surfaces meet closely.

When is a T shape better than a rectangular orangery?

Where growing and relaxing areas should be clearly separate, a T layout has a practical advantage over one rectangular room.

For long vegetable beds only, without seating, a rectangular form is often simpler and more area-efficient.

The masonry base also emphasizes the T model’s form, making this version particularly effective in a visible garden location.

Coordinate trades and responsibilities early

Several tasks connect directly on this Bloomcabin model: foundation and masonry carry the aluminium structure, floor build-up sets door transitions, and landscaping must drain rainwater reliably. Before construction begins, establish who transfers dimensions, checks levels and approves the finished base for installation.

The confirmed model drawing is the shared reference for everyone involved. Record any change to door openings, base height or floor build-up in the relevant construction documents. Set the model, orientation and level reference first; build the foundation and base next, then install the frame on the checked support.

Coordinate handoffs among the masonry contractor, landscaping contractor, electrical contractor where needed, and installation team in good time. By installation day, bearing surfaces must be level, masonry complete, and access and work areas clear. Dusty or dirty work should no longer take place immediately beside the glazed structure.

Plan delivery, installation space and future garden paths together

Sunlight is not the only consideration when selecting a location. Check how components and glass panels will reach the proposed site. Narrow gates, tight turns, steps, major level changes or closely planted trees can make access difficult. Keep the route clear during installation and plant sensitive areas nearby afterwards.

Installation needs more space than the finished footprint. Temporary working room is required around every exterior side for erecting, aligning and glazing. Stored components must not block access, doors or the internal corners of the T layout. Identify storage and installation areas before adding paths, edging or beds.

After installation, paths should serve both areas sensibly. Direct access to the growing zone makes it easier to move soil, containers and garden tools. A clean route to the seating area can keep visitors from crossing the work zone. The exact arrangement depends on the selected door positions.

Coordinate masonry-base materials and connections carefully

The masonry base has more visual impact than a greenhouse with full-height glazing. It can repeat materials from the home or create a deliberate contrast. Bond pattern, joints, coping and the transition to surrounding paving all influence the result. Uneven joints and inaccurate cuts show quickly at the T shape’s many corners.

View samples of masonry, joints, flooring and powder-coated aluminium together in natural light. Individually suitable samples can look different in colour or sheen when placed side by side. The visible inner face of the base should suit the furnishings too. Brightness, colour and surface texture also affect the interior light.

Do not alter technical connections for appearance. The top edge must suit frame installation, and coping and joints must not direct water onto fixing surfaces. Confirm special design details against the approved product dimensions before construction to avoid later grinding, building up or levelling.

Arrange potting benches, water and tools around daily tasks

The growing area works efficiently when routine routes are short. Arrange propagation, potting, watering and temporary set-down space in the order tasks are usually performed. Keep frequently used equipment accessible without blocking the main aisle. Narrow shelves or benches may stand at the masonry base, but must not load frame connections or obstruct glass cleaning.

Draw in more than work-surface depth. You also need room in front for bags, pots or watering cans and for moving while carrying plants. Doors must remain fully usable during work. Put temporary set-down surfaces directly by the relevant work areas.

Give soil, tools and watering accessories a permanent place in the growing area. This keeps moisture and dirt away from seating or textiles in the cross wing. Suitable storage helps keep the connection between both sections clear.

Balance air exchange in the divided interior

As planting becomes denser, the long section and cross wing may warm differently and feel differently humid. Dense foliage, tall containers and furniture all affect air movement. Observe the two areas separately rather than assuming identical conditions.

Compare how quickly damp air clears from each area after watering or cool nights. Dense foliage may stay damp locally for longer, while draughts may become uncomfortable sooner in the seating area. Adjust doors and roof vents accordingly.

Planting changes through the season, so one ventilation routine will not always remain suitable. Review conditions when canopies thicken, climbers cover more area or the cross wing’s use changes.

Clean glass and powder-coated aluminium gently

Dust, pollen, algae and splash marks can gradually reduce glazing clarity. Use appropriate gentle cleaners and soft tools. Abrasives and aggressive products can damage surfaces. Work in sections and rinse loosened dirt so it does not remain in joints, door tracks or corners.

Powder-coated aluminium needs regular gentle cleaning. At the same time, inspect visible connections, frame junctions and areas immediately above the masonry base. Use only suitable stable equipment for work at height and do not lean ladders unprotected against glass or frames.

Secure or move portable plants and furniture before cleaning inside. Clean the upper glass first, then the base and floor, so loosened dirt does not travel over cleaned areas again. A tidy interior also makes visual checks of frames and connections easier.

Plan technical services before building the base and floor

Lighting makes evening work possible and illuminates the cross wing. Outlets may be needed for equipment or other technical items. Position them for the actual use zones: connections behind large containers or deep furniture are hard to reach, while leads crossing paths create unnecessary trip hazards.

Conduits and cable routes are easier to integrate before the floor and masonry base are finished. Have a qualified local electrical contractor plan, select and install the system, accounting for the metal-and-glass structure, watering and changing temperatures. The contractor should also confirm destination approval requirements for any equipment. Temporary extension cords are not a substitute for a properly planned installation.

Plan indoor water movement at the same time. The route from the water connection or storage to plants should be short and should not cross the seating area or main aisle. Excess watering water must not remain against base connections. Separating electrical installation, watering and drainage makes use and maintenance easier.

Adapt use, ventilation and care to cold weather

Before winter, clear gutters, outlets, door tracks and vents of leaves and plant debris. Place movable containers so doors and inspection routes remain accessible. Position overwintering plants for their individual temperature and light needs, away from frequently opened doors where they are sensitive.

Moist air should not remain trapped throughout winter. Brief weather-appropriate ventilation can reduce condensation, while sensitive plants need protection from cold draughts. In a T layout, cold-sensitive plants can stand farther from door areas provided air still circulates between the sections.

Inspect roof surfaces from ground level after exceptional weather and keep drainage paths clear. Do not walk on the glass roof. If overhead work is necessary, use suitable professional methods that do not create point loads on glass or aluminium frames.

Keep connections and moving parts under review

Regular visual checks help identify small changes early. Pay particular attention to transitions between the aluminium frame and masonry base, visible fixings, door travel and vent operation. After strong winds, take an additional walk around the entire orangery.

Look for damaged joints, persistent damp marks or spalling in the masonry. Do not simply cover these with unsuitable sealants. Investigate the likely cause, as water does not always appear where it enters. Check outlets, slopes and connections together.

Record maintenance and noticeable changes with dates and photos. Keep the model drawing, installation documents and details of masonry, floor and frame materials. This assists later repairs or alterations. Replacement parts and work on the structure must suit the existing system; avoid extra drilling or loads on the frame.
