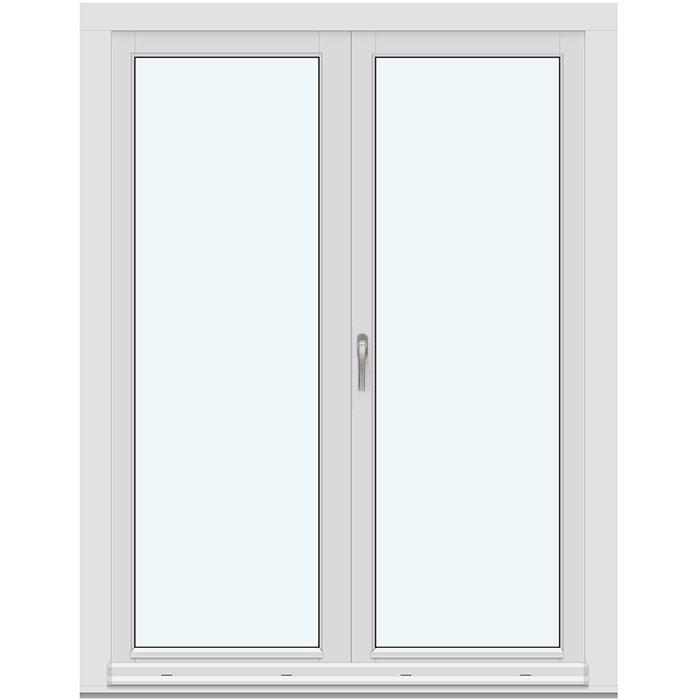

Two-Leaf Inward-Opening Patio Door

Inward-opening two-leaf patio door with tilt-and-turn operation

Two-leaf patio door designed to open inwards

Bespoke two-leaf patio door made from pine or oak, with choices of aluminium cladding, colour, handle, double or triple insulating glass and glazing-bar pattern.

Opening function

Tilt-and-turn leaf opening inwards

Material choices

All-timber pine or oak, plus aluminium-clad versions of both woods

Glass specification

Available glazing is double or triple insulating glass, using argon filling, heat-reflecting coating and a CHR warm-edge spacer.

Marking

CE marked

01

Operation and everyday use

Two leaves form the door, and its opening direction is inwards. A tilt-and-turn leaf is included: the turn setting opens it normally, while the tilt setting holds it partly ajar. Provide clearance for both actions. On a sketch, identify the indoor viewpoint, door location and adjacent construction so your enquiry communicates the intended arrangement clearly.

Everyday interaction centres on the handle, so choose its available design for both usability and visual fit. Roto Frank provides the technical hardware specified for the door. Choosing a handle remains a distinct decision and does not create a free choice across the rest of the hardware.

For a patio entrance used often, comfortable handle access and sufficient unobstructed movement are especially important. A home office, living room or guest room may also benefit from the tilt position in daily use. Before enquiring, consider expected use, furniture beside the opening and which handle design will be comfortable for the intended users.

Where several people share the patio door, give them a brief explanation of the handle positions and the selected operating method. This helps everyone use the turn and tilt modes appropriately. When specifying the door, also ask how operation is divided between its leaves and which operating sequence applies to your particular configuration.

Include the reachable surfaces in routine checks. Use and clean the handle, leaves and seal zones in ways appropriate to each part, and follow the care or adjustment instructions supplied for the chosen configuration.

02

Frame construction, component measurements and specifications

Choose pine or oak, with either timber also available in an aluminium-clad construction. For the outer frame, the timber section is 78 × 82 mm and the clad section is 90.6 × 82 mm. The door leaf uses the same respective sections: 78 × 82 mm or 90.6 × 82 mm. These figures apply only to the identified components, not to overall door width, height or depth, opening size or order dimensions.

The mounting-hole specification is 14 mm. It describes that construction detail only and cannot determine the complete door size or its building connections. Measure and record all project dimensions independently for made-to-measure production. Frame and door-leaf section measurements are not valid substitutes for the required order size.

The glass specification offers double and triple constructions, each using a CHR warm-edge spacer, argon and heat-reflecting coating. Silicone provides the glazing seals, with technical hardware supplied by Roto Frank. Your request should name the preferred glazing and handle, while treating the stated hardware brand as part of the standard specification.

CE marking and a 5-year commercial guarantee are stated for this patio door. Material choice, insulating glazing, silicone seals, Roto Frank hardware and component-section measurements complete the core technical data. Your bespoke enquiry must separately provide overall dimensions, construction finish, colour, handle and glazing-bar layout.

Keep standard product information separate from project selections. Silicone glazing seals, Roto Frank hardware, frame sections and door-leaf sections belong under technical data. Your order notes should instead give the completed door dimensions, construction option, colour, handle, double or triple glazing and chosen bar pattern. This separation reduces ambiguity and stops component sections being mistaken for manufacturing dimensions.

05

Assessing the planned opening correctly

Begin a made-to-measure selection with accurate information about the proposed building opening. Measure it carefully and state what each dimension runs between. The listed frame-section and door-leaf-section values describe components, not the required opening or order size. Distinguishing those terms keeps project dimensions separate from technical catalogue data.

Because the leaves move inwards, assess the internal clearance around the opening. Account for walls, furniture, radiators, window boards, curtains, and any other fixed or movable item nearby. Everyday use also depends on circulation and the proposed furniture layout, both when the leaf swings and when it is held in its tilted position.

A two-leaf proposal needs a sketch that identifies leaf layout, intended functions and viewing direction. Never use “left” or “right” alone; say whether the observer is inside or outside. Marking surrounding construction provides useful context while leaving any unconfirmed division of functions open for discussion.

Review the construction bordering all four sides of the opening. Explain the wall build-up, floor zone and patio threshold clearly enough for the proposed fitting position to be understood. Photographs or an annotated outline drawing can add useful context. A well-documented opening and setting makes it simpler to consider the bespoke door alongside the clearance its leaves require.

A straightforward plan drawn to scale can reveal clearance issues. Mark where the door sits and how its leaves move, then assess nearby activities. Dining furniture may be decisive beside an eating area; unobstructed movement matters most in a passage. Review the result before choosing the final material, colour and glazing-bar layout.

06

Planning the material, colour and overall look

Material version, colour, handle, glazing and pane division all influence the visual result. Choose pine or oak, with an aluminium-clad construction available for both. Record the material description in full, since the cladding wording identifies the build itself rather than a finish colour.

Colour is one of the order choices. Relate it to the façade, neighbouring windows, interior finishes or other visible elements, and give a precise colour reference wherever possible. Terms such as “light”, “natural” and “dark” can guide an initial discussion, but they leave too much room for interpretation as a final specification.

For a quieter treatment, combine an unbarred door with an understated finish. Where more articulation is wanted, consider a horizontal pattern or one arranged in both directions. Check how its lines relate to nearby windows, façade details and the opening's proportions. Whatever the visual preference, identify the selection with its complete catalogue title.

The handle affects the visible design as well as everyday operation. Select a version that suits the door's construction, colour and style, while remaining comfortable for its intended users. Handle choice is a separate order decision; Roto Frank is the stated manufacturer of the remaining hardware fitted to the patio door.

When weighing an all-timber version against an aluminium-clad timber one, record the complete construction name rather than only the wood species. This makes the request unambiguous. Existing building elements can provide useful colour references and visual divisions. Share those details as design context, without expecting a guaranteed exact match or identical results under every lighting condition.

07

Related product types for different priorities

Another type of door may suit the planned opening better. If swing direction is decisive, compare this inward-opening model with related doors designed to open outwards. The range includes single- and two-leaf patio doors, including separate historical-style versions. Alongside leaf count, consider how each movement affects the room, patio and normal routes through the space.

Other entrances may call for an external door that opens outwards or for sliding doors. Sliding operation moves a leaf laterally rather than using the inward turn-and-tilt movement described here. Compare each product only through its own stated materials, glass, construction and operating details.

Consider permanently fixed glazing if a doorway is unnecessary. A rectangular window with fixed glass and a round window with fixed glass are related options. As neither can open, they should be assessed for a purpose distinct from the access function of a patio door.

First establish the purpose of the opening: access through a hinged door, a sideways sliding movement, or a permanently closed glazed area. Then assess the relevant products by opening direction, number of leaves, construction material and glazing. This function-led approach rules out unsuitable categories early and provides a clearer route into detailed specification.

You can view these related product types next: Patio door, single leaf, outward opening, Single-leaf historical-style patio door that opens outwards, Patio door, two leaves, outward opening, Historical-style patio door, two leaves, outward opening, External door opening outwards, Sliding doors, Fixed-glazed window, Round fixed-glazed window.

08

Preparing your enquiry step by step

Open your enquiry with a clear project summary and the intended fitting location. Name the product as “Two-leaf patio door designed to open inwards”. Using the full title distinguishes it from single-leaf doors, outward-opening models, historical-style variants and sliding doors.

Next provide carefully measured dimensions for the planned opening and explain the endpoints for each measurement. If helpful, attach a simple sketch marked as an interior view. Describe the neighbouring wall, floor and patio threshold sufficiently to show the fitting context. Catalogue section sizes for the frame and leaf cannot substitute for dimensions taken at the project.

Write down the full material option and identify the required colour precisely.

Choose the insulating-glass build next, then copy the glazing-bar design's full catalogue title. A note such as “horizontal bars” could describe several options and is therefore ambiguous. Preserve the distinction between titles containing “glass-dividing glazing bars” and those that use “glazing bars” without the additional term.

Finish the specification by adding the selected handle and listing anything still to be clarified. Ask, where necessary, how the leaf operations and visual elements will be allocated on the finished configuration. Before sending it, confirm that the request records product title, measurements, viewing side, material option, colour, double or triple glazing, complete pattern title and handle. That information gives us a sound basis for understanding the project and discussing the requested door.

Is this patio door offered in bespoke sizes?

Yes. You may request made-to-measure manufacture. Supply reliable opening dimensions together with useful details about the installation setting. A basic labelled sketch can clarify how the required patio door relates to the building project.

May I select a preferred handle?

Yes. The handle is among the choices available when configuring the purchase. As it is the part used directly each day, select it with care. This choice does not provide unrestricted selection of all other hardware fitted to the door.

Which way does this patio door open?

The opening direction is inwards, and a tilt-and-turn leaf forms part of the stated arrangement. Where the available space requires outward movement instead, review the related single-leaf and two-leaf patio doors specifically named as outward-opening models.

What construction materials are offered?

The choices are plain pine, plain oak, aluminium-clad pine and aluminium-clad oak. Use the full construction description in the request so both the wood and whether cladding is included are recorded clearly.

Are glazing-bar designs available?

Yes. Options range from unbarred glass to named patterns using horizontal glass-dividing bars, ordinary horizontal bars, or bars laid out vertically and horizontally. Quote the complete catalogue title for whichever arrangement you select.

How is the glazing constructed?

Double and triple insulating glass are available. Both specifications use silicone glazing seals and contain argon, heat-reflecting treatment and a CHR warm-edge spacer. Identify the required build in your enquiry.

Does this patio door carry CE marking and include a guarantee?

Yes. The product is CE marked and is sold with a 5-year commercial guarantee. These are separate details: CE refers to the product marking, while 5 years is the stated duration of the seller's guarantee.

What should my enquiry include?

State your measured structural-opening dimensions, material construction, colour, insulating-glass choice, exact bar-layout title and preferred handle. Notes showing the adjoining building elements and the unobstructed room needed for the leaves to move will also assist the discussion.

Specify your patio door with confidence

To specify the two-leaf door that opens inwards, send the measured opening size and your choices of construction material, colour, double or triple glazing, bars and handle. Add an annotated drawing from indoors when the surrounding room needs clarification. Those details allow us to discuss the required made-to-measure version accurately.
