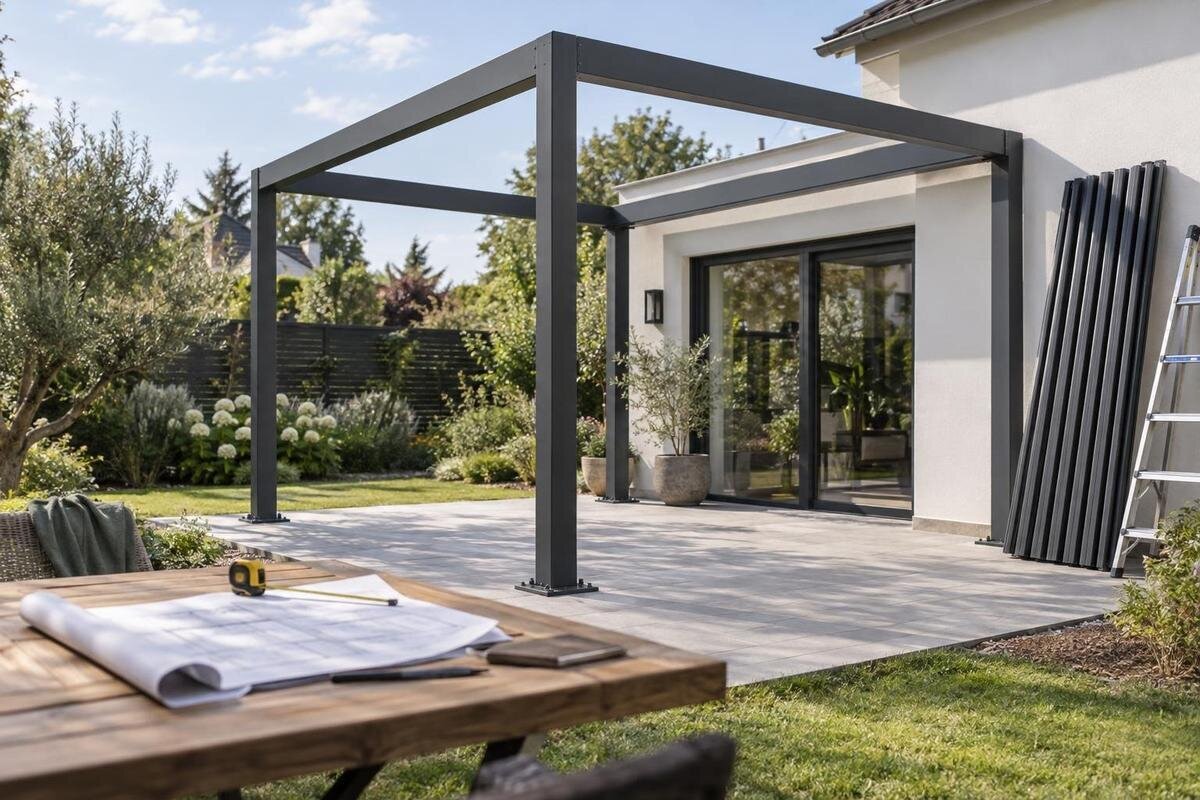

Can Pergola Foundations Be Built Before the Roof?
Pergola project planning
Yes, a pergola project can be split so that the foundations come first and the roof is fitted later, but only if both stages are designed as one coordinated installation. The first-stage work fixes positions and levels that the later frame must match. If the model, support arrangement or finished terrace level is still undecided, laying foundations now can lead to remedial work rather than save time. Confirm the model and current setting-out details before excavation or permanent foundation work, then agree how exposed work will be protected and who will be responsible between visits.
Before groundworks begin 1
A phased pergola still needs one coordinated design
Phasing changes the order of work, not the need for a complete design. Foundations can be installed before the roof if their positions, levels and fixing interfaces have already been defined for the pergola that will stand there. The later crew must be able to use what the first crew built, and the foundation design has to suit the real ground and site conditions. A brief instruction to prepare a base for a pergola leaves key choices open: different footprints and support arrangements can require different setting-out and connections. Treat both stages as one coordinated project, even if they have separate invoices or dates. The early work is not a temporary placeholder; it becomes part of the eventual installation.
Splitting the programme may make sense if a terrace is being renovated, access for groundworks is easier before landscaping, or separate trades need to work in sequence. Those reasons do not make the base provisional. Decide who keeps the project coordinated during the gap, who confirms that the later visit can proceed and how a discrepancy will be dealt with. If a quote is being prepared around the Bloomcabin Bioclimatic Pergola, name that model in the first-stage brief and ask which current drawing the foundation work must follow. The stage split should be a sequencing choice, not a way to defer unresolved design decisions.
Choose the model before setting out the base
Select the pergola model and configuration before the foundations are marked out. The supplier’s current drawing should identify the intended footprint, support positions, orientation and connections at each support. Confirm which configuration the drawing covers and whether any chosen options or size changes affect its layout. Do not transfer post positions from a photograph, showroom display or another model because the overall area looks similar. Record the drawing title and revision or date so the supplier, groundworks contractor and installer are working from the same information.
The Bloomcabin Wall Pergola is identified as a wall-mounted model, so the wall-side relationship needs to be part of the planning conversation alongside the ground supports. That product name does not establish fixing details for a particular property; ask for the applicable drawing and have the relevant wall and ground conditions assessed. For a freestanding design, obtain the support arrangement for that specific model too. If you are still comparing models, wait to set out permanent foundations until the supplier confirms the geometry of the one you intend to use. A later change, even within a familiar product category, should be checked against the actual drawing.
Before groundworks begin 2
Set out support positions from a measured drawing
Translate the agreed drawing to the site with the person responsible for the groundworks. The support positions and orientation should be related to fixed features such as a house wall, door openings, terrace edges, steps and changes of level. Agree one reference point with the installer and the professional overseeing the foundation design; avoid relying on separate measurements copied independently onto paving. Before excavation, check the marked-out positions against the drawing and record how they relate to features that will still be there when the roof is fitted. If the site measurements do not agree, pause and resolve the difference before permanent work starts.
An area figure is not a foundation plan. The listed Bloomcabin Pergola sizes range from 9 to 24 m², but that information cannot establish the support spacing, base dimensions or precise positions for the configuration you order. Ask for a dimensioned plan and relevant elevations, and confirm which points the dimensions refer to. Do not scale a photograph or derive footing positions from the stated area. If the terrace level, boundary or available space differs from the drawing, ask the supplier and the professional responsible for the site design to agree revised details in writing before the base is built.
Confirm the foundation-to-frame fixing details
The foundation and the pergola frame meet at defined points, which need to line up after separate contractors have finished their work. Ask the supplier or installer for the system-specific base and fixing details, including the support footprint, fixing method and any relevant fitting tolerances or inspection requirements. Give those details to the professional responsible for the foundation design, along with accurate site information. This is not a request for you to calculate a foundation or choose a standard base by guesswork; it is a way to ensure that the person designing and building it has the information needed for the eventual frame.
Clarify how the later frame will be fixed before deciding when to install any interface components. The project documents should state which parts are supplied at each stage, who positions them and who checks their location before the foundations are covered or handed over. If a component is to be fitted later, ask how its position will remain accessible and verifiable. If something is to be installed in advance, have the designer confirm that it is compatible with the named system. For a Bioclimatic pergola configuration, request details for the exact selection, not assumptions based on its category name. A later installer should not be left to resolve an undocumented mismatch by altering parts without approval.
Before groundworks begin 3
Coordinate finished levels and water routes
The finished terrace surface changes the relationship between the foundation, the support and the frame. Before groundworks, record the planned final surface build-up and level, including any paving or other specified layers. Ask the designer or installer to show how the support relates to that level and whether any part must remain visible, accessible or clear for fitting. If paving goes down before the roof, make sure the sequence leaves fixing positions accessible and does not cover a component that needs to be inspected or used later. If paving comes afterwards, coordinate its edge and temporary protection with the groundworks contractor.
Agree how water will be managed once the roof is fitted. Check the surface and existing drainage with the relevant trade, then ask the supplier how the selected roof configuration is intended to discharge water and where any outlet or route must end. Do not assume that drainage is part of the early foundation work or that an outlet can be directed anywhere on the terrace. For a wall-mounted model, coordinate the proposed connection with the façade, openings and finishes on the actual house. Review the surface works, foundation design and later installation together before one contractor closes off another’s access.
Check buried services and later site access
Before excavation, establish what lies below the proposed supports and what work may cross the site later. Water pipes, drainage, irrigation, electrical routes and other services may be hidden or missing from old site records. Ask the appropriate trades or site professional to locate and assess them before the foundation positions are fixed. Also consider how the future installation will reach the terrace: check routes through gates and doorways, identify areas that must remain clear and consider whether later work could damage newly completed paving or landscaping. These are coordination questions, not a reason to move a support by eye.
If the Bloomcabin Pergola model is on your shortlist, use its current drawing when the support plan is compared with measured site information. Make sure the drawing used on site includes any agreed changes arising from the services assessment. Identify who can approve a change to a support position and who updates the drawing. A groundworks contractor should not move a support unilaterally if a pipe or obstacle appears during excavation. Record any agreed change before work continues, so the later installer receives the revised set-out rather than an earlier version. Keep the same information available to other trades working in the area.
Before groundworks begin 4
Protect the foundations during the gap
Work left between stages can be damaged or made harder to inspect. Ask the foundation designer and pergola installer what may remain exposed, what needs protection and whether any temporary covering must be removed before fitting. Depending on the agreed design, concerns might include water or debris entering a fixing location, damage to a projecting component, corrosion of exposed metal or a trip hazard. Do not fill, coat or modify a connection point unless the responsible professional approves the method; a measure that protects a surface could also hide a problem or block later access. Specify the protection arrangement rather than leaving a note to cover the work as needed.
Agree who is responsible for the site during the gap: the first contractor until handover, the owner, a site manager or the later installer may have different roles. Record the condition of the completed work, any required inspection and who should be told if the area is damaged or altered. Keep access clear and prevent other trades from using the base as a storage point or fixing location. Ask the responsible site professional whether barriers or a temporary access route are needed. Dated photographs linked to the drawing can help document the handover, but they do not replace an inspection required by the design or agreed work scope.
Confirm later supply and configuration compatibility
A long gap between stages brings a supply and specification risk. A model, finish, option or drawing may change, and the exact configuration you plan to fit may not be available on your intended date. Do not treat a product page or an earlier quote as a promise that every component will remain available. Before committing to early groundworks, ask the supplier what can be confirmed now, whether the configuration is being ordered or simply noted, how changes will be handled and whether the later stage needs a fresh review. Record the intended model, configuration, drawing revision and any assumptions about future supply.
The Bloomcabin Bioclimatic Pergola listing identifies a product name; it does not by itself reserve a configuration or confirm future compatibility. The roof stage still needs to match the foundation interface, dimensions, orientation and agreed clearances. Treat a later accessory or layout change as a design change until the supplier confirms otherwise. Ask whether the earlier work needs to be reviewed before a later order is accepted, and who will assess a mismatch if the specification changes. Keep the original and any replacement drawings together, clearly identifying which one governs the site. If the interface cannot be confirmed in writing, consider delaying permanent groundworks until the necessary details are available.
Before groundworks begin 5
Separate the contract scope and stage handover
Set out the deliverables and boundaries for each stage. State who is responsible for setting out, excavation, foundations, interface parts, making good and roof assembly, as applicable. Do not assume that a pergola supply quote includes site preparation or that a groundworks quote includes supplier components. Record exclusions, access requirements, sequence assumptions, required measurements and how changes are to be agreed and priced. Name the person responsible for confirming that the base is ready for the roof crew. This helps prevent gaps where each contractor believes the other will provide a component, check a measurement or resolve a discrepancy.
Plan a clear handover between the stages. Agree what information the first contractor will provide, such as recorded levels, dimensions and photographs, and whether any review is needed before the work is covered or the contractor leaves. The later installer needs a record of what was built and its condition, not just a verbal assurance that the base is ready. If supply and installation of the wall-mounted Bloomcabin pergola are handled separately, distinguish the product supply from the site work required to fit it. Put readiness checks, notice arrangements and the process for handling a discrepancy in writing. Keep accepted drawings, supplier correspondence and change approvals together; the actual contract documents determine the scope and responsibilities.
Check local approvals and insurance for both stages
Consent, insurance and technical compatibility are separate questions. Do not assume that permission for one phase settles the full project, or that an insurance policy covers a structure throughout a long period when it is incomplete. Before work starts, describe the intended project and sequence to the relevant local authority or qualified professional if consent or planning controls may apply. Ask your insurer what information it needs about the structure, the works and the time between them. Requirements and cover depend on the property, project and policy, so verify them locally and keep written responses with the project documents.
When describing the project, distinguish the completed pergola from the work that will remain on site between visits. Give the intended sequence and expected interval, and explain whether other terrace works will continue during that time. This makes clear that you are asking about a phased project, not only the finished structure. Keep written responses with the programme and record any conditions that affect when work can begin or resume. If the interval or scope later changes, ask whether the earlier response still applies. Resolve these questions before committing to dates that depend on them, alongside the technical and contractual arrangements for both stages.
Frequently asked questions
Can I build the foundations before choosing a pergola?
You do not necessarily have to place the pergola order first, but the model, configuration and foundation interface should be settled before permanent groundworks begin. Obtain the supplier’s current setting-out information and have a qualified local professional confirm the foundation design for the site. If the support positions are still unknown, delay the permanent set-out.
What drawings should I have before groundworks begin?
Ask for a dimensioned plan and relevant elevations for the chosen configuration, showing the orientation, support positions and how the frame connects to the foundations. Confirm the reference levels and drawing revision, and ask which details the groundworks contractor needs. A product image or general area figure is not enough to establish the setting-out.
Could I use the same foundation layout for a different model later?
Do not assume so. Models and configurations can differ in footprint, support positions and fixing interfaces. Before changing the product, ask the supplier to compare its current drawings with the foundation already built, and have any proposed changes reviewed by the professional responsible for the site-specific design. Do not rely on unapproved alterations to make parts fit.
How long can the foundations remain unfinished?
There is no universal safe interval. The answer depends on the design, what is exposed, site conditions and the supplier’s instructions for the eventual installation. Agree how the work will be protected, who is responsible during the gap and what checks are needed before fitting. If the delay is extended, ask the supplier and relevant professional to review the plan again.
Should I check approvals or insurance if the work is phased?
Yes. Give the relevant local authority or qualified professional details of the intended project and sequence if consent may apply. Ask your insurer what information it needs about the structure and the period when the work is incomplete. Requirements and cover depend on the particular property and policy, so confirm them locally rather than making assumptions.
Building the foundations first can work when the pergola model and configuration are already settled. The chosen drawing must govern the set-out, a qualified local professional must match the foundation design to the site, and the handover must record the condition and position of the fixing points. If those details remain uncertain, delay permanent groundworks rather than expecting the later installer to make the frame fit. Separate installation dates are workable; unresolved design decisions should not be left for the second stage.
