Bloomcabin Wall Pergola

Direct wall connection

For patios directly beside living spaces

Open transition

Living area and garden remain directly connected

RAL colour selection

Frame colour to suit the façade, windows or doors

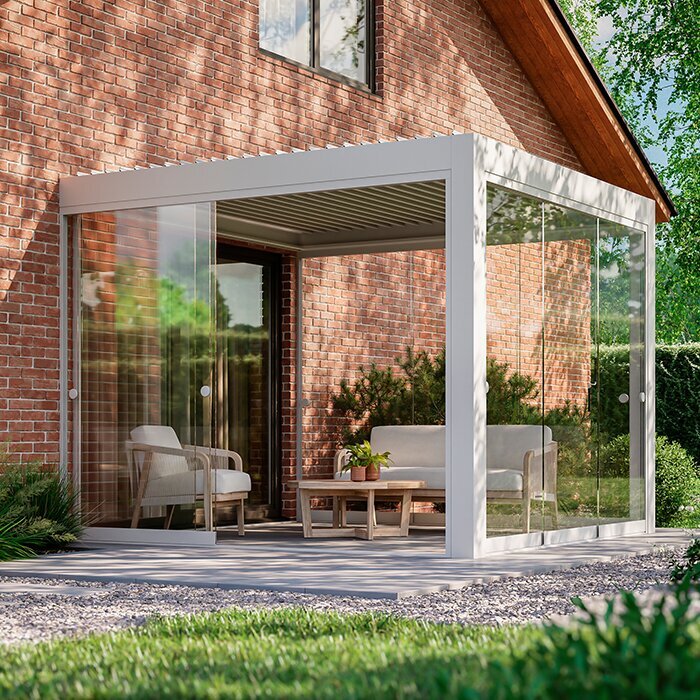

Integrated drainage

Gutter and drainage system within the structure

Wall position

Have the fixing line, sound substrate, wall build-up, insulation, doors, windows and other façade details professionally assessed.

Furniture

Add the dining table, lounge, planters and required chair space to the patio plan at scale.

Movement

Keep direct routes between living space, seating area, garden and side exits clear.

Drainage

Coordinate the outlet, patio fall and onward drainage so water is directed away from the building.

9–24 m²

Base your choice on the area that can actually be furnished, not patio outer dimensions alone

255 cm

Allow for doors, windows and further façade details when coordinating the design

High-quality aluminium profiles

Clean-lined aluminium construction for direct attachment to the house

Directly on a suitable building wall

Have the wall build-up, fixing zone and suitable connectors checked professionally in advance

Integrated gutter and drainage system

Define the outlet and onward water route before installation

12 years

Façade build-up and fixing zone

Brick façades, rendered surfaces and insulated walls differ greatly in their build-up. Especially with external insulation, the visible surface is not automatically sufficiently load-bearing. Fixings and connection details must suit the existing construction so the pergola is securely anchored without damaging the building envelope.

Before setting the wall line, note roller-shutter boxes, window sills, canopies, lights, downpipes, ventilation openings and externally routed cables. Components beside the proposed area can also obstruct tools, connections or later maintenance.

Before ordering, ask a perit to assess the load-bearing fixing zone and ground and confirm the proposal’s Planning Authority classification, considering footprint, height, enclosure, land designation and existing permit conditions. A removable kit or domestic garden setting is not automatically exempt. Revise an unsuitable plan now, as later changes are harder.

Sun path and existing shade

The house orientation determines when direct sun reaches the patio, façade and furniture. Neighbouring buildings, trees, roof overhangs and the building shape also change the situation. Observe the area at the times when it is intended to be used most.

On sunny patios, light façades and floor finishes can reflect additional light, while dark surfaces absorb heat. Position seating so outlook and comfort work together. Sensitive plants or textiles should not remain permanently in a spot exposed to direct sun for hours.

More covered area does not automatically mean more comfort. It is often better to orient the table or lounge well within the covered zone and leave the transition to the garden open. A sketch showing the sun path supports a realistic assessment of the planned furniture.

Patio substructure and front posts

The posts need a suitable load-bearing base. Patio slabs or decking are only the visible surface; the construction below is what matters. Foundations, edging, voids, services or drainage components can affect possible post positions.

For an existing patio, establish whether the substructure at the proposed post positions is suitable or requires preparation. For a new patio, these areas can be coordinated early with the patio construction. Finishes can then meet the posts neatly and later intervention in completed surfaces can be avoided.

Existing falls must also be considered: water should run away from the house, while proper installation must remain possible at the proposed post positions. Record level changes, steps and patio edges accurately. A patio that looks level does not necessarily have the same height everywhere.

Everyday life between home and garden

A surface near the door makes laying the table easier, but must not narrow the passage. Check the route to the table with every seat occupied: people carrying dishes or trays should not have to squeeze between pulled-back chairs and the door area.

Patio doors must remain fully operable. Beyond the swing or opening zone, room is needed for standing, carrying and passing. Thresholds, steps and narrow passages deserve particular attention because furniture and routes can quickly obstruct one another there.

The main route to the garden should be direct rather than passing through the narrowest point of the seating area. Where there are two exits, one can serve everyday access and the other the dining or lounge area. This keeps the seating area calm without limiting garden access.

Lighting and technical preparation

For evenings, a combination of general lighting and focused table light is usually more pleasant than one very bright fitting. Wall lighting can highlight the house connection, while lower lights bring out the furniture. Avoid unwanted glare towards the home or neighbouring property.

Set switch, socket and cable routes before installation. Clarify which connections come from the house and where cables would remain visible. Cables added externally later can compromise the appearance and hinder access to gutters or connections.

Lights and cables must not obstruct fixing points or water routes. Every component must suit its intended setting; installation and connection belong in competent hands. Even if fixed lights are not planned initially, conduits or connection points can be considered during planning.

Furniture by intended use

For a dining area, table size, chair width and clearance behind chairs are decisive. For a lounge, sofa depth, view direction and access to the low table matter instead. If both uses are combined, one zone should take priority rather than creating two permanently cramped areas.

Large planters, barbecues and storage furniture are easily overlooked in first sketches. They need floor space and must not conceal important outlet or inspection points at the façade and posts. Moveable elements offer more flexibility when the patio is rearranged for visitors.

Do not check the layout only with chairs pushed under the table. It works only when people are seated, someone is serving and the patio door opens at the same time. Mark planned furniture outlines on the patio with tape or moveable objects before ordering.

Side access and low-threshold routes

Side routes matter where bins, bicycle storage, a garden shed or beds are reached beyond the patio. A post in the wrong place can narrow a formerly convenient passage. Consider not only table use but also objects transported regularly.

For access with as few thresholds as possible, the door threshold, patio finish and drainage must work together. The pergola does not alter the requirements of the door connection. Take account of existing heights and coordinate them with building waterproofing when renewing a patio.

Pushchairs, serving trolleys and larger garden furniture need more space than one walking person. Such requirements should be clear in the layout before post positions and fixed planters are determined. A sufficiently wide main route is more useful in daily life than several narrow leftover spaces.

Colour choice in relation to the building

Frame colour determines whether the wall pergola blends into the façade or stands out as an independent element. Repeating the shade of windows or doors creates a coherent picture. Contrast can work where the pergola is intended to mark the patio area clearly.

Alongside wall colour, consider roof edges, plinth, floor finish and permanently fitted railings. Too many different shades can quickly make a small side of a house look unsettled. Use lasting materials as references rather than replaceable cushions or seasonal plants.

View the desired RAL shade in daylight directly at the building whenever possible. Render texture, brickwork and reflective windows can alter its effect. Depending on the shade, dust or splash marks may also be more visible, which can matter on a frequently used patio.

Outlet of the integrated system

The gutter and drainage system needs a clearly defined connection to onward water management. Before installation, decide where water leaves the structure and how it will then be directed away from the house. Otherwise, it may emerge uncontrolled at the patio edge, causing puddles or splashback.

Existing downpipes, soakaway areas or rainwater storage options can be included where local conditions and professional execution allow. Connections should not be improvised. If uncertain, coordinate the solution with the patio contractor or a suitable specialist.

Water management should be settled before new paving, slab or drainage work begins. Pipe routes and transitions can then be incorporated into the substructure instead of adding visible channels or cut-outs later. For an existing patio, check whether the planned outlet area is accessible.

Cleaning and regular visual checks

Dust, pollen, leaves and other deposits collect on a structure beside the house. Inspect gutters and outlet areas regularly, especially near trees. Remove soiling before it narrows the water route or dries onto visible surfaces.

Aluminium surfaces can be cleaned with gentle products suitable for the particular finish. Aggressive or abrasive products can damage the visible coating. Follow product-specific care guidance before extensive cleaning and, if necessary, test the product in an inconspicuous area.

During care, also inspect joints, visible fixings, the wall connection and water routes. If changes are found, do not conceal or ignore them; have them assessed professionally. Furniture and planters must not permanently block access to these areas.

Adaptable layout

Use habits and garden furniture often change sooner than the pergola. A large dining table wanted today may later make way for a lounge or smaller seating group. Clear edge areas and well-positioned passages make these changes easier without altering structural elements.

Built-in cupboards, heavy planters and permanently installed equipment restrict this flexibility. Position them outside outlet, inspection and main routes. Mobile storage or planters can be moved more easily for cleaning and rearrangement.

Also consider views from adjoining rooms. Posts and furniture remain visible there throughout the year, even when the patio is not in use. A balanced arrangement preserves sightlines to the garden and avoids tall furniture directly in front of windows.

Wall pergola

It is fixed directly to a suitable building wall and defines the immediately adjoining patio area. Its planning depends particularly on façade construction, doors and windows, and local water management.

Freestanding pergola

It stands independently from the building and can define a separate garden seating area. It needs its own location and ground planning; a load-bearing house connection is not part of the concept.

Bioclimatic pergola

A bioclimatic pergola is a version with an adjustable roof that allows more flexible control of light and air. Whether this function is desired depends on intended use; consider it independently from whether the pergola is wall-mounted or freestanding.
