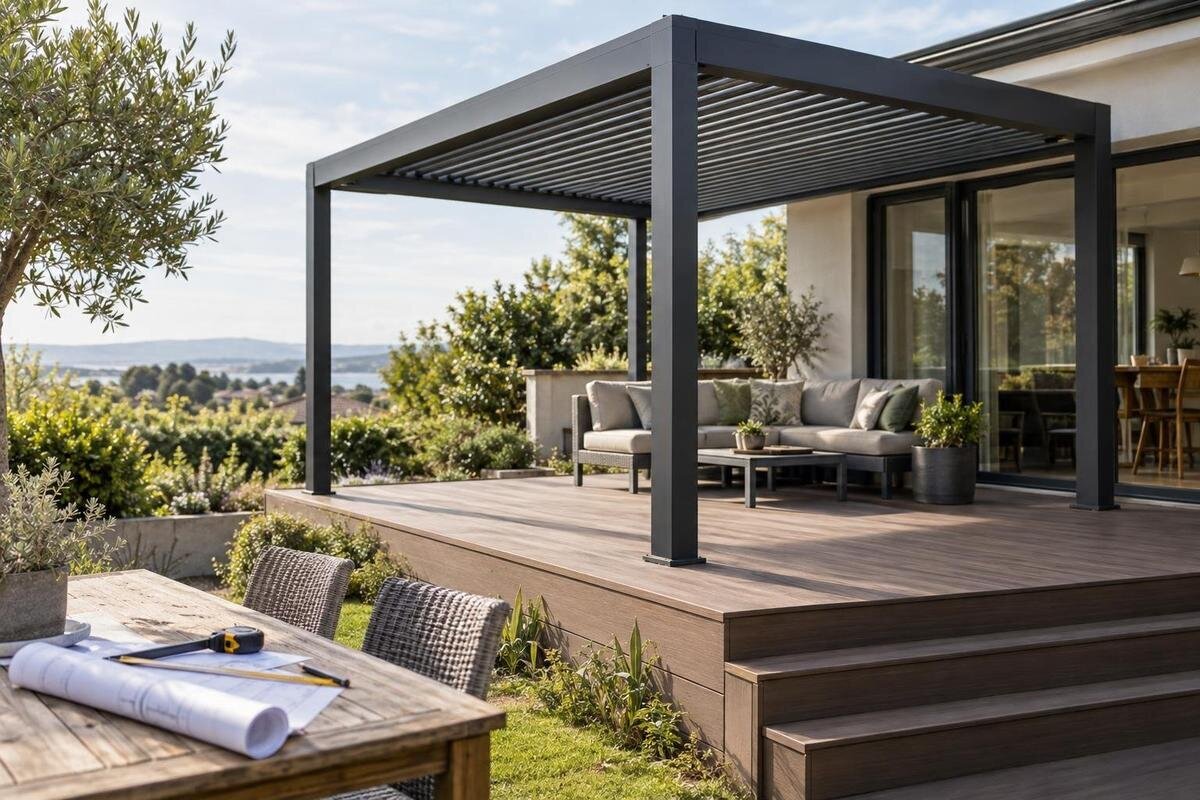

Planning a Pergola on Composite or Timber Decking
Pergola planning
Composite or timber decking can make a pergola area feel finished, but the visible boards are not necessarily the part that can anchor it. The planning task is to connect the pergola’s approved fixing positions to a verified load-bearing structure below, then decide how the boards, drainage and access will be handled around those points. A sound-looking deck is not proof that its hidden frame can take a pergola. Agreeing the support layout before ordering cuts or fixing hardware helps the deck and pergola installers work from the same plan.
Decking boards are not automatically a pergola foundation
A timber or composite deck is an assembly rather than a solid sheet. The boards provide the walking surface; joists and bearers support them, while beams, posts, ledgers or other connections carry the frame onwards to the building or ground. The arrangement varies, and much of it is hidden once the boards are installed. A board that feels firm underfoot has shown that it works as part of the walking surface, not that its material, fixings or support are suitable for a pergola post. Clips, screws and narrow gaps do not reveal the capacity of the structure below.
A pergola transfers forces into the structure through its fixing points. Its own weight is only part of the design question; the frame must also remain secured when wind acts on it. A base fixed to a decking board is not equivalent to a connection that reaches a verified beam, designed support or other approved substrate. For the exact Bloomcabin Pergola configuration, request the model-specific installation information and identify its approved fixing positions. A product name or footprint cannot confirm that the deck beneath it is adequate, and a board screw is not a substitute for a specified structural anchor.
Identify the structure beneath the decking
Look for the deck’s original plans, construction photographs or records before relying on what can be seen from above. If access below the deck is available, note the direction of the joists and the positions of beams, posts, ledgers, edges and openings. Framing can change around stairs, borders or other interruptions, so a visible board pattern is not a reliable map of the supports. If there is no record or safe access, arrange an appropriate inspection rather than guessing from the line of the board screws. Do not lift boards or remove structural parts without agreeing the work with the deck installer. Keep the records tied to identifiable parts of the deck: label photographs with their location and viewing direction, and mark any areas that could not be inspected. If an older drawing shows a different stair position or board layout, note that discrepancy rather than assuming the hidden frame is unchanged. This helps the person assessing the deck distinguish what is visible today from what is shown only in earlier records.
Make a simple site sketch with measurements from fixed reference points, marking confirmed supports separately from anything still uncertain. The aim is to follow the load path from each planned pergola fixing, through the deck frame and its connections, to the building or ground. With a Bloomcabin Wall Pergola, ask for the exact approved layout and check the building-side fixing separately from any points that the drawing places on the deck. A wall connection does not make the deck structure suitable by default, and a deck support does not confirm that the wall is suitable.
Set out every approved fixing position
Obtain the fixing plan for the exact pergola model and configuration before finalising the deck layout. The outside dimensions of a roof or frame do not necessarily tell you where the posts or base fixings sit. Mark the fixing centres shown in the approved drawing, along with the direction of the pergola and the finished deck level. Also record nearby edges, stairs, doors, drains and routes that need to remain clear. A measured plan is more useful than estimating from a photograph or assuming that a symmetrical-looking frame will suit the available joists. Label the reference points clearly so both installers can locate the same positions on site. Where a drawing gives an overall dimension, distinguish it from the distance between fixing centres rather than using the two interchangeably. Show the proposed base positions on the deck plan as well as the pergola outline. This allows the installers to discuss a specific conflict, such as a base beside a stair opening, without confusing the roof edge with the point that needs support.
Compare those positions with the support map, not just with the board joints. If a fixing point falls between supports, conflicts with an edge or would require an unapproved change, pause and ask for a reviewed detail. Do not move a post, enlarge a hole or alter an anchor position to make the plan fit. The Bloomcabin Pergola product page can identify the model being discussed; request the drawing for the exact configuration so the deck and pergola installers are working from the same information.
Choose the fixing method from the model drawings
The approved detail should explain how each pergola fixing connects to a suitable part of the structure. Depending on the design and the site, a professional may need to assess the deck frame, a separate structural support or another approved substrate. These possibilities are not interchangeable, and none can be selected just because it seems easiest to reach from above. The fixing method must match the model’s approved arrangement and the actual construction beneath the boards.
Do not choose an anchor, bolt size, fixing position or support alteration by trial and error. If a proposal involves reinforcing the deck or creating a separate support, have the design assessed for that site; do not assume there is one footing size or framing detail that suits every deck. For the Bloomcabin Bioclimatic Pergola, request its own approved anchoring information rather than borrowing a fixing detail from another model. If the required connection cannot be made as shown, pause while an appropriate professional reviews the options.
Plan board cuts, movement and drainage
Some approved fixing arrangements may require access through or around the deck boards, but the opening is only part of the detail. A deck installer should confirm how cut board ends will be supported and finished, whether nearby boards need room to move, and whether the proposed position affects the way the decking is secured. Timber and composite products have different installation requirements, so check the instructions for the deck that is actually on site. Do not assume that a neat-looking gap around a post is sufficient or that a board can be cut without affecting its support. Ask the installer to show the proposed finish on the board layout before cutting begins. Establish which boards would be altered, which adjacent boards would remain intact and how the opening would relate to existing joints. If trim is proposed, distinguish its appearance from the structural connection beneath it. Agreeing these details together makes it easier to assess the finished surface without treating a cover around the post as part of the anchoring system.
Consider where water will go once the pergola base and any surrounding trim are in place. Preserve the drainage path intended for the deck and avoid adding an improvised cover or seal that could trap water against a board or support. Check the decking manufacturer’s guidance for cuts, edges and clearances, then agree the finish with the deck installer. If the fixing detail and the board layout conflict, have the design resolved before cutting; a decorative repair cannot make an unsuitable structural connection acceptable.
Assess the deck’s condition as a whole
A deck’s age or how solid it feels underfoot cannot confirm its suitability for a pergola. During an assessment, a qualified professional may look for issues such as soft or split timber, loose connections, corrosion, distortion, water damage and previous alterations. These signs can point to matters that need investigation, but their absence does not prove that concealed framing and connections are adequate. Composite boards can also hide parts of the structure, so a good-looking surface is not a substitute for checking what carries it.
The assessment needs to consider the complete route from the pergola fixing to the deck supports and onward to the building or ground. A deck originally designed for people walking on it does not automatically have an approved detail for an additional structure. For the Bloomcabin Pergola model, pair the model-specific fixing information with evidence about the actual deck, rather than assuming that a detail from a different installation will apply. If the support, connections or condition cannot be verified, have a structural professional advise what further inspection is needed before installation.
Make the fixing points accessible
A fixing location must be practical to reach as well as structurally suitable. The installer may need access to position the connection accurately, use the specified hardware and complete the work in the sequence required by the approved design. A board joint or removable-looking panel does not guarantee that there is enough space below it or that it can be lifted without damage. Agree in advance whether boards will be lifted, cut or replaced, who will carry out that work, and how the finished edge will be supported. Ask the installer to identify the working area needed around each fixing, not just the size of the opening visible at deck level. Confirm which parts of the deck must remain open until the connection has been completed and checked, and who will authorise reinstatement of the boards. Include any access from below in that discussion. The aim is to avoid finishing the surface while work on a concealed connection is still outstanding.
Check for hidden services before planning any opening. Lighting cables, pipes, drainage runs or other installations may sit below or beside the deck, and their position cannot be inferred from the surface. Use the relevant qualified trade to identify services where needed; do not drill or cut blindly. Also allow for access routes, doors and stairs during installation. With the wall-mounted Bloomcabin pergola, include access to the building-side fixing and any deck fixings shown in the approved layout, rather than planning only for the visible post positions.
Check wall and waterproofed-surface connections
Give extra attention to a deck that meets a building or sits above a waterproofed area, roof or occupied space. The visible boards may conceal a membrane, drainage layer, insulation or structural surface, and they do not show where a fixing can safely pass through. A penetration may affect the waterproofing system, so the route and sealing detail need to be confirmed by the relevant qualified professional. Do not treat a membrane, deck board or surface finish as a structural anchor, and do not drill through a concealed build-up based on appearance alone.
A wall-mounted pergola also has a building-side load path that needs separate consideration from the deck. Cladding, render or other finishes do not, by themselves, establish where a suitable structural connection can be made; the actual wall and approved fixing detail need to be checked. The name Bloomcabin Wall Pergola identifies the product type, not its compatibility with a particular wall or waterproofed terrace. Have the exact drawing reviewed alongside the site construction, including how any affected wall or waterproofing details will be completed.
Coordinate the deck and pergola installation sequence
For a new deck, agree the pergola’s approved fixing positions before the support frame and boards are finalised. This gives the deck installer a chance to coordinate the framing, board pattern and access with the actual fixing detail, rather than trying to accommodate a guessed post position later. For an existing deck, assess the frame and plan any access or board alterations before the pergola installer arrives. The order of work should be clear to everyone responsible for the structure, the decking finish and the pergola assembly. Separate the work into identifiable stages in the agreed programme: inspection, any approved support work, pergola fixing and reinstatement of the decking. These are coordination points, not a substitute for the installation sequence specified for the model. Note which decisions must be settled before the next trade attends, and allow for a revised plan if opening the deck reveals a different arrangement from the one expected. Do not leave responsibility for that decision unclear.
Share the same current drawing and site sketch with the deck installer, pergola installer and any professional assessing the structure. Agree who confirms the support points, who makes and finishes any board openings, and how the completed work will be checked against the approved plan. If considering the bioclimatic Bloomcabin model, use the drawing for that exact model and configuration in the coordinated plan; do not base the deck work on a similar-looking product or an approximate footprint. Clear responsibilities help prevent a late change from becoming an improvised fixing.
What to do when the fixing plan does not fit
If the approved fixing positions miss the verified supports, the deck is in poor condition or the installation points cannot be reached, stop before altering the boards or hardware. Ask the relevant professional to explain the conflict and provide a reviewed proposal. Depending on the site, that might involve a permitted change of position, a professionally designed alteration to the deck support or another approved support arrangement. These are options to assess, not instructions to carry out, and no one footing or reinforcement detail applies to every deck.
Do not solve a mismatch by attaching a post to a board, moving a base without approval or cutting away support around a fixing point. Before work proceeds, make sure the exact model and its approved fixing plan are identified, the deck’s supporting structure and condition have been assessed, and each fixing can be installed and reached as intended. If any of those points remains uncertain, resolve it in the drawings and site plan first. That is safer and usually clearer than discovering the conflict after the finished decking has been cut.
Frequently asked questions
Can I bolt pergola posts directly to composite decking boards?
Do not assume that a composite board, or the clips and screws holding it, can anchor a pergola. Follow the fixing detail approved for the exact model and deck structure. If that detail is not clear, have the supporting frame assessed before work begins.
If I find a timber joist, can I fix a post to it?
Finding a joist is useful, but does not by itself confirm that it is suitable. Its position, condition, connections to the rest of the deck and the approved anchor detail all matter. Ask a qualified professional to check the complete load path.
Can a pergola be installed after the deck is complete?
It may be possible, but the answer depends on the hidden frame, fixing positions and access. Boards might need to be lifted or altered, and the planned fixings must still connect to approved support. Assess the deck before ordering cuts or committing to an installation date.
Will cutting a hole around each post solve the problem?
No. An opening can provide clearance, but it does not make the deck boards a structural anchor or confirm that the frame below is suitable. The deck installer must also consider cut edges, board support, movement and drainage in line with the decking manufacturer’s guidance.
What if the pergola fixing points do not line up with the joists?
Do not move a post or substitute a board fixing without approval. Ask for a model-specific revised detail and a professional assessment of the deck. Depending on the site, a permitted layout change or a designed alteration to the support may be considered; there is no universal footing or framing solution.
The important connection is not simply between a pergola post and the deck surface. It is the complete, approved route from each fixing point through or past the decking to a verified support. Once that route, the board finish and access are planned together, the installation can be judged against the actual deck rather than assumptions about what lies below it.
