Wall-Mounted T-Shaped Greenhouse

T-shaped orangery on a wall base – greenhouse and garden room in one

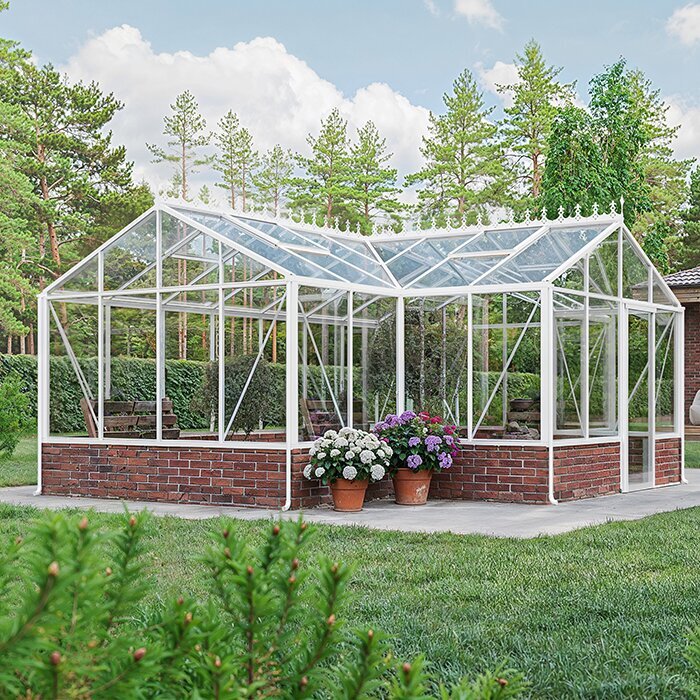

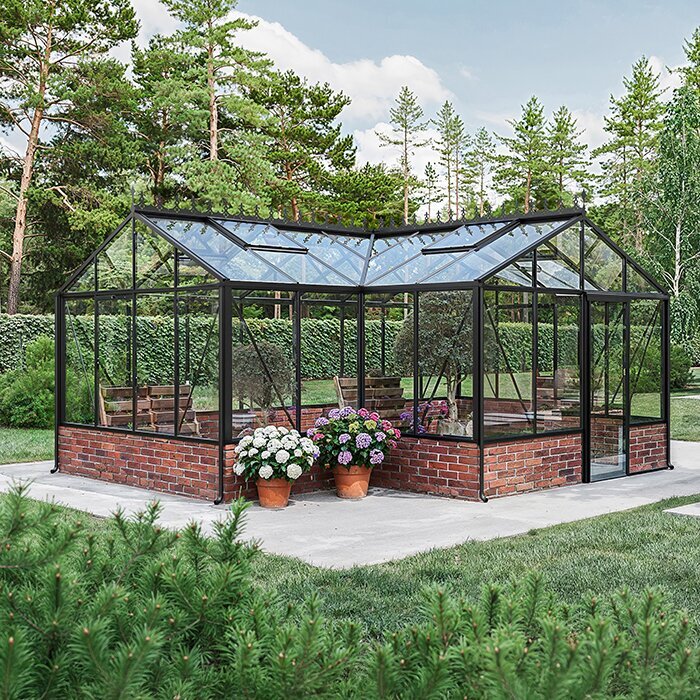

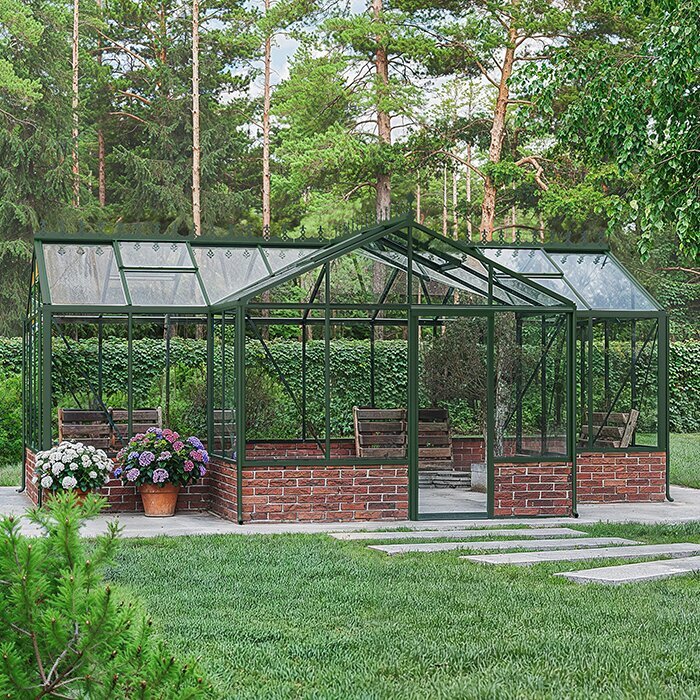

Our T-shaped orangery on a wall base is a fully freestanding aluminium-and-glass structure whose frame is fitted onto a made-to-measure masonry base. The model combines protected plant growing with a versatile garden room. Its distinctive shape can be oriented to connect the long section and cross wing sensibly with paths, the terrace and garden views.

When choosing a configuration, consider not only the available area but also the intended division between plants, work surfaces, furniture and clear walkways. Draw these zones to scale before ordering.

The key advantage of the T-shaped plan is its natural division of space: the long section and cross wing can serve different purposes without extra internal walls. More about the Bloomcabin T orangery.

What distinguishes the T model

For planning and everyday use, the divided footprint, site-built wall base, glazed surfaces and freedom of positioning are particularly important.

Dimensions and equipment of the T orangery

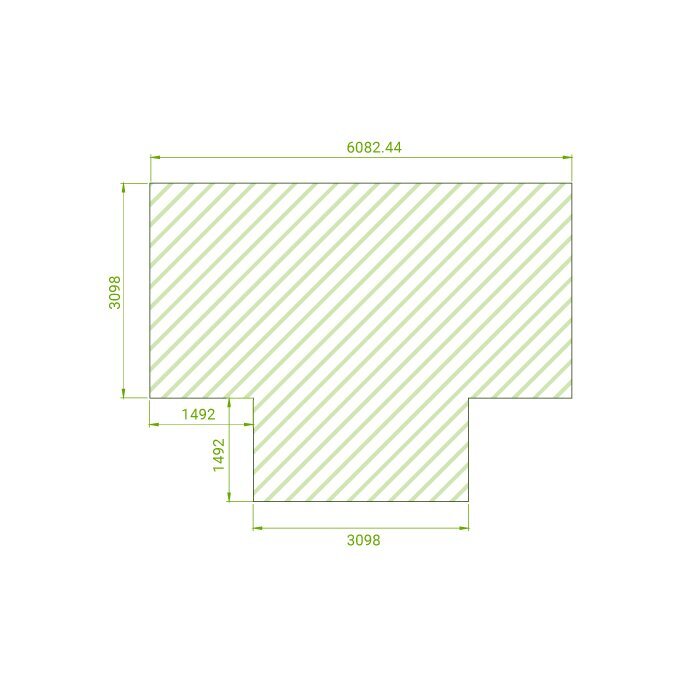

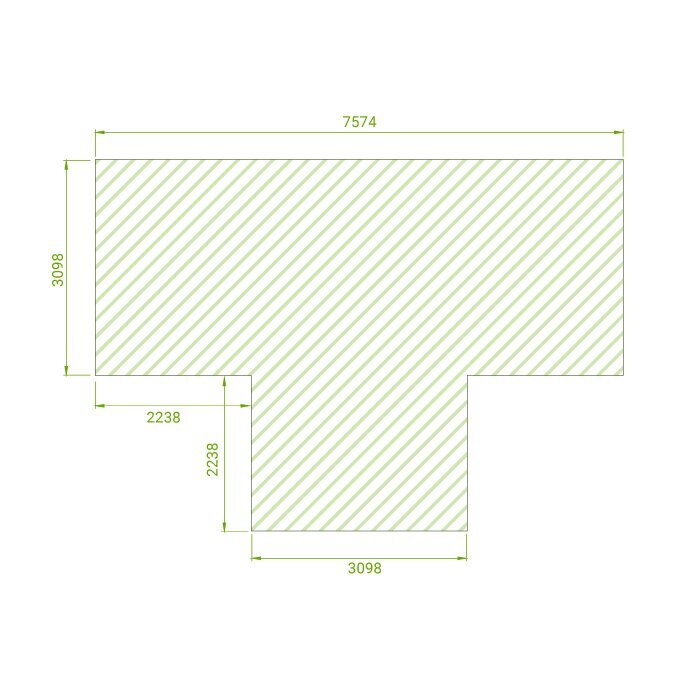

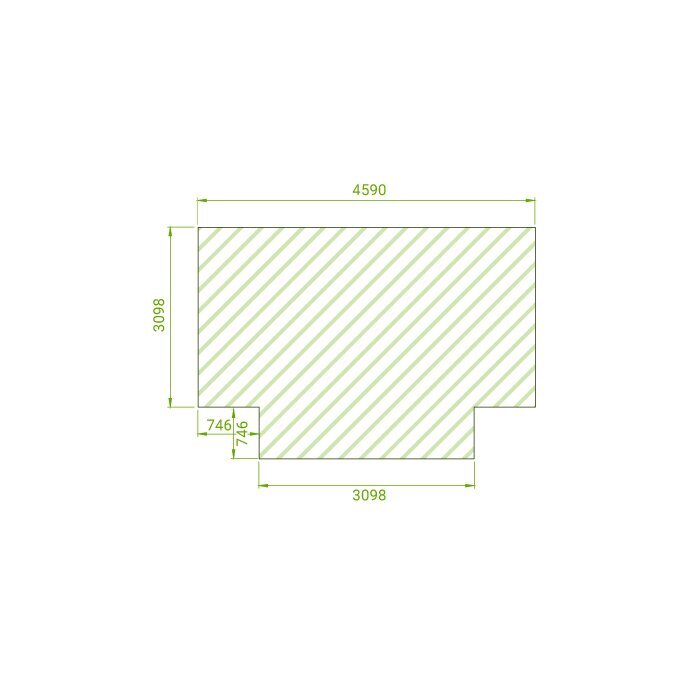

Area: approximately 16.5–30.0 m².

Main width: approximately 3.10 m.

Ridge height: approximately 2.67 m.

Door height: approximately 1.85 m.

Frame: powder-coated aluminium frame.

Glazing: 4 mm toughened safety glass.

Doors: single- or double-leaf sliding doors, depending on configuration.

Ventilation and drainage: Roof vents and integrated rainwater drainage. The structure is designed for a wind speed of 30 m/s and a snow load of 210 kg/m².

Manufacturer guarantee: 12 years, subject to the applicable terms.

Consider bearing capacity, drainage and the site from the start

The foundation beneath the wall base must suit ground conditions, local site exposure and the project’s actual loads. The aluminium structure does not replace a professionally designed foundation.

A T-shaped footprint has more external and internal corners than a rectangle. Water must not collect in these areas or run continually against the base.

Plan drainage together with the foundation, wall base and external paving, rather than after the orangery has been installed.

Check the entire T outline from one common reference line

Before laying the first course, mark the complete T outline on site. Check lengths, angles and door positions repeatedly against the confirmed drawing.

Even a small deviation in the cross wing can affect the long section. A common reference line is therefore more reliable than measuring separate wall sections independently.

Build the wall base only once the footprint, door openings and finished floor level are clearly established.

Large glazed areas need effective ventilation in summer

On sunny days, the interior can become considerably warmer than outside. Roof vents and sliding doors must therefore remain accessible and easy to operate at all times.

A sitting area has different comfort requirements from tomatoes or heat-loving citrus plants. Seasonal shading in the cross wing can therefore be useful even when the growing area remains unshaded.

Position furniture, tall containers and climbing plants so air can circulate between the long section and cross wing.

Plant and living areas can be finished differently

Stone, tiles or another easy-care surface suit the cross wing as a garden room. In the plant area, the finish can focus more closely on everyday gardening work.

Both areas need a common level in relation to the sliding doors. Thresholds, joints and drainage must therefore be considered while planning the wall base.

Arrange changes of material, joints and thresholds so they do not obstruct walkways and both areas remain easy to clean.

Direct rainwater from all roof areas purposefully

The integrated drainage brings water together from several roof surfaces. Decide where each outlet will lead before landscaping the surrounding area.

Water butts or larger storage tanks can cover part of the watering requirement, especially with many container plants or vegetable beds in the orangery.

Overflow must not discharge directly beside the wall base. This helps prevent the base from being repeatedly scoured or saturated.

A dining table needs more than its tabletop area

If the cross wing is to serve as a dining area, include pulled-back chairs and the real circulation routes in the drawing. Only then will the plan show whether it works in daily use.

Keep a clear passage between the entrance, seating area and plant zone, including when several people are seated at the table.

Also check that the sliding doors can be operated freely when the seating area is fully in use.

Tall plants structure the room but must not obstruct ventilation

Large citrus plants, figs or climbing crops can deliberately frame views. They should not stand directly in front of roof vents or sliding doors.

Lower plant groupings work better at transitions between the long section and cross wing because they restrict views and movement less.

When arranging plants, consider their eventual canopy width as well as height and the growth direction of climbing plants.

Every season brings different requirements

In spring, the T orangery offers space for propagation, tender container plants and early vegetable crops. In summer, ventilation and shading take greater priority.

In autumn, the orangery remains a sheltered garden room and protects plants from direct rain. In winter, use depends on plant selection and the heating concept.

An unheated orangery does not automatically remain frost-free and is not a substitute for living accommodation. Match use and expectations to the season.

A planned heating or fireplace solution affects flooring and furnishing

If a heating or fireplace solution is intended, decide its position before planning floor finishes, furniture and plant areas.

Clearances, flue routing and technical connections must suit the selected solution and be professionally planned. Do not improvise these details after completion.

With early planning, the heat source can be placed so doors, walkways, furniture and plant zones remain practical to use.

All sides of the T orangery must remain accessible

Glass surfaces, gutters, vents and frame junctions are easier to clean and inspect when beds and shrubs do not extend right up to the outside edge.

A dense hedge can later make cleaning and repairs difficult. Leave sufficient space around the orangery for access.

This is especially important at the internal corners of the T-shaped plan, where several glass and frame surfaces meet in a tight area.

When is a T shape better than a rectangular orangery?

Where growing and relaxation areas should be clearly separated, the T shape offers a practical advantage over one rectangular room.

If you plan only long vegetable beds without seating, a rectangular layout is often simpler and more space-efficient.

With the T model, the wall base also emphasises the building’s form. This makes it particularly suitable for a prominent garden location.

Coordinate trades and responsibilities early

Several tasks connect directly in this Bloomcabin model: foundation and masonry support the aluminium structure, floor build-up determines transitions at the doors, and external works must drain rainwater reliably. Before work begins, establish who transfers measurements, checks levels and approves the completed base for installation.

The confirmed model drawing provides a common basis for everyone involved. Changes to door openings, base height or floor build-up must be recorded in the relevant construction documents. First define the model, orientation and level reference. Then build the foundation and base; fit the frame only on the inspected support.

Coordinate handovers between the masonry contractor, landscaper, electrical professional where needed, and installation team in good time. For installation, bearing surfaces must be level, masonry complete, and access and working areas clear. Dusty or dirty work should no longer take place directly beside the glass structure.

Plan delivery, installation space and future garden paths together

Sun exposure is not the only factor when choosing a location. Check how components and glass panes can be moved to the intended site. Narrow garden gates, tight bends, steps, major level changes or densely planted trees can make access difficult. Keep the route clear during installation, and add sensitive planting near the orangery only afterwards.

Installation needs more space than the eventual footprint. Temporary working room is required around every external side for lifting, aligning and glazing. Stored components must not block access routes, doors or the internal corners of the T plan. Set aside storage and assembly areas before adding new paths, edging or beds.

After installation, paths should give sensible access to both use zones. A direct route to the plant area makes carrying soil, containers and garden tools easier. A clean route to the seating area can prevent visitors from always walking through the work area. The exact arrangement depends on the selected door positions.

Carefully coordinate wall-base materials and connections

The wall base shapes the appearance more strongly than a greenhouse with full-height glazing. It can repeat materials from the home or create a deliberate contrast. Besides the stone, bond pattern, joint finish, copings and the transition to external paving affect the result. Uneven joints and inaccurate cuts show particularly quickly at the many corners of a T shape.

View samples of masonry, joints, flooring and powder-coated aluminium together in natural light. Samples that look suitable alone can show different tones or gloss levels beside one another. The visible inside of the base should also suit the furnishing. Brightness, colour and surface texture additionally influence the interior light.

Technical connections must not be altered for appearance alone. The top edge must suit frame installation, and copings or joints must not direct water onto fixing surfaces. Coordinate special design details with the confirmed product dimensions before construction. This helps avoid later grinding, raising or levelling work.

Arrange potting tables, water and tools around daily routines

The plant area works efficiently when repeated routes stay short. Arrange propagation, potting, watering and temporary set-down areas in the order of normal work steps. Frequently used tools should be reachable without blocking the main aisle. Narrow consoles or work tables may stand against the wall base, but must not load frame connections or hinder glass cleaning.

Do not draw only the depth of worktops. Space is needed in front for bags, pots or watering cans and to move while carrying plants. Doors must remain fully usable during work. Temporary surfaces should therefore be allocated directly to their respective workstations.

Give soil, tools and watering accessories a fixed place in the plant zone. This keeps moisture and dirt away from seating furniture or textiles in the cross wing. Suitable storage helps keep the connection between the two areas permanently clear.

Balance air exchange in the divided interior

As planting increases, the long section and cross wing may warm differently and feel differently humid. Dense foliage, tall containers and furniture alter air movement. Observe the two areas separately rather than assuming the same conditions everywhere.

Compare how quickly humid air leaves each area after watering or cool nights. Dense foliage can remain damp locally for longer, while draughts may disturb the seating area sooner. Adjust opening of doors and roof vents to these differences.

Because planting changes through the seasons, one established ventilation routine will not remain suitable indefinitely. Review conditions when canopies become denser, climbing plants cover larger areas or the cross wing changes use.

Clean glass and powder-coated aluminium frames gently

Dust, pollen, algae deposits and splash marks can gradually reduce glazing transparency. Use suitable mild cleaning products and soft tools. Abrasive aids or aggressive cleaners can damage surfaces. Work in sections and rinse loosened dirt away so it does not remain in joints, door tracks or corners.

Powder-coated aluminium needs only regular gentle cleaning. At the same time, inspect visible fixings, frame connections and areas immediately above the wall base. For work at height, use only suitable stable equipment and never lean ladders unprotected against glass or frames.

Secure or move loose plants and furniture before cleaning inside. Clean upper glass surfaces first, then the base and floor last. This prevents loosened dirt from being spread again across already cleaned areas. A tidy interior also makes visual checks of frames and junctions easier.

Plan technical connections before building the base and floor

Lighting makes workspaces usable in the evening and illuminates the cross wing. Sockets may be needed for tools or other equipment. Position them around the actual use zones. Connections behind large pots or deep furniture are hard to reach, while cables crossing walkways create unnecessary trip hazards.

Conduits and cable routes can be integrated more discreetly before finishing the floor and wall base than later. A REWS-authorised professional with the appropriate scope should plan, select and install the electrical system. The metal-and-glass structure, watering and changing temperatures must be considered. Temporary extension leads are no substitute for a properly planned installation.

Plan water distribution inside at the same time. The route from a water connection or storage tank to the plants should be short and should not cross the seating area or main passage. Excess irrigation water must not stand permanently at base junctions. Clear separation of electrical installation, irrigation and drainage simplifies use and maintenance.

Adapt use, ventilation and care to the cooler season

Before winter, clear gutters, outlets, door tracks and vents of leaves and plant debris. Place movable containers so doors and inspection routes remain accessible. Arrange overwintering plants according to their temperature and light needs, keeping sensitive specimens away from frequently opened doors.

Humid air should not remain enclosed permanently in winter either. Brief ventilation adapted to the weather can reduce condensation, while sensitive plants must be protected from cold draughts. In the T plan, cold-sensitive plants can stand further from door areas provided air still circulates between the spaces.

Inspect roof surfaces from the ground after unusual weather events and keep drainage routes clear. Do not walk on the glass roof. If overhead work is needed, use appropriate professional methods that do not place point loads on glass or aluminium frames.

Keep connections and moving parts under review

Regular visual checks help identify small changes early. Pay particular attention to transitions between the aluminium frame and wall base, visible fixings, door travel and vent operation. After strong winds, an additional walk around the entire orangery is advisable.

Look for damaged joints, persistent damp marks or spalling on masonry. Do not simply cover such areas with unsuitable sealants. Instead, investigate the likely cause, since penetrating water is not always visible where it enters. Check outlets, falls and connections together.

Record maintenance and noticeable changes with dates and photographs. Keep the model drawing, installation documents and details of masonry, flooring and frame materials. This makes later repairs or alterations easier. Spare parts and work on the structure must suit the existing system; avoid additional drilling or loads on the frame.
