Fixed Triangular and Angled Windows

Made-to-measure fixed glazing for triangular and angled shapes

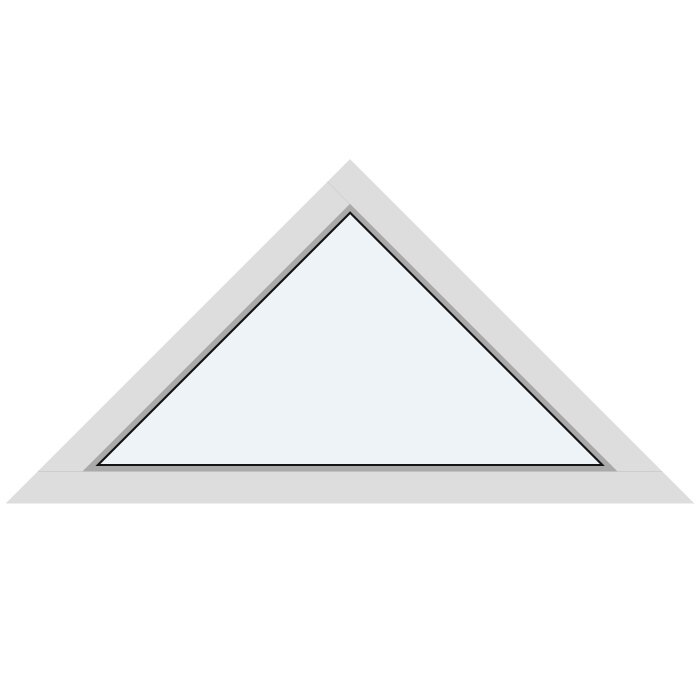

Fixed triangular and angled windows

A made-to-measure triangular or angled window with insulating glazing, selectable materials, colour choice and defined glazing-bar designs.

Window type

Fixed glazing

Manufacture

Made to measure

Colour choice

Available

Marking

CE marked

01

Fixed glazing: function and everyday use

This triangular and angled window has fixed glazing. It has no opening sash and no opening function. The glazed area remains a closed, permanent part of the window composition. In daily use, there is no handle to operate, sash to swing or opening position to consider. This can be particularly suitable where the special shape is planned as a calm glazed feature and no ventilation function is needed there.

The lack of an opening function should be considered from the outset when planning the room. If you wish to ventilate along the same wall or in the same room, another window or door designed for that purpose may need to take on this role. The fixed triangular or angled window itself must not be planned as an operable ventilation opening. Its purpose is fixed glazing and the design of the respective opening shape.

With fixed glazing, you should also consider later access to the glass and frame surfaces. How easily the inside and outside can be reached depends on the specific installation situation. If the window is intended for a high or otherwise difficult-to-reach location, it is advisable to consider future care of accessible surfaces during planning.

The selected glazing-bar pattern does not change the method of operation. Whether you choose a continuous glass view, horizontal or vertical divisions, or a version with glass-dividing bars, the entire window remains fixed. You can therefore align the visual design with the outline and desired effect without having to allow for sash movement.

02

Construction, materials and technical dimensions

Four frame material versions are available: pine, pine with aluminium cladding, oak and oak with aluminium cladding. Select one of these complete versions in your configuration and add the desired colour. Where aluminium cladding is required, it should be stated together with the selected wood species.

The outer frame has component dimensions of 105 × 57 mm. In an aluminium-clad version, the outer-frame component dimensions are 115 × 57 mm. These figures expressly refer to the named component. They do not generally describe the depth, width or height of the complete made-to-measure window and must not be used as the overall size of the intended opening. The specific window shape and its dimensions are recorded separately for each project.

The installation holes have a diameter of 14 mm. This component specification must be distinguished from the overall dimensions of the made-to-measure window and the dimensions of the intended opening. Double- and triple-insulating glazing are available for the glazed area. Record the preferred glazing option together with the material, colour and glazing-bar design in your configuration.

The triangular and angled window is CE marked and offered with a 5-year manufacturer’s guarantee. In your documentation, distinguish the measurements of the individual window outline from technical component dimensions: the outer frame measures 105 × 57 mm, or 115 × 57 mm in an aluminium-clad version. The dimensions of your special shape are instead recorded from its precise outline and clearly identified lengths.

05

Assessing the intended opening correctly

A made-to-measure triangular or angled window begins with a clearly described opening. Unlike a simple rectangular outline, sloping lines, points, sides and reference points can be interpreted differently. Record which view your drawing shows and how the individual edges relate to one another. A labelled sketch can help make the shape and orientation understandable without having to guess a specific geometry from a product name alone.

Also check whether your information describes the intended window size or only dimensions of the surrounding area. Frame, opening and other project measurements should not be mixed in communication. When using existing documents, label every figure according to its actual meaning. This helps avoid a sloping edge being read as a horizontal length or an overall length being assigned to one section.

When assessing the opening, it is also important to establish which side is understood as inside, outside, top and bottom. This is particularly relevant where the shape could appear mirrored. A photograph can provide additional orientation, but does not replace a clear dimensional drawing. If adjacent components visually or spatially define the shape, you can mark them on a sketch without assigning unconfirmed technical properties to them.

Installation and fitting tolerances depend on the individual building situation and should not be derived from the outer-frame dimensions. The value 105 × 57 mm, or 115 × 57 mm with aluminium cladding, describes the outer frame only. Clarify for your project which dimensions are opening, window or component dimensions, and label them accordingly in the documentation.

For a triangular or angled shape, describe not only the general designation but the actual outline. Clearly marked edges, corners, slopes and dimensional references make the made-to-measure specification easier to identify. Then add the material version, preferred colour, glazing option and glazing-bar design as separate selection points, so shape and specification remain clearly distinct.

06

Colour, material and visual composition

The effect of a triangular or angled window is shaped by the interplay of its outline, frame material, colour, glazed area and glazing-bar pattern. The available colour choice lets you coordinate the design with your project. Name the required shade as clearly as possible and, where useful, describe which existing windows, doors, façade sections or interior elements it should relate to.

Pine and oak are the offered wood species. Both are also available in versions with aluminium cladding. Cladding is part of the specifically named material version, rather than simply a colour name. When selecting, consider the effect of the material and required shade inside the room and on the façade, as well as their relationship with adjacent components.

The glazing-bar pattern can follow the direction of the window shape, create a deliberate contrast or leave the glazed view without additional division. Horizontal, vertical and combined patterns each produce a different graphic order. For versions expressly described as glass-dividing, this division belongs to the selected design, which is why the full variant name is important in the enquiry.

The black rubber glazing seals should not be understood as a separate frame colour selection. The actually selectable colour finish is decisive for colour coordination, while the seal is considered a separate glazing element. Record the frame colour, material version and desired glazing-bar pattern as distinct selection points.

If the new window is to relate to existing windows, doors or façade elements, photographs and clear colour information can serve as visual references. State which detail is important to you, such as the frame colour, wood species or glazing-bar direction. This makes it possible to compare material version, colour and design purposefully and record them as separate selection points.

07

Comparing fixed glazing and related opening types

A fixed-glazed triangular or angled window is intended for a permanently closed glazed surface. If your project needs an opening function elsewhere, the product range also includes top-hung windows, single- and double-sash casement windows, and single-leaf patio doors. These versions open outwards and can complement the fixed special shape within a larger window or door concept.

Historic-style versions are also available for casement windows and single-leaf patio doors. These are offered in pine or oak. In contrast, the corresponding standard versions of related windows and doors can also be selected in pine or oak with aluminium cladding. Consider these material differences where several elements are to be coordinated in one overall view.

The “Kombi” casement window combines a fixed-glazed section with an outward-opening sash, providing another way to arrange fixed and operable areas within one product. Like the other related windows, it is available with double- or triple-pane insulating glass and in pine, oak or the corresponding aluminium-clad versions. Select function, material, colour and design separately for every element.

If you request several windows or doors for the same project, list each element as a separate item. This keeps clear where a fixed special shape is planned, where a window should open outwards, and whether a single- or double-sash version is required. The following related products provide a direct starting point for comparison:

Top-hung window, outward opening, Single-sash casement window, outward opening, Historic-style single-sash casement window, outward opening, Double-sash casement window, outward opening, Historic-style double-sash casement window, outward opening, “Kombi” casement window, outward opening, Single-leaf patio door, outward opening, Historic-style single-leaf patio door, outward opening.

08

Preparing your enquiry in clear steps

Start with a short description of your project and name the product in full as “Fixed triangular and angled window”. For orientation, show the desired outline in a clearly oriented sketch. Mark which view is shown and label the lengths relevant to the shape clearly. An additional photograph can further illustrate the installation situation.

Then choose the material version. State whether you require pine, oak or one of the corresponding aluminium-clad versions. Record your preferred colour separately so that material and colour are not confused. If the shade is to match existing windows, doors or façade elements, name these as design references.

Next, state the required glazing using the offered option. Then use the full glazing-bar design name from the overview. Exact wording is especially important for glass-dividing glazing bars. A sketch of the pattern can clarify your choice, but should not be replaced by a design name you have created yourself.

Finally, summarise all details in a clear order: product name, outline, dimensional drawing, orientation, material version, colour, glazing and design. List several windows as separate items so that different shapes or design requirements are not mixed. If other window or door types belong to the same project, name these separately with their complete product descriptions.

Before sending, check that your documents can be read without contradictions. Pay particular attention to ensuring every edge is labelled consistently and that dimensions, preferred colour, glazing-bar pattern and material can be assigned to the correct window. A well-structured enquiry gives us a clear basis for discussing the desired made-to-measure window and any remaining selection points with you.

Is the triangular and angled window available made to measure?

Yes. This triangular and angled window is made to measure. Send us a clearly oriented sketch showing the desired outline and clearly labelled dimensions. Also mark which side is inside, outside, top and bottom, so the special shape can be discussed unambiguously.

Can I choose a colour?

Yes, a colour choice is available. In your enquiry, tell us the colour effect you want and whether it should relate to existing windows, doors, façade sections or the interior design.

Can this window be opened for ventilation?

No. The product has fixed glazing and no opening sash. It is therefore not suitable as an operable ventilation window. If an opening function is needed, consider a window type specifically named for that purpose.

Which material version can I request?

You can choose pine, pine with aluminium cladding, oak or oak with aluminium cladding. State the complete material version and your preferred colour in your enquiry. For colour coordination, you can also identify existing windows, doors, façade elements or interior features that you wish to use as references.

How do I state the required glazing-bar design?

Name the required design using the full design description from the product overview wherever possible. This makes clear whether you want an undivided view, glazing bars or glass-dividing glazing bars, and how they should be aligned.

How long is the manufacturer’s guarantee for the window?

The fixed triangular and angled window has a 5-year manufacturer’s guarantee. Include the required material, glazing and design version in full in your enquiry so that the requested window is clearly described.

What type of glazing is used?

You can choose between double- and triple-insulating glazing. The glazing has a heat-reflective coating, a warm-edge spacer designated CHR and argon filling. Black rubber seals also form part of the glazing construction.

Is the window CE marked?

Yes. The fixed triangular and angled window is CE marked.

Plan your triangular or angled window with us

Are you planning a special window shape and want to bring material, colour, glazing and glazing-bar pattern together harmoniously? Send us the shape of the intended opening, your dimensions and the desired design for your made-to-measure triangular or angled window.
