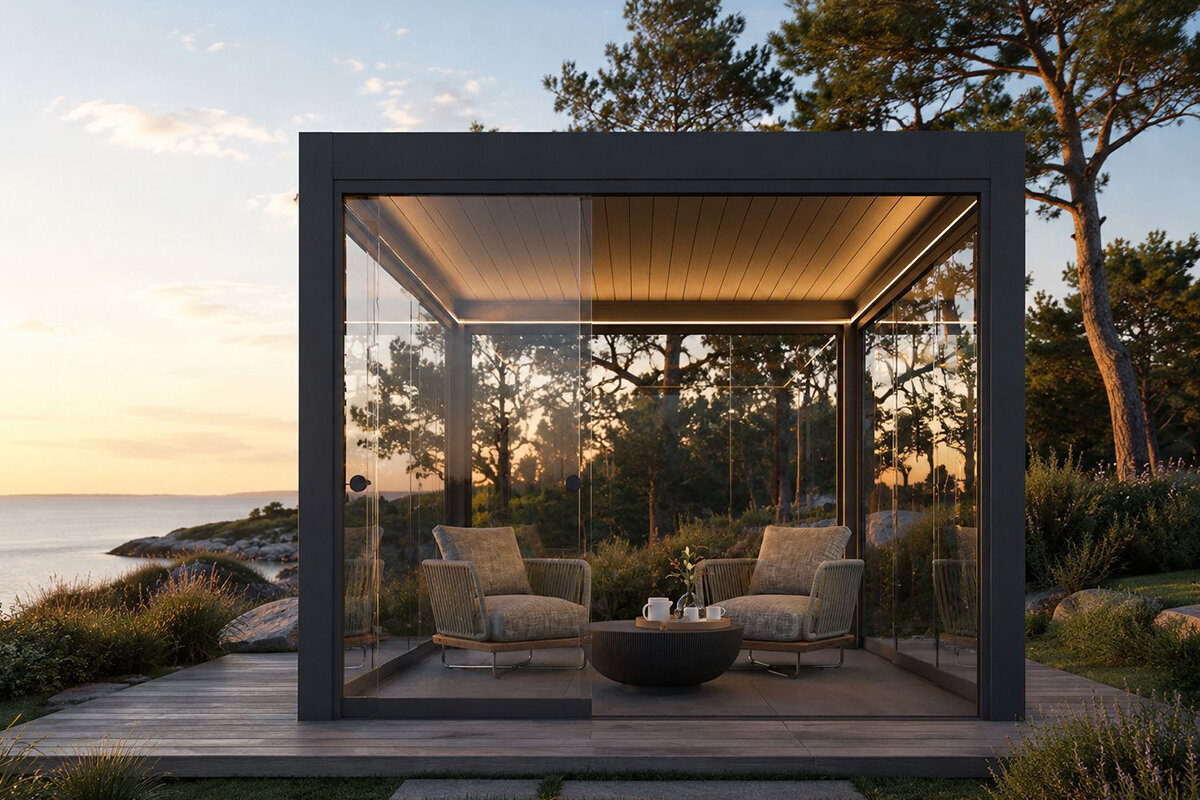

Pergola with glass walls: sliding glazing or fixed glass walls?

A 10 mm toughened safety-glass enclosure can make an aluminium pergola far more sheltered without losing the garden view. The key question is whether a side should open flexibly or provide permanent transparent wind protection.

10 mm toughened safety glassSliding & fixed glazingTransparent wind protection
The basic idea

Glass walls turn an open pergola into a more sheltered outdoor area without making it a closed room.

A pergola with glass walls still looks light, but gains clearer boundaries. Glass cuts side winds, better protects furniture and seating from wind-driven rain, and keeps the garden in view. With contemporary aluminium pergolas, the combination of slim frames and transparent surfaces is especially well balanced.

Bloomcabin uses 10 mm toughened safety glass for this purpose. It is not comparable with an ordinary windowpane: these are large outdoor building elements that need planning alongside tracks, frames, fixings and the foundation.

The important choice is not simply glass or no glass, but movable or fixed. Sliding glazing can open, changing access and ventilation. A fixed glass wall remains closed and is particularly useful where wind regularly arrives from one direction and no passage is needed.

Consider each pergola side separately. The house side, garden side, weather side and late-afternoon sun side all serve different purposes. This reveals which areas should remain open, which should be fixed, and where sliding panels add the most value.

Materials

10 mm toughened safety glass: clear, robust and suitable outdoors.

Glazing is a structural side element of the pergola. It reduces air movement and creates a defined edge between seating and surroundings. Unlike a solid wall, it does not interrupt the view, so even a partly enclosed pergola still feels like an outdoor space.

Toughened glass is heat-treated, giving it different strength and breakage characteristics from untreated float glass. For users, the important point is that it is safety glass rather than improvised glazing made from ordinary panes.

The 10 mm specification suits large sliding or fixed panels and gives the system a substantial, premium feel. Do not expect a glass wall to insulate like a home façade, however. It improves weather comfort rather than creating a heated conservatory.

The supporting structure matters too. A quality pane performs only as well as its track, frame geometry and fixings. Finalise the glazing plan before completing the foundation, patio finish and drainage.

Glass specification10 mm toughened safety glass
Main functionWind protection, side shelter and clear views
Sliding glazing

Sliding panels are ideal when shelter and openness need to change with the weather.

Sliding glass is highly flexible. On a cool morning, the weather side can stay closed while the garden side remains open. When it warms up, the panels can be stacked aside and the pergola feels much more open again. That changeability is its main advantage over a fixed wall.

On patios with direct garden access, a movable glass front is often more practical than fixed glazing. Children, guests and anyone walking to the barbecue should not have to detour around a permanent pane. The sliding section can therefore provide both wind protection and a passage.

Keep the panel parking position clear during planning. A sofa, planter or barbecue must not occupy the place where panes stack together. Their travel path belongs in the layout just as much as the table and chairs.

The bottom track needs a precise, stable line. Ground settlement or an uneven surface can affect smooth operation. Foundation geometry is therefore particularly important for sliding glazing.

Sliding glass allows more precise ventilation. You do not have to open the entire side; depending on the system, only part can be released. With a louvred roof, this creates a controllable airflow from the side upwards.

Maintenance remains manageable, but is greater than for fixed glass. Keep tracks clean and check rollers in accordance with the system instructions. Sand, leaves and small stones should not remain in the running area.

Fixed glazing

Fixed glass walls are the quieter choice when one side needs lasting protection.

A fixed glass wall works well where wind regularly comes from a defined direction and no access is needed on that side. It creates lasting shelter for a dining or lounge area without requiring panels to be moved every day.

Visually, fixed glazing can appear especially calm because no stacking area is required for sliding panels. The transparent surface reads as a clear architectural plane.

Fixed also means permanent. If you later want garden access in exactly that position, the solution is less flexible. Think through how the entire property will be used before deciding.

A useful arrangement often combines both options: fixed glass on the main weather side and sliding glazing facing the garden. Shelter remains constant while access and ventilation stay adjustable.

Fixed glass also changes wind loading. The more sides are closed, the more differently wind acts on the pergola. Include the final glazing configuration in the overall structural and technical assessment.

Fixed glass is straightforward to clean and maintain. Ensure the lower edge remains accessible and that adjoining plants do not constantly press against the pane.

Sliding or fixed?

The purpose of each side matters more than symmetry.

Ordering four identical glass walls may create an even footprint, but not automatically the best outdoor room. The prevailing-weather side may need permanent shelter, while the garden side should stay open and movable.

Choose sliding glass for access, adjustable ventilation and seasonal openness. Fixed glass is better where transparent protection should remain in place and no mechanism is required.

For many patios, a mixed approach is strongest: a fixed pane on the most exposed wind side, a sliding front towards the garden, and at least one additional open or screen-equipped side. The pergola stays adaptable and avoids becoming a fully enclosed glass box.

Glass + louvred roof

Side protection and roof ventilation need to work together.

Glass reduces wind from the side. A bioclimatic louvred roof regulates sun, shade and upward air exchange. Together they create a much more controllable outdoor space. On cool, windy days, glass can stay shut while open louvres admit light.

In high summer, the reverse applies: if glass walls and roof are fully closed, heat can build up. Open sliding sections or set louvres so warm air can escape upwards.

Glass can also be useful on a classic pergola where wind protection is the main aim. Greater climatic flexibility comes from combining an adjustable roof with movable sides.

For a considered plan, first decide what roof function is required, then determine which sides should have 10 mm glass. This avoids conflicting functions.

Wind

One correctly placed glass wall can achieve more than four poorly planned ones.

Buildings, hedges, walls and changes in ground level strongly influence wind. A forecast may show the general direction, while airflow at a seating area can arrive quite differently around a house corner. Observe the patio over several windy days.

A fixed pane on the prevailing-weather side can greatly improve comfort. At the same time, wind should not simply be forced into a narrow, unpleasant channel between glass and house. Consider airflow around the entire pergola.

Sliding glass is especially useful where exposure changes seasonally. One side may stay nearly closed through spring but be open more often in summer.

Every additional glass surface changes the structure's wind exposure. At exposed sites, such as hilltops, open paddocks or coastal locations, include the final configuration in the technical assessment.

Side protection can reduce wind, but cannot replace correct anchoring. Foundation and fixings must suit the pergola with its intended glass walls.

Rain & drainage

The roof keeps off rain from above; glass helps against wind-driven rain.

In strong side winds, rain can enter a pergola even beneath a closed roof. A glass wall on the weather side significantly reduces this and better protects furniture and floor surfaces.

Sliding panels are practical where shelter is needed only in certain conditions. After a shower, reopen the side so moisture and warm air can dry more quickly.

Do not place the bottom track in a permanent water path. Patio falls and drainage should prevent dirty water and soil from continually entering the track.

Plan roof drainage carefully, especially beside a house wall. Water from the pergola must not be directed towards the building base or low door thresholds.

A glazed pergola remains an outdoor structure. It is not equivalent to a fully sealed living room. Wind, small gaps and open sides may still admit moisture.

New Zealand

Coastal sites, inland heat, alpine conditions and urban patios need different glass strategies.

New Zealand ranges from exposed coastal locations to warm, sheltered courtyards and cooler alpine areas. The right amount of glass therefore varies by region and, more importantly, by property.

The aim should never be to install as much glazing as possible. Focus on the weather exposure that genuinely limits use of the space.

Coastal locations Wind protection is often a priority. Fixed glass on the prevailing-weather side and sliding panels towards the sunnier garden side can work well.
Open inland sites Wind and rapidly changing weather often favour flexible sliding glazing over a permanently enclosed all-round solution.
Warmer northern areas Ensure cross-ventilation remains available on hot summer days despite the glass. Strong afternoon sun may also call for screens.
Alpine and southern areas Cooler evenings, snow and exposed locations increase the value of wind protection, but also the demands on foundations and overall planning.
Dense urban sections Buildings store heat and slow the wind. Too much glass can cause heat build-up faster here than on more open properties.
Freestanding or wall-mounted

With a wall-mounted pergola, the building already forms the fourth edge of the room.

A freestanding pergola can be designed with glass independently of the house. The main weather side can be fixed, the garden side sliding, and another side deliberately left open.

For a wall-mounted pergola, one side already meets the façade. Door openings, downpipes, exterior lights and windows become more important. A sliding front must not obstruct these elements.

Large glass areas preserve sightlines, but posts and tracks remain visible. Before building the foundation, view their positions from indoors so no post stands in front of the key garden outlook.

The house side also affects daylight indoors. An adjustable roof can admit more light in spring while glass reduces wind. This combination is particularly appealing near large sliding doors.

Size & furnishing

Glass makes the outer edges real, so plan furniture before specifying glazing.

An open seating area forgives a chair that projects slightly beyond the notional pergola edge. A glass track removes that freedom. Mark out the table, pulled-out chairs and walking routes at full size on the patio.

Sliding panels also require a stacking zone. The gathered panes need a dedicated place that does not conflict with a sofa, barbecue or planters.

Large pergolas can be divided into dining and lounge zones. Each zone need not receive identical glazing. A sheltered dining area and a more open lounge can work well within one structure.

Cleaning and maintenance routes need room too. Keep glass surfaces, tracks and drainage accessible without moving all the furniture every time.

Foundations & tracks

The more movable the glass wall, the more important a precise, permanently stable base becomes.

Posts need a load-bearing base. An existing patio slab or paving is not automatically a suitable structural foundation; what lies beneath the visible surface is decisive.

With sliding glass, lower tracks must remain straight and permanently aligned. Settlement in the paving can impair operation and eventually place unnecessary stress on rollers or frames.

Before drilling or foundation work, clarify services, drainage and later power supplies for lights or motors. Avoid breaking up a finished premium patio afterwards.

Surface water must not run towards the track or house. A small error in the fall can cause more everyday problems than the glass mechanism itself.

Set the final number of glass panels before structural or technical assessment, because closed sides alter wind effects.

Heat & ventilation

More shelter means less natural air exchange, so the pergola must still be able to breathe.

Less wind feels pleasant on a cool spring day. In high summer, that same protection can contribute to heat build-up. Open sliding panels and, with a louvred roof, use the roof setting to exhaust warm air.

A completely enclosed side system is not automatically more comfortable. In hot parts of New Zealand or still urban courtyards, one deliberately open side can be essential.

Glass can mist up during temperature changes. This is normal building physics when humid air meets a cooler surface. Good airflow helps it dry.

For outdoor kitchens, consider the heat output, clearances and ventilation of the particular appliance. Do not arrange glass panels thoughtlessly around a barbecue.

The best glazed pergola adapts through the day: sheltered in the morning, open in the afternoon and partly closed again at night.

Care

Glass is uncomplicated; with sliding walls, tracks and rollers deserve the most attention.

Clean 10 mm toughened glass as other quality exterior glazing. Remove dust, pollen and water marks regularly. The frequency depends greatly on the site.

Bottom tracks run more freely when leaves, sand and small stones are removed early. A short clean is better than allowing the guide to fill up.

Check panels, rollers and guides according to the system instructions. If an element suddenly becomes difficult to move, do not force it.

Fixed glass has fewer moving parts. Even so, inspect frame junctions and the surface at the lower edge seasonally.

After a severe storm, inspect the glass, roof drainage, post areas and adjoining paving. Changes are easier to identify early.

Common planning mistakes

Most problems arise when glass is treated as an accessory rather than part of the space concept.

01. Automatically glazing every side More glass can unnecessarily reduce ventilation.
02. Forgetting the stacking zone Sliding panels need a clear parking area.
03. Putting a track in a water path Falls and drainage must direct water away from the guide.
04. Mistaking clear glass for privacy screening Transparent glass protects from wind, not views.
05. Underestimating summer heat Closed sides and a closed roof can trap heat.
06. Building foundations before planning glazing Tracks and posts must be set out together.
07. Ignoring wind loading Closed sides change how the structure behaves.
08. Treating a pergola as a living room Glazing improves outdoor comfort but does not create a heated interior.
Bloomcabin New Zealand / plan further

Plan the pergola, foundation, size and position as one system.

These Bloomcabin guides help you choose the right pergola type and prepare your patio.

FAQ

Questions about pergolas with glass walls

What glass does Bloomcabin use?

10 mm toughened safety glass for outdoor side glazing.

Which is better: sliding or fixed glass?

Sliding glass offers access and adjustable ventilation; fixed glass provides permanent transparent wind protection.

Can both options be combined?

Yes. A fixed weather side with a sliding garden side is often especially practical.

Does it become warmer behind glass?

Glass reduces wind, so heat can build up faster on warm days. Adequate opening and roof ventilation are important.

Are glass walls rainproof?

They greatly improve side protection, but do not turn the pergola into a fully sealed living room.

Which side should be glazed first?

Start with the side causing the greatest recurring wind, wind-driven rain or other exposure.

Does sliding glass need a special base?

The guide needs a stable, level and well-drained base; the exact foundation solution depends on the project.

Can the pergola be used in winter?

Wind protection can extend the shoulder seasons. Snow, ice and roof operation depend on model documentation and local conditions.

Transparent shelter

Fixed glass where protection should remain. Sliding glass where the patio should change.

With 10 mm safety glass, an aluminium pergola can become much more sheltered without losing its connection to the garden. The best result follows wind direction, access, ventilation, foundations and everyday use—not maximum glazing.
