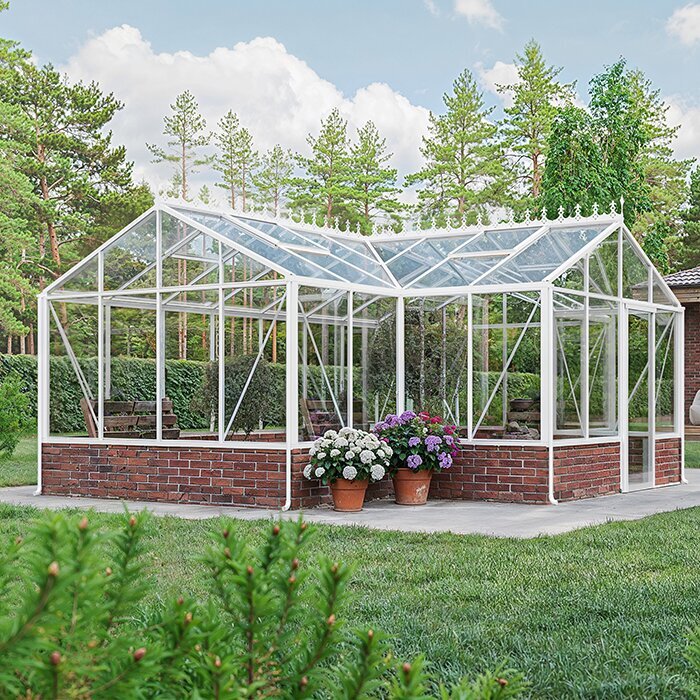

T-shaped greenhouse for wall installation

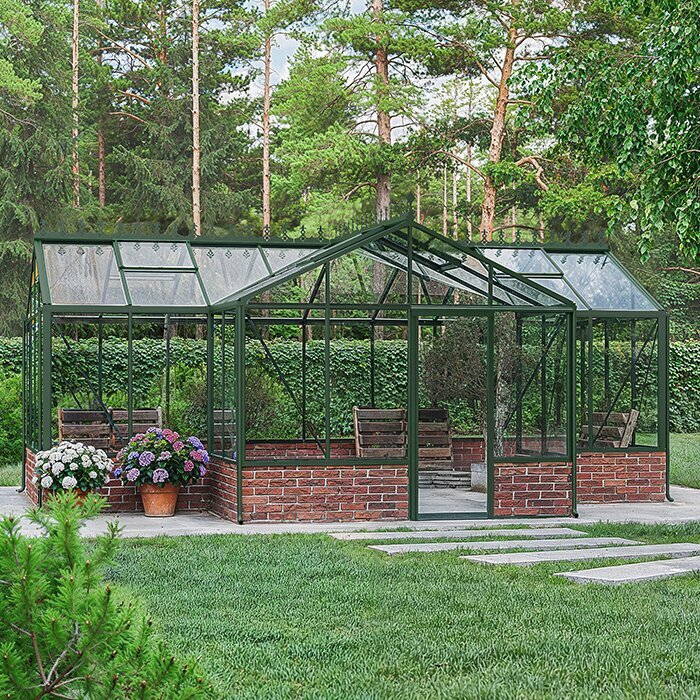

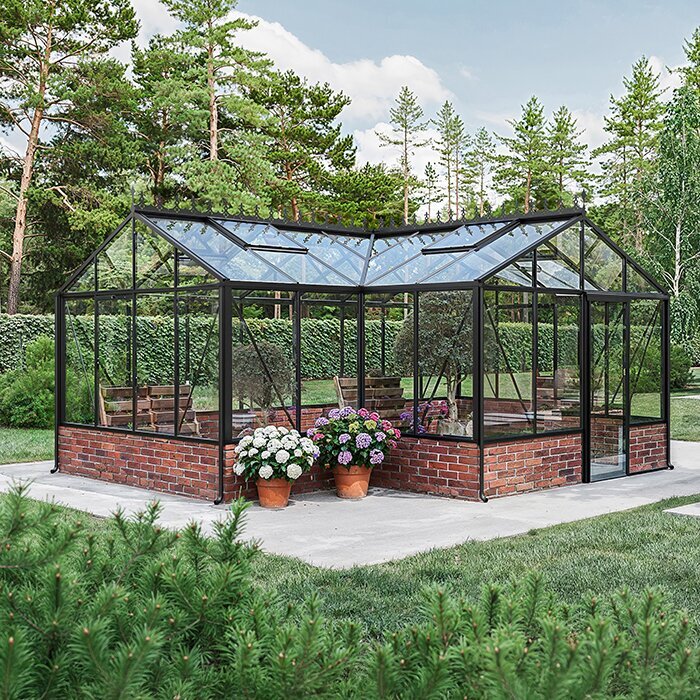

T-shaped orangery on a masonry plinth – greenhouse and garden room in one

Our T-shaped orangery on a masonry plinth is a fully freestanding aluminium-and-glass structure, with its frame installed on a bespoke masonry plinth. The model combines protected plant growing with a versatile garden room. Its distinctive shape can be oriented so the long section and cross wing align sensibly with paths, a patio and garden views.

Choosing the right configuration is about more than available space: consider the desired division between plants, worktops, furniture and clear walkways. Draw these areas to scale before ordering.

The T-shaped footprint naturally divides the space: the long section and cross wing can serve different purposes without requiring additional internal walls. Learn more about the T orangery from Bloomcabin.

What distinguishes the T model

For planning and use, the divided footprint, site-built masonry plinth, glazing and freedom of placement are especially important.

Dimensions and equipment of the T orangery

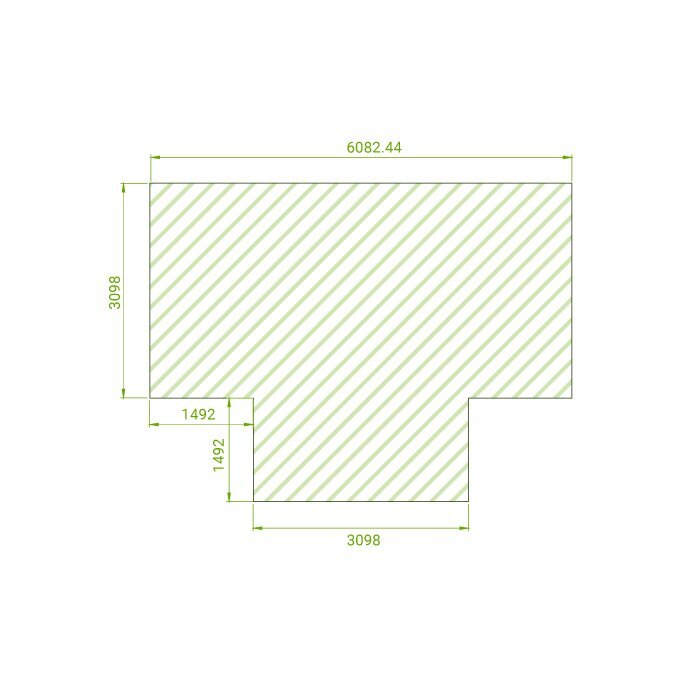

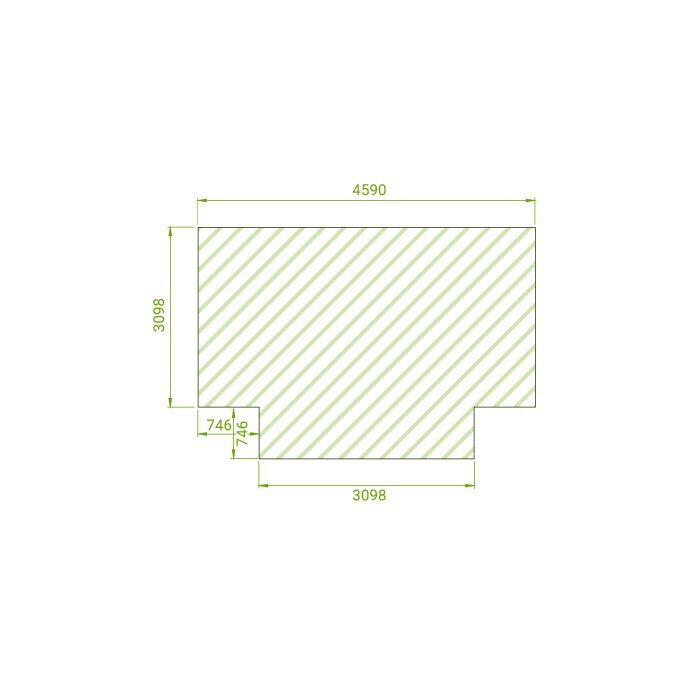

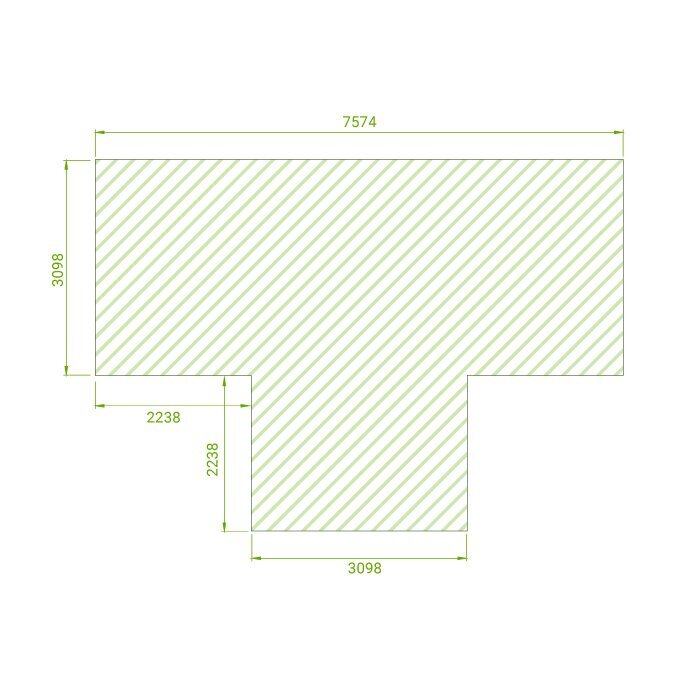

Area: approximately 16.5–30.0 m².

Main width: approximately 3.10 m.

Ridge height: approximately 2.67 m.

Door height: approximately 1.85 m.

Frame: powder-coated aluminium frame.

Glazing: 4 mm toughened safety glass.

Doors: single- or double-panel sliding doors, depending on configuration.

Ventilation and drainage: Roof vents and integrated rainwater drainage. The structure is designed for wind speeds of 30 m/s and a snow load of 210 kg/m².

Warranty: 12 years, subject to the applicable terms.

Consider local frost exposure, bearing capacity and drainage from the outset

The foundation beneath the masonry plinth must suit the ground conditions, local frost and weather exposure, and actual project loads. The aluminium structure does not replace a properly designed and constructed foundation.

A T-shaped footprint has more external and internal corners than a rectangle. Water must not collect in these areas or continually run against the plinth.

Plan drainage together with the foundation, masonry plinth and external finishes, rather than after the orangery has been installed.

Check the complete T outline from one reference line

Before laying the first course, mark out the full T outline on the site. Check lengths, angles and door positions several times against the confirmed drawing.

Even a small deviation in the cross wing can affect the long section. One shared reference line is therefore more reliable than measuring individual wall sections separately.

Build the masonry plinth only once the footprint, door openings and finished floor level are clearly fixed.

Large glazed areas need effective summer ventilation

On sunny days, the interior can become substantially warmer than outdoors. Roof vents and sliding doors must therefore remain accessible and easy to operate at all times.

A seating area has different comfort needs from tomatoes or heat-loving citrus plants. Seasonal shading in the cross wing may be useful even if the growing section remains unshaded.

Position furniture, tall pots and climbing plants so air can circulate between the long section and cross wing.

Growing and seating areas can have different finishes

Stone, tiles or another easy-care finish can suit the cross wing as a garden room. The growing area can be designed more specifically for everyday gardening tasks.

Both areas need a common level reference at the sliding doors. Thresholds, joints and drainage must therefore be considered while planning the masonry plinth.

Arrange changes of material, joints and thresholds so they do not obstruct walking routes and both areas remain easy to clean.

Direct rainwater from every roof surface purposefully

The integrated drainage gathers water from several roof surfaces. Decide where each outlet will lead before landscaping the surrounding area.

Water butts or larger tanks can cover part of the watering requirement, particularly with many container plants or vegetable beds in the orangery.

Overflow must not discharge directly beside the masonry plinth. This helps prevent repeated erosion or saturation at the base.

A dining table needs more space than its tabletop

If the cross wing will be a dining area, include pulled-out chairs and the walkways actually needed. Only then will the plan show whether the layout works in daily life.

Keep a clear route between the entrance, seating area and plant zone, even when several people are seated at the table.

Also check that the sliding doors can be operated freely when the seating area is fully occupied.

Tall plants divide space but must not obstruct ventilation

Large citrus plants, figs or climbing crops can deliberately frame sightlines. They should not stand directly in front of roof vents or sliding doors.

Lower groups of plants work better at the transition between the long section and cross wing, as they restrict views and movement less.

When planning positions, allow not only for plant height but also for future canopy width and the growth direction of climbing plants.

Every season brings different requirements

In spring, the T orangery provides room for propagation, tender container plants and early vegetable crops. In summer, ventilation and shading become more important.

In autumn, the orangery remains a sheltered garden room and protects plants from direct rain. In winter, use depends on plant selection and the heating concept.

An unheated orangery does not automatically remain frost-free and is not a substitute for a living room. Match use and expectations to the season.

A planned heating or fireplace solution affects floor build-up and furnishing

If heating or a fireplace is intended, decide its position before planning flooring, furniture and planting areas.

Clearances, flue routing and technical connections must suit the chosen solution and be professionally planned. These points should not be improvised after completion.

Early planning allows the heat source to be placed so doors, walkways, furniture and growing areas remain practical.

Every side of the T orangery must remain accessible

Glass, gutters, vents and frame joints are easier to clean and inspect when beds and shrubs do not extend right up to the outer edge.

A dense hedge can later make cleaning and repairs difficult. Leave sufficient access space around the orangery.

This is especially important at the internal corners of the T footprint, where several glass and frame surfaces meet in a confined area.

When is a T shape better than a rectangular orangery?

When plant growing and a seating area should be clearly separated, the T shape offers a functional advantage over one rectangular room.

If you only plan long vegetable beds without seating, a rectangular form can often be simpler and use floor area more efficiently.

With the T model, the brick plinth also emphasises the building form. This makes it particularly suitable for a prominent garden position.

Coordinate trades and responsibilities early

Several tasks interconnect directly on this Bloomcabin model: the foundation and masonry support the aluminium structure, floor build-up determines door transitions, and landscaping must drain rainwater reliably. Before work starts, decide who transfers dimensions, checks levels and releases the finished plinth for installation.

The confirmed model drawing is the shared basis for everyone involved. Changes to door openings, plinth height or floor build-up must be traceable in the relevant construction documents. First establish the model, orientation and level reference. Then build the foundation and plinth; install the frame only on the checked base.

Coordinate handovers between the masonry contractor, landscaper, registered local electrical contractor where applicable, and installation team in good time. By installation day, bearing surfaces must be level, masonry complete, and access and work areas clear. Dust- or dirt-producing work should no longer take place directly beside the glass structure.

Plan delivery, assembly space and future garden paths together

Sunlight is not the only factor when choosing a location. Check how components and glass panes can reach the intended position. Narrow garden gates, tight turns, steps, major level changes or closely planted trees can restrict access. Keep the route clear during installation, and establish sensitive planting near the orangery only afterwards.

Assembly needs more space than the finished footprint. Temporary working room is required around all exterior sides for erecting, aligning and glazing. Stored components must not obstruct access routes, doors or the internal corners of the T footprint. Define storage and assembly areas before creating new paths, edging or beds.

After installation, paths should serve both use areas sensibly. A direct route to the plant area makes moving soil, pots and garden tools easier. A clean path to the seating area can avoid visitors always walking through the work zone. The exact layout depends on the selected door positions.

Coordinate plinth materials and junctions carefully

The masonry plinth shapes the appearance more strongly than a greenhouse with full-height glazing. It can repeat materials from the house or create a deliberate contrast. The choice of material, bond pattern, joint finish, copings and transition to external surfacing all affect the result. Uneven joints and inaccurate cuts are especially noticeable around the many corners of a T shape.

View samples of masonry, joints, flooring and powder-coated aluminium together in natural light. Samples that work individually can show different tones or sheen beside one another. The visible inner face of the plinth should also suit the furnishing. Brightness, colour and surface texture additionally influence the interior light.

Technical junctions must not be altered for appearance. The top edge must suit frame installation; copings and joints must not lead water onto the fixing surface. Match special design details to the confirmed product dimensions before construction. This avoids later grinding, raising or levelling work.

Arrange planting tables, water and equipment around daily tasks

The growing area works efficiently when regular journeys are short. Arrange propagation, potting, watering and temporary set-down spaces in the order of typical tasks. Frequently used equipment should be accessible without blocking the main aisle. Narrow shelves or worktables may stand against the masonry plinth but must not load frame junctions or impede glass cleaning.

Do not draw only the depth of work surfaces. Space is also needed in front for bags, pots or watering cans and to move while carrying plants. Doors must remain fully usable during work. Temporary set-down areas should therefore be assigned directly to each work point.

Keep soil, tools and watering accessories in designated places within the growing area. This reduces moisture and dirt reaching seating furniture or textiles in the cross wing. Suitable storage helps keep the connection between the two sections permanently clear.

Balance air exchange in the divided interior

As planting becomes denser, the long section and cross wing may warm differently and feel differently humid. Dense foliage, tall pots and furniture alter air movement. Observe both sections separately rather than assuming identical conditions everywhere.

Compare how quickly damp air leaves each area after watering or cool nights. Dense foliage can remain humid locally for longer, while draughts can disturb the seating area sooner. Adjust the opening of doors and roof vents to these differences.

As the plant stock changes through the seasons, a fixed ventilation routine will not remain suitable indefinitely. Check conditions again when canopies thicken, climbing plants occupy larger areas or use of the cross wing changes.

Clean glass and powder-coated aluminium gently

Dust, pollen, algae deposits and splash marks can reduce glazing transparency over time. Use suitable mild cleaners and soft tools. Abrasive aids or aggressive cleaners can damage surfaces. Work in sections and rinse loosened dirt away so it does not remain in joints, door tracks or corners.

Regular gentle cleaning is sufficient for powder-coated aluminium. Check visible connections, frame junctions and areas directly above the masonry plinth at the same time. For elevated work, use only suitable stable equipment and never rest ladders unprotected against glass or frames.

Secure or remove movable plants and furniture before cleaning inside. Then clean upper glass first, followed by the plinth and floor. This prevents loosened dirt from being spread again over cleaned surfaces. A tidy interior also makes visual inspection of frames and junctions easier.

Plan technical connections before building plinth and floor

Lighting makes work areas usable in the evening and illuminates the cross wing. Sockets may be needed for tools or other equipment. Position them according to the real use areas. Connections behind large pots or deep furniture are hard to reach, while cables across walkways create unnecessary trip hazards.

Conduits and cable routes can be integrated more discreetly before the floor and masonry plinth are complete than later. A registered local electrical contractor should plan, select and install the electrical system, taking account of the metal-and-glass structure, irrigation and changing temperatures. Proper inspection and testing, with applicable Certificate of Compliance documentation, are required. Temporary extension leads do not replace a properly planned installation.

Plan water distribution indoors at the same time. The route from the water supply or storage to plants should be short and should not cross the seating area or main aisle. Excess irrigation water must not remain at plinth junctions. Clear separation of the electrical installation, watering and drainage makes use and maintenance easier.

Adapt use, ventilation and care to cooler conditions

Before winter, clear leaves and plant debris from gutters, outlets, door tracks and vents. Position movable pots so doors and inspection routes remain accessible. Arrange overwintering plants according to their individual temperature and light needs, keeping sensitive stock away from frequently opened doors.

Even in winter, damp air should not remain trapped for long. Brief ventilation suited to the weather can reduce condensation; sensitive plants must be protected from cold draughts. In a T footprint, cold-sensitive plants can stand farther from door areas, provided air can still circulate between sections.

Inspect roof surfaces from ground level after exceptional weather and keep drainage routes clear. Do not walk on the glass roof. If work above is needed, use appropriate professional methods that do not place point loads on glass or aluminium frames.

Keep junctions and moving parts under review

Regular visual inspections help identify small changes early. Check the transitions between the aluminium frame and masonry plinth, visible fixings, door travel and vent operation. After strong winds, an additional walk around the entire orangery is advisable.

Look for damaged joints, persistent moisture marks or spalling in the masonry. Do not simply conceal these with unsuitable sealants. Instead, investigate the likely cause, as water ingress is not always visible where it enters. Check outlets, falls and junctions together.

Record maintenance work and noticeable changes with dates and photographs. Keep the model drawing, installation documents and details of the masonry, flooring and frame materials used. This makes later repairs or adjustments easier. Spare parts and work on the structure must suit the existing system; avoid additional drilling or loads on the frame.
