Fixed Triangular and Angled Windows

Custom fixed glazing for triangular and angled shapes

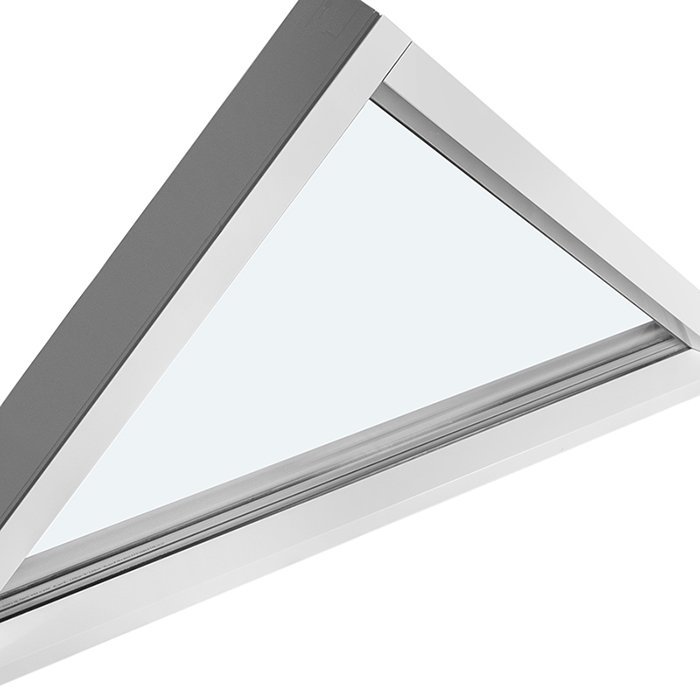

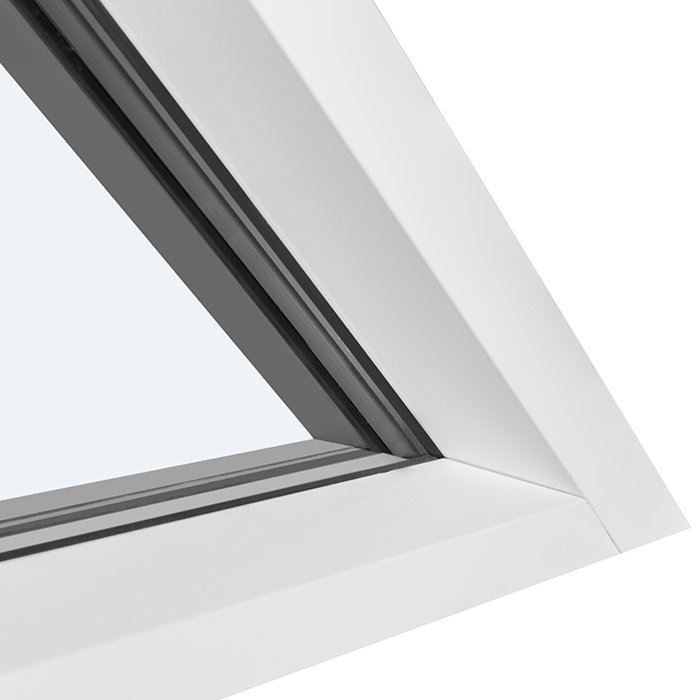

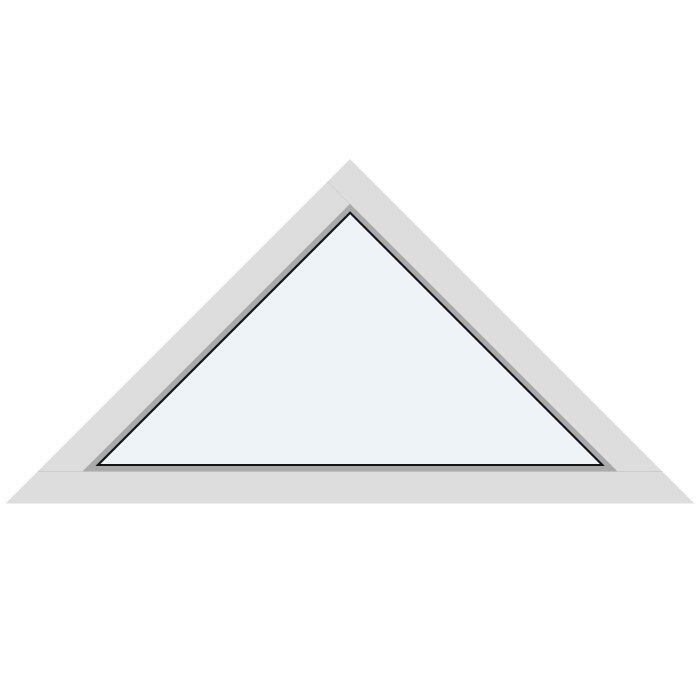

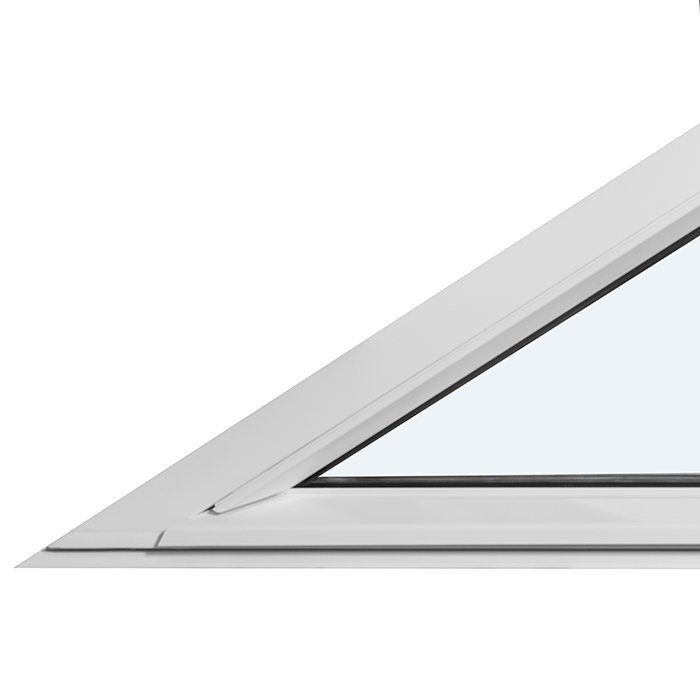

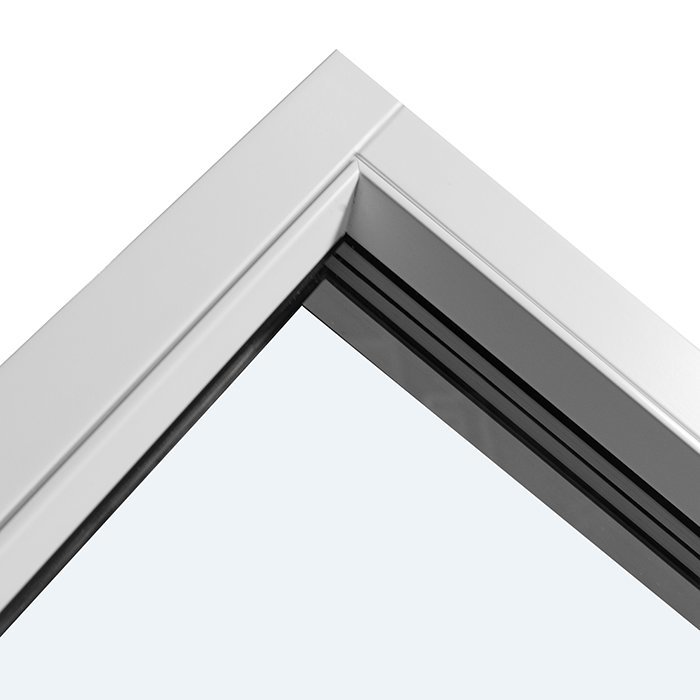

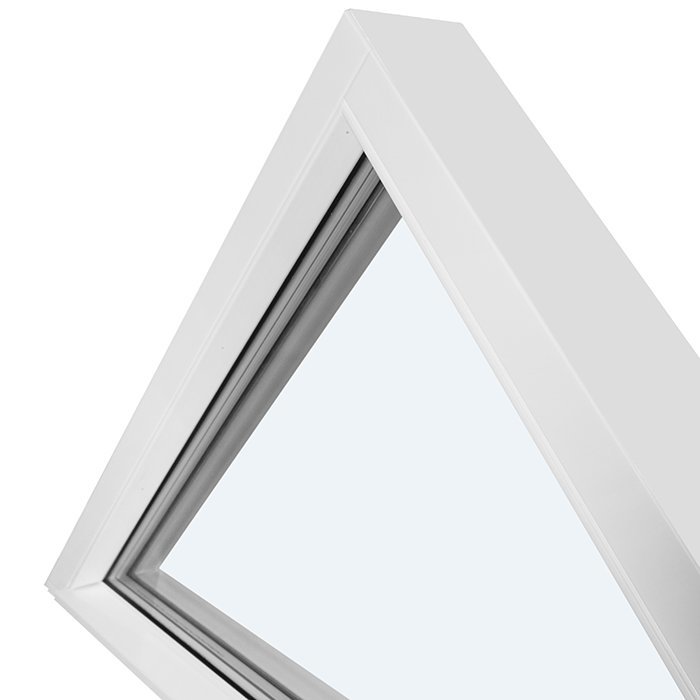

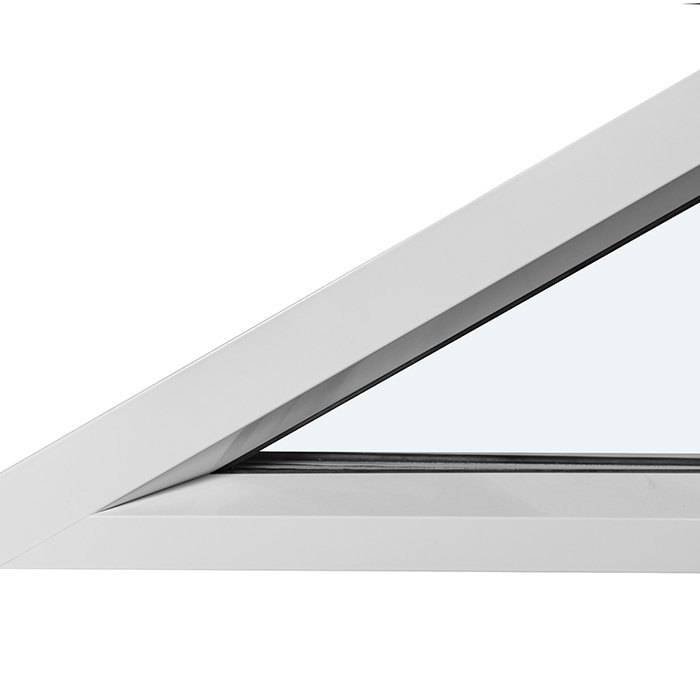

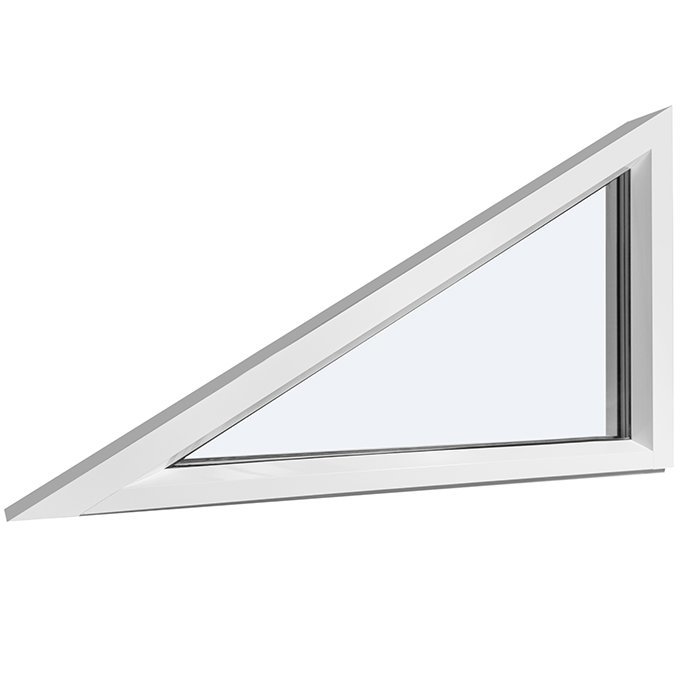

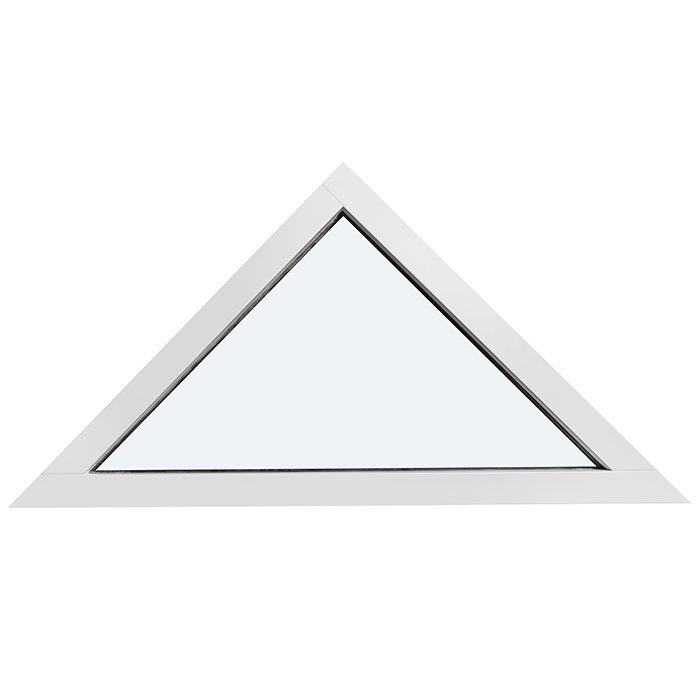

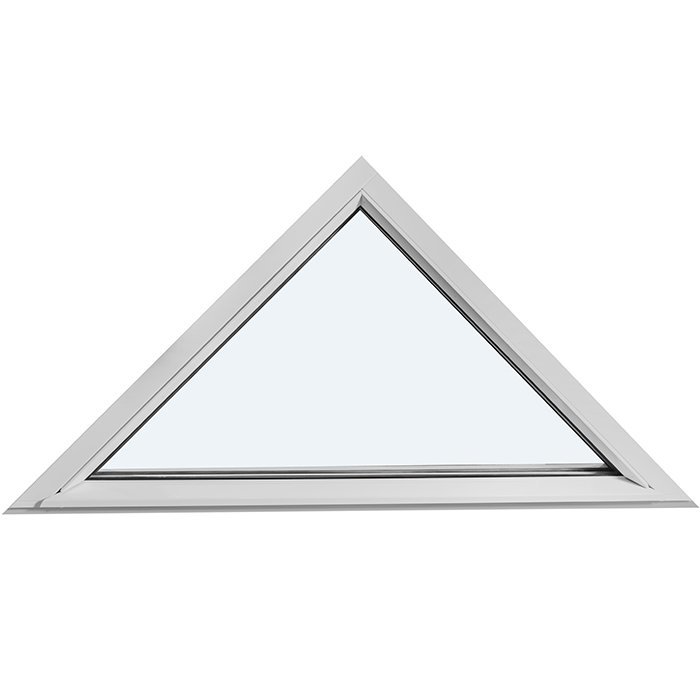

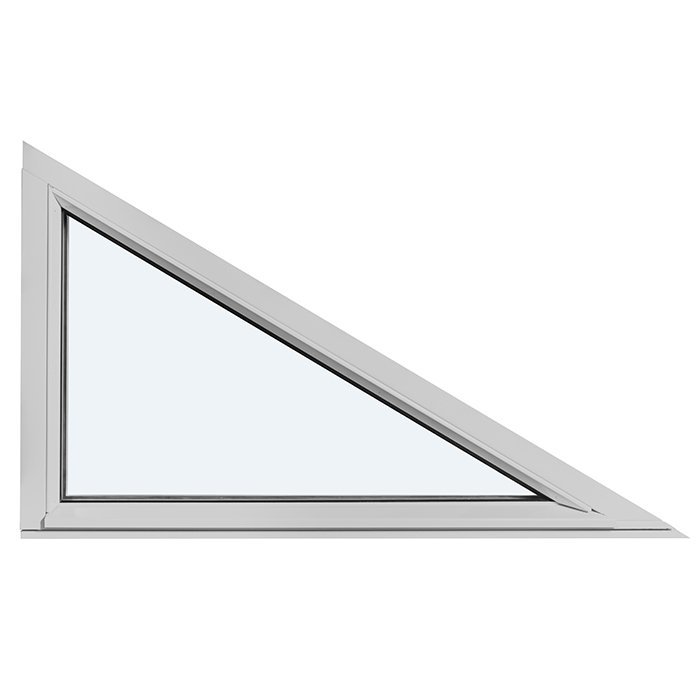

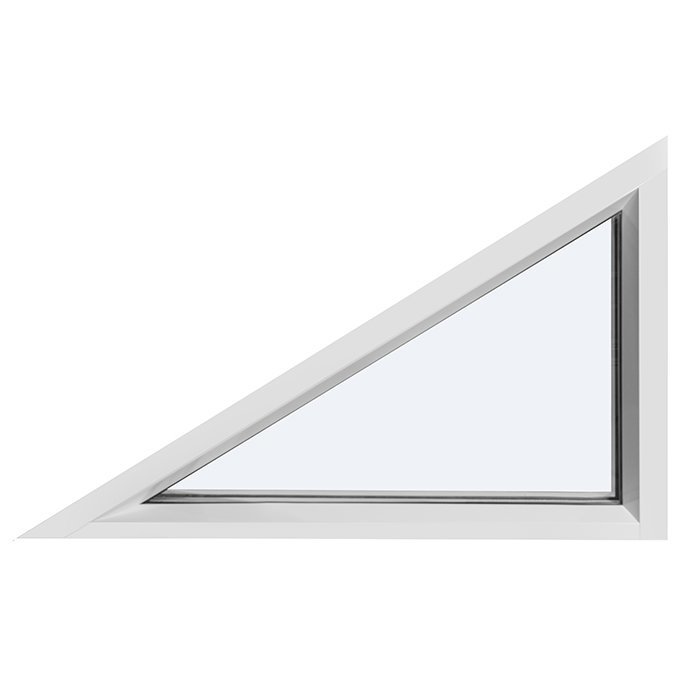

Fixed triangular and angled windows

A made-to-measure triangular or angled fixed window with insulated glazing, selectable materials, colours and specified glazing-bar designs.

Window type

Fixed glazing

Manufacture

Made to measure

Colour choice

Available

Marking

CE marked

01

Fixed glazing: function and everyday use

This triangular and angled window is fixed glazing. It has no opening sash or opening function. The glazed area remains closed as a permanent part of the window composition. In everyday use, there is no handle to operate, sash to swing or opening position to consider. This can suit a distinctive shape planned as a calm glazed feature where ventilation is not required.

The absence of an opening function should be considered from the outset when planning the room. If ventilation is needed on the same wall or in the same room, another window or door designed for that purpose may need to provide it. The fixed triangular or angled window itself must not be planned as an operable ventilation opening. Its role is fixed glazing and the design of the particular opening shape.

With fixed glazing, also consider later access to the glass and frame surfaces. How easily the inside and outside can be reached depends on the individual installation situation. If the window is intended for a high or otherwise difficult-to-reach position, it is advisable to plan for future care of accessible surfaces from the beginning.

The selected glazing-bar pattern does not change how the window operates. Whether you choose a continuous glazed view, a horizontal or vertical division, or glass-dividing glazing bars, the entire window remains fixed. You can therefore select the visual treatment for the contour and desired effect without allowing for sash movement.

02

Construction, materials and technical dimensions

Four frame material options are available: pine, pine with aluminium cladding, oak, and oak with aluminium cladding. Select one of these complete options when configuring the window, then add your preferred colour. If aluminium cladding is required, state it together with the chosen timber species.

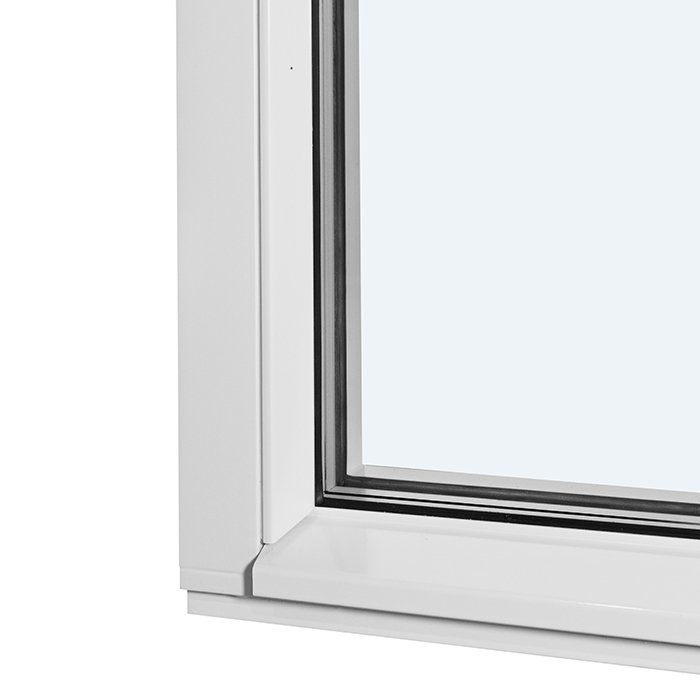

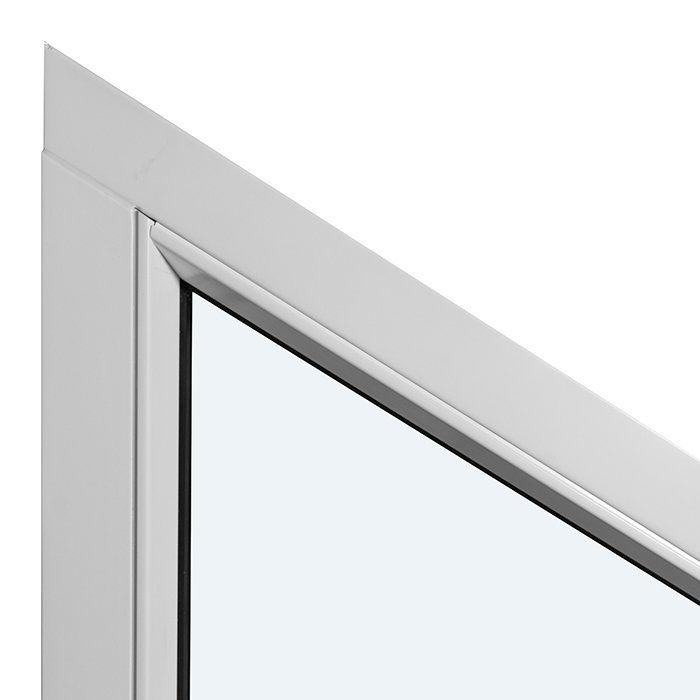

The outer frame has a component dimension of 105 × 57 mm. With aluminium cladding, the outer-frame component dimension is 115 × 57 mm. These values specifically describe the named component. They do not generally state the depth, width or height of the complete made-to-measure window and must not be used as the overall dimension of the intended opening. The window shape and its measurements are recorded separately for each project.

The installation holes have a diameter of 14 mm. This component specification must be distinguished from the overall dimensions of the made-to-measure window and those of the intended opening. Choose either 2-pane or 3-pane insulated glazing for the glazed area. Record your preferred glazing option together with the material, colour and glazing-bar design in your configuration.

The triangular and angled window is CE marked and offered with a 5-year guarantee. In your documentation, distinguish the dimensions of the individual window contour from the technical component dimensions: the outer frame measures 105 × 57 mm, or 115 × 57 mm with aluminium cladding. The dimensions of your special shape are instead recorded from its specific contour and clearly identified lengths.

05

Assessing the intended opening correctly

A made-to-measure triangular or angled window begins with an unambiguously described opening. Unlike a simple rectangular contour, angled lines, points, sides and reference points can be interpreted in different ways. Record which view your drawing shows and how the individual edges relate to one another. A labelled sketch can make the shape and orientation understandable without having to guess a specific geometry from a product name alone.

Also check whether your details describe the intended window size or only dimensions of the surrounding area. Frame, opening and other project dimensions should not be mixed in communication. When using existing drawings, label every value according to its actual meaning. This helps avoid reading an angled edge as a horizontal length or assigning an overall length to one section.

When assessing the opening, it is also important to establish which side is understood as inside, outside, top and bottom. This matters particularly where the shape could appear mirrored. A photograph can offer additional orientation but does not replace a clear dimensioned drawing. If adjacent building elements define the shape visually or spatially, you can identify them in a sketch without assigning unconfirmed technical characteristics to them.

Installation and fitting clearances depend on the individual building situation and should not be derived from outer-frame dimensions. The value 105 × 57 mm, or 115 × 57 mm with aluminium cladding, describes the outer frame only. Clarify which measurements are opening, window or component dimensions for your project, and label them accordingly in the documentation.

For a triangular or angled shape, describe not only the general name but the actual contour. Clearly marked edges, corners, angles and dimensional references make it easier to assign the made-to-measure product. Then add the material option, preferred colour, glazing version and glazing-bar design as separate selections so shape and specification remain clearly distinct.

06

Colour, material and visual composition

The effect of a triangular or angled window is shaped by the interplay of contour, frame material, colour, glazed area and glazing-bar pattern. The available colour choice lets you coordinate the design with your project. Name the required shade as clearly as possible and, if useful, explain which existing windows, doors, façade elements or interior features it should reference.

Pine and oak are the timber species offered. Both are also available with aluminium cladding. Cladding is part of the correspondingly named material option, rather than simply a colour description. When choosing, consider the effect of the material and preferred shade indoors and on the façade, along with their relationship to adjacent building elements.

The glazing-bar pattern can follow the direction of the window shape, create a deliberate contrast, or leave the glazed view without further division. Horizontal, vertical and combined patterns each create a different graphic order. In versions expressly described as glass-dividing, this division belongs to the selected design, so using the full variant name in the enquiry is important.

The black rubber glazing seals should not be understood as an independent colour choice for the frame. The selectable frame colour is decisive for colour coordination, while the seal is considered a separate glazing element. Record frame colour, material option and required glazing-bar pattern as separate choices.

If the new window is to match existing windows, doors or façade elements, photographs and clearly stated colour details can serve as visual references. State which detail is important to you, such as the frame colour, timber species or direction of the glazing bars. This makes it possible to compare material, colour and design deliberately and record them as separate selections.

07

Comparing fixed glazing and related opening types

A fixed triangular or angled window is intended as a permanently closed glazed area. If your project needs an opening function elsewhere, the range also includes top-hung outward-opening casement windows, single- and double-sash outward-opening casement windows, and single-sash outward-opening patio doors. These options can complement the fixed special shape within a larger window or door design.

Historic-style options are also available for casement windows and single patio doors. These are offered in pine or oak. The corresponding standard versions of the related windows and doors can instead also be selected in pine or oak with aluminium cladding. Consider these material differences where several elements need to coordinate within one overall view.

The “Kombi” casement window combines a fixed-glazed section with an outward-opening sash, offering another way to arrange fixed and operable areas within one product. Like the other related windows, it is available with 2-pane or 3-pane insulated glazing and in pine, oak or the respective aluminium-clad versions. Select function, material, colour and design separately for every element.

If you are enquiring about several windows or doors for the same project, list each element as a separate item. This keeps clear where a fixed special shape is planned, where a window should open outwards, and whether a single- or double-sash version is required. The following related products provide a direct starting point for comparison:

Top-hung outward-opening casement window, Single-sash outward-opening casement window, Single-sash historic-style outward-opening casement window, Double-sash outward-opening casement window, Double-sash historic-style outward-opening casement window, “Kombi” outward-opening casement window, Single-sash outward-opening patio door, Historic-style single-sash outward-opening patio door.

08

Prepare your enquiry in a few clear steps

Start with a short description of your project and give the full product name, “Fixed triangular and angled window”. For guidance, show the required contour in a clearly orientated sketch. Mark which view is shown and label the lengths relevant to the shape clearly. An additional photograph can also illustrate the installation situation.

Then choose the material option. State whether you require pine, oak or one of the corresponding aluminium-clad versions. Record your colour preference separately so that material and colour are not confused. If the shade should match existing windows, doors or façade elements, name these as design references.

Next, state the glazing you require using the available option. Then copy the full name of the glazing-bar design from the overview. Precise wording is particularly important for glass-dividing glazing bars. A sketch of the pattern can clarify your selection, but should not be replaced with an invented design name.

Finally, set out all details in a clear order: product name, contour, dimensioned drawing, orientation, material option, colour, glazing and design. List several windows as separate items so different shapes or design preferences are not mixed. If other window or door types belong to the same project, name these separately too, using their full product names.

Before sending, check that your documents are clear and free of contradictions. Pay particular attention to ensuring every edge is labelled consistently and that dimensions, colour preference, glazing-bar pattern and material can be assigned to the correct window. A well-structured enquiry gives us a clear basis for discussing your made-to-measure window and any outstanding selections with you.

Is the triangular and angled window available made to measure?

Yes. This triangular and angled window is made to measure. Send us a clearly orientated sketch of the required contour with clearly labelled dimensions. Also mark which side is inside, outside, top and bottom, so the special shape can be discussed without ambiguity.

Can I choose a colour?

Yes, a choice of colours is available. When enquiring, tell us the colour effect you want and whether it should relate to existing windows, doors, façade elements or the interior design.

Can this window be opened for ventilation?

No. The product is fixed glazed and has no opening sash. It is therefore unsuitable as an operable ventilation window. If an opening function is required, consider a window type specifically named for that purpose.

Which material options can I request?

The available choices are pine, pine with aluminium cladding, oak, and oak with aluminium cladding. State the full material option and preferred colour in your enquiry. For colour coordination, you can also say which existing windows, doors, façade elements or interior details you want to use as a reference.

How should I specify the glazing-bar design I want?

Name the required design using the full design description from the product overview wherever possible. This makes clear whether you want an undivided view, glazing bars or glass-dividing glazing bars, and how they should be orientated.

How long is the window guarantee valid?

The fixed triangular and angled window comes with a 5-year guarantee. Include the required material, glazing and design option in full in your enquiry so the requested window is described unambiguously.

What type of glazing is used?

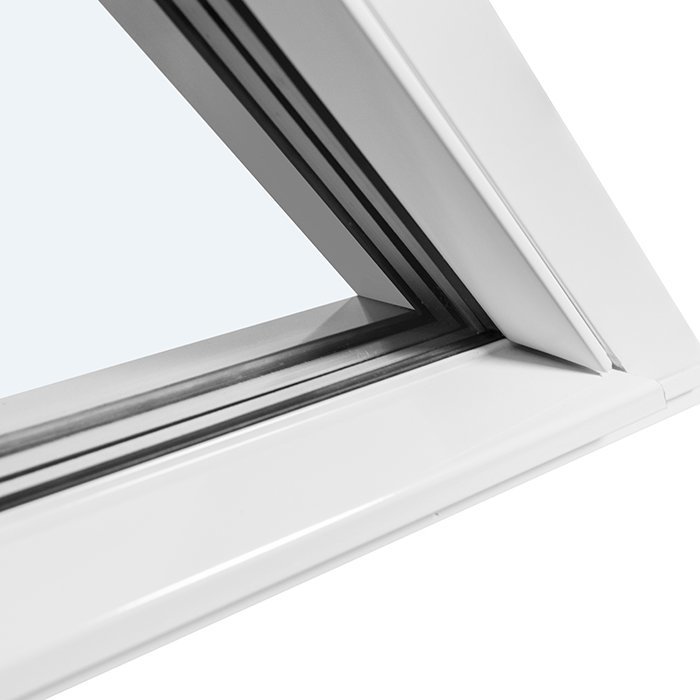

Choose between 2-pane and 3-pane insulated glazing. The glazing has a heat-reflective coating, a warm-edge spacer designated CHR and argon filling. Black rubber seals are also part of the glazing construction.

Is the window CE marked?

Yes. The fixed triangular and angled window is CE marked.

Plan your triangular or angled window with us

Planning a distinctive window shape and looking to bring material, colour, glazing and glazing-bar design together? Send us the shape of the intended opening, your dimensions and the desired specification for your made-to-measure triangular or angled window.
