Outward-opening pivot window

Open outwards, tailor the design

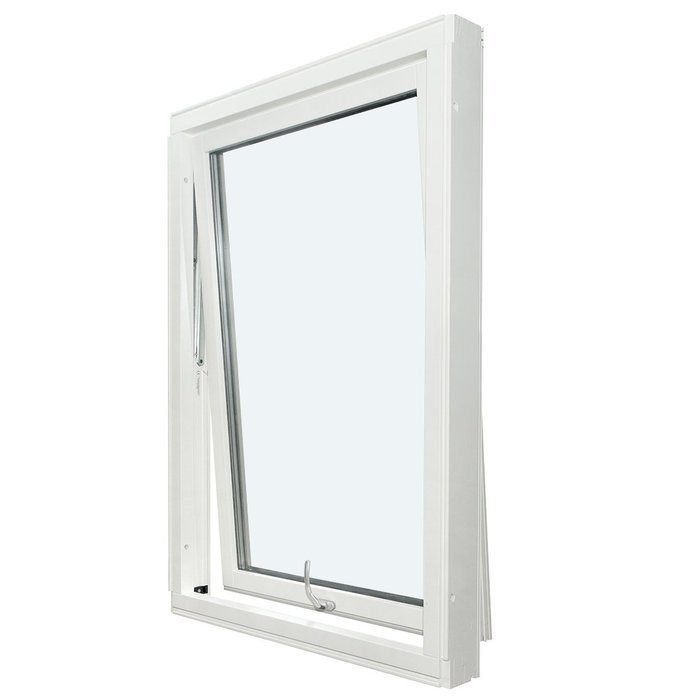

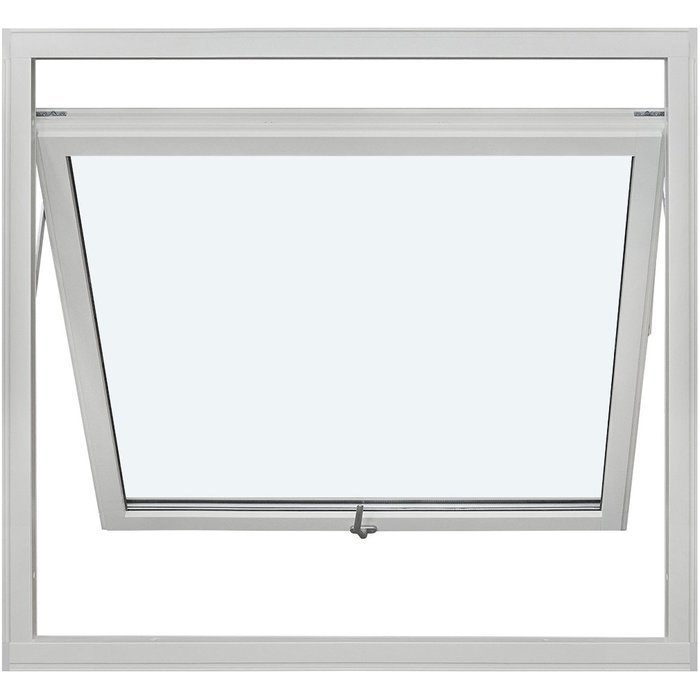

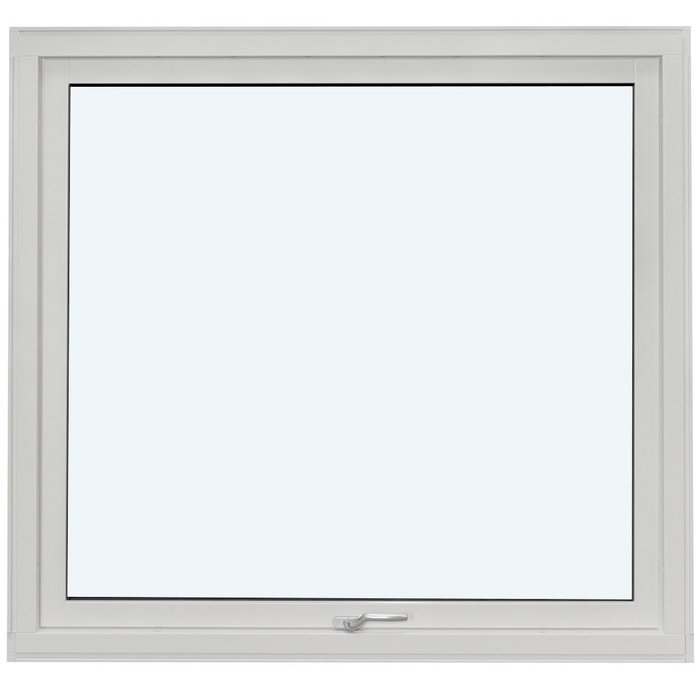

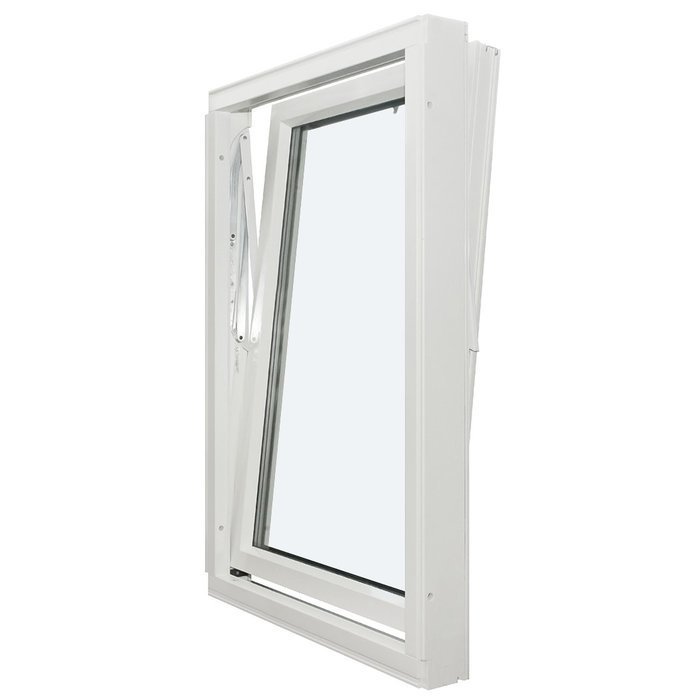

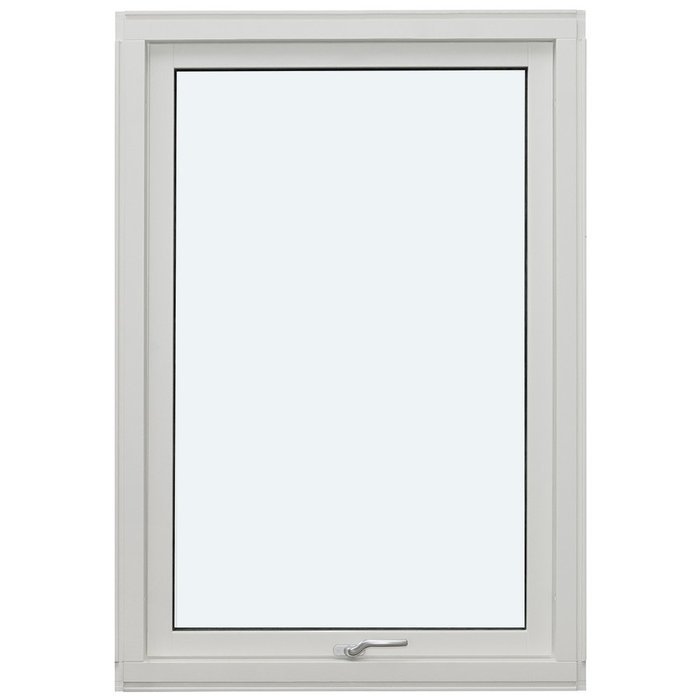

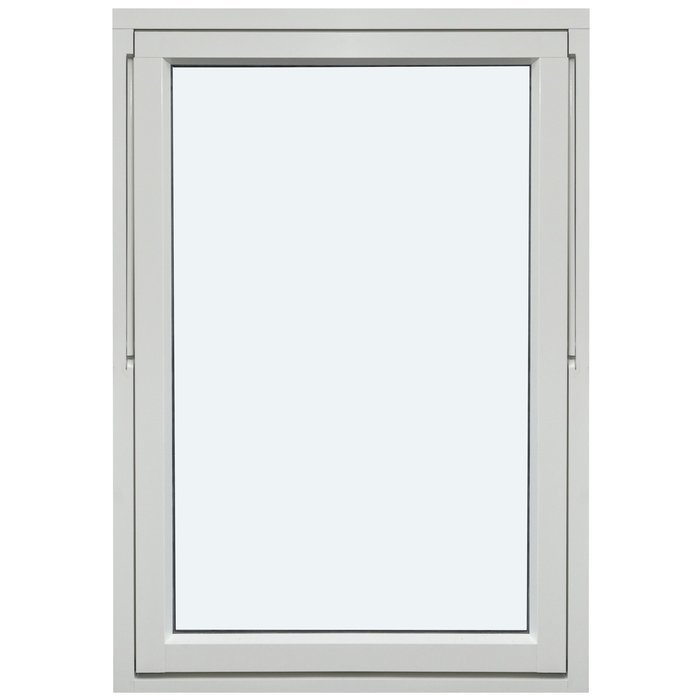

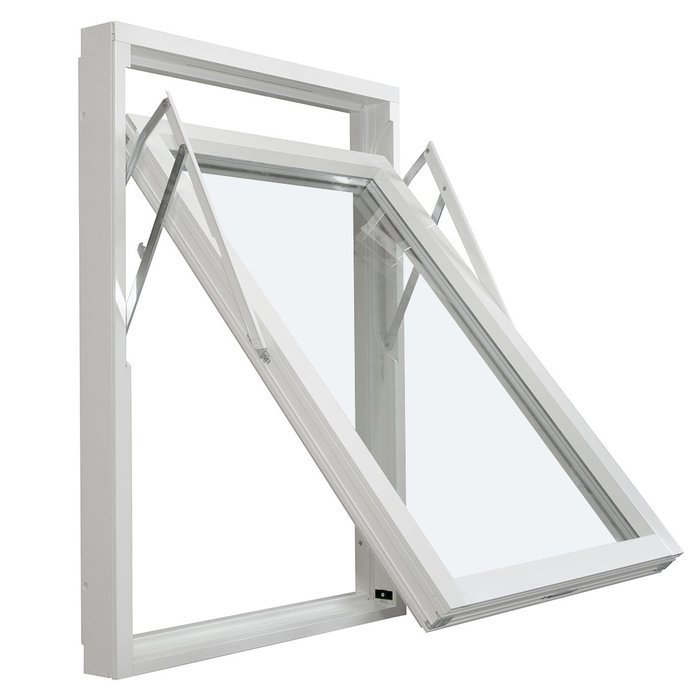

Outward-opening pivot window

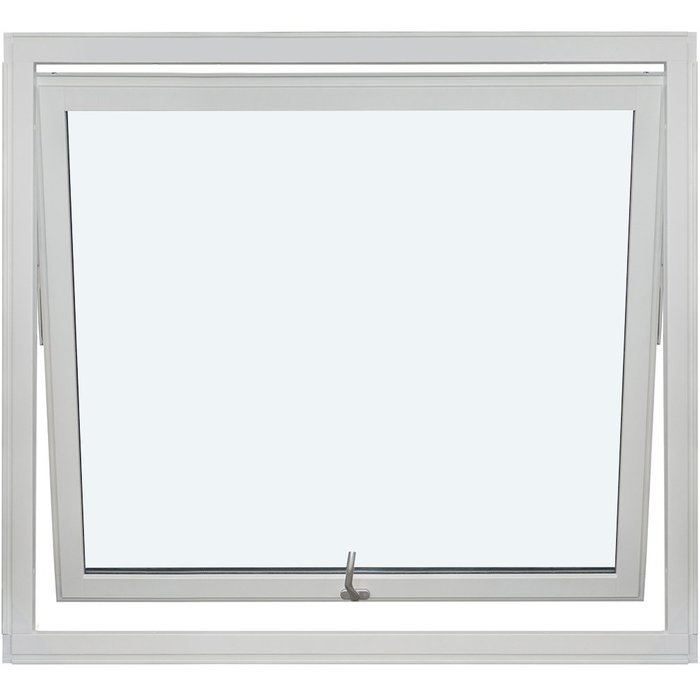

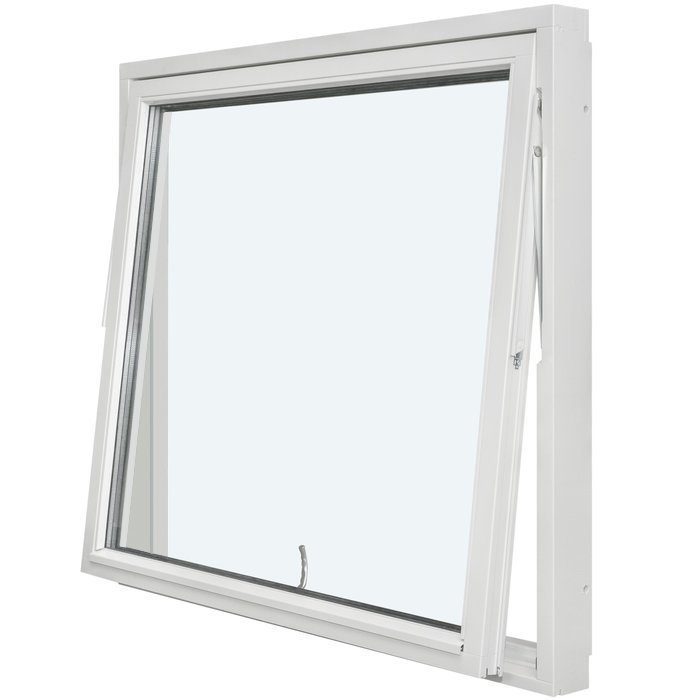

A made-to-measure pivot window with lifting function, available in pine or oak, also with aluminium cladding, insulated glazing and various glazing-bar patterns.

Opening type

Outward-opening sash with lifting function

Material

Pine or oak, each also available with aluminium cladding

Glazing

Insulated glass with heat-reflective coating, warm edge and argon fill

Marking

CE marked

01

Operation and everyday use

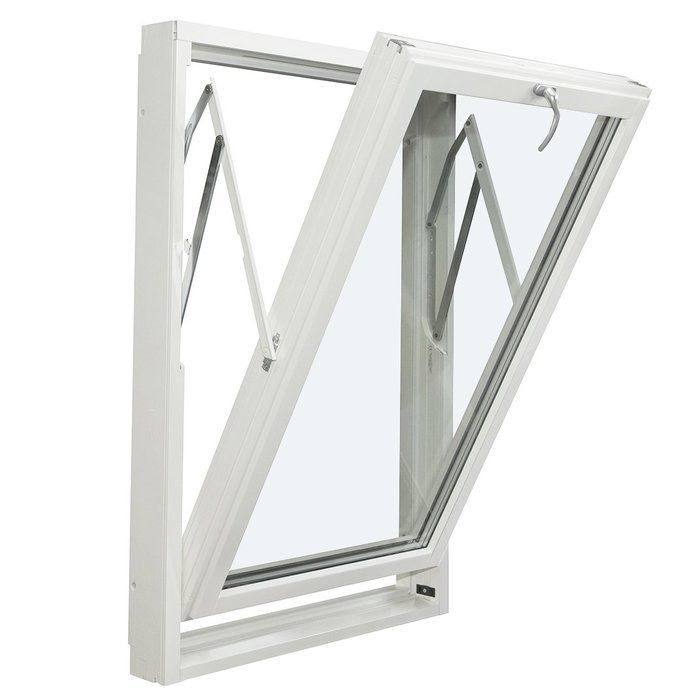

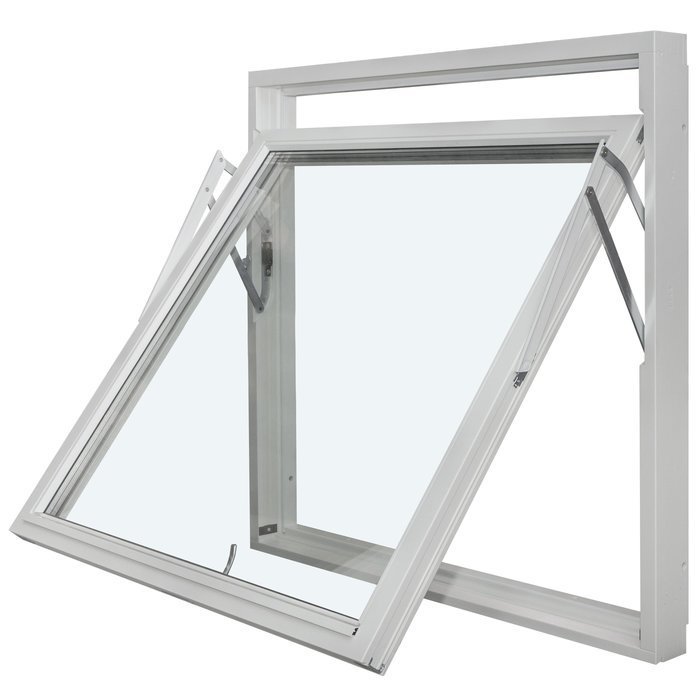

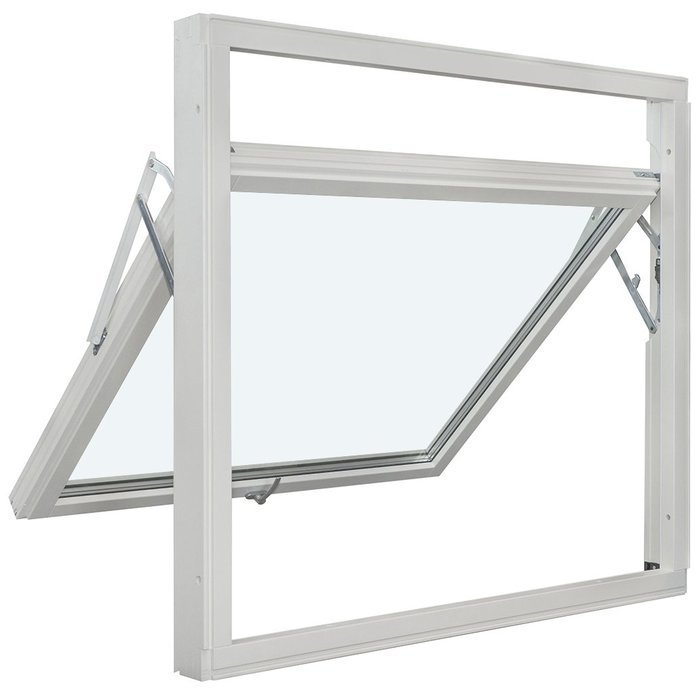

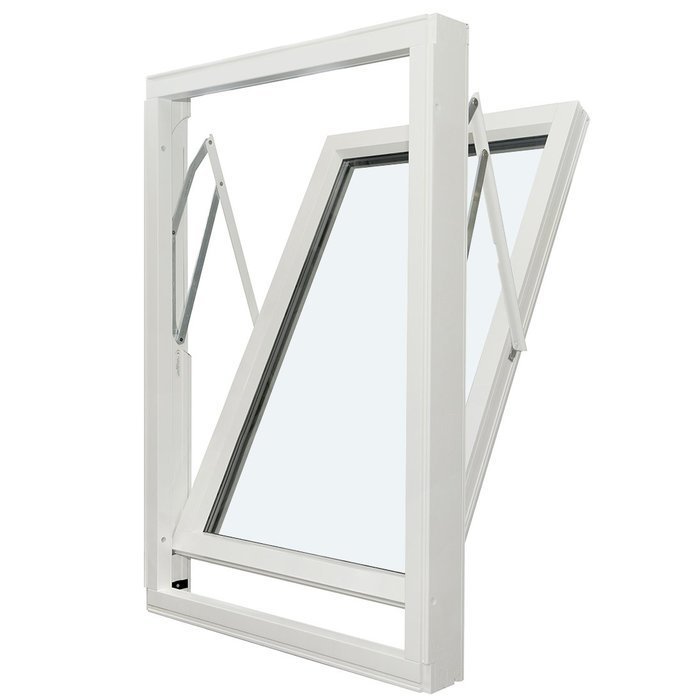

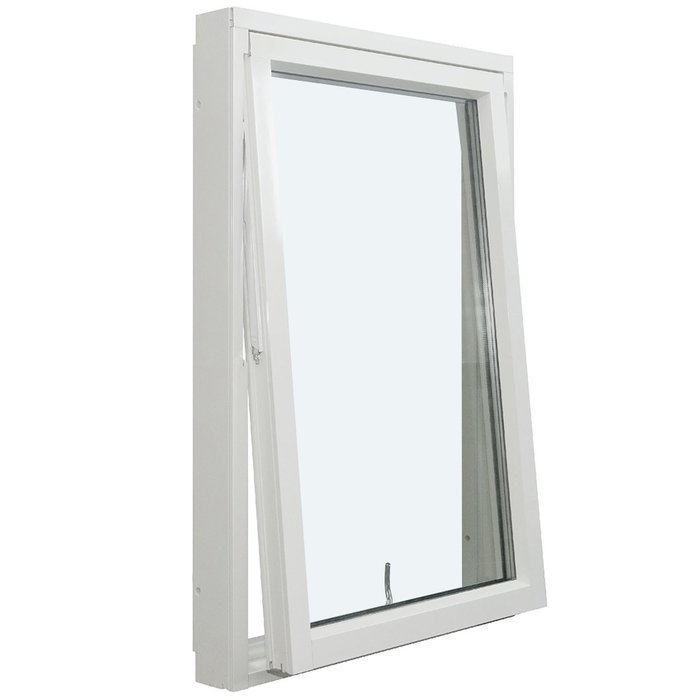

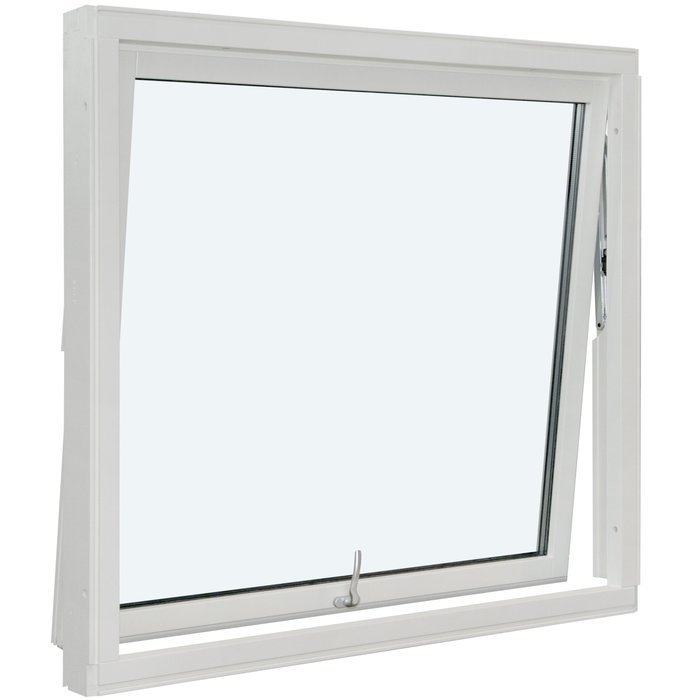

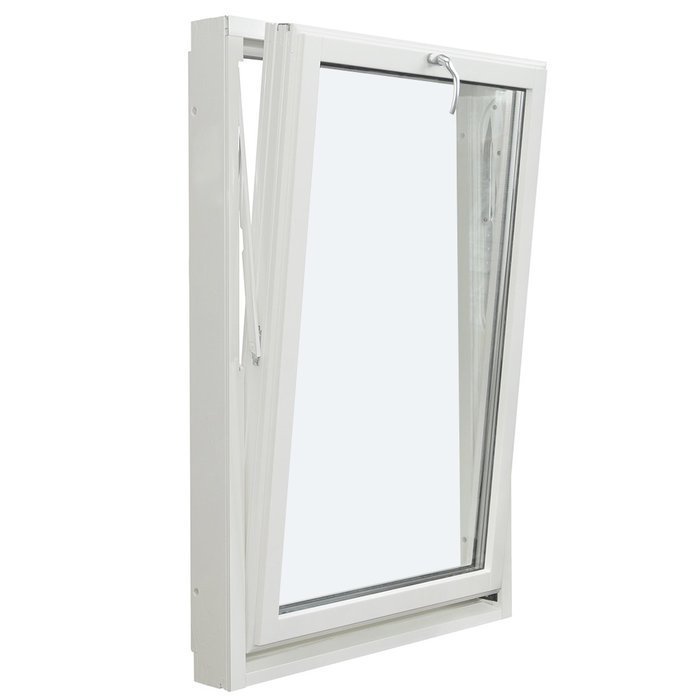

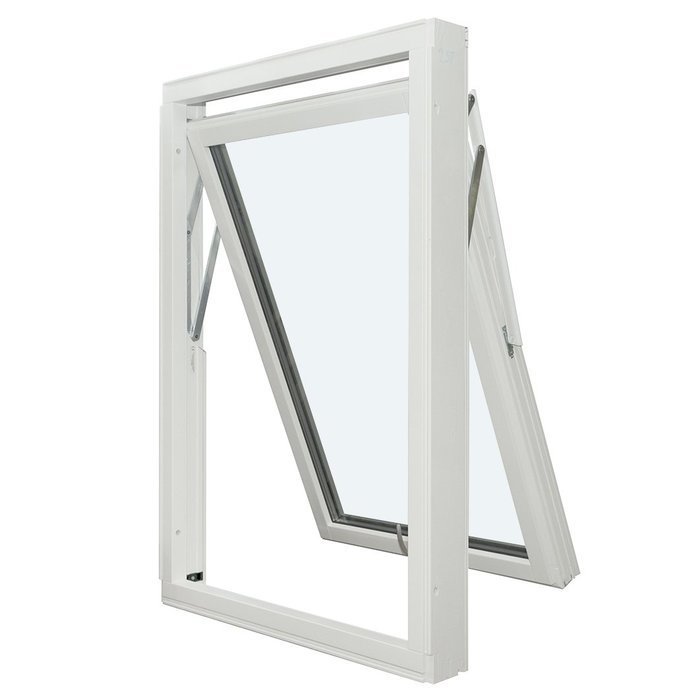

This pivot window has an outward-opening sash with a lifting function. When opened, the sash moves outside. This direction distinguishes it from windows whose sashes swing into the room. Use it smoothly and deliberately, and do not move the sash by the glazing, glazing bars or other parts not intended for operation. The selected handle is the designated point for opening and closing.

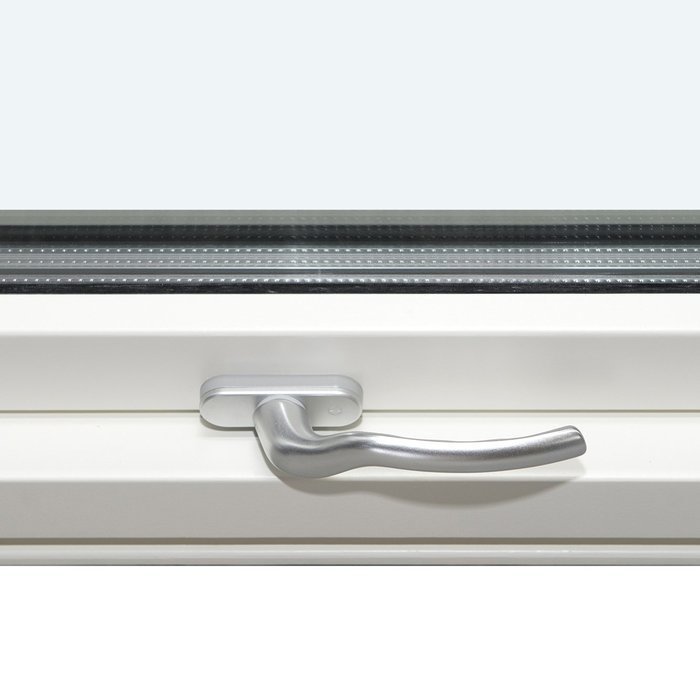

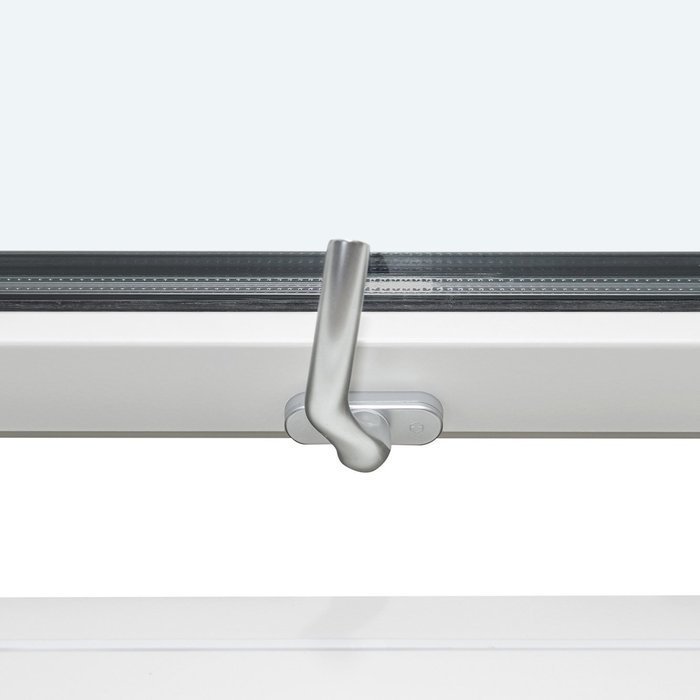

The lifting function is integral to this opening type. Select the handle finish separately and coordinate it visually with the timber, colour and glazing-bar pattern. It is also important that the handle is readily accessible in the proposed window position. Include the sill height, adjacent furniture and usual operating position early in your selection.

Keep the swing area of the outward-opening sash free of plants, stored items and other obstructions. Check not only the immediate window opening, but also neighbouring building elements and outdoor areas. Where several people use the window, a brief reminder of its outward movement helps ensure that the sash is opened and closed in a controlled way using the handle.

When closing, guide the sash carefully to the frame and operate it via the handle. Avoid loads caused by pulling or pushing on glazing bars or glass surfaces. Visible dirt on the frame, handle and glass can be removed using a method suitable for the relevant surface. Care for the chosen timber finish, colour or aluminium cladding should always follow the specification actually ordered.

For difficult-to-reach installation positions, assess future operation during planning. The handle must remain safely accessible and the sash must be controllable. Describe a high sill, deep reveal, built-in elements or other particular features in your enquiry so the intended use can be considered from the outset.

02

Construction, component dimensions and technical details

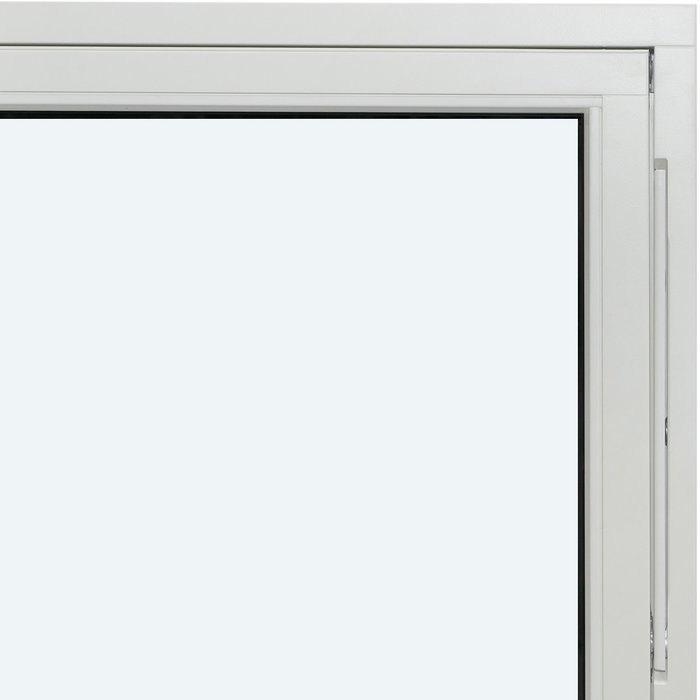

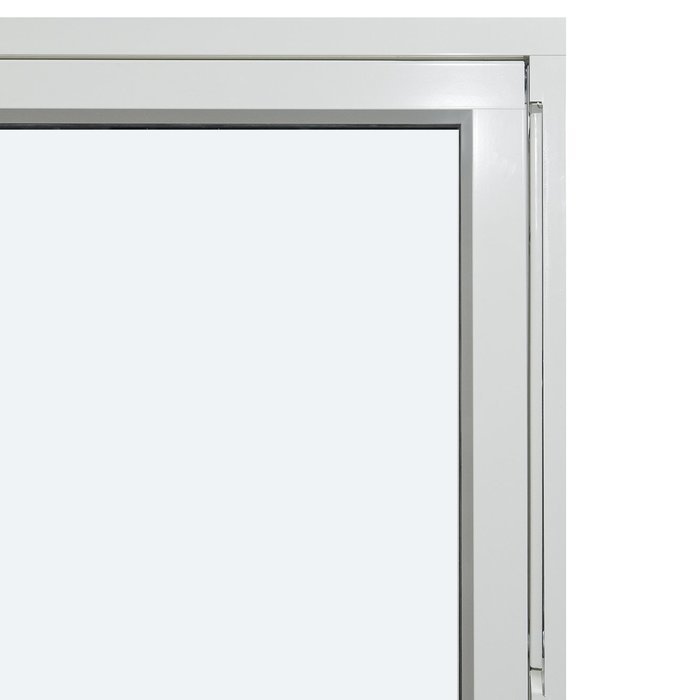

The outer frame measures 105 × 57 mm. With aluminium cladding, it measures 115 × 57 mm. The sash frame measures 76 × 65 mm; with aluminium cladding, it measures 86 × 65 mm. These are component dimensions for the stated frame profiles. They must not be treated generally as the depth, width or height of the entire opening. The finished window size is set to measure for your project.

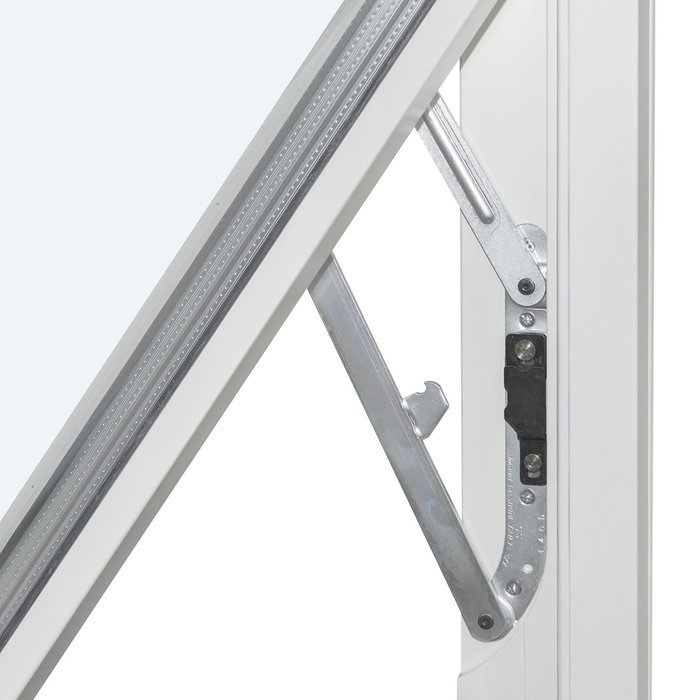

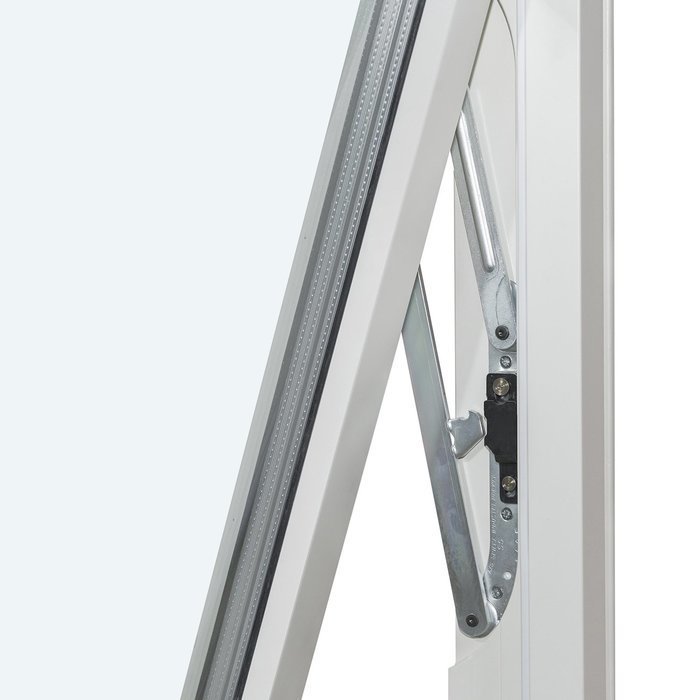

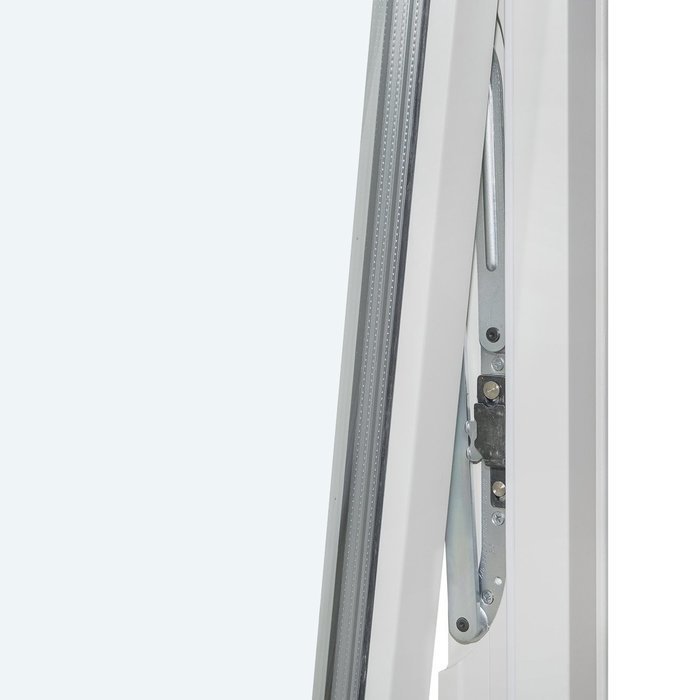

Installation holes have a diameter of 14 mm, and the specified hardware includes SPILKA components. Always consider the installation holes and frame profiles alongside the existing wall construction, junctions and intended fixing method. For an enquiry, clearly distinguish the structural opening, desired window size and the component dimensions stated here.

The glazing is available as a double- or triple-glazed insulated glass unit. Its construction includes a heat-reflective coating, a CHR warm-edge spacer and argon gas. Black rubber gaskets provide the glazing seal. State the required glass build-up separately in your enquiry so it can be clearly linked to the rest of the configuration.

This pivot window carries a 5-year warranty and is CE marked. In your enquiry, state the required overall size, material finish, any aluminium cladding, glazing and design clearly. Add details of the installation position and relevant construction requirements so the configuration can be prepared clearly for the specific location.

Available materials are pine, pine with aluminium cladding, oak and oak with aluminium cladding. In clad versions, the selected timber remains the basis of the material combination and is complemented by aluminium cladding. Note the different profile dimensions: clad outer and sash frames have the corresponding dimensions expressly stated above.

05

Assessing the intended opening correctly

Because the sash opens outwards, the area in front of the window is part of the planning. Check reveals, railings, planting, window sills and regularly stored objects there. The required clear swing area depends on the planned window size and exact installation position. Record any obstructions together with the measurements of the intended opening.

Measure the proposed structural opening clearly and distinguish it from profile dimensions of individual components. A wall opening is not equivalent to an outer-frame or sash-frame profile. Also record whether the opening is square and consistent, and whether existing junctions, cladding or window sills must be considered. The necessary measuring points depend on the construction situation.

The interior side remains important for daily use even though the sash moves outwards. Check that the handle is easily reached from the normal operating position and that furniture, worktops, a deep reveal or built-in elements do not restrict access. Such information is particularly helpful with high sills or unusual installation situations and should be included in the project description.

For renovation work, it can help to document the existing opening, wall construction and current junction details separately. For a new build, identify planned structural-opening dimensions and the intended window position clearly. Photos can add context to an enquiry but do not replace measurements. Ensure that every detail is assigned to the same opening, especially where several windows are planned.

For made-to-measure production, the window is assembled from the agreed dimensions for your project. Before sending an enquiry, check what each measurement refers to and assign every detail clearly to its opening. Structural-opening dimensions, installation position, outside swing area and handle accessibility together provide a reliable basis for further product selection.

06

Material, colour and visual composition

Material selection shapes the frame and therefore a substantial part of the window’s visible appearance. Pine and oak are available, and both timbers can also be supplied with aluminium cladding. First decide which timber suits your project, then whether you prefer the all-timber version or the corresponding combination with aluminium cladding.

You can also choose a colour and coordinate it with façade surfaces, neighbouring windows or the intended interior effect. Always include the colour with the specific material version in your enquiry. Surface, light and adjacent materials influence perception, so colour is best assessed in conjunction with timber, aluminium cladding, glazing-bar pattern and handle.

The glazing-bar pattern is another defining part of the composition. Without bars, the glass area appears more continuous. Horizontal bars echo level lines, vertical bars emphasise an upright division, and combined patterns make a clearer grid. All offered versions relate to the single sash of this outward-opening pivot window.

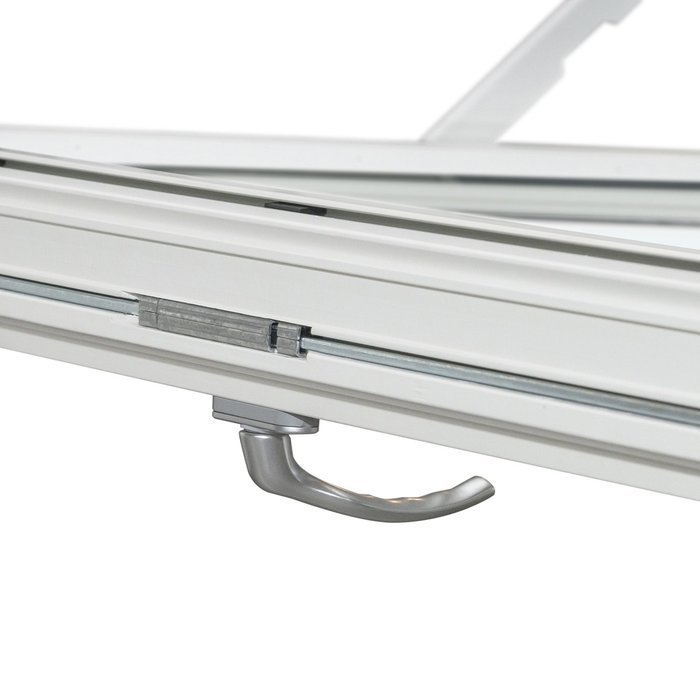

The handle also forms part of the visible composition and can be selected with the colour, timber and glazing-bar pattern. Alongside appearance, consider accessibility at the intended installation position. The SPILKA hardware used in the construction and the selectable handle finish are separate elements of your product configuration.

For a calm overall look, it can be useful to set a few clear reference points, such as lines from neighbouring windows and a recurring frame colour. In a more divided design, a glazing-bar pattern can deliberately reflect façade axes. These examples help organise choices; they are not design rules. Your chosen combination of material, cladding, colour, handle, glass and bars remains decisive.

07

Compare pivot windows with related product types

Our related selection includes outward-opening casement windows and single-leaf patio doors alongside this pivot window. For an initial comparison, decide whether you are planning a window or a walk-through access point, and which opening type suits the project. Then compare the number of sashes, material, glazing and offered design options for each product.

The related casement windows are available in single- and double-sash versions. Standard versions are offered in pine or oak, each also with aluminium cladding. There are also heritage-style products in pine or oak. When selecting between these window types, compare the desired sash count and material version with the existing façade division.

The related “Kombi” casement windows combine a fixed glazed section with an opening sash and offer several fixed glazing-bar patterns. Here too, there is a standard version with optional aluminium cladding and a heritage-style version in pine or oak. This group is useful for comparison where your plans require a fixed glazed area as well as an operable sash.

For patio access, consider the related single-leaf outward-opening patio doors. Depending on the version, designs with glazing, glazing bars and panels are available. The standard version is offered in pine and oak, each also with aluminium cladding; the heritage-style version is available in pine or oak. Review these door products separately where a passage is needed rather than a window opening.

The following related selection lets you open the named product types and review their details separately: Single-sash outward-opening casement window, Heritage-style single-sash outward-opening casement window, Double-sash outward-opening casement window, Heritage-style double-sash outward-opening casement window, Outward-opening “Kombi” casement window, Heritage-style outward-opening “Kombi” casement window, Single-leaf outward-opening patio door, Heritage-style single-leaf outward-opening patio door.

08

Prepare your enquiry step by step

Start with a clear project reference. Note the room, building area or window position to which the enquiry relates. Where several openings are planned, give them understandable labels so measurements and design preferences are not mixed up. Then record the overall dimensions measured and state what each measurement refers to.

Next select the material version: pine, pine with aluminium cladding, oak or oak with aluminium cladding. Add your preferred colour. If you have not made a final decision, you can describe the desired look, but distinguish clearly between a preference and an option already selected.

In the next step, specify the glass construction from the offered glazing options. List this separately so it does not have to be inferred from the material or glazing-bar pattern. Then select the exact name of the required glazing-bar design. For a version without bars, state that designation explicitly rather than leaving the field blank.

Then add your handle selection and coordinate it with frame colour, material and glazing-bar pattern. Record the handle preference as a separate choice; SPILKA hardware belongs to the window construction. Also describe day-to-day features such as a high sill, deep reveal or built-in elements that may affect access to the handle.

Finally, check that your enquiry includes the product name, position label, dimensions, material, any aluminium cladding, colour, glazing, glazing-bar pattern and handle preference. Add relevant installation information without making assumptions about technical properties. An organised submission makes follow-up questions more precise and helps us understand your required configuration clearly. This turns individual choices into a traceable enquiry for your made-to-measure pivot window.

Can the window be ordered to measure?

Yes. The window is planned to measure. Your enquiry needs clear information about the intended opening. The way measurements are taken should suit the relevant construction situation and planned installation.

Which material versions are available?

Choose from pine, pine with aluminium cladding, oak and oak with aluminium cladding. Select the suitable version according to the appearance you want and your project requirements.

Can I choose the colour?

Yes. Colour is one of the available configuration options. Coordinate it with the material, glazing-bar pattern, glazing and handle so the visible elements form a coherent design.

Is there a choice of handles?

Yes. A choice of handles is available. Coordinate the handle with the material, colour and glazing-bar pattern, and consider how easily it can be reached in everyday use at the intended installation position.

How is the glazing constructed?

Double- and triple-glazed insulated glass units are available. The construction includes a heat-reflective coating, a CHR warm-edge spacer and argon gas. Black rubber gaskets are used as glazing seals.

Is the pivot window CE marked?

Yes, the pivot window is CE marked. When planning your project, also consider the specific installation situation and applicable construction requirements at the site.

How long is the warranty for the pivot window?

The outward-opening pivot window has a 5-year warranty. Keep the documents for your order and selected version so they can be identified clearly.

What details should I prepare for an enquiry?

Tell us the product name, position label and dimensions of the intended opening. Add the material, any aluminium cladding, colour, glazing, glazing-bar pattern and handle preference. Information about the installation situation and clear outside swing area helps assign the enquiry clearly to your project.

Enquire about your made-to-measure pivot window

Prepare the dimensions of the intended opening and your preferences for material, any aluminium cladding, colour, handle, glazing and glazing-bar pattern. Add the position label and relevant installation information, particularly the swing area outside. Send us these details for a specific enquiry about your made-to-measure outward-opening pivot window.
