Patio Life Lift-and-Slide Doors

Side-opening wooden door with coordinated glazing and design options

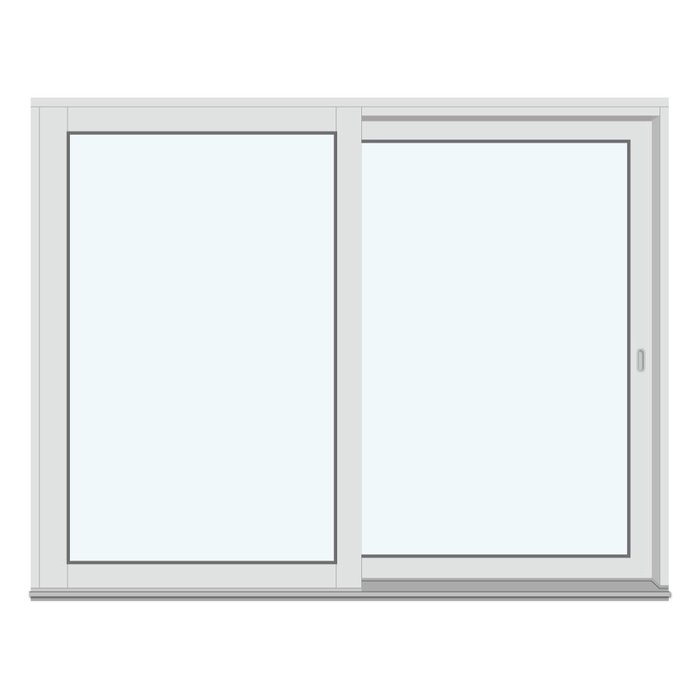

Patio Life lift-and-slide doors

Patio Life lift-and-slide doors in pine or oak, with optional external aluminium cladding, double or triple insulating glass, and a choice of colour and handle.

Material

Pine or oak, each also available with external aluminium cladding

Glazing

Double or triple insulating glass

Hardware

Roto Frank

Warranty

5 years

01

Sideways opening in everyday use

The defining operating feature of Patio Life lift-and-slide doors is the sideways movement of the door leaf. When opened, it glides to one side. This follows a different principle from a conventional hinged door, whose leaf swings into the interior or exterior. For planning, this means adjacent spaces do not need to be arranged around a swinging leaf. Nevertheless, the door position and sliding direction should be included from the outset in the layout, furnishing and circulation routes.

For everyday use, consider the route between indoors and outdoors as one continuous passage. Think about which part of the room will most often lead to the door and where the route continues on the patio. A dining table, seating area or frequently used walkway can then be planned so access remains naturally clear. This sliding action supports the spatial arrangement, but does not replace project-specific coordination of the door position and furnishings.

The intended frequency of use can also influence your choice. For a regularly used patio entrance, an easy-to-reach handle and clear circulation route usually matter more than for an opening intended mainly to frame the outdoor view. Because the handle is one of the available options, you can assess its design with the other visible hardware in the room. The result is a door solution whose operating point is deliberately integrated into the overall concept.

First assess the operating method independently of material and design. The key question is whether the door leaf’s sideways movement suits your floor plan and daily routes. You can then coordinate the timber, aluminium cladding, glazing, bar pattern, colour and handle. In your enquiry, tell us which areas will provide access and which visual priorities matter to you.

02

Timber types, aluminium cladding and component construction

Patio Life lift-and-slide doors are available in pine or oak. The timber choice affects the visible character of the material, so it should not be selected separately from floors, wall finishes, fitted furniture and neighbouring windows. Pine can work well in light, understated colour schemes, while oak is often chosen for a more distinctive timber appearance. The most suitable option depends on your individual setting and chosen colour; the timber name alone does not determine a particular effect.

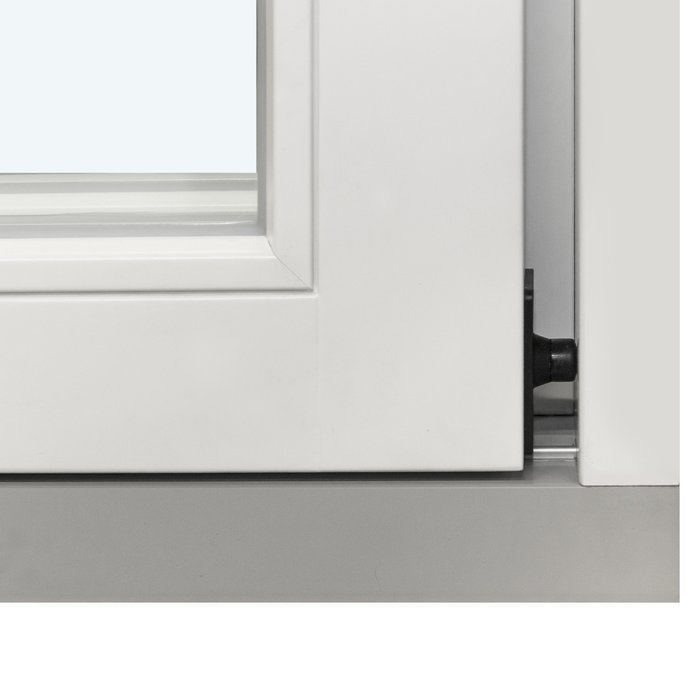

Both pine and oak are also available with aluminium cladding on the exterior. This version combines your chosen timber with an external aluminium surface. You can therefore consider interior and exterior views separately: inside, the character of the timber and chosen colour; outside, aluminium cladding as a visible part of the façade. When deciding, view the exterior alongside façade colour, roof and metal details, and existing windows.

The stated component dimensions vary according to whether aluminium cladding is selected. The frame measures 181 × 45 mm in timber and 191 × 45 mm with aluminium cladding. The door leaf is specified as 78 × 68 mm; with aluminium cladding, the leaf dimension is 88 × 78 mm. These dimensions refer to the individual components and should not be understood as the overall door size or an automatically required structural opening.

Further construction details include Roto Frank hardware, silicone glazing seals and installation drill holes with a diameter of 14 mm. The door carries CE marking. Together, these details provide a clear basis for technical assessment of the product. For project planning, pass the component information unchanged to the relevant professionals so that the frame construction, junction conditions and existing building opening can be considered together.

05

Planning the opening, dimensions and building context

Before selecting a Patio Life lift-and-slide door, accurately record the actual building opening and surrounding conditions. Width and height matter, but so do the installation situation, wall construction and transitions to the internal floor, outside surface and façade. Frame and leaf component dimensions do not replace these project dimensions. They describe the product construction and cannot be used directly as ordering dimensions or opening dimensions.

When planning the layout, remember that the door leaf moves sideways. Check how the entrance relates to the kitchen, dining area, seating or other permanently arranged elements. Outside, patio furniture, planters and main routes should also be considered. The issue is not a swinging leaf, but an easily accessible entrance and coherent circulation on both sides.

Plan the exterior elevation together with façade openings, sill and lintel lines, and neighbouring windows. If you choose external aluminium cladding, the stated frame and leaf components differ from the all-timber version. Specify the material option early. This allows everyone involved to work with the same version instead of mixing dimensions from different configurations.

For a reliable assessment, have project dimensions and building-junction questions checked by the professionals responsible for your project. Relevant drawings, elevations or photographs of the existing setting can help explain the situation in a product enquiry. However, dimensions should not be taken from a photograph alone. Use documented measurements and identify clearly what each stated dimension refers to.

06

Colour, handle and architectural coordination

Colour and handle are the two explicitly supported options for Patio Life lift-and-slide doors. The colour choice affects both harmony with existing components and contrast within the room. Rather than choosing a colour from a small isolated image, compare it with floors, walls, window frames and fixed fittings. For the exterior, the façade, metal details and, where selected, aluminium cladding are the most important reference points.

The handle is both an operating point and a visible detail. Its selection can relate to other handles, taps or fittings without requiring every metal surface to match exactly. What matters is a coherent design line. Because Roto Frank hardware forms part of the product, discuss the handle as part of the specific door configuration rather than assuming it from images of other door models.

Timber type, colour and external aluminium cladding each have different design roles. Pine or oak establishes the material base, colour influences the visible relationship to the setting, and optional aluminium cladding changes the exterior material appearance. Where interior and exterior present different architectural situations, assess both sides separately and then evaluate them as one configuration. This helps avoid a decision that works only in one room or only on the façade.

The bar pattern forms the fourth important level of visual coordination. A bar-free pattern focuses on the glazed area, horizontal divisions create a clear sequence of lines, and combined decorative bar patterns produce a denser grid. First choose the desired degree of division, then coordinate colour and handle with it. This order helps separate major decisions from smaller details.

07

Alternatives for other opening and design requirements

The Patio Life lift-and-slide door suits projects requiring sideways door movement and a two-frame design. If you want to compare other side-opening products, our range also includes sliding doors with GU hardware. This related product group has its own frame and leaf dimensions as well as black rubber seals, and should not be considered technically identical. Compare products by their respective construction, not solely by the general term sliding door.

Where access is specifically required through outward-opening leaves, other patio door types may be suitable. These include single and double doors, as well as heritage-style versions. These products have their own specified hardware, dimensions, materials and design patterns. Double-door versions can be particularly appealing where a classically divided door elevation suits the architectural concept; however, their opening principle differs fundamentally from the sideways movement of the Patio Life door.

Outward-opening folding doors offer another distinct alternative. Their folding leaves and corresponding patterns provide a different operating concept from a door leaf that slides sideways. An exterior door may instead suit you if you want a conventional outward-opening element and, depending on the version, wish to include glazing or panels in the design. Compare these options by operating method, material and preferred visual division.

Not every glazed façade opening needs to serve as a passage. Fixed-glazed rectangular or round windows cannot be opened and can therefore complement a design with openings intended purely for light and views. They do not replace a patio door, but can help develop a façade from movable and fixed elements. Compare timber type, possible aluminium cladding, glazing and bar patterns for each product individually.

The choice between sliding, hinged, folding and fixed-glazed elements should begin with the intended function. First decide which opening will genuinely provide access, which operating method suits the floor plan, and which areas are intended only for light or views. Only then compare visual patterns. This sequence helps prevent choosing an attractive elevation whose operating principle does not suit daily circulation. Heritage-style single outward-opening patio door, Double outward-opening patio door, Heritage-style double outward-opening patio door, Outward-opening exterior door, Sliding doors, Outward-opening folding doors, Fixed-glazed windows, Fixed-glazed round windows.

08

Enquire about your Patio Life configuration

For a focused enquiry, we first need a short description of the building project and documented dimensions of the proposed opening. Then state your preferred material version: pine, oak, or either timber with external aluminium cladding. Add whether you prefer double or triple insulating glass and which of the described bar patterns you are considering.

Also tell us your preferences for colour and handle. If specific façade lines, neighbouring window divisions or visible materials should be considered, briefly describe them and attach suitable views. For bar designs in particular, the exact pattern name is useful so that glazing-bar and decorative-bar versions can be distinguished clearly.

Patio Life lift-and-slide doors are covered by the five-year warranty for windows and doors. Once your information is complete, we can organise your requirements clearly and answer outstanding product questions directly. You will then receive a configuration based on the available materials, glazing, designs, colour and handle options.

How do Patio Life lift-and-slide doors open?

The door leaf moves sideways. This makes everyday operation different from patio doors that swing inward or outward.

Which materials are available?

You can choose pine or oak. Both timber types are also available with aluminium cladding on the exterior.

Which glazing options are available?

Double or triple insulating glass is available. Both versions have a heat-reflective coating, CHR warm-edge spacers and argon gas filling.

Are different bar patterns available?

Yes. Alongside a two-frame configuration without bars, there are patterns with horizontal glazing bars and combinations of horizontal and vertical decorative bars.

Can I choose the colour and handle?

Yes. Colour and handle are both supported options for this product. Coordinate both choices with the timber type, glazing and bar pattern.

Which hardware and glazing seals are used?

The hardware is supplied by Roto Frank. Silicone is used for the glazing seals.

Does the door carry CE marking?

Yes. Patio Life lift-and-slide doors carry CE marking.

How long does the warranty apply?

Our windows and doors come with a five-year warranty. This includes Patio Life lift-and-slide doors.

Plan your Patio Life lift-and-slide door with us

Would you like to check whether Patio Life lift-and-slide doors suit your proposed opening and design concept? Send us the key project information, your preferred timber type, desired glazing, and initial ideas for colour, handle and bar pattern. We will help you coordinate the available features in a practical way.
