Siegenia side-sliding doors

Side-sliding operation configured for your project

Side-sliding Siegenia doors

A made-to-measure Siegenia sliding door in pine or oak, optionally aluminium-clad, with glazing and design options, colour choice and a matching handle.

Operation

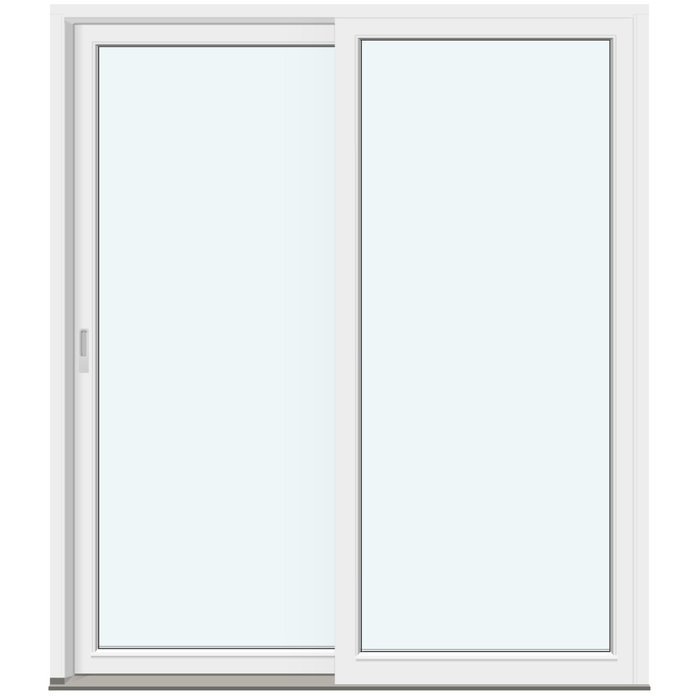

Door leaf slides sideways

Material

Pine or oak, each also available with aluminium cladding

Glazing

2- or 3-pane insulated glass unit

Hardware

Siegenia with high-security multipoint locking

01

Side-sliding operation in everyday use

The defining feature of this Siegenia sliding door is its direction of movement: the door leaf slides sideways. Its operation therefore follows a different principle from patio doors whose leaves swing inwards or outwards. When planning, you can first select the door type according to everyday use and the spatial layout.

Sideways movement can be a suitable choice where you do not want a door leaf swinging into the room or outdoors as part of the way you use the space. Still consider the whole construction, not just the direction of movement. Wall junctions, neighbouring building elements, floor build-up, and furniture or fixed fittings should be coordinated with the proposed door position. Specific clearances must always be assessed against the selected size and actual installation situation.

Siegenia hardware with high-security multipoint locking is used for operation. The hardware and locking system form part of this sliding door’s stated specification, making them an important distinction in product comparisons. You can select the handle from the options offered for the product. Consider both its visual effect and the way you prefer to use it every day.

If several door types could suit your project, start with the required movement. A side-sliding door, a hinged leaf and fixed glazing fulfil different practical roles. Only after this fundamental decision should you choose material, glazing and glazing-bar pattern. This order prevents a purely visual preference from outweighing the operational choice that matters more in daily use.

02

Timber types, aluminium cladding and component dimensions

Four material versions are available for this Siegenia sliding door: pine, pine with aluminium cladding, oak, and oak with aluminium cladding. You can therefore choose between an all-timber construction and a combination of timber and aluminium cladding. Pine and oak each have their own design character, so the choice should be made alongside existing windows, doors, façade materials and visible timber surfaces.

Aluminium cladding also changes the construction dimensions of the stated components. In the timber version, the outer frame measures 184 × 45 mm; with aluminium cladding it measures 194 × 45 mm. Without aluminium cladding, the door leaf is specified as 78 × 68 mm; with cladding, it is 78 × 78 mm. These measurements refer specifically to the outer frame and door leaf, not the overall size of the ordered door unit.

The differing component dimensions matter when coordinating the project technically. Decide whether you want an all-timber version or one with aluminium cladding before junctions are finalised. Transferring dimensions from one material version to another afterwards would not be appropriate. For clear coordination, everyone involved should use the same selected version and its corresponding component descriptions.

Material choice can consider the overall appearance as well as the individual door. Repeating pine, oak or aluminium cladding on other elements can create a calm visual link. Where a deliberate contrast is preferred, it should be clear which element takes the lead. As a colour choice is also offered, timber type, cladding version and colour can be considered together rather than separately. This avoids choices that work individually but not as the intended whole.

05

Made-to-measure production and construction planning

The Siegenia sliding door is available in made-to-measure sizes. This requires reliable project measurements that suit the actual opening and intended build-up. Width and height should be clearly identified and recorded in millimetres. Distinguish carefully between the structural opening, order size and dimensions of individual components. The outer-frame and door-leaf dimensions stated above are profile or component dimensions; they do not replace establishing the required overall size.

A diameter of 14 mm is specified for installation drill holes. This product detail can inform technical coordination, but does not by itself determine the complete fixing or junction concept. The specific installation situation depends on the existing structure and project details. Coordinate the made-to-measure element and adjoining construction before ordering, so that no conflicting measurement bases are used.

When planning, also check that the selected material version has already been considered. The outer frame and door leaf have different dimensions with aluminium cladding than in the all-timber version. This difference is particularly important where junctions or adjoining elements are fixed early. Record the material and cladding version directly with the measurements instead of keeping this information in separate planning stages.

For a specific enquiry, it is best to compile every selection point together: established width and height, pine or oak, with or without aluminium cladding, a 2- or 3-pane insulated glass unit, the preferred two-frame design, colour and handle. Add the element’s location and adjoining windows or doors where relevant to visual coordination. This lets us discuss your product selection clearly without mixing technical and visual decisions.

06

Coordinate colour, handle and overall effect

Alongside the size, you can choose the colour and handle for this sliding door. A good colour choice considers more than one sample area; it takes in the element’s entire setting. Façade, interior finishes, existing frames and other doors form the visual context. Repeating tones can help create a calm overall appearance, while contrast can deliberately make the sliding door stand out as an architectural element.

The handle is both a functional touchpoint and a visible detail. Coordinate its selection with the hardware on other windows and doors where they will be seen together. A consistent approach can visually link different opening types, while a contrasting handle can emphasise the sliding door’s particular function. Choose from the handle options offered for this product and judge the decision together with colour and material.

With unclad pine or oak, the timber construction is central to the material effect. In clad versions, aluminium becomes an additional visible component. The black rubber glazing seals and lines of the selected glazing-bar pattern also contribute. Consider these elements as one composition. A clear concept covering base material, colour, glass division and handle usually leads more directly to the intended effect than choosing every detail in isolation.

If you order several new elements, decide early which features should remain consistent. These could include timber type, colour or a recurring horizontal division. Other differences may arise from the relevant function, for example between a sliding door, a hinged door and a non-opening window. This keeps the overall appearance connected without incorrectly treating technically different products as identical.

07

Compare alternatives in the door and window range

A side-sliding door is only one possible solution for a transition between spaces. Our range also includes double patio doors with inward-opening tilt-and-turn operation, as well as single- and double-leaf versions that open outwards. Outward-opening versions are also available for heritage-oriented projects. The first key comparison point is therefore operation: side sliding, inward opening or outward opening.

A Patio Life model is available as another sliding-door alternative, with a door leaf that also slides sideways. Despite the related movement, it is a separate product with different frame and leaf dimensions, Roto-Frank hardware, silicone seals and its own choices. Compare the specific equipment of both models before deciding on a sliding door.

Not every glazed opening needs to provide access. Rectangular fixed windows and round fixed-glazed windows cannot be opened, so they fulfil a different role from the Siegenia sliding door. They can still matter visually within a coordinated façade concept through material, colour or glazing-bar lines. The comparison should distinguish function from appearance: opening type is selected for the product, while recurring design elements can visually link different components.

The products linked below help you assess these differences directly. For each alternative, check the explicitly stated movement type, available materials, glazing, hardware and purchasing options. Where two-frame or glazing-bar patterns look similar, it is especially worthwhile reviewing the individual product specification. This lets you select by the combination of use, construction and desired design, not appearance alone.

Double patio door, inward opening, Patio Life lift-and-slide doors, Single patio door, outward opening, Heritage-style single patio door, outward opening, Double patio door, outward opening, Heritage-style double patio door, outward opening, Fixed-glazed window, Round fixed-glazed window.

08

Enquire about the right Siegenia sliding door

If side-sliding operation suits your project, you can define the version step by step. Start with the preferred timber and whether to include aluminium cladding. Then select the glazing and two-frame design. Colour and handle complete the visual selection. This clear order makes it easier to distinguish technical choices from purely visual preferences while still achieving a coordinated result.

The Siegenia sliding door bears CE marking. It also carries our five-year warranty for windows and doors. Keep the clear product name and your chosen configuration with the project documentation. This makes it possible to identify the intended material, glazing and design version for the element, especially when several different doors and windows form part of the same project.

Send us your enquiry once the main project details are established. We can help match your requirements to the available versions and answer product-specific questions before selection. If you are still deciding between a side-sliding door and an alternative with another opening action, briefly tell us how you intend to use it. We can then focus the comparison on the products that truly matter.

How does this Siegenia sliding door open?

The door leaf slides sideways. Its operation differs from patio doors with hinged leaves that open inwards or outwards. This helps you select the right door type according to the intended use and spatial arrangement.

Which materials are available?

Choose pine, pine with aluminium cladding, oak, or oak with aluminium cladding. This selection lets you coordinate the door visually with other windows, doors and visible timber or aluminium surfaces in your project.

Which glazing can I choose?

2- or 3-pane insulated glass units are available. Both versions have a heat-reflective coating, a warm-edge spacer bar (CHR) and argon gas filling. This sliding door uses black rubber glazing seals.

Which hardware and locking does the door have?

The door is fitted with Siegenia hardware and high-security multipoint locking. This hardware specification applies specifically to this model and should be considered when comparing differently equipped patio or sliding doors.

Is the Siegenia sliding door available made to measure?

Yes. The Siegenia sliding door is available in made-to-measure sizes. For an enquiry, we need the measurements established for your project; construction junctions and the installation situation should be included in planning from the outset.

Can I choose the colour and handle?

Yes. Alongside the made-to-measure size, you can choose a colour and handle. Consider these decisions together so the door, hardware and adjoining elements create a visually harmonious whole.

Does the door bear CE marking, and how long is the warranty?

Yes. The Siegenia sliding door bears CE marking. It also carries our five-year warranty for windows and doors.

Which glazing-bar designs are available?

Choose two-frame configurations without decorative glazing bars, versions with horizontal glazing-dividing bars, or defined combinations of horizontal and vertical decorative bars. The specific patterns help you select a calm or more strongly divided appearance.

Plan your made-to-measure Siegenia sliding door

Planning a side-sliding door for your building or renovation project? Send us your measurements and the requirements already decided. We can help narrow down the right Siegenia sliding door version and clarify open questions about material, glazing, design, colour and handle.
