Hidden Pipes and Cables: Check a Pergola Site Before Drilling
Pergola site planning
Pergola post positions can look straightforward on a plan while pipes, cables or conduits remain hidden beneath a patio or garden. Utility records are not precise on-site mark-outs, and private services may be missing from them. Before agreeing anchor positions or digging footings, compare the model drawings with available records, arrange locating for the actual work area, and have the anchoring approach assessed for the substrate. This guide explains how to identify gaps in the evidence and resolve conflicts before drilling begins.
Why services must be checked before the layout is fixed
A post centre marks a position, but it does not show the full area affected by installation. Anchor holes disturb the substrate, while a footing excavation can affect a much wider and deeper area. Services may run under paving, cross between a house and a shed, or enter beside a wall; a cable or pipe may also be concealed within a slab or wall. Drilling, breaking concrete or excavating can damage a line even when the surface looks clear. The check matters whether anchors are drilled into a patio or footings are dug in a garden. Consider access for tools and machinery as well as the finished pergola footprint, because preparatory work can also cross service routes.
Before agreeing final post positions, compare the actual model drawings with the approved anchoring arrangement and the site. A marketing image or measured roof outline will not show anchor centres, excavation limits or what the substrate can support. Record every support and the area the installer expects to open, then have the anchoring design assessed against evidence for the ground, slab or wall. Use the current drawing revision and note any change in model or layout. Ask which document controls the final positions; there is no single footing size for every site. Service checks inform, but do not replace, a structural assessment.
Start with service records and site history
Begin with utility and building records, noting who prepared each one, its date, scale and scope. In Australia, a Before You Dig Australia enquiry can request information from relevant asset owners; read each response and follow its stated process. Check that the plan matches the site and proposed work area, and read its symbols and limitations: it may show a designed route or broad corridor rather than a verified line. These records are a starting point, not a physical mark-out of the exact route or depth. Later alterations and private installations may be absent, so blank space does not prove clear ground.
Add property-held evidence: drainage and building plans, renovation or landscaping records, invoices, notes from previous trades, and information from the owner or site manager. Ask specifically about work done after the original house plans, including irrigation, garden lighting, pool equipment, gates and sheds. Record each source and uncertainty separately; if a sketch has no scale, label it indicative rather than making it look precise. Note the pergola option under consideration—for example, Bloomcabin Pergola—so the installation enquiry can compare its intended support layout with the site's evidence. Earlier contractors may also have left useful as-built notes.
List utility and private services separately
Make a separate list of network services and property systems. The first group may include electricity, gas, water, sewer, stormwater and telecommunications; records vary by service owner and location. On the property side, check irrigation, garden lighting, pumps, pool or spa equipment, rainwater tank connections, gate motors, outbuildings, and outdoor power or data cabling. Trace a known line from its meter, controller, pump or visible entry towards the equipment where possible, and ask who installed it. Include branches to yard taps or garden structures where known. A removed appliance does not prove an old line has been removed or made safe; leave unknown or abandoned routes for professional review.
On a site sketch, distinguish recorded routes, physically located routes, owner-supplied information and unverified possibilities. For each, note its source, likely destination, untraced sections and uncertainty; also show pits, inspection openings and meter boxes that need access. Use fixed landmarks, a scale where available and a clear orientation mark so another person can relate the sketch to the ground. This prevents a guess being mistaken for a survey. When reviewing Bloomcabin Bioclimatic Pergola, compare the relevant model drawing with every support position and planned excavation, and keep the original plans alongside the provisional sketch.
Mark the full work zone, not just post centres
Once you have the current model arrangement, transfer its support or anchor positions to the ground using temporary marks that match the drawing. Outline the planned drilling, footing or trench areas as well; a centre mark alone does not show where concrete or soil will be disturbed. Use the assessed installation plan for excavation extents, anchor details and equipment clearance rather than a rule of thumb. Include the route for tools or machinery, where spoil can be placed, and any narrow access point. Give the locator that complete work zone, since set-up and movement can matter as much as the final hole.
A wall attachment also requires checks for services within the wall. With a wall-mounted pergola, mark the proposed fixing zone and check for concealed wiring, plumbing and other services in or behind the wall, as well as ground supports shown on the model drawing. Include both the fixing face and the intended drill path in the check. Add meter boxes, drains, clean-outs and inspection points that must remain accessible; a support might avoid a pipe yet obstruct future maintenance. Photograph marked areas from fixed reference points and label each image with its location and date. If positions cannot be matched clearly to the site, resolve the drawing before arranging drilling.
What a service locator can and cannot confirm

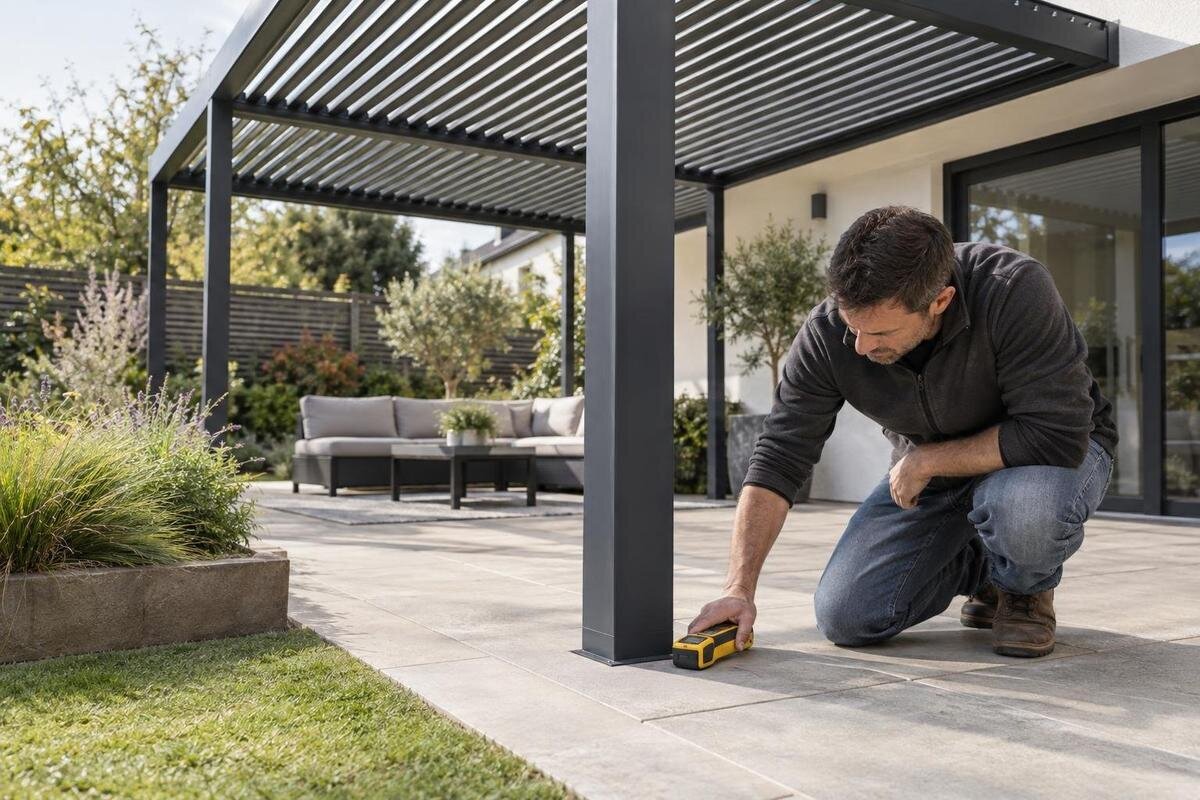

After gathering records and setting out the intended work zone, arrange a qualified service-locating provider for the actual pergola area. Share the plans, private service information, proposed anchors and full excavation limits; a general request to scan the garden may not address a particular post or wall fixing. A provider may use different tracing or scanning methods, including electromagnetic locating or ground-penetrating radar where appropriate. Ask which areas were inspected, which types of line the methods can locate, whether depth can be estimated, and how inaccessible or inconclusive sections will be reported. Request clear site marks and a written report or sketch, not only verbal directions.
Detection is another layer of evidence, not a guarantee. Equipment and ground conditions vary, and some non-metallic pipes, untraceable lines or services with no accessible point to trace may be difficult to identify. The provider should report limitations instead of labelling an inconclusive area clear; no mark does not mean no service. A painted mark shows an interpreted route, and any depth figure is an estimate unless confirmed otherwise, not an instruction for how far to drill. There is no universal clearance distance that makes an anchor safe beside every line. Follow the relevant asset owner's and locator's directions, and resolve uncertainty before work proceeds.
Check the slab and wall as well as the ground
Concrete, pavers and decking do not reveal what lies underneath. If anchors are to be drilled through a slab, look for available construction or renovation drawings and arrange an appropriate scan of the exact work area for embedded services and relevant structural elements. Reinforcement and conduits within concrete can affect where drilling is possible, but a utility scan and a structural assessment answer different questions. Neither alone proves the slab can support a pergola. Pavers over soil may conceal services without acting as a structural base; a concrete surface may also differ from what its finish suggests. Give the installer evidence of the actual substrate, not just a surface photo, and clarify any unknown construction.
The wall needs equivalent attention if the design uses wall fixings. The Bloomcabin Wall-Mounted Pergola name identifies an option, but does not establish that a particular wall is suitable or clear of services. Check wall plans and have the proposed fixing zone assessed for concealed cables, plumbing, linings and the construction behind them. Include the intended drill path rather than checking only the visible surface; mark where records end or become uncertain. Keep scanning and any opening-up within the scope of competent professionals. Do not use a wall fixing simply to avoid a ground service unless the revised overall arrangement has also been assessed.
Resolve a service clash through design review
A clash between an anchor and a service is a design issue, not a cue to shift a post by eye. Moving a support changes positions and spacing in the approved arrangement; omitting one, altering a bracket or drilling closer to an edge may also affect how support is provided. Mark the conflict on the current drawing and ask the pergola supplier, installer and relevant structural professional to review it against model documentation and substrate evidence. Keep the locator's information with that drawing so the change is considered against both constraints. Do not widen a hole or adjust an anchor on site to make it fit; a product image cannot approve an offset.
Possible responses include moving the whole pergola to a verified clear area, selecting a different layout, or considering another anchoring detail only when it has been designed and approved for that model and substrate. For the Bloomcabin Pergola model, as for any option, reconcile the site with the relevant drawings; the product name does not define a universal footing. If the asset owner or locator identifies clearance or access requirements, show them on the revised plan rather than inventing a distance. An alternative is not approved merely because it avoids the marked line. If a route remains unknown, delay the affected work until it is resolved.
Set hold points for drilling and excavation
Use a hold point between locating and drilling. First set out the approved layout and have the locator assess the complete work zone; then check that the marks still correspond to the drawing and the planned bore, footing or trench lies within the area reviewed. Paint and flags can be disturbed by rain, traffic or later landscaping, so ask the locating provider to confirm or refresh unclear marks. Keep the plan, report and site contact details available to the crew. When confirming the work area for the bioclimatic pergola model, share the current drawing so each mark has a clear reference. Repeat this check after any set-out change.
Brief everyone who will drill, break paving, excavate or move equipment about known routes, restricted areas and unresolved sections. Machinery access and spoil placement also belong in the plan; ask relevant professionals or asset owners whether these could affect a line. On a managed property or workplace, coordinate any site-specific permit-to-dig or work-control process with the owner. The excavation method and approach near a service need competent, site-specific direction; this guide cannot set a clearance or tool method for a particular line. Make sure the crew knows who can authorise work to proceed at each hold point and who to contact if site conditions differ from the plan.
Give the installer a clear evidence pack
Give the installer or assessment team a concise evidence pack: exact pergola model and drawing revision; measured site plan with proposed supports and work extents; service-plan responses and dates; notes about private lines; locator report and marked-up sketch; dated photos from identifiable reference points; and available slab or wall information. Label attachments so they can be matched to the drawing, and mark what is confirmed, estimated, disputed or unknown. Include any asset-owner instructions and questions still to be answered. The point is not for the buyer to certify a service map; it is to let the people responsible for design and installation see what evidence exists before an anchoring arrangement is approved.
For a wall-mounted model, include wall construction details, proposed fixing points and known services in or behind that surface; for any layout, show every ground support and excavation area. Ask which drawing controls the installation, what substrate assumptions it relies on, who will resolve each unknown and what changes trigger a fresh assessment. Ask for the answer to be recorded against a drawing revision and date, including any hold point before work. Send the evidence before a site visit where practical, so the visit has a defined scope. This helps prevent a later crew relying on a superseded sketch or informal conversation.
Keep the service plan current during the work
Keep the site plan current until the work is complete. Record the locator's marks on the plan in relation to fixed reference points, label estimates and uncertainty only as reported, and photograph site markings before they are covered or disturbed. Record who located the area, when, what was included and any excluded zone; never show an untraced section as clear. If the pergola position, anchor point, excavation extent or work method changes after locating, pause for the effect to be assessed. The locating result applies to the area and layout reviewed, not automatically to a revised plan. Keep the final as-built information with the property records.
If the crew finds an unrecorded pipe, cable, duct or other unexpected obstruction, stop the task and keep people clear while the site manager or relevant service owner arranges assessment. An obstruction may not be a utility, but it still needs to be identified before it is disturbed. If damage or immediate danger occurs, use the site's emergency response and the utility owner's instructions; do not handle a damaged line or try to identify it by cutting. Record the assessment outcome and any agreed layout changes before work resumes. Keep the updated service information with the installation records for Bloomcabin’s bioclimatic pergola so it is available for future repairs.
Frequently asked questions
Are utility plans enough to start digging?
No. Plans show recorded information and any stated limitations; they do not physically confirm an exact route on the ground. Compare them with property records and arrange locating for the marked work area. Treat missing, private or changed services as unresolved until they have been assessed.
Do I need checks before drilling into an existing concrete slab?
Yes. Cables, conduits and other embedded items can sit within or below the slab. Use available construction records and arrange suitable locating for the actual bore positions. Separately confirm that the slab and proposed anchoring detail are suitable; locating a service does not establish structural capacity.
What if a garden pipe is not shown on utility plans?
Check property and landscaping records, and ask the owner, site manager or previous contractor about private additions such as irrigation, lighting and pumps. A qualified locator may be able to trace a route from an accessible point. If it cannot be confirmed, treat it as unknown rather than assuming it is inactive.
How far should pergola anchors be from a marked service?
There is no universal setback that suits every service, site and work method. Follow the service owner's and locator's directions, and have the anchor layout reviewed accordingly. Do not choose a distance from a generic online rule or assume that drilling just beyond a paint mark is safe.
Can the installer move a post to avoid a cable?
Not without a design review. Changing a support position can alter the approved anchoring arrangement and must be checked against the model drawing, substrate evidence and service information. If an approved alternative is not available, pause the affected work and revise the layout with the responsible professionals.
A sound decision about where to drill combines service records, on-site service locating and an anchoring plan assessed for the actual site. The useful result is a marked drawing that shows every support and work extent alongside known routes, the limits of the locating work and unresolved areas. If the evidence does not support the proposed positions, the layout needs further investigation or redesign before anyone drills.
