Designing a Corner Window: Glazed Junction or Corner Post?
Designing a corner window
Treat the corner as part of the room and building envelope, not simply as two windows meeting. It changes daylight, furniture placement and the view in two directions while concentrating decisions about structure, weatherproofing, wall build-up and frame connections. The first design choice is whether the glass should visually turn the outside corner through a narrow junction or stop at a visible post. The first option emphasizes continuity; the second gives the frames a defined centre and may make fixed and operable sections easier to arrange. Compare the interior view, daily routines, dimensions, support strategy and connection drawings before choosing sashes, glazing bars or order sizes.
01 / Set the room priorities
Judge the corner from where the room is used
Rather than beginning outside the house, stand where people will actually sit in the finished room. At a glass-to-glass corner, the view reaches the building edge with very little interruption. In a dining area, beside a sofa or near a workspace, this can make the landscape feel more present. The corner also becomes a strong design feature, so window dressings, tall plants and full-height shelving in front of it will be more noticeable. A corner post instead directs the eye into two clearly framed views. That is not simply a compromise. On a divided façade, with smaller wall areas or in a deliberately traditional design, the vertical line may provide the more satisfying visual anchor.
Check the view at different times of day and from both directions in the room. One side may look onto a garden, while the other faces a neighbouring building, driveway or less appealing wall. In that case, an uninterrupted panorama is not automatically the greatest benefit. On the floor plan, mark where people will sit, stand and move; include table height, chair backs and likely curtains. This makes it easier to see whether the corner genuinely opens the desired view or whether a post would provide welcome orientation. Ask for an interior elevation showing the proposed frame widths, not only an exterior view. Day to day, a corner is experienced mainly from inside.
The junction changes the construction problem

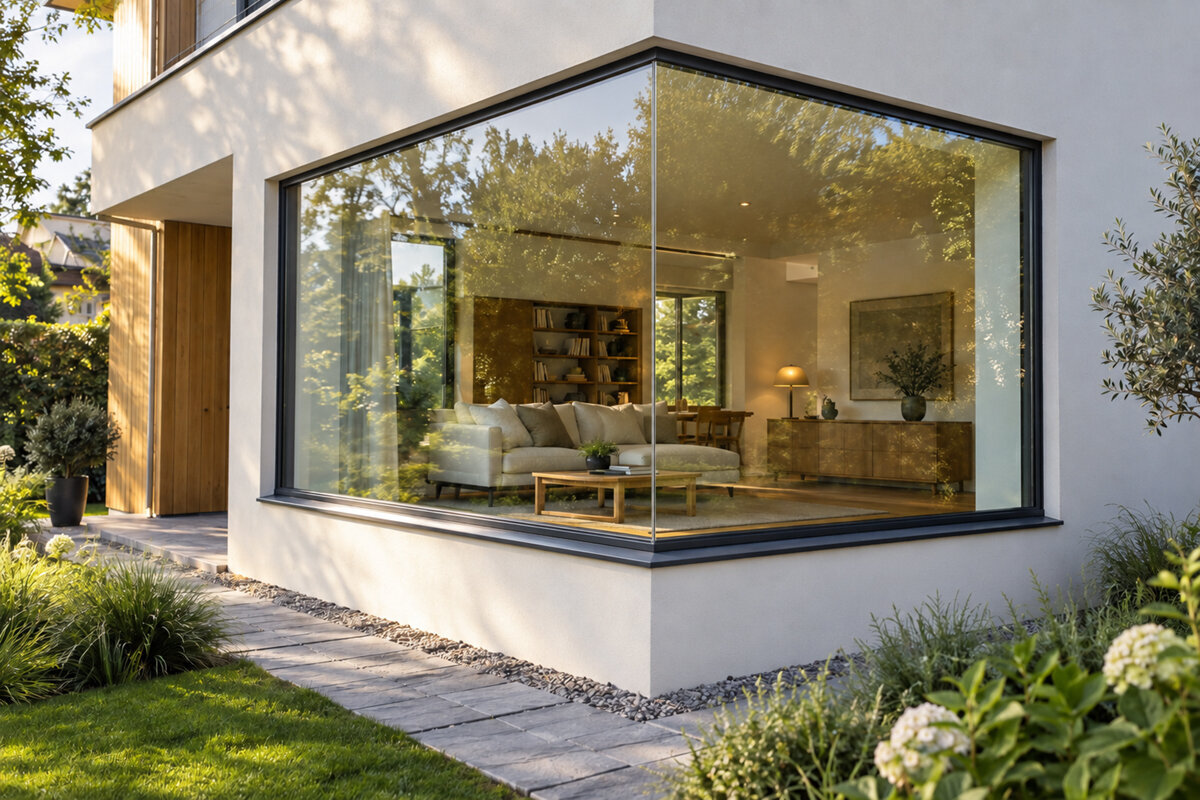

At a glass-to-glass corner, two glazed units meet at the building edge. The transition should read as a narrow, quiet joint, but it must accommodate movement and the connections within the assembly. It is not an ordinary fixed pane that can simply be joined at the end. Structure, frame arrangement, glass build-up, sealing strategy and the adjoining wall all need to work together from the outset. The qualified project team must determine whether, and how, loads above the opening are supported. A minimal-frame appearance must not imply that the corner itself is structural. When comparing options, request more than elevations: ask for a horizontal section at eye level and a vertical section through the head and sill. These should clearly identify the glass joint, frame position, post, adjacent wall build-up and visible interior edge. Only this comparison reveals whether two outwardly similar proposals truly deliver the same construction and room experience.
A corner post visibly connects two window walls. It creates a defined place where frames meet and where the support arrangement can often be represented more clearly in the design. Even so, this is not a standard detail that needs no review: the post width, its position relative to the façade plane, and interior and exterior connections all influence the proportions. Choose a post as an intentional design element rather than accepting it as leftover space. Compare slimmer and more substantial options in a scaled drawing. The narrowest visible width is not the only consideration; it should relate well to storey height, window divisions and other vertical façade lines. Also decide whether the post should appear centred inside, shifted toward one window or aligned with a wall edge. Its position affects the sill, trim and furniture layout as well as the exterior composition.
02 / Decide what should open
Keep the corner visually quiet; place ventilation where it works
The most successful corner is often largely fixed. Fixed panes need no sash movement or handles across the glass, keeping the composition quiet. A fixed window can be a starting point for a broad, unobstructed window wall. Its product title identifies fixed glazing, not its suitability as a complete corner solution. Dimensions, fixing, connections and combination with adjoining elements still require separate planning for the specific corner. Ask which area truly needs to open and which is only for light and outlook. This prevents a panoramic area from being overloaded with unnecessary moving parts. Also identify the ventilation already available through other windows or doors. The desired opening at the corner can then be judged by how the room is used rather than by symmetry alone.
Ventilation should be located where it is easy to operate in everyday life. An opening sash directly at the corner can work if it remains reachable and does not clash with furniture. Often, however, it is more practical to place the opening beside the corner and retain a fixed glazed corner. Consider cleaning, a handle behind a dining table and the area a sash occupies when open. A single-sash inward-opening window illustrates the separate category of inward-opening single windows. Whether it can be combined with a corner construction is a project-specific question. Record the preferred opening direction on the floor plan early. Note where the handle will be operated from and which area must be reached for cleaning.
Check swing clearance inside and outside
An inward-opening sash affects furniture, curtains and circulation inside the room. Do not measure only the window width; draw the true swing area. In a kitchen corner, upper cabinets, faucets or lights can make operation awkward. In a living room, an armchair may occupy the exact path of the sash. Outward-opening options shift that movement outside, but they also need clear space and must be coordinated with patio use, planting and shading. The choice concerns the full setting, not merely the preferred façade appearance. Assess the sash when shut, fully open and in the position normally used for short ventilation.
For higher or shallower openings, an outward-opening top-hung window may offer a different operating approach. It is not simply a substitute for a full corner sash, but a way to separate ventilation deliberately from the large glazed area. Before choosing it, establish who can reach the handle, how the sash will be managed in wind and whether exterior shading can move independently. Cleaning also needs a clear practical method. State the requirement precisely: “the left-hand panel should ventilate, while the right corner should keep the view clear” is more useful for planning than “the corner should open.” Add whether operation over furniture is acceptable or access must remain permanently clear.
03 / Resolve construction and interfaces
Carry the façade lines around the corner
A corner window feels convincing when its divisions relate to the other openings. Compare sill heights, head lines and vertical joints with windows beside and above it. A glass-to-glass corner can visually pull two façade planes together, making misaligned lines especially noticeable. A corner post, by contrast, can form a deliberate break and organize different window widths on either side. Include exterior components in the drawing: downspouts, roof overhangs, reveals and solar-shading boxes can influence the clarity of the corner more than the glass itself. Review the proportions straight on and from an oblique approach, where frames, posts and wall edges overlap.
Glazing bars deserve their own decision. Decorative bars create a grid without structurally dividing the glazing; true divided-light bars separate the glass. Both behave differently at a corner than on a straight window wall, because the grids meet at the building edge. Decide whether lines should continue around the corner, mirror one another or stop deliberately. An outward-opening “Kombi” casement window can illustrate a divided window appearance, without establishing how a particular corner must be constructed. Ask to see both façade elevations side by side. That is the clearest way to tell whether glazing bars and the post form one composition or collide by chance. Record the height and reference point for each line so varying window widths do not create offset grids.
Draw the joints, not only the finished view
A corner brings together more layers than a single window in a straight wall: interior finish, structural or bracing components, insulation, exterior cladding and window connections must be treated as one coordinated detail. What matters is a connection strategy that protects joints from weather, sensibly coordinates the interior and exterior layers, and accommodates anticipated movement. A slender glass corner is particularly unforgiving of unclear transitions because broad frames cannot conceal them. The construction drawing should therefore go beyond a perspective image. Ask for sections through the corner and for clear responsibility for coordination between the window supply, structural work and façade work. At minimum, request a section at sill level, a head detail and a representation of the lower connection. Compare not just the lines but also the installation sequence: a detail can look coherent on paper while leaving unclear which trade works first or which surface must remain accessible later.
A corner post does not remove the connection challenge, but it makes the dividing line visible and often easier to follow. Side and upper connections still need to suit the wall build-up and weatherproofing. Timing matters: if window dimensions are ordered before the governing wall and façade details are resolved, an improvised transition may result. Agree which dimensions refer to rough openings, finished façade sizes and clear glass or frame dimensions. Name the reference plane on every drawing. This straightforward discipline prevents confusion when several trades work on the same corner. Add an approval field for drawing revision and date so site measurement, quotation and shop drawings do not accidentally rely on different versions. Any change to wall thickness or façade build-up should be checked against the corner detail again before ordering.
04 / Test comfort and access
Balance sunlight, privacy and shading
Two glass directions also bring two different patterns of light and heat. A corner may be bright from one direction in the morning and another later in the day, while screen reflections or glare at the dining table may develop. Observe the site before deciding on glass areas: where will the screen, bench seating and cooking zone be? Which outdoor spaces are used in summer? More glazing is not automatically more comfortable if it makes the room difficult to furnish. The design team can assess the proposed glazing and summer comfort as part of the whole project. For buying decisions, it helps to write down the desired light quality and troublesome times of day. Treat the two orientations separately rather than setting one requirement for the entire corner window.
Exterior and interior shading perform different jobs and change how the corner looks. At a glass-to-glass corner, the guides should not visually overwhelm the narrow transition or block operation. At a corner post, the vertical line may provide a logical split for separate elements. Plan privacy just as specifically: one side may face an open garden while the other looks toward a nearby path. Transparency, opening and shading can then be handled differently on each side. Coordinate the sill, curtain track and possible insect screens early, so they do not become conspicuous additions after installation. Also ask where controls, guide rails and fabric stacks sit when open, and how much glass they cover.
Give patio access its own job
Where the corner meets a patio or balcony, the door question should be resolved separately. An entrance needs a clear travel route, enough free space for opening or sliding, and an interior-to-exterior floor connection addressed in the project design. A glass corner should not have to function as the view point, ventilation sash and main passage simply to minimize framing. The composition is often calmer when the corner ends in fixed glazing and the access sits on an adjoining window wall. Views, furniture placement and circulation can then each be organized more clearly. On the floor plan, mark both the everyday route and occasional situations, such as carrying out larger items or moving patio furniture.
A Patio Life lift-and-slide door identifies a lift-and-slide door as a separate door configuration and can be considered as an adjoining element in an overall design. Other sliding doors may also be separate access alternatives. Product titles do not establish a particular threshold, size or corner coupling. Instead, work through the questions in order: where does the passage begin, where will an open element sit, and where is space left for seating? A hinged patio door raises the same questions differently because its swing area must be allowed for. Draw a typical sequence: carrying a tray from the kitchen, operating the door, two people passing through and a chair on the patio. Everyday scenarios quickly show whether an elegant concept will also be practical.
05 / Turn the design into an order brief
Survey renovations differently from new construction
In a new build, wall axes, the lintel zone and window divisions can be coordinated comparatively early. In a renovation, existing openings, floor supports, services and the façade build-up set the limits. A seemingly straightforward enlargement into a corner can therefore trigger significant work. Have the existing construction professionally surveyed before the desired corner view becomes a fixed requirement. Relevant information includes not only visible dimensions, but also layers behind plaster or cladding and the role of the adjoining wall. On-site measurement and coordinated drawings provide a stronger basis than dimensions from old building plans. Record discrepancies and concealed areas explicitly so they do not silently become assumed facts in the quotation or order.
In older buildings, the existing architectural language is also a helpful guide. A double-sash inward-opening window is an example of a double inward-opening window category; whether that division suits a particular existing building and corner must be assessed separately. Sometimes a corner post with clearly defined sashes fits an established façade order more convincingly than an almost frameless glass corner. Conversely, a modern addition may intentionally take a different approach. Do not decide from one elevation alone. Place the existing-building photo, full façade, floor plan and section together, then define which existing lines should continue and which will deliberately change. Check interior reveals, sills and existing linings too, as these may not appear in exterior photos.
Make every quotation answer the same brief
A comparable quotation requires more than width and height. For each window wall, describe its position in the building, fixed and opening panes, opening direction, divisions, handle side, desired interior and exterior appearance, and planned connections. Add the wall build-up, façade plane and whether the corner should be glass-to-glass or use a post. For special shapes, fixed triangular and angled windows can provide additional fixed glazing in the same room; the title confirms only the fixed triangular and angled forms. It does not establish how they connect to a corner assembly. Every interface needs a project-specific technical review. Request quotations using the same option structure: a glass-to-glass corner, a corner post and, where useful, a simpler arrangement with two separate window openings. Require suppliers to list deviations, excluded work and unresolved details. This prevents packages developed to different levels of detail from appearing directly comparable.
Keep unknowns on the checklist instead of allowing them to become assumptions. Ask the supplier and project team to identify the visible corner widths, frame and joint positions, opening panes and controls, cleaning method, governing connection drawings and person responsible for final dimensions. For a Canadian project, confirm with the provincial or territorial authority and municipality which adopted code, zoning review and permits apply; the National Model Codes are models rather than one automatically applicable national rule. Set supplier timing against the construction schedule: Bloomcabin states delivery in 4–6 weeks, subject to order confirmation, and a 5-year warranty for windows and doors. Neither statement confirms suitability or a completion date for a particular project. Place the approved configuration, colours, divisions, opening directions, connection drawings and assigned responsibilities in one final check before ordering.
Common questions
Is a glass-to-glass corner always better than a corner post?
No. A glass-to-glass corner prioritizes the least interrupted outlook, while a corner post clearly organizes the façade and creates a defined frame line. The deciding factors are the room view, structural and connection planning, ventilation needs and relationship to the other windows. Either approach can be architecturally coherent.
Can a corner window open completely?
Opening panes can be included as a planning requirement, but the final solution depends on construction, pane layout, opening direction and connections. Often, the immediate corner remains fixed while an adjoining pane provides ventilation. This more clearly separates operation and furnishing from the calm appearance of the corner.
What measurements do I need for an initial enquiry?
For each window wall, useful information includes rough-opening width and height, wall build-up, façade plane, floor-plan position and photos of the existing conditions. Add the desired glass or post corner, fixed panes, opening directions and divisions. Dimensions and details still need project-specific checking and final coordination before an order is placed.
How should I plan privacy at a corner window?
Assess the two view directions separately. One side may remain transparent while the other needs more privacy. Decide early where curtains, interior treatments or exterior shading will run. These elements affect both operation and appearance, particularly where the glass-to-glass corner is intended to remain visually restrained.
Should the patio door form part of the corner?
It can work, but it is not necessarily the best arrangement. Review the walking route, room for hinged or sliding elements, furniture and exterior space. A fixed glass corner beside separately positioned access separates the view from circulation, often resulting in a clearer and more practical room layout.
From concept to quotation
A successful corner starts with the room rather than the junction. Choose glass-to-glass where a broad, connected outlook is central to the design and the demanding interface can be coordinated properly. Choose a post where the façade, operable sections or interior layout benefit from a visible dividing line. Establish the important views, room use and ventilation first; then resolve structure, wall build-up, shading and weatherproof connections with the appropriate professionals. Complete drawings and a disciplined question list provide a sound basis for measurement, quotations and the final order.
