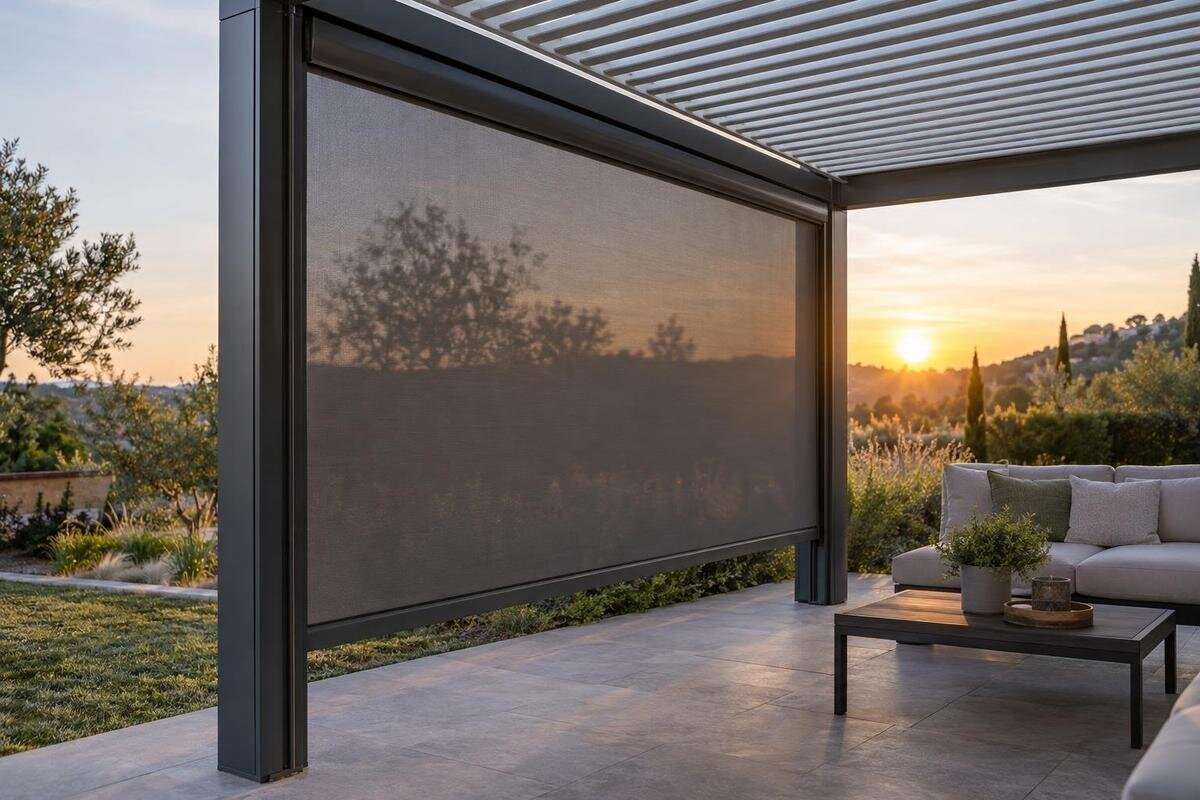

Retractable Pergola Screens: Storage and Side Guides
Pergola planning guide
A retractable pergola screen occupies space in two states: across an opening when deployed and in a separate storage zone when retracted. Planning only for the opening can leave the housing, guides or service points competing with posts, doors and furniture. Before selecting a screen, obtain drawings for the exact screen and pergola combination. Mark its stored envelope, full travel path, attachment points and maintenance access on the same plan. A model name or floor-area range does not prove that a particular screen fits.
Opening dimensions and the screen’s two positions
Start with the side opening you want to cover, then show the screen fully deployed and fully retracted. Retractable describes movement, not the way the material is stored: one design may roll into a housing, while another may gather differently. Use the selected screen’s drawing to show its actual stored shape, the location of the moving edge and any intermediate positions the supplier permits. If you have not selected a screen, mark these details as unknown rather than borrowing measurements from a photograph or another model. For more than one possible side, label each opening and show which direction the screen travels.
On the same plan, mark the finished faces of posts, nearby beams, wall returns, paving, door openings and anything fixed beside the opening. Record where each measurement begins and ends; a span between post centres is not the same as clear width between finished surfaces. The Bloomcabin Pergola product listing identifies a model and a listed floor-area range from 9 to 24 m², but area does not give the side opening or prove screen compatibility. Request dimensions for the selected frame and proposed screen together, and label each measurement so the installer can check the same points. Give each opening a simple reference, such as the side facing the garden or the house. Use that reference consistently on sketches and in the quote so that a dimension for one side is not mistaken for another.
The screen’s retracted storage envelope
Record the retracted assembly’s full outside dimensions, not just the screen material or a visible tube. Depending on the approved design, the stored assembly may include a cover, end caps, brackets, a cassette or gathered material; the supplier’s drawing determines which parts apply. Ask for its overall height, width and projection, plus separate clearance for installation, removal or service. Confirm whether the dimensions include the mounting hardware and whether anything extends beyond the ends of the opening. Keeping service clearance separate from the space occupied by the screen helps prevent a close fit from becoming inaccessible.
Overlay those measurements on the pergola elevation. Check for conflicts with beams, moving roof components where present, drainage parts, wall trim, lights, door heads and nearby windows. An overlap may block an access point even if the screen can still move. When comparing the Bloomcabin Bioclimatic Pergola with your layout, use a drawing for the exact frame and proposed screen to establish where the housing sits and how far it projects. Show the housing outline separately from the space needed to open or remove its cover. This lets you distinguish a physical clash from an access problem without treating either as acceptable. Have the installer review the arrangement before placing other fixtures in that zone. If the housing would remain visible through a nearby door or window, include that view in the comparison rather than assessing its position only from outside.
Guide clearance at posts, walls and corners
At each end of the opening, draw the post or wall face and the guide as separate parts. Ask for the guide’s installed width, depth and any cover or bracket that projects into the opening; do not treat it as a hairline on a sketch. Compare the clear opening before and after the guide is fitted, using finished surfaces as reference points. Check the narrowest area, including a post that changes width, a trim return, railing, door casing or handle. If the support surface changes along the route, mark that for review rather than assuming a guide can bridge it.
A nearby wall or post is not automatically an approved mounting surface. The screen supplier should identify the support and fixing arrangement for the exact frame, and a qualified installer should confirm that the site matches the drawings. Avoid planning an improvised spacer, drilled post or relocated guide to resolve a clash. For the Bloomcabin Wall-Mounted Pergola, ask how the proposed guide would fit beside the wall return and adjoining finishes. Show siding, trim and any door frame on the elevation so the available clearance can be assessed against the finished surfaces. Record the tightest point rather than using an average gap along the post. Where a handle or other projecting fitting is nearby, show its position with the door open as well as closed. These details help separate the space available for the guide from the space that must remain usable beside it.
Side-guide profiles and attachment details
If the chosen screen uses side guides, ask for a detail drawing of the complete assembly, not just its outline on the pergola elevation. It should show how the guide relates to the moving screen edge and identify the covers, brackets and end components used in that design. Confirm which face of the support the guide is designed to sit on and how its ends meet the housing or the lower part of the opening. Ask which parts need to remain accessible after installation. Keep the supplier’s component names on the drawing so that questions about a bracket, cover or guide refer to a clearly identified part rather than an ambiguous photograph.
Ask the manufacturer to confirm the approved attachment points and required clearances for the selected pergola configuration. A generic rail symbol on a plan may not show how the guide meets the support or whether nearby trim blocks access. For the regular pergola model, request confirmation that the proposed guide arrangement is approved rather than inferring suitability from a model name or product image. Keep questions about attachment separate from questions about appearance: a neatly aligned guide still needs an approved connection to the frame. If more than one attachment arrangement is offered, ask the supplier to identify which one the quote and drawing use. One marked detail showing the post face, guide profile, attachment location and adjacent trim gives the manufacturer and installer clearer information to review than a note saying “screen to fit”. Record any agreed change on that same detail.
Clearance along the screen’s travel path
Trace the screen’s complete route between its deployed and stored states, not only the two endpoints. Depending on the design, a bar, screen material or another component may pass through part of the opening or move beside it. Ask the supplier to mark the full travel envelope and any supported stop positions. If the screen changes direction or meets another guide at a corner, have that movement shown rather than assuming that a route that looks clear in plan will also work in elevation. Use the clearance specified for the selected system instead of choosing an arbitrary gap.
Overlay the route on how the pergola is used. Show chairs pulled out, doors fully open, planters, a barbecue, storage bins and hooks that tend to remain in place. Distinguish fixed conflicts from movable ones, but do not rely on shifting a bulky item every time the screen is used. For a Bloomcabin Bioclimatic Pergola configuration, ask the supplier to mark the proposed screen travel against the selected frame; a pergola footprint is not a travel-clearance measurement. Check the furnished layout with the screen partway through its route as well as at each end. An item that clears the stored assembly may still occupy the space through which a moving component passes. Leave any control or release area reachable if the approved system has one, and show how someone would approach it without stepping into the screen’s travel path.
Sightlines around stored screens and guides
Storage housings and side guides can sit in a sightline even when the screen is retracted. Sketch the view from the seats or standing positions that matter, then draw the actual guide and housing outlines onto the pergola elevation. Compare both screen positions and include the view through nearby doors or along a usual walking route. A simple marked photograph or sightline sketch can reveal whether the chosen housing occupies an important view or a guide narrows a passage. Check the physical outline of the selected system rather than relying on a general illustration.
If two sides or a corner are to be screened, check where each guide ends, where each screen is stored and how the corner is meant to work. Two systems may need a specific junction detail; do not assume that their guides can meet, overlap or leave no gap. When considering the Wall-Mounted Pergola model, include both openings and the adjoining wall in the corner sketch. Show the direction each assembly retracts and ask for a drawing of the proposed junction. Compare the corner with both screens stored, both deployed and only one deployed, if those combinations are permitted. This keeps the review focused on the arrangement you intend to use rather than a single presentation image. If the corner is visible from a main seat or doorway, use that viewpoint when assessing the combined outlines of the guides and housings.
Access for cleaning and inspection
Plan service access at the same time as storage. Ask the screen supplier which parts need routine cleaning or inspection, where they are reached from and whether a cover or end component must be removed by a technician. A housing close to a wall or beam can be hard to reach even if it clears other pergola components. At guide level, note whether the ends or other areas need access under the manufacturer’s care instructions. Do not close in a service area with permanent trim unless the design explicitly allows it. Access for a repair may differ from the space needed for routine cleaning, so ask about both.
Show a usable approach to the service side after furniture, planters and doors are in their ordinary positions. Ask whether access is needed from inside, outside, above or at an end, and what method the manufacturer expects; do not assume that cleaning from a ladder is appropriate. If you are planning around the Bloomcabin Pergola catalogue model, add the proposed screen’s maintenance access to the frame drawing rather than treating it as a separate issue. Have the installer confirm the approach before ordering. Mark both the area where a person would work and any space needed to remove a cover or component, as specified by the supplier. Note which furnishings could reasonably be moved and which features are permanent. A labelled area with a clear approach is more useful than a note that simply says “access to be provided”.
Maintenance instructions for the chosen screen
Maintenance methods depend on the actual screen material and operating system, so get the care sheet for the exact accessory rather than following generic advice for outdoor blinds. Ask how the screen, guide channel, housing and exposed fittings are to be cleaned and inspected, and which substances or tools to avoid. Pollen, dust and leaves can collect around outdoor equipment, but the supplier’s instructions should determine how to remove debris without pushing it into a guide or damaging a surface. Do not assume that pressure washing, solvents, abrasives or lubrication are suitable.
Ask who supplies the care instructions if the pergola frame and screen come from different sources, and keep the product identification with the drawing. When selecting the Bioclimatic Pergola model, identify the proposed screen separately so that its care instructions are not confused with those for the frame. Ask which checks an owner may carry out and which require service, rather than guessing from how easy a part is to reach. Keep a record of the screen model and the instructions supplied at handover, including any guidance for its controls or operating mechanism. If a part is later replaced, ask whether the care guidance changes and retain the relevant information with the original record. This gives anyone responsible for upkeep a clear reference instead of leaving them to identify the system from its appearance or follow advice intended for a different accessory.
Weather limits and operating guidance
Before deciding how the screen will be used, get its stated operating limits from the manufacturer. Ask how the supplier expects it to be positioned in wind, rain, freezing conditions or when snow or ice may be present. Do not guess a speed or temperature from another product. A retractable side screen should not automatically be treated as a wind-rated wall, weatherproof enclosure or substitute for a fixed barrier. The maker’s instructions should explain the intended use and any conditions in which the screen needs to be retracted or left unused.
Work those limits into the layout and the household routine. Make sure the operating position is reachable without shifting furniture, and leave room to inspect or clear the guide in the manner the care instructions allow. Ask what to do if the screen stops, binds or meets resistance; do not force it or improvise a repair. If exposure at the site is a concern, describe the conditions to the installer and ask whether the proposed accessory is approved for them. A general screen description cannot answer that model- and site-specific question.
Confirming compatibility and what is included
Before ordering, bring the pieces together in one coordinated drawing or schedule. Identify the pergola model and configuration, the screen model, the sides covered, clear opening measured between finished faces, guide profile, housing envelope, full travel path, supported stop positions and service clearances. Mark fixed obstructions and any dimensions that remain unconfirmed. Ask the supplier to state which screen, guides, covers, controls and installation work are included in the quoted scope and which, if any, are separate. Do not read inclusion into a product image or a broad product description.
Have the manufacturer’s representative or a qualified installer review the combined drawing and confirm compatibility for the exact frame and site. Resolve clashes before ordering rather than relying on an installer to adapt an unapproved guide or attachment on site. At handover, keep the final drawing, product identification and care instructions together, then compare the installed storage position and service access with the approved plan. A complete layout accounts for what is stored, what moves and how the parts can be maintained, not simply the width of the opening.
Frequently asked questions
How much space does a retracted pergola screen need?
There is no universal clearance. Ask for the selected screen’s full stored dimensions, including its cover and mounting hardware, and keep any separate installation or service clearance on the drawing. The required space depends on the screen design and the pergola configuration.
Will a retractable screen fit any pergola?
No. The frame, opening dimensions, guide arrangement and approved attachment points all matter. Have the supplier confirm compatibility for the exact pergola model and configuration; a screen shown in a photograph or sold for another frame is not proof that it will fit.
Can a side guide be attached to an existing wall or post?
Only if that support and attachment arrangement are approved for the chosen screen and pergola. Ask the supplier to identify the fixing detail, then have a qualified installer confirm it suits the site. Do not assume that a nearby surface is an acceptable mounting point.
What access should I leave for screen maintenance?
Follow the care and service instructions for the exact screen. Ask which parts need to be reached, from which side and whether any cover or component must be removed. Include that working space on the plan, and make sure furniture or permanent trim will not block it.
Can I leave a pergola screen down in wind or winter weather?
Do not assume that every screen is intended to remain deployed in wind, rain, freezing conditions or when snow or ice is present. Request the manufacturer’s operating limits and instructions for the specific system. Do not use limits from another screen as a substitute.
A useful screen plan shows the deployed opening, the retracted assembly, the route between them and the access needed for maintenance. Reserving the dimensions confirmed for the chosen screen, rather than guessing at a standard clearance, makes it easier to assess whether the guides and storage fit the pergola and the way the space is used.
